Murata Power Solutions

- Murata Power Solutions designs and manufactures DC/DC Converters, AC/DC Power Supplies, Magnetics, Data Acquisition devices and Digital Panel Meters, and offers these products in custom, standard and modified-standard variations. Currently the world's number 1 supplier of DC/DC converters and one of the top 5 largest suppliers of power electronics overall, our products are used within numerous applications including telecommunications, computing, industrial, medical, office-equipment and more.

Murata Power Solutions was formed in 2007 when Murata Manufacturing Corporation acquired the power electronics division of C&D Technologies. We are headquartered in Mansfield, Massachusetts (USA) with over 1,300 employees in locations in the USA, Canada, Mexico, England, France, Germany, Japan, China and Singapore.

Part Number
Manufacturer
Description
Unit Price
In Stock

28224C 28224C

Murata Power Solutions
Manufacturer : Murata Power Solutions Inc.
Packaging : Tape & Reel (TR)
Alternate Packaging
Series : 2800
Part Status : Not For New Designs
Type : Wirewound
Material - Core : -
Inductance : 220µH
Tolerance : -
Current Rating : 1.2A
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 381 mOhm Max
Q @ Freq : 18 @ 800kHz
Frequency - Self Resonant : 5.8MHz
Ratings : -
Operating Temperature : -40°C ~ 125°C
Inductance Frequency - Test : 10kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.728" L x 0.598" W (18.50mm x 15.20mm)
Height - Seated (Max) : 0.299" (7.60mm)
0
350 in stock

28225C 28225C

Murata Power Solutions
Manufacturer : Murata Power Solutions Inc.
Packaging : Tape & Reel (TR)
Alternate Packaging
Series : 2800
Part Status : Not For New Designs
Type : Wirewound
Material - Core : -
Inductance : 2.2mH
Tolerance : -
Current Rating : 350mA
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 3.72 Ohm Max
Q @ Freq : 15.8 @ 800kHz
Frequency - Self Resonant : 3.3MHz
Ratings : -
Operating Temperature : -40°C ~ 125°C
Inductance Frequency - Test : 10kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.728" L x 0.598" W (18.50mm x 15.20mm)
Height - Seated (Max) : 0.299" (7.60mm)
0
100 in stock

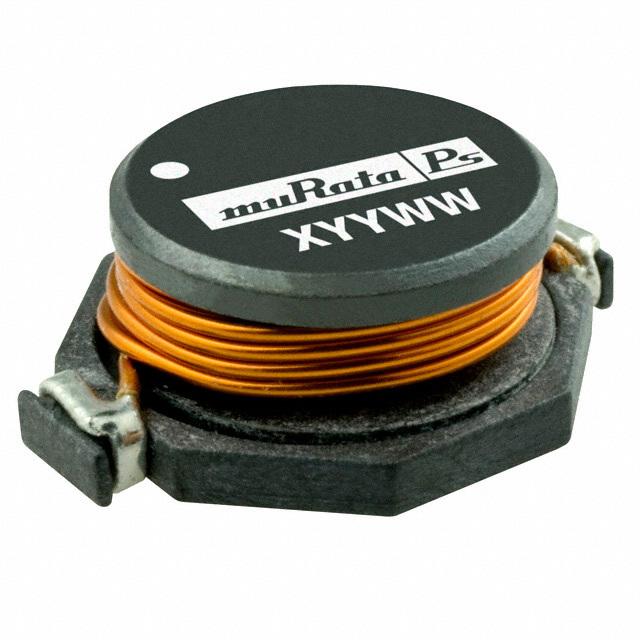

28334C 28334C

Murata Power Solutions
Manufacturer : Murata Power Solutions Inc.
Packaging : Tape & Reel (TR)
Alternate Packaging
Series : 2800
Part Status : Not For New Designs
Type : Wirewound
Material - Core : -
Inductance : 330µH
Tolerance : -
Current Rating : 950mA
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 575 mOhm Max
Q @ Freq : 30.8 @ 800kHz
Frequency - Self Resonant : 5MHz
Ratings : -
Operating Temperature : -40°C ~ 125°C
Inductance Frequency - Test : 10kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.728" L x 0.598" W (18.50mm x 15.20mm)
Height - Seated (Max) : 0.299" (7.60mm)
0
350 in stock

28335C 28335C

Murata Power Solutions
Manufacturer : Murata Power Solutions Inc.
Packaging : Tape & Reel (TR)
Series : 2800
Part Status : Obsolete
Type : Wirewound
Material - Core : -
Inductance : 3.3mH
Tolerance : -
Current Rating : 290mA
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 5.76 Ohm Max
Q @ Freq : 12.8 @ 800kHz
Frequency - Self Resonant : 3.2MHz
Ratings : -
Operating Temperature : -40°C ~ 125°C
Inductance Frequency - Test : 10kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.728" L x 0.598" W (18.50mm x 15.20mm)
Height - Seated (Max) : 0.299" (7.60mm)
0
350 in stock

28473C 28473C

Murata Power Solutions
Manufacturer : Murata Power Solutions Inc.
Packaging : Tape & Reel (TR)
Alternate Packaging
Series : 2800
Part Status : Obsolete
Type : Wirewound
Material - Core : -
Inductance : 47µH
Tolerance : -
Current Rating : 2.66A
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 86 mOhm Max
Q @ Freq : 31.5 @ 1MHz
Frequency - Self Resonant : 10.4MHz
Ratings : -
Operating Temperature : -40°C ~ 125°C
Inductance Frequency - Test : 1MHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.728" L x 0.598" W (18.50mm x 15.20mm)
Height - Seated (Max) : 0.299" (7.60mm)
0
350 in stock

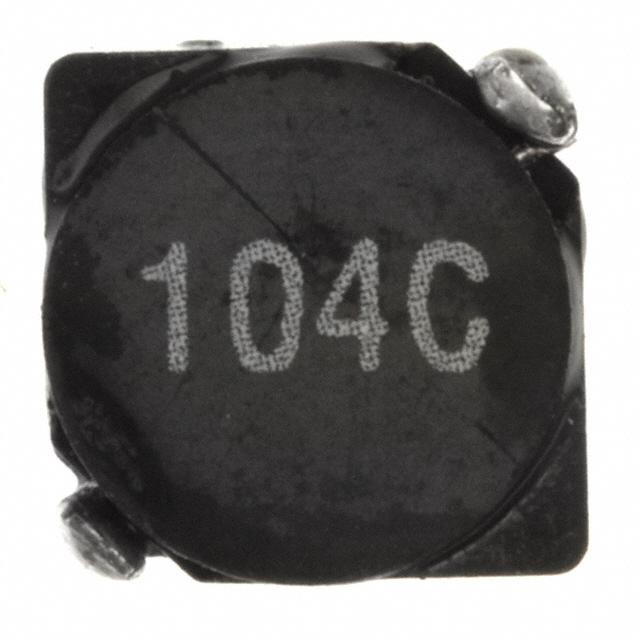

29104C 29104C

Murata Power Solutions
Manufacturer : Murata Power Solutions Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 2900
Part Status : Active
Type : Wirewound
Material - Core : -
Inductance : 100µH
Tolerance : -
Current Rating : 530mA
Current - Saturation : -
Shielding : Shielded
DC Resistance (DCR) : 360 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 85°C
Inductance Frequency - Test : 10kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.283" L x 0.283" W (7.20mm x 7.20mm)
Height - Seated (Max) : 0.157" (4.00mm)
0
2257 in stock

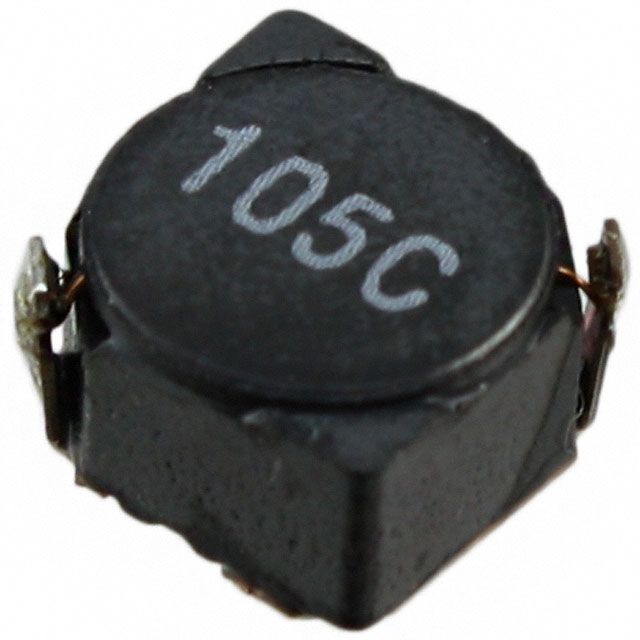

29105C 29105C

Murata Power Solutions
Manufacturer : Murata Power Solutions Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 2900
Part Status : Active
Type : Wirewound
Material - Core : -
Inductance : 1mH
Tolerance : -
Current Rating : 180mA
Current - Saturation : -
Shielding : Shielded
DC Resistance (DCR) : 4.1 Ohm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 85°C
Inductance Frequency - Test : 10kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.283" L x 0.283" W (7.20mm x 7.20mm)
Height - Seated (Max) : 0.157" (4.00mm)
0
754 in stock

29153C 29153C

Murata Power Solutions
Manufacturer : Murata Power Solutions Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 2900
Part Status : Active
Type : Wirewound
Material - Core : -
Inductance : 15µH
Tolerance : -
Current Rating : 1.5A
Current - Saturation : -
Shielding : Shielded
DC Resistance (DCR) : 65 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 85°C
Inductance Frequency - Test : 10kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard, Corner Terminals
Supplier Device Package : -
Size / Dimension : 0.283" L x 0.283" W (7.20mm x 7.20mm)
Height - Seated (Max) : 0.157" (4.00mm)
0
1000 in stock

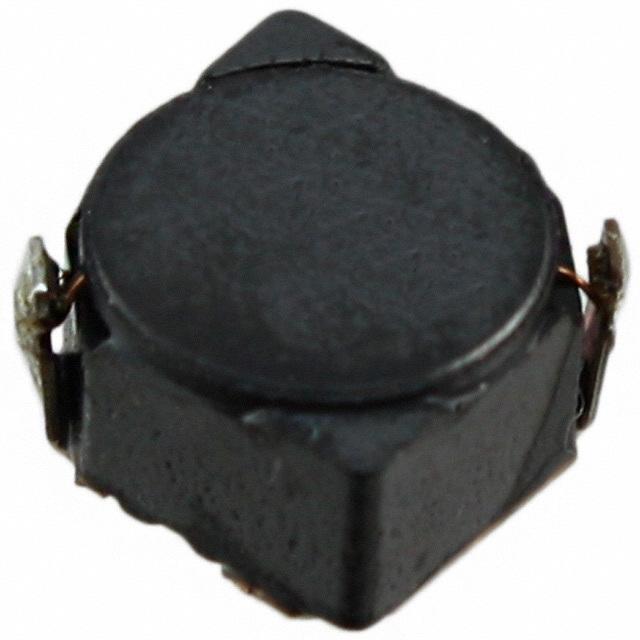

29154C 29154C

Murata Power Solutions
Manufacturer : Murata Power Solutions Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 2900
Part Status : Active
Type : Wirewound
Material - Core : -
Inductance : 150µH
Tolerance : -
Current Rating : 470mA
Current - Saturation : -
Shielding : Shielded
DC Resistance (DCR) : 500 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 85°C
Inductance Frequency - Test : 10kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard, Corner Terminals
Supplier Device Package : -
Size / Dimension : 0.283" L x 0.283" W (7.20mm x 7.20mm)
Height - Seated (Max) : 0.157" (4.00mm)
0
994 in stock

29222C 29222C

Murata Power Solutions
Manufacturer : Murata Power Solutions Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 2900
Part Status : Active
Type : Wirewound
Material - Core : -
Inductance : 2.2µH
Tolerance : -
Current Rating : 5A
Current - Saturation : -
Shielding : Shielded
DC Resistance (DCR) : 20 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 85°C
Inductance Frequency - Test : 10kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard, Corner Terminals
Supplier Device Package : -
Size / Dimension : 0.283" L x 0.283" W (7.20mm x 7.20mm)
Height - Seated (Max) : 0.157" (4.00mm)
0
1000 in stock

29224C 29224C

Murata Power Solutions
Manufacturer : Murata Power Solutions Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 2900
Part Status : Active
Type : Wirewound
Material - Core : -
Inductance : 220µH
Tolerance : -
Current Rating : 380mA
Current - Saturation : -
Shielding : Shielded
DC Resistance (DCR) : 760 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 85°C
Inductance Frequency - Test : 10kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard, Corner Terminals
Supplier Device Package : -
Size / Dimension : 0.283" L x 0.283" W (7.20mm x 7.20mm)
Height - Seated (Max) : 0.157" (4.00mm)
0
1000 in stock

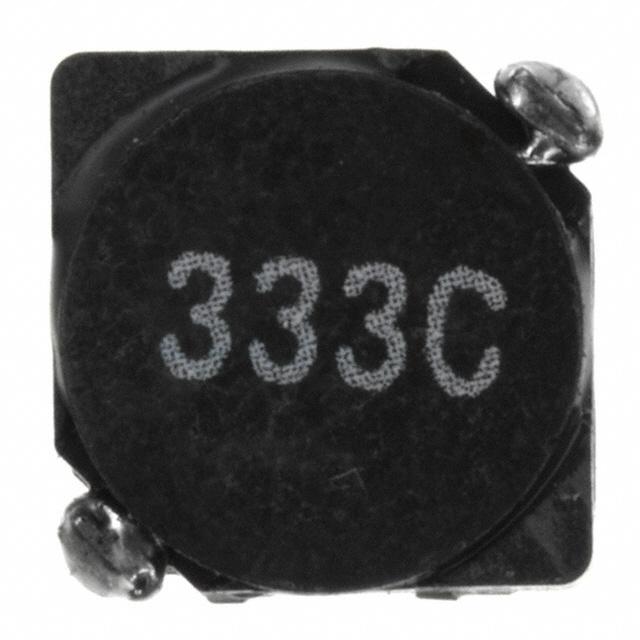

29333C 29333C

Murata Power Solutions
Manufacturer : Murata Power Solutions Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 2900
Part Status : Active
Type : Wirewound
Material - Core : -
Inductance : 33µH
Tolerance : -
Current Rating : 1A
Current - Saturation : -
Shielding : Shielded
DC Resistance (DCR) : 120 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 85°C
Inductance Frequency - Test : 10kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.283" L x 0.283" W (7.20mm x 7.20mm)
Height - Seated (Max) : 0.157" (4.00mm)
0
773 in stock
