Murata Power Solutions
- Murata Power Solutions designs and manufactures DC/DC Converters, AC/DC Power Supplies, Magnetics, Data Acquisition devices and Digital Panel Meters, and offers these products in custom, standard and modified-standard variations. Currently the world's number 1 supplier of DC/DC converters and one of the top 5 largest suppliers of power electronics overall, our products are used within numerous applications including telecommunications, computing, industrial, medical, office-equipment and more.
Murata Power Solutions was formed in 2007 when Murata Manufacturing Corporation acquired the power electronics division of C&D Technologies. We are headquartered in Mansfield, Massachusetts (USA) with over 1,300 employees in locations in the USA, Canada, Mexico, England, France, Germany, Japan, China and Singapore.
Part Number
Manufacturer
Description
Unit Price
In Stock
Murata Power Solutions
Manufacturer : Murata Power Solutions Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 5300
Part Status : Active
Frequency Range : 50kHz ~ 500kHz
Type : Invasive
Current Rating : -
Inductance : 500µH
Energy Time (E.T.) : -
Turns Ratio - Primary:Secondary : 1:50
Current Ratio : -
DC Resistance (DCR) : 7 mOhm Primary, 1.75 Ohm Secondary
Ratings : -
Mounting Type : Surface Mount
Size / Dimension : 0.283" L x 0.327" W (7.20mm x 8.30mm)
Height - Seated (Max) : 0.213" (5.40mm)
Termination Style : Gull Wing
0
2830 in stock
Murata Power Solutions
Manufacturer : Murata Power Solutions Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 5300
Part Status : Active
Frequency Range : 50kHz ~ 500kHz
Type : Invasive
Current Rating : -
Inductance : 2mH
Energy Time (E.T.) : -
Turns Ratio - Primary:Secondary : 1:100
Current Ratio : -
DC Resistance (DCR) : 7 mOhm Primary, 5.6 Ohm Secondary
Ratings : -
Mounting Type : Surface Mount
Size / Dimension : 0.283" L x 0.327" W (7.20mm x 8.30mm)
Height - Seated (Max) : 0.213" (5.40mm)
Termination Style : Gull Wing
0
19186 in stock
Murata Power Solutions
Manufacturer : Murata Power Solutions Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 5400
Part Status : Discontinued at
Frequency Range : 50kHz ~ 500kHz
Type : Invasive
Current Rating : -
Inductance : 3.8mH
Energy Time (E.T.) : -
Turns Ratio - Primary:Secondary : 1:1:50
Current Ratio : -
DC Resistance (DCR) : 7 mOhm Primary, 500 mOhm Secondary
Ratings : -
Mounting Type : Surface Mount
Size / Dimension : 0.354" L x 0.425" W (9.00mm x 10.80mm)
Height - Seated (Max) : 0.323" (8.20mm)
Termination Style : Gull Wing
0
100 in stock
Murata Power Solutions
Manufacturer : Murata Power Solutions Inc.
Packaging : Tube
Series : 5500
Part Status : Obsolete
Frequency Range : 50kHz ~ 500kHz
Type : Invasive
Current Rating : -
Inductance : 3.8mH
Energy Time (E.T.) : -
Turns Ratio - Primary:Secondary : 1:1:50
Current Ratio : -
DC Resistance (DCR) : 2.3 mOhm Primary, 350 mOhm Secondary
Ratings : -
Mounting Type : Surface Mount
Size / Dimension : 0.496" L x 0.575" W (12.60mm x 14.60mm)
Height - Seated (Max) : 0.280" (7.10mm)
Termination Style : -
0
33 in stock
Murata Power Solutions
Manufacturer : Murata Power Solutions Inc.
Packaging : Tape & Reel (TR)
Series : 5500
Part Status : Not For New Designs
Frequency Range : 50kHz ~ 500kHz
Type : Invasive
Current Rating : 15A
Inductance : 3.8mH
Energy Time (E.T.) : -
Turns Ratio - Primary:Secondary : 1:1:50
Current Ratio : -
DC Resistance (DCR) : 2.3 mOhm Primary, 350 mOhm Secondary
Ratings : -
Mounting Type : Surface Mount
Size / Dimension : 0.575" L x 0.496" W (14.60mm x 12.60mm)
Height - Seated (Max) : 0.280" (7.10mm)
Termination Style : -
0
100 in stock

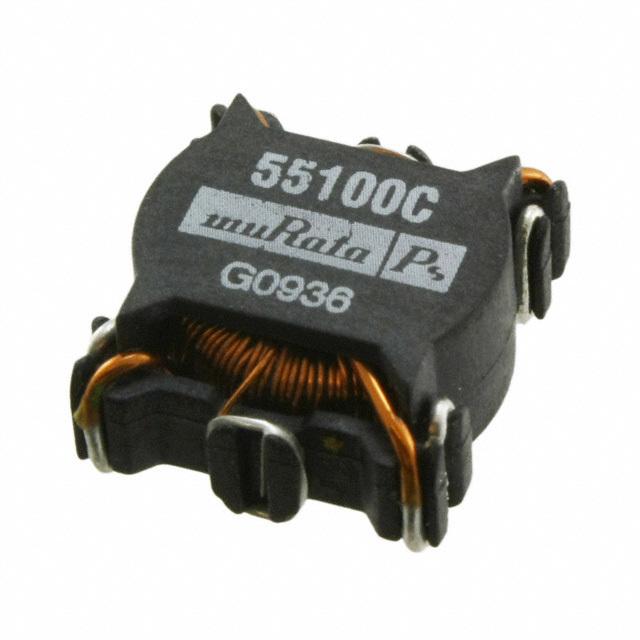

Murata Power Solutions
Manufacturer : Murata Power Solutions Inc.
Packaging : Tube
Series : 5500
Part Status : Obsolete
Frequency Range : 50kHz ~ 500kHz
Type : Invasive
Current Rating : -
Inductance : 14.8mH
Energy Time (E.T.) : -
Turns Ratio - Primary:Secondary : 1:1:100
Current Ratio : -
DC Resistance (DCR) : 2.3 mOhm Primary, 850 mOhm Secondary
Ratings : -
Mounting Type : Surface Mount
Size / Dimension : 0.496" L x 0.575" W (12.60mm x 14.60mm)
Height - Seated (Max) : 0.280" (7.10mm)
Termination Style : -
0
1051 in stock
Murata Power Solutions
Manufacturer : Murata Power Solutions Inc.
Packaging : Tape & Reel (TR)
Series : 5500
Part Status : Not For New Designs
Frequency Range : 50kHz ~ 500kHz
Type : Invasive
Current Rating : 15A
Inductance : 14.8mH
Energy Time (E.T.) : -
Turns Ratio - Primary:Secondary : 1:1:100
Current Ratio : -
DC Resistance (DCR) : 2.3 mOhm Primary, 850 mOhm Secondary
Ratings : -
Mounting Type : Surface Mount
Size / Dimension : 0.575" L x 0.496" W (14.60mm x 12.60mm)
Height - Seated (Max) : 0.280" (7.10mm)
Termination Style : -
0
100 in stock
Murata Power Solutions
Manufacturer : Murata Power Solutions Inc.
Packaging : Tube
Series : 5500
Part Status : Obsolete
Frequency Range : 50kHz ~ 500kHz
Type : Invasive
Current Rating : -
Inductance : 60mH
Energy Time (E.T.) : -
Turns Ratio - Primary:Secondary : 1:1:200
Current Ratio : -
DC Resistance (DCR) : 2.3 mOhm Primary, 3.6 Ohm Secondary
Ratings : -
Mounting Type : Surface Mount
Size / Dimension : 0.496" L x 0.575" W (12.60mm x 14.60mm)
Height - Seated (Max) : 0.280" (7.10mm)
Termination Style : -
0
404 in stock
Murata Power Solutions
Manufacturer : Murata Power Solutions Inc.
Packaging : Tape & Reel (TR)
Series : 5500
Part Status : Not For New Designs
Frequency Range : 50kHz ~ 500kHz
Type : Invasive
Current Rating : 15A
Inductance : 60mH
Energy Time (E.T.) : -
Turns Ratio - Primary:Secondary : 1:1:200
Current Ratio : -
DC Resistance (DCR) : 2.3 mOhm Primary, 3.6 Ohm Secondary
Ratings : -
Mounting Type : Surface Mount
Size / Dimension : 0.575" L x 0.496" W (14.60mm x 12.60mm)
Height - Seated (Max) : 0.280" (7.10mm)
Termination Style : -
0
100 in stock

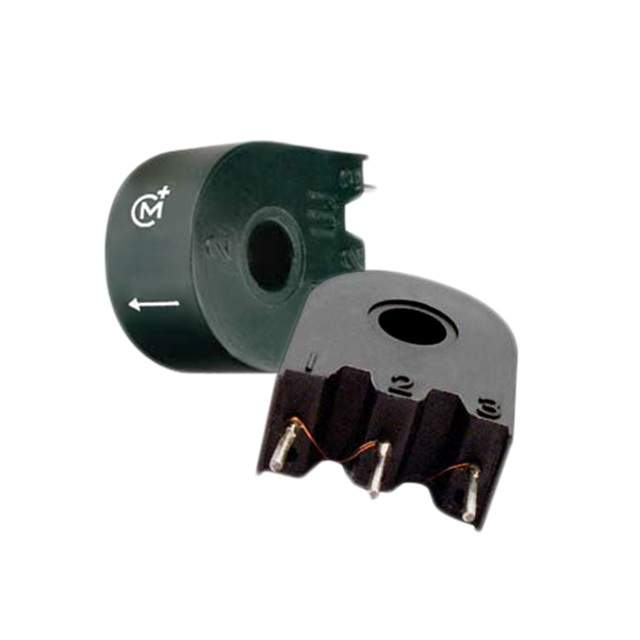

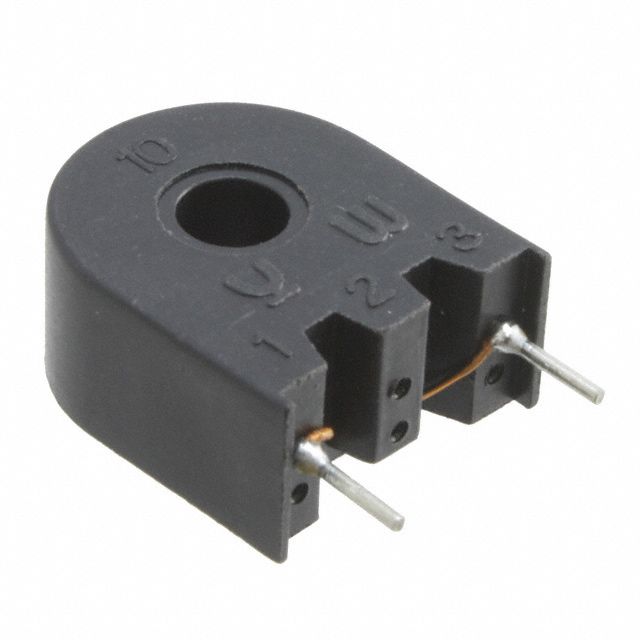

Murata Power Solutions
Manufacturer : Murata Power Solutions Inc.
Packaging : Tube
Series : 5600
Part Status : Active
Frequency Range : 20kHz ~ 200kHz
Type : Non-Invasive (Solid Core)
Current Rating : 10A
Inductance : -
Energy Time (E.T.) : -
Turns Ratio - Primary:Secondary : -
Current Ratio : 50:1
DC Resistance (DCR) : -
Ratings : -
Mounting Type : Through Hole
Size / Dimension : 0.661" L x 0.350" W (16.79mm x 8.89mm)
Height - Seated (Max) : 0.795" (20.16mm)
Termination Style : PC Pin
0
780 in stock
Murata Power Solutions
Manufacturer : Murata Power Solutions Inc.
Packaging : Tube
Series : 5600
Part Status : Active
Frequency Range : 20kHz ~ 200kHz
Type : Non-Invasive (Solid Core)
Current Rating : 10A
Inductance : -
Energy Time (E.T.) : -
Turns Ratio - Primary:Secondary : -
Current Ratio : 100:1
DC Resistance (DCR) : -
Ratings : -
Mounting Type : Through Hole
Size / Dimension : 0.661" L x 0.350" W (16.79mm x 8.89mm)
Height - Seated (Max) : 0.795" (20.16mm)
Termination Style : PC Pin
0
795 in stock
Murata Power Solutions
Manufacturer : Murata Power Solutions Inc.
Packaging : Tube
Series : 5600
Part Status : Active
Frequency Range : 20kHz ~ 200kHz
Type : Non-Invasive (Solid Core)
Current Rating : 10A
Inductance : -
Energy Time (E.T.) : -
Turns Ratio - Primary:Secondary : -
Current Ratio : 200:1
DC Resistance (DCR) : 1.87 mOhm Primary, 2.81 mOhm Secondary
Ratings : -
Mounting Type : Through Hole
Size / Dimension : 0.661" L x 0.350" W (16.79mm x 8.89mm)
Height - Seated (Max) : 0.795" (20.19mm)
Termination Style : PC Pin
0
1638 in stock
