Murata Power Solutions
- Murata Power Solutions designs and manufactures DC/DC Converters, AC/DC Power Supplies, Magnetics, Data Acquisition devices and Digital Panel Meters, and offers these products in custom, standard and modified-standard variations. Currently the world's number 1 supplier of DC/DC converters and one of the top 5 largest suppliers of power electronics overall, our products are used within numerous applications including telecommunications, computing, industrial, medical, office-equipment and more.
Murata Power Solutions was formed in 2007 when Murata Manufacturing Corporation acquired the power electronics division of C&D Technologies. We are headquartered in Mansfield, Massachusetts (USA) with over 1,300 employees in locations in the USA, Canada, Mexico, England, France, Germany, Japan, China and Singapore.
Part Number
Manufacturer
Description
Unit Price
In Stock
Murata Power Solutions
Manufacturer : Murata Power Solutions Inc.
Packaging : Tube
Series : 5600
Part Status : Active
Frequency Range : 20kHz ~ 200kHz
Type : Non-Invasive (Solid Core)
Current Rating : 10A
Inductance : -
Energy Time (E.T.) : -
Turns Ratio - Primary:Secondary : -
Current Ratio : 300:1
DC Resistance (DCR) : 5.73 mOhm Primary, 8.59 mOhm Secondary
Ratings : -
Mounting Type : Through Hole
Size / Dimension : 0.661" L x 0.350" W (16.79mm x 8.89mm)
Height - Seated (Max) : 0.795" (20.19mm)
Termination Style : PC Pin
0
211 in stock

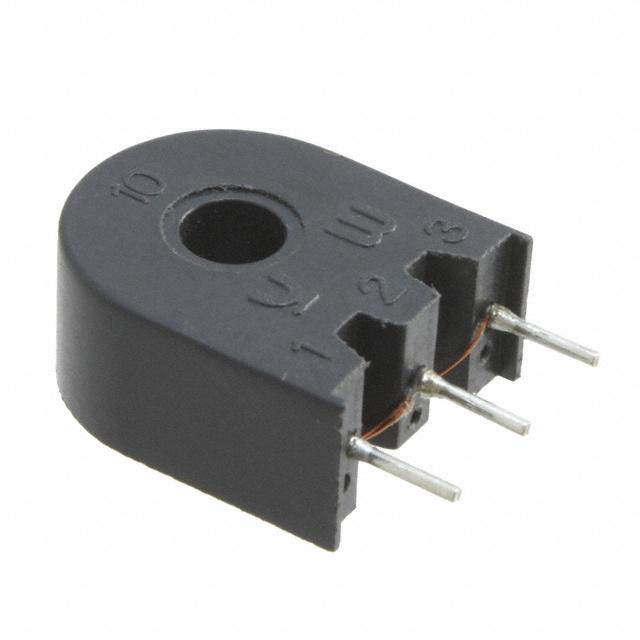

Murata Power Solutions
Manufacturer : Murata Power Solutions Inc.
Packaging : Tube
Series : 5600
Part Status : Active
Frequency Range : 20kHz ~ 200kHz
Type : Non-Invasive (Solid Core)
Current Rating : 10A
Inductance : -
Energy Time (E.T.) : -
Turns Ratio - Primary:Secondary : -
Current Ratio : 100CT:1
DC Resistance (DCR) : -
Ratings : -
Mounting Type : Through Hole
Size / Dimension : 0.661" L x 0.350" W (16.79mm x 8.89mm)
Height - Seated (Max) : 0.795" (20.16mm)
Termination Style : PC Pin
0
587 in stock
Murata Power Solutions
Manufacturer : Murata Power Solutions Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 6000A
Part Status : Active
Type : Wirewound
Material - Core : -
Inductance : 10.2µH
Tolerance : ±10%
Current Rating : 12A
Current - Saturation : 17A
Shielding : Unshielded
DC Resistance (DCR) : 7 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : 21MHz
Ratings : -
Operating Temperature : -40°C ~ 85°C
Inductance Frequency - Test : 100kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.866" L x 0.748" W (22.00mm x 19.00mm)
Height - Seated (Max) : 0.472" (12.00mm)
0
216 in stock
Murata Power Solutions
Manufacturer : Murata Power Solutions Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 6000A
Part Status : Active
Type : Wirewound
Material - Core : -
Inductance : 16µH
Tolerance : ±10%
Current Rating : 9.6A
Current - Saturation : 13A
Shielding : Unshielded
DC Resistance (DCR) : 9 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : 17MHz
Ratings : -
Operating Temperature : -40°C ~ 85°C
Inductance Frequency - Test : 100kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.866" L x 0.748" W (22.00mm x 19.00mm)
Height - Seated (Max) : 0.472" (12.00mm)
0
400 in stock
Murata Power Solutions
Manufacturer : Murata Power Solutions Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 6000A
Part Status : Active
Type : Wirewound
Material - Core : -
Inductance : 19.4µH
Tolerance : ±10%
Current Rating : 8.5A
Current - Saturation : 12A
Shielding : Unshielded
DC Resistance (DCR) : 11 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : 15MHz
Ratings : -
Operating Temperature : -40°C ~ 85°C
Inductance Frequency - Test : 100kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.866" L x 0.748" W (22.00mm x 19.00mm)
Height - Seated (Max) : 0.472" (12.00mm)
0
316 in stock
Murata Power Solutions
Manufacturer : Murata Power Solutions Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 6000A
Part Status : Active
Type : Wirewound
Material - Core : -
Inductance : 23µH
Tolerance : ±10%
Current Rating : 8.4A
Current - Saturation : 11A
Shielding : Unshielded
DC Resistance (DCR) : 12 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : 13MHz
Ratings : -
Operating Temperature : -40°C ~ 85°C
Inductance Frequency - Test : 100kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.866" L x 0.748" W (22.00mm x 19.00mm)
Height - Seated (Max) : 0.472" (12.00mm)
0
139 in stock
Murata Power Solutions
Manufacturer : Murata Power Solutions Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 6000A
Part Status : Active
Type : Wirewound
Material - Core : -
Inductance : 27µH
Tolerance : ±10%
Current Rating : 7.5A
Current - Saturation : 10A
Shielding : Unshielded
DC Resistance (DCR) : 15 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : 13MHz
Ratings : -
Operating Temperature : -40°C ~ 85°C
Inductance Frequency - Test : 100kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.866" L x 0.748" W (22.00mm x 19.00mm)
Height - Seated (Max) : 0.472" (12.00mm)
0
174 in stock
Murata Power Solutions
Manufacturer : Murata Power Solutions Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 6000A
Part Status : Active
Type : Wirewound
Material - Core : -
Inductance : 36µH
Tolerance : ±10%
Current Rating : 6.4A
Current - Saturation : 8.8A
Shielding : Unshielded
DC Resistance (DCR) : 20 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : 11MHz
Ratings : -
Operating Temperature : -40°C ~ 85°C
Inductance Frequency - Test : 100kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.866" L x 0.748" W (22.00mm x 19.00mm)
Height - Seated (Max) : 0.472" (12.00mm)
0
189 in stock
Murata Power Solutions
Manufacturer : Murata Power Solutions Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 6000A
Part Status : Active
Type : Wirewound
Material - Core : -
Inductance : 41µH
Tolerance : ±10%
Current Rating : 5.6A
Current - Saturation : 8.4A
Shielding : Unshielded
DC Resistance (DCR) : 26 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : 10MHz
Ratings : -
Operating Temperature : -40°C ~ 85°C
Inductance Frequency - Test : 100kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.866" L x 0.748" W (22.00mm x 19.00mm)
Height - Seated (Max) : 0.472" (12.00mm)
0
135 in stock
Murata Power Solutions
Manufacturer : Murata Power Solutions Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 6000A
Part Status : Active
Type : Wirewound
Material - Core : -
Inductance : 57.8µH
Tolerance : ±10%
Current Rating : 4.9A
Current - Saturation : 6.2A
Shielding : Unshielded
DC Resistance (DCR) : 36 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : 8MHz
Ratings : -
Operating Temperature : -40°C ~ 85°C
Inductance Frequency - Test : 100kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.866" L x 0.748" W (22.00mm x 19.00mm)
Height - Seated (Max) : 0.472" (12.00mm)
0
180 in stock
Murata Power Solutions
Manufacturer : Murata Power Solutions Inc.
Packaging : Tray
Series : 6000B
Part Status : Active
Type : Wirewound
Material - Core : -
Inductance : 100µH
Tolerance : ±15%
Current Rating : 7.5A
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 25 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : 4.98MHz
Ratings : -
Operating Temperature : -40°C ~ 85°C
Inductance Frequency - Test : 100kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 1.063" L x 0.768" W (27.00mm x 19.50mm)
Height - Seated (Max) : 0.787" (20.00mm)
0
2101 in stock
Murata Power Solutions
Manufacturer : Murata Power Solutions Inc.
Packaging : Tray
Series : 6000B
Part Status : Active
Type : Wirewound
Material - Core : -
Inductance : 150µH
Tolerance : ±15%
Current Rating : 6A
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 38 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : 3.9MHz
Ratings : -
Operating Temperature : -40°C ~ 85°C
Inductance Frequency - Test : 100kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 1.063" L x 0.768" W (27.00mm x 19.50mm)
Height - Seated (Max) : 0.787" (20.00mm)
0
2161 in stock
