Newhaven Display, Intl.
- Newhaven Display provides the North American marketplace with cost effective high quality display devices ranging from LCD to VFD. In addition to our vast standard part offerings, we develop custom designs for all industries. We pride ourselves on first-rate customer support and development assistance.
All products are stocked at our Elgin, Illinois USA warehouse. Marketing is done through a nationwide network of independent sales representatives and stocking distributors. All displays are manufactured at our partner factories located in Mainland China and Taiwan locations. These are state-of-the-art facilities with over 12 years of experience with QS-9000, ISO-9001 and ISO-14001 certifications.
Part Number
Manufacturer
Description
Unit Price
In Stock

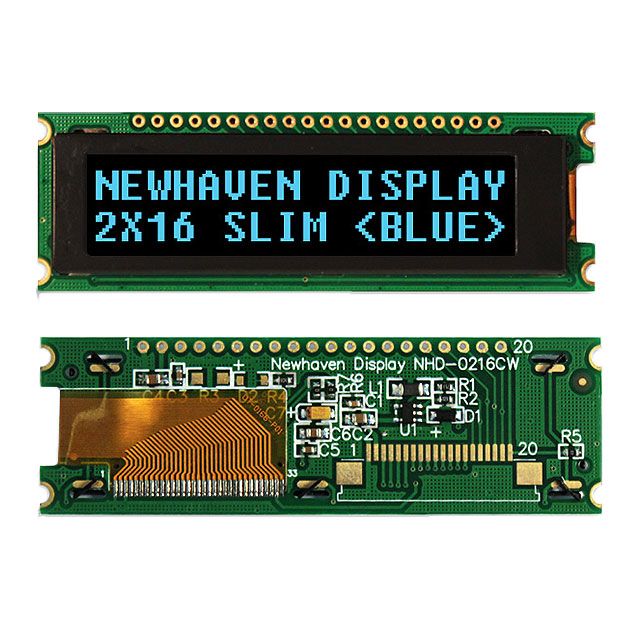

Newhaven Display, Intl.
Manufacturer : Newhaven Display Intl
Series : -
Part Status : Active
Number of Characters : 32
Display Format : 16 x 2
Character Format : 5 x 8 Dots
Display Type : OLED
Display Mode : Passive
Character Size : 5.57mm H x 2.97mm W
Outline L x W x H : 76.00mm x 24.50mm x 2.50mm
Viewing Area : 58.22mm L x 13.52mm W
Backlight : -
Voltage - Supply : 2.4 V ~ 5.5 V
Dot Size : 0.57mm W x 0.67mm H
Interface : Parallel, 8-Bit, I²C, SPI
Operating Temperature : -40°C ~ 85°C
Text Color : Blue
Background Color : Black
0
445 in stock

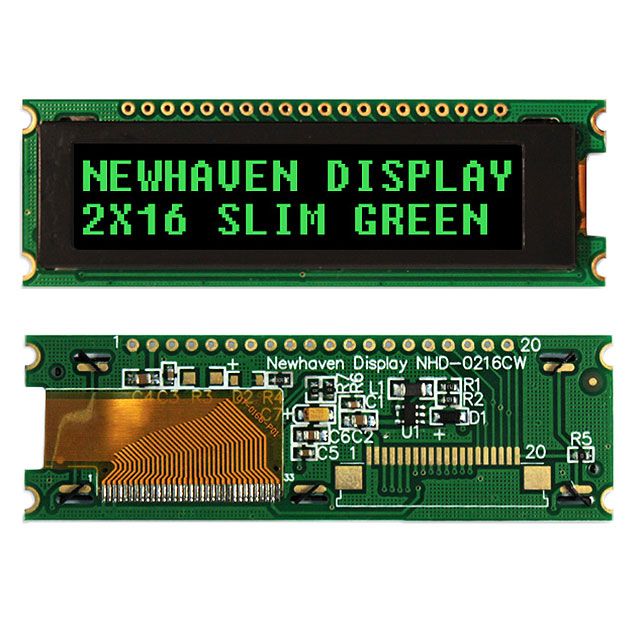

Newhaven Display, Intl.
Manufacturer : Newhaven Display Intl
Series : -
Part Status : Active
Number of Characters : 32
Display Format : 16 x 2
Character Format : 5 x 8 Dots
Display Type : OLED
Display Mode : Passive
Character Size : 5.57mm H x 2.97mm W
Outline L x W x H : 76.00mm x 24.50mm x 2.50mm
Viewing Area : 58.22mm L x 13.52mm W
Backlight : -
Voltage - Supply : 2.4 V ~ 5.5 V
Dot Size : 0.57mm W x 0.67mm H
Interface : Parallel, 8-Bit, I²C, SPI
Operating Temperature : -40°C ~ 85°C
Text Color : Green
Background Color : Black
0
252 in stock

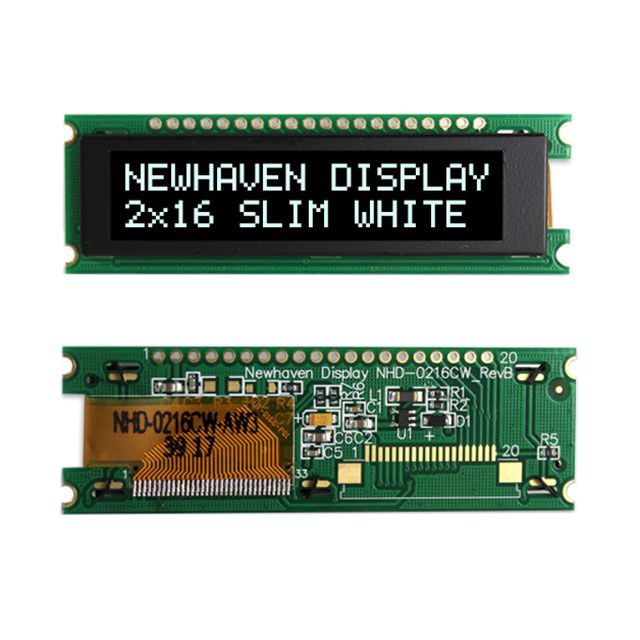

Newhaven Display, Intl.
Manufacturer : Newhaven Display Intl
Series : -
Part Status : Active
Number of Characters : 32
Display Format : 16 x 2
Character Format : 5 x 8 Dots
Display Type : OLED
Display Mode : -
Character Size : 5.67mm H x 2.97mm W
Outline L x W x H : 76.00mm x 24.50mm x 5.00mm
Viewing Area : 56.22mm L x 13.52mm W
Backlight : -
Voltage - Supply : 2.4 V ~ 5.5 V
Dot Size : 0.57mm W x 0.67mm H
Interface : Parallel, 8-Bit, I²C, SPI
Operating Temperature : -40°C ~ 85°C
Text Color : White
Background Color : Black
0
62 in stock

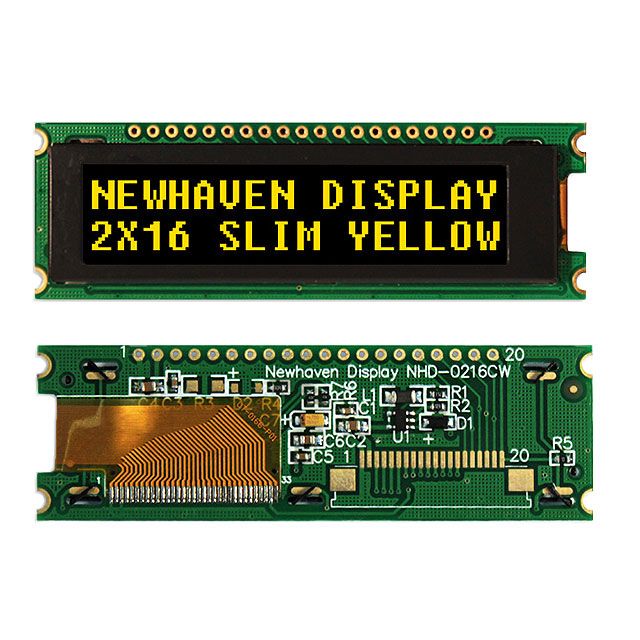

Newhaven Display, Intl.
Manufacturer : Newhaven Display Intl
Series : -
Part Status : Active
Number of Characters : 32
Display Format : 16 x 2
Character Format : 5 x 8 Dots
Display Type : OLED
Display Mode : Passive
Character Size : 5.57mm H x 2.97mm W
Outline L x W x H : 76.00mm x 24.50mm x 2.50mm
Viewing Area : 58.22mm L x 13.52mm W
Backlight : -
Voltage - Supply : 2.4 V ~ 5.5 V
Dot Size : 0.57mm W x 0.67mm H
Interface : Parallel, 8-Bit, I²C, SPI
Operating Temperature : -40°C ~ 85°C
Text Color : Yellow
Background Color : Black
0
111 in stock

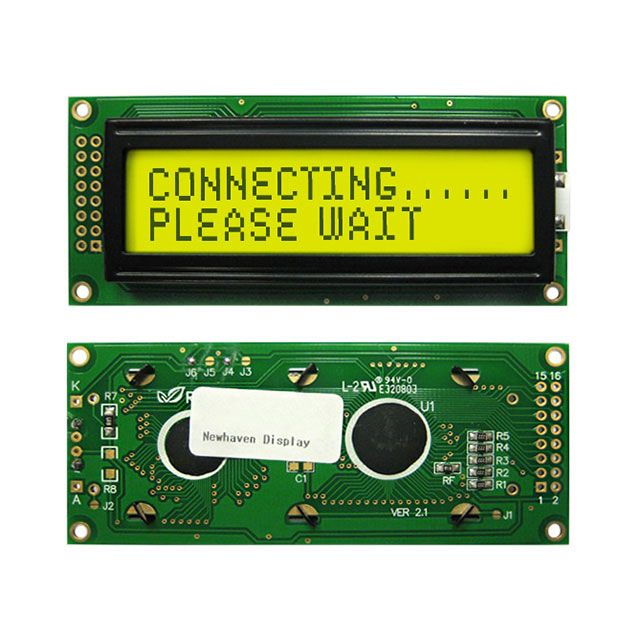

Newhaven Display, Intl.
Manufacturer : Newhaven Display Intl
Series : -
Part Status : Obsolete
Number of Characters : 32
Display Format : 16 x 2
Character Format : 5 x 8 Dots
Display Type : STN - Super-Twisted Nematic
Display Mode : Transflective
Character Size : 5.55mm H x 2.95mm W
Outline L x W x H : 66.70mm x 23.30mm x 11.00mm
Viewing Area : 61.70mm L x 15.60mm W
Backlight : LED - Yellow/Green
Voltage - Supply : 4.7 V ~ 5.5 V
Dot Size : 0.55mm W x 0.65mm H
Interface : Parallel
Operating Temperature : -20°C ~ 70°C
Text Color : Gray
Background Color : Green
0
100 in stock

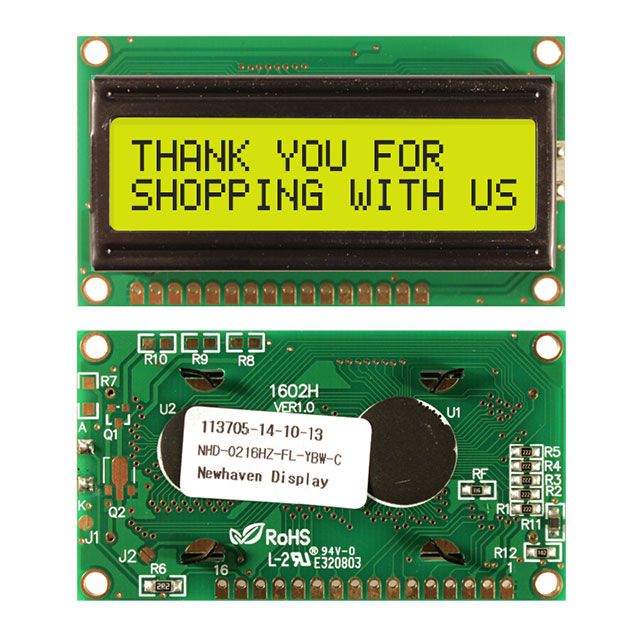

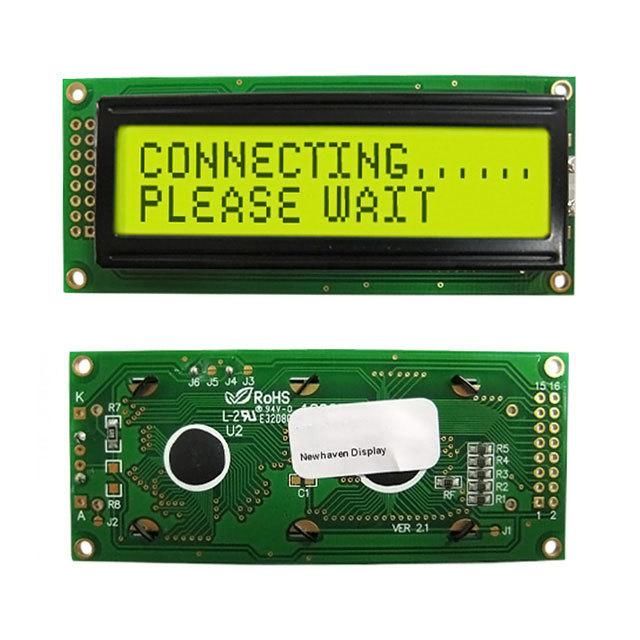

Newhaven Display, Intl.
Manufacturer : Newhaven Display Intl
Series : -
Part Status : Active
Number of Characters : 32
Display Format : 16 x 2
Character Format : 5 x 8 Dots
Display Type : STN - Super-Twisted Nematic
Display Mode : Transflective
Character Size : 5.23mm H x 3.00mm W
Outline L x W x H : 85.00mm x 36.00mm x 13.50mm
Viewing Area : 64.50mm L x 16.40mm W
Backlight : LED - Yellow/Green
Voltage - Supply : 4.7 V ~ 5.5 V
Dot Size : 0.56mm W x 0.61mm H
Interface : Parallel
Operating Temperature : -20°C ~ 70°C
Text Color : Blue
Background Color : Green
0
176 in stock
Newhaven Display, Intl.
Manufacturer : Newhaven Display Intl
Series : -
Part Status : Active
Number of Characters : 32
Display Format : 16 x 2
Character Format : 5 x 8 Dots
Display Type : STN - Super-Twisted Nematic
Display Mode : Transflective
Character Size : 5.23mm H x 3.00mm W
Outline L x W x H : 85.00mm x 36.00mm x 13.50mm
Viewing Area : 64.50mm L x 16.40mm W
Backlight : LED - Yellow/Green
Voltage - Supply : 4.7 V ~ 5.5 V
Dot Size : 0.56mm W x 0.61mm H
Interface : Parallel
Operating Temperature : -20°C ~ 70°C
Text Color : Blue
Background Color : Green
0
585 in stock

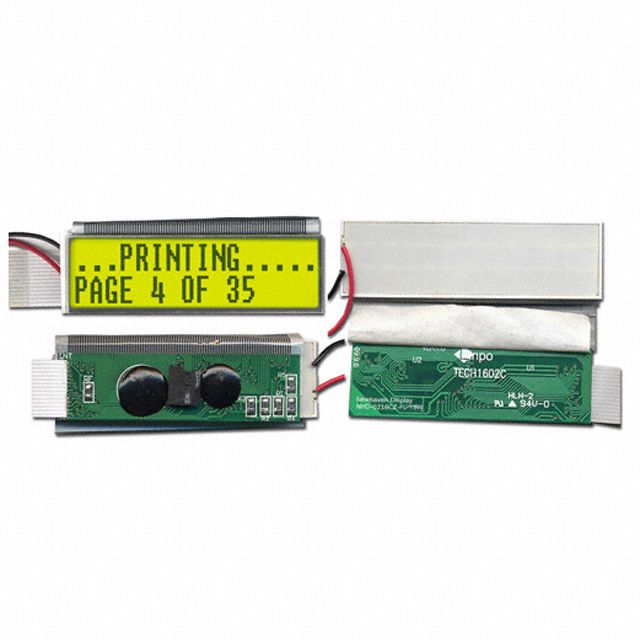

Newhaven Display, Intl.
Manufacturer : Newhaven Display Intl
Series : -
Part Status : Obsolete
Number of Characters : 32
Display Format : 16 x 2
Character Format : 5 x 8 Dots
Display Type : STN - Super-Twisted Nematic
Display Mode : Transflective
Character Size : 4.99mm H x 2.55mm W
Outline L x W x H : 65.50mm x 36.70mm x 13.50mm
Viewing Area : 54.00mm L x 14.40mm W
Backlight : LED - Yellow/Green
Voltage - Supply : 4.7 V ~ 5.5 V
Dot Size : 0.47mm W x 0.58mm H
Interface : Parallel
Operating Temperature : -20°C ~ 70°C
Text Color : Blue
Background Color : -
0
100 in stock
Newhaven Display, Intl.
Manufacturer : Newhaven Display Intl
Series : -
Part Status : Obsolete
Number of Characters : 32
Display Format : 16 x 2
Character Format : 5 x 8 Dots
Display Type : STN - Super-Twisted Nematic
Display Mode : Transflective
Character Size : 4.99mm H x 2.55mm W
Outline L x W x H : 65.50mm x 36.70mm x 13.50mm
Viewing Area : 54.00mm L x 14.40mm W
Backlight : LED - Yellow/Green
Voltage - Supply : 4.7 V ~ 5.5 V
Dot Size : 0.47mm W x 0.58mm H
Interface : Parallel
Operating Temperature : -20°C ~ 70°C
Text Color : Gray
Background Color : Green
0
100 in stock
Newhaven Display, Intl.
Manufacturer : Newhaven Display Intl
Series : -
Part Status : Active
Number of Characters : 32
Display Format : 16 x 2
Character Format : 5 x 8 Dots
Display Type : STN - Super-Twisted Nematic
Display Mode : Transflective
Character Size : 4.99mm H x 2.55mm W
Outline L x W x H : 65.50mm x 36.70mm x 15.00mm
Viewing Area : 54.00mm L x 14.40mm W
Backlight : LED - Yellow/Green
Voltage - Supply : 4.7 V ~ 5.5 V
Dot Size : 0.47mm W x 0.58mm H
Interface : Parallel
Operating Temperature : -20°C ~ 70°C
Text Color : Blue
Background Color : Green
0
100 in stock

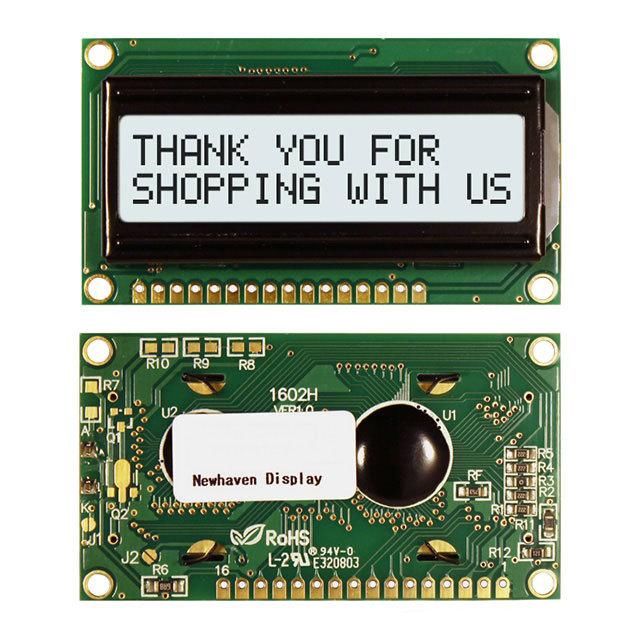

Newhaven Display, Intl.
Manufacturer : Newhaven Display Intl
Series : -
Part Status : Active
Number of Characters : 32
Display Format : 16 x 2
Character Format : 5 x 8 Dots
Display Type : FSTN - Film Super-Twisted Nematic
Display Mode : Transflective
Character Size : 4.99mm H x 2.55mm W
Outline L x W x H : 65.50mm x 36.70mm x 15.00mm
Viewing Area : 54.00mm L x 14.40mm W
Backlight : LED - White
Voltage - Supply : 3.3V
Dot Size : 0.47mm W x 0.58mm H
Interface : Parallel
Operating Temperature : -20°C ~ 70°C
Text Color : Black
Background Color : White
0
635 in stock

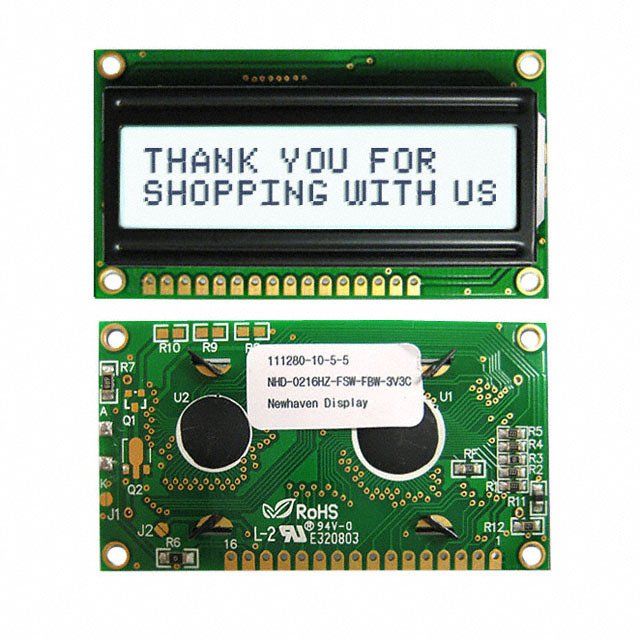

Newhaven Display, Intl.
Manufacturer : Newhaven Display Intl
Series : -
Part Status : Obsolete
Number of Characters : 32
Display Format : 16 x 2
Character Format : 5 x 8 Dots
Display Type : FSTN - Film Super-Twisted Nematic
Display Mode : Transflective
Character Size : 4.99mm H x 2.55mm W
Outline L x W x H : 65.50mm x 36.70mm x 13.50mm
Viewing Area : 54.00mm L x 14.40mm W
Backlight : LED - White
Voltage - Supply : 2.7 V ~ 3.3 V
Dot Size : 0.47mm W x 0.58mm H
Interface : Parallel
Operating Temperature : -20°C ~ 70°C
Text Color : Gray
Background Color : White
0
100 in stock
