Newhaven Display, Intl.

- Newhaven Display provides the North American marketplace with cost effective high quality display devices ranging from LCD to VFD. In addition to our vast standard part offerings, we develop custom designs for all industries. We pride ourselves on first-rate customer support and development assistance.

All products are stocked at our Elgin, Illinois USA warehouse. Marketing is done through a nationwide network of independent sales representatives and stocking distributors. All displays are manufactured at our partner factories located in Mainland China and Taiwan locations. These are state-of-the-art facilities with over 12 years of experience with QS-9000, ISO-9001 and ISO-14001 certifications.


Part Number

Manufacturer

Description

Unit Price

In Stock

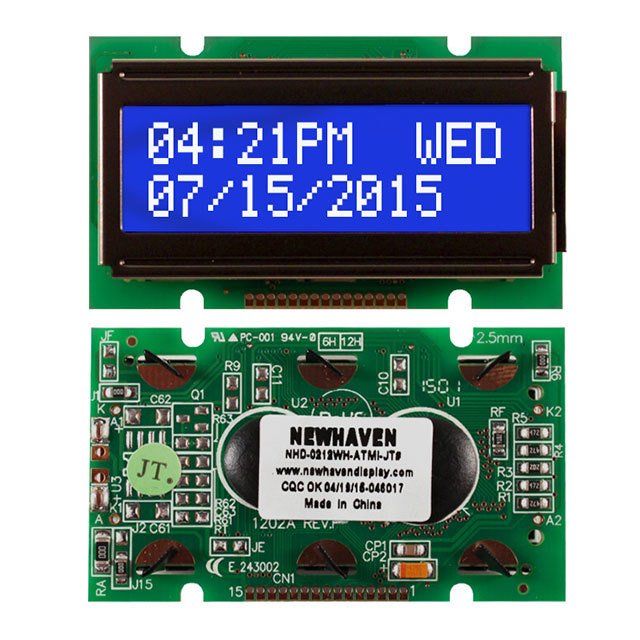

NHD-0212WH-ATMI-JT#

Newhaven Display, Intl.

Manufacturer : Newhaven Display Intl
Series : -
Part Status : Active
Number of Characters : 24
Display Format : 12 x 2
Character Format : 5 x 8 Dots
Display Type : STN - Super-Twisted Nematic
Display Mode : Transmissive
Character Size : 5.50mm H x 2.65mm W
Outline L x W x H : 55.70mm x 32.00mm x 14.50mm
Viewing Area : 46.00mm L x 14.50mm W
Backlight : LED - White
Voltage - Supply : 4.5 V ~ 5.5 V
Dot Size : 0.45mm W x 0.60mm H
Interface : Parallel
Operating Temperature : -20°C ~ 70°C
Text Color : White
Background Color : Blue

289 in stock

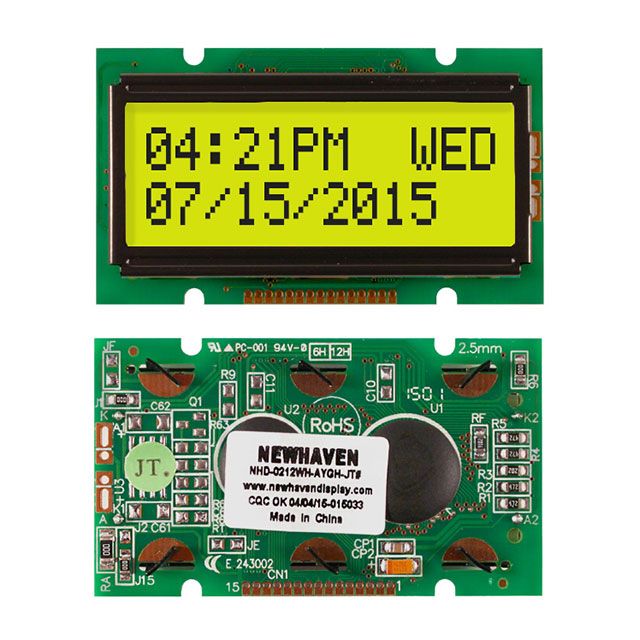

NHD-0212WH-AYGH-JT#

Newhaven Display, Intl.

Manufacturer : Newhaven Display Intl
Series : -
Part Status : Active
Number of Characters : 24
Display Format : 12 x 2
Character Format : 5 x 8 Dots
Display Type : STN - Super-Twisted Nematic
Display Mode : Transflective
Character Size : 5.50mm H x 2.65mm W
Outline L x W x H : 55.70mm x 32.00mm x 9.70mm
Viewing Area : 46.00mm L x 14.50mm W
Backlight : LED - Yellow/Green
Voltage - Supply : 4.5 V ~ 5.5 V
Dot Size : 0.45mm W x 0.60mm H
Interface : Parallel
Operating Temperature : -20°C ~ 70°C
Text Color : Blue
Background Color : Green

665 in stock

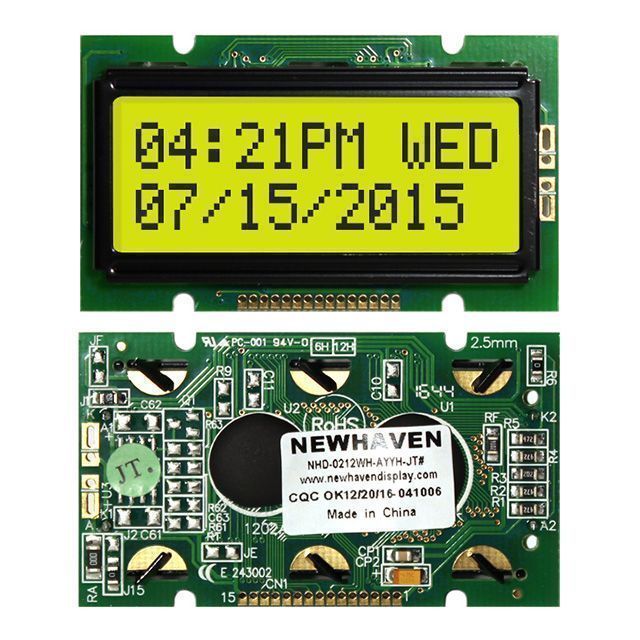

NHD-0212WH-AYYH-JT#

Newhaven Display, Intl.

Manufacturer : Newhaven Display Intl
Series : -
Part Status : Active
Number of Characters : 24
Display Format : 12 x 2
Character Format : 5 x 8 Dots
Display Type : STN - Super-Twisted Nematic
Display Mode : Transflective
Character Size : 5.50mm H x 2.65mm W
Outline L x W x H : 55.70mm x 32.00mm x 9.70mm
Viewing Area : 46.00mm L x 14.50mm W
Backlight : LED - Yellow/Green
Voltage - Supply : 4.5 V ~ 5.5 V
Dot Size : 0.45mm W x 0.60mm H
Interface : Parallel
Operating Temperature : -20°C ~ 70°C
Text Color : Blue
Background Color : Green

100 in stock

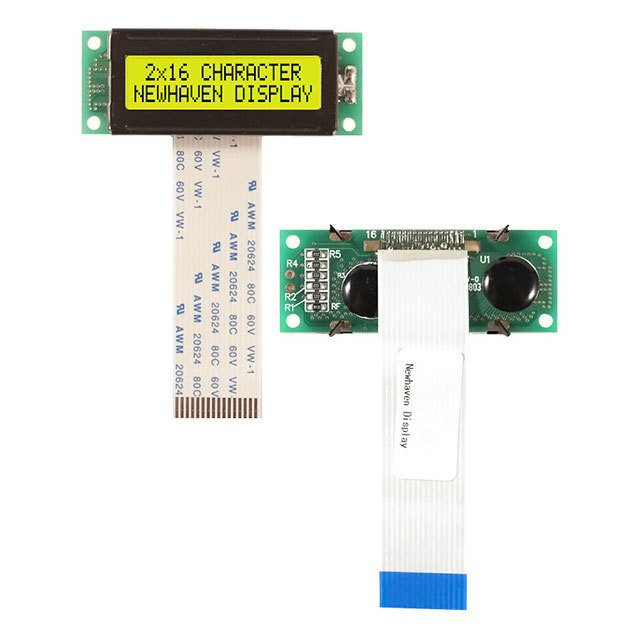

NHD-02161Z-FSY-YBW-C

Newhaven Display, Intl.

Manufacturer : Newhaven Display Intl
Series : -
Part Status : Active
Number of Characters : 32
Display Format : 16 x 2
Character Format : 5 x 8 Dots
Display Type : STN - Super-Twisted Nematic
Display Mode : Transflective
Character Size : 3.23mm H x 1.85mm W
Outline L x W x H : 53.00mm x 20.00mm x 8.50mm
Viewing Area : 36.00mm L x 10.00mm W
Backlight : LED - Yellow/Green
Voltage - Supply : 4.7 V ~ 5.5 V
Dot Size : 0.33mm W x 0.36mm H
Interface : Parallel
Operating Temperature : -20°C ~ 70°C
Text Color : Blue
Background Color : Green

1001 in stock

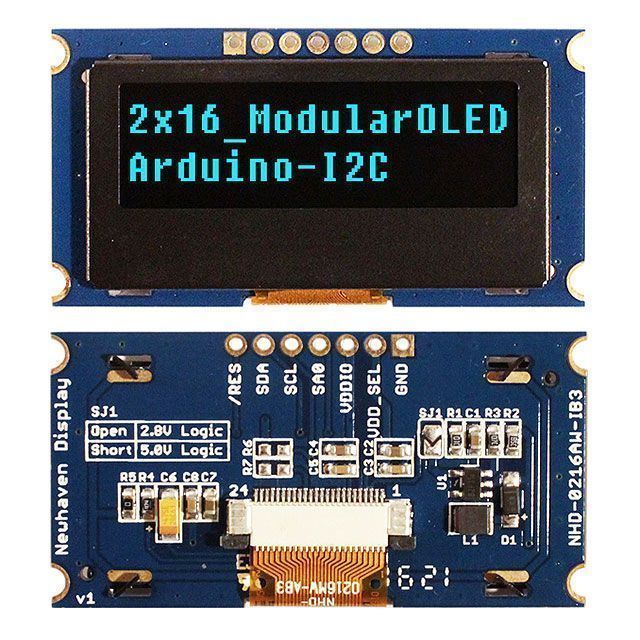

NHD-0216AW-IB3

Newhaven Display, Intl.

Manufacturer : Newhaven Display Intl
Series : -
Part Status : Active
Number of Characters : 32
Display Format : 16 x 2
Character Format : 5 x 8 Dots
Display Type : OLED
Display Mode : Passive
Character Size : 4.45mm H x 1.82mm W
Outline L x W x H : 49.20mm x 25.70mm x 4.50mm
Viewing Area : 36.22mm L x 11.40mm W
Backlight : Without Backlight
Voltage - Supply : 2.4 V ~ 5.5 V
Dot Size : 0.34mm W x 0.53mm H
Interface : I²C
Operating Temperature : -40°C ~ 85°C
Text Color : Blue
Background Color : Black

351 in stock

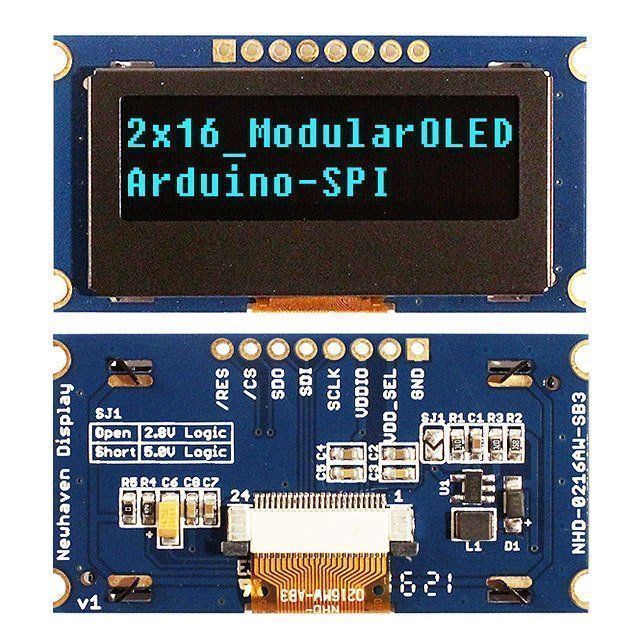

NHD-0216AW-SB3

Newhaven Display, Intl.

Manufacturer : Newhaven Display Intl
Series : -
Part Status : Active
Number of Characters : 32
Display Format : 16 x 2
Character Format : 5 x 8 Dots
Display Type : OLED
Display Mode : Passive
Character Size : 4.45mm H x 1.82mm W
Outline L x W x H : 49.20mm x 25.70mm x 4.50mm
Viewing Area : 36.22mm L x 11.40mm W
Backlight : Without Backlight
Voltage - Supply : 2.4 V ~ 5.5 V
Dot Size : 0.34mm W x 0.53mm H
Interface : SPI
Operating Temperature : -40°C ~ 85°C
Text Color : Blue
Background Color : Black

263 in stock

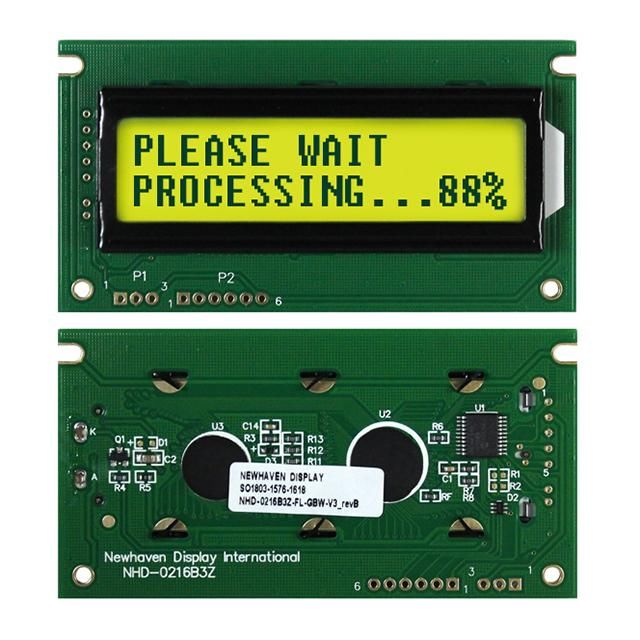

NHD-0216B3Z-FL-GBW-V3

Newhaven Display, Intl.

Manufacturer : Newhaven Display Intl
Series : -
Part Status : Active
Number of Characters : 32
Display Format : 16 x 2
Character Format : 5 x 8 Dots
Display Type : STN - Super-Twisted Nematic
Display Mode : Transflective
Character Size : 5.23mm H x 3.00mm W
Outline L x W x H : 84.00mm x 44.00mm x 13.50mm
Viewing Area : 64.50mm L x 16.40mm W
Backlight : LED - Yellow/Green
Voltage - Supply : 4.7 V ~ 5.5 V
Dot Size : 0.56mm W x 0.61mm H
Interface : I²C, RS-232, SPI
Operating Temperature : -20°C ~ 70°C
Text Color : Black
Background Color : Green

90 in stock

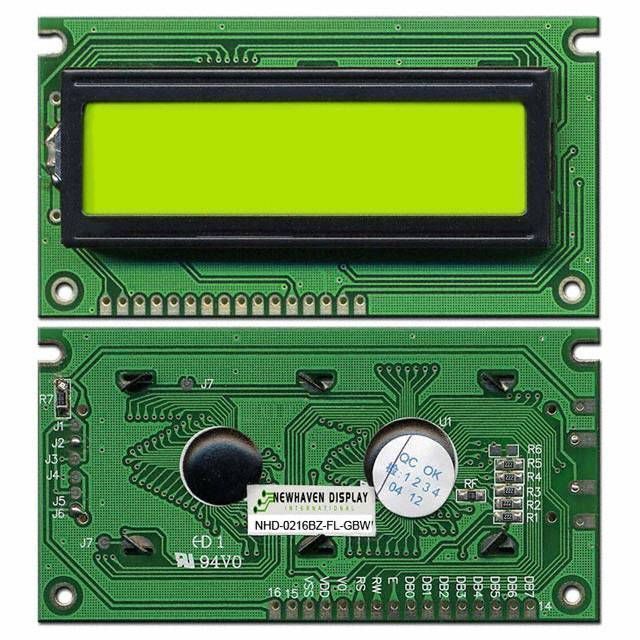

NHD-0216BZ-FL-GBW

Newhaven Display, Intl.

Manufacturer : Newhaven Display Intl
Series : -
Part Status : Obsolete
Number of Characters : 32
Display Format : 16 x 2
Character Format : 5 x 8 Dots
Display Type : STN - Super-Twisted Nematic
Display Mode : Transflective
Character Size : 5.23mm H x 3.00mm W
Outline L x W x H : 84.00mm x 44.00mm x 13.50mm
Viewing Area : 64.50mm L x 16.40mm W
Backlight : LED - Yellow/Green
Voltage - Supply : 4.7 V ~ 5.5 V
Dot Size : 0.56mm W x 0.61mm H
Interface : Parallel
Operating Temperature : -20°C ~ 70°C
Text Color : Gray
Background Color : Green

100 in stock

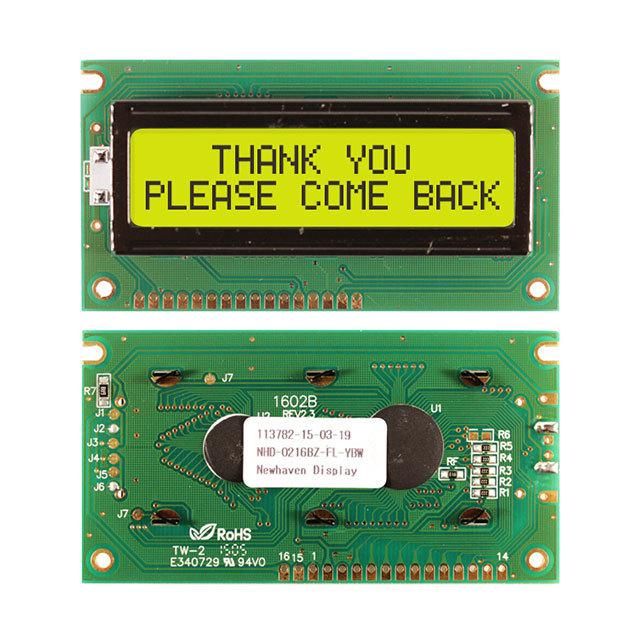

NHD-0216BZ-FL-YBW

Newhaven Display, Intl.

Manufacturer : Newhaven Display Intl
Series : -
Part Status : Active
Number of Characters : 32
Display Format : 16 x 2
Character Format : 5 x 8 Dots
Display Type : STN - Super-Twisted Nematic
Display Mode : Transflective
Character Size : 5.23mm H x 3.00mm W
Outline L x W x H : 84.00mm x 44.00mm x 13.50mm
Viewing Area : 64.50mm L x 16.40mm W
Backlight : LED - Yellow/Green
Voltage - Supply : 4.7 V ~ 5.5 V
Dot Size : 0.56mm W x 0.61mm H
Interface : Parallel
Operating Temperature : -20°C ~ 70°C
Text Color : Blue
Background Color : Green

1360 in stock

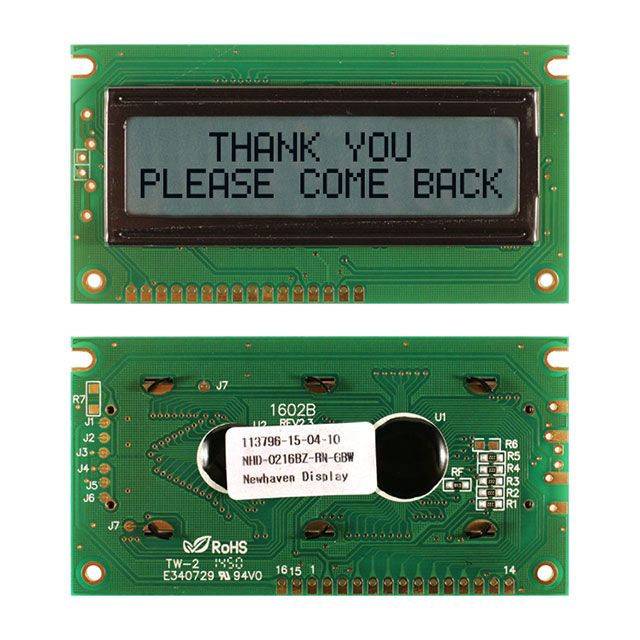

NHD-0216BZ-RN-GBW

Newhaven Display, Intl.

Manufacturer : Newhaven Display Intl
Series : -
Part Status : Active
Number of Characters : 32
Display Format : 16 x 2
Character Format : 5 x 8 Dots
Display Type : STN - Super-Twisted Nematic
Display Mode : Reflective
Character Size : 5.23mm H x 3.00mm W
Outline L x W x H : 84.00mm x 44.00mm x 9.00mm
Viewing Area : 64.50mm L x 16.40mm W
Backlight : Without Backlight
Voltage - Supply : 4.7 V ~ 5.5 V
Dot Size : 0.56mm W x 0.61mm H
Interface : Parallel
Operating Temperature : -20°C ~ 70°C
Text Color : Blue
Background Color : Gray

58 in stock

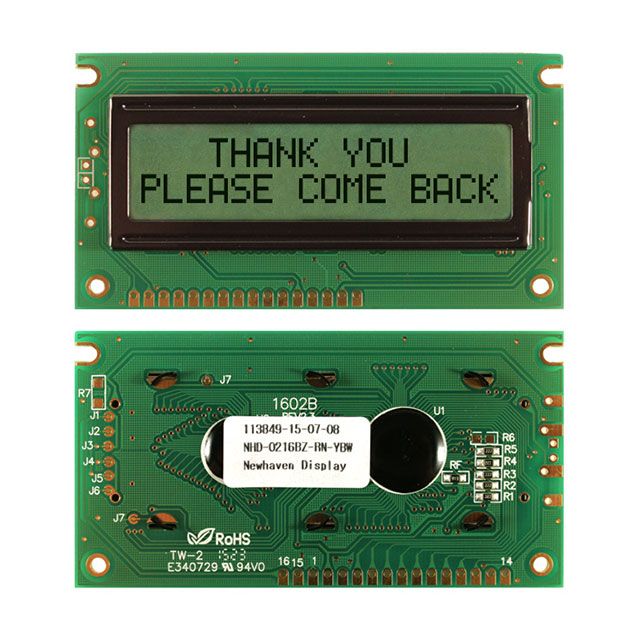

NHD-0216BZ-RN-YBW

Newhaven Display, Intl.

Manufacturer : Newhaven Display Intl
Series : -
Part Status : Active
Number of Characters : 32
Display Format : 16 x 2
Character Format : 5 x 8 Dots
Display Type : STN - Super-Twisted Nematic
Display Mode : Reflective
Character Size : 5.23mm H x 3.00mm W
Outline L x W x H : 84.00mm x 44.00mm x 9.00mm
Viewing Area : 64.50mm L x 16.40mm W
Backlight : Without Backlight
Voltage - Supply : 4.7 V ~ 5.5 V
Dot Size : 0.56mm W x 0.61mm H
Interface : Parallel
Operating Temperature : -20°C ~ 70°C
Text Color : Blue
Background Color : Green

243 in stock

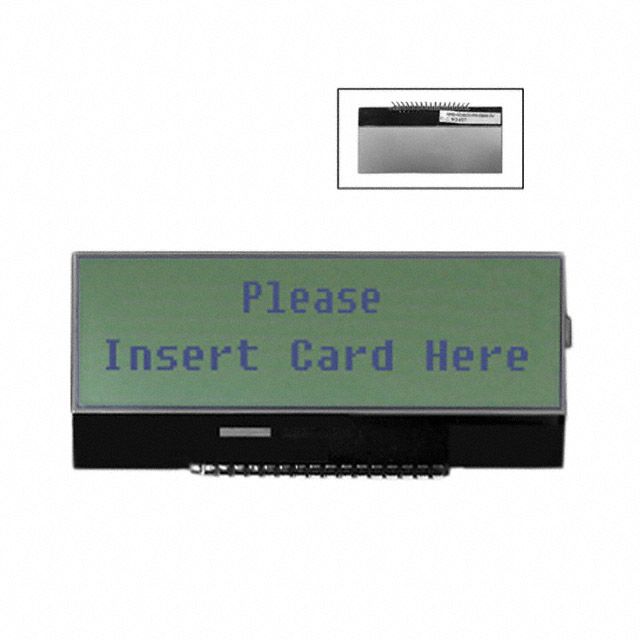

NHD-0216CU-FN-GBW-3V

Newhaven Display, Intl.

Manufacturer : Newhaven Display Intl
Series : -
Part Status : Obsolete
Number of Characters : 32
Display Format : 16 x 2
Character Format : 5 x 8 Dots
Display Type : STN - Super-Twisted Nematic
Display Mode : Transflective
Character Size : 4.68mm H x 2.21mm W
Outline L x W x H : 49.70mm x 18.30mm x 2.00mm
Viewing Area : 45.70mm L x 14.30mm W
Backlight : Without Backlight
Voltage - Supply : 3V
Dot Size : 0.41mm W x 0.55mm H
Interface : -
Operating Temperature : -20°C ~ 70°C
Text Color : Blue
Background Color : Gray

100 in stock
