NMB Technologies Corp.

- NMB Technologies Corp. headquartered in Novi, Michigan, NMB Technologies Corporation was founded in September 1968 as the sales and marketing arm for its parent company, Minebea Co., Ltd.

From the beginning, NMB has believed in creating strong partnerships with our customers. This commitment to our customers is demonstrated by making available local application engineers, knowledgeable direct sales, and partnering with world class distributors and local representatives who know our products and its quality inside out.

As part of the Minebea Group of Companies, NMB Technologies Corporation places a global manufacturing powerhouse in the hands of our customers. With R & D and manufacturing facilities located in Thailand, Cambodia, China, Singapore, Japan, Europe and North America, and over 60,000 people employed world wide, the NMB/Minebea Group of Companies remains a world leader in the design and manufacturing of electro-mechanical components.

At NMB, our commitment to our customers compels us to protect the supply chain, drive cost efficiency, and hold quality to the highest standard. Quality in our people, quality in our services, and quality in our products continues to be our primary component.

Part Number
Manufacturer
Description
Unit Price
In Stock

15050VA-48P-EA-00 15050VA-48P-EA-00

NMB Technologies Corp.
Manufacturer : NMB Technologies Corporation
Series : 5920VL
Part Status : Active
Voltage - Rated : 48VDC
Size / Dimension : Rectangular/Rounded - 172mm L x 150mm H
Width : 50.80mm
Air Flow : 283.1 CFM (7.93m鲁/min)
Static Pressure : 0.846 in H2O (210.7 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 63.0 dB(A)
Power (Watts) : 25.00W
RPM : 3750 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : UL, VDE
Weight : 1.8 lbs (816.5g)
0
30 in stock

15050VA-48P-EV-C1 15050VA-48P-EV-C1

NMB Technologies Corp.
Manufacturer : NMB Technologies Corporation
Series : 5920VL
Part Status : Active
Voltage - Rated : 48VDC
Size / Dimension : Rectangular/Rounded - 172mm L x 150mm H
Width : 50.80mm
Air Flow : 283.1 CFM (7.93m鲁/min)
Static Pressure : 0.846 in H2O (210.7 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Speed Sensor (Tach)
Noise : 63.0 dB(A)
Power (Watts) : 25.00W
RPM : 3750 RPM
Termination : 3 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : -
Weight : 1.8 lbs (816.5g)
0
52 in stock

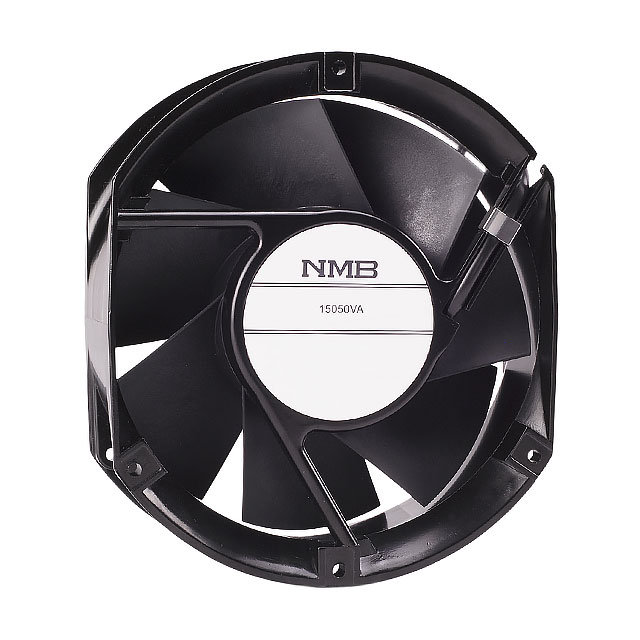

15050VA-48R-GA-00 15050VA-48R-GA-00

NMB Technologies Corp.
Manufacturer : NMB Technologies Corporation
Series : 15050VA
Part Status : Active
Voltage - Rated : 48VDC
Size / Dimension : Rectangular/Rounded - 172.7mm L x 150mm H
Width : 50.80mm
Air Flow : 346.1 CFM (9.69m鲁/min)
Static Pressure : 1.250 in H2O (312.0 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 68.0 dB(A)
Power (Watts) : 43.20W
RPM : 4600 RPM
Termination : 2 Wire Leads
Ingress Protection : IP69K - Dust Tight, High Temp Water Jets, Waterproof
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : -
Weight : 1.9 lbs (861.8g)
0
68 in stock

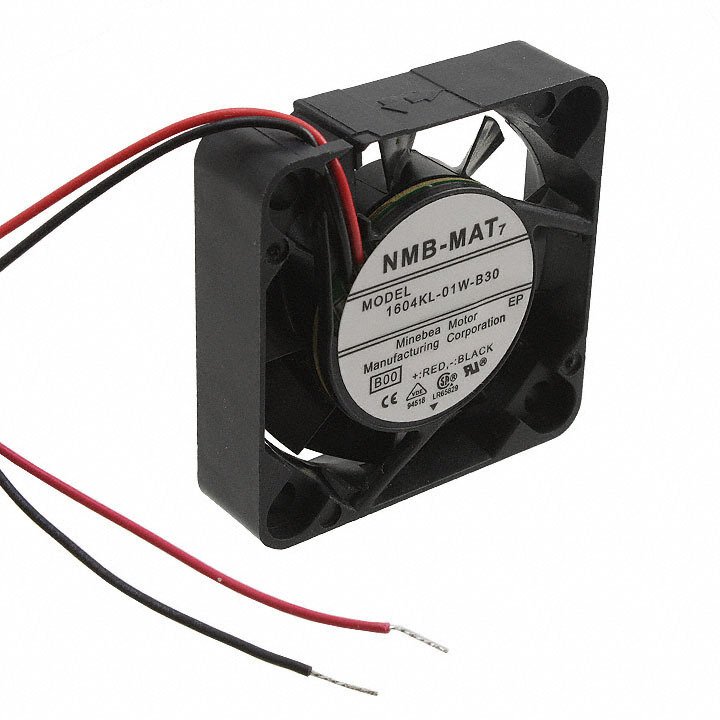

1604KL-01W-B30-B00 1604KL-01W-B30-B00

NMB Technologies Corp.
Manufacturer : NMB Technologies Corporation
Series : 04010KA
Part Status : Active
Voltage - Rated : 5VDC
Size / Dimension : Square - 40mm L x 40mm H
Width : 10.00mm
Air Flow : 4.2 CFM (0.118m鲁/min)
Static Pressure : 0.096 in H2O (23.9 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 22.0 dB
Power (Watts) : 375mW
RPM : 4500 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, CSA, UL, VDE
Weight : 0.033 lb (14.97g)
0
362 in stock

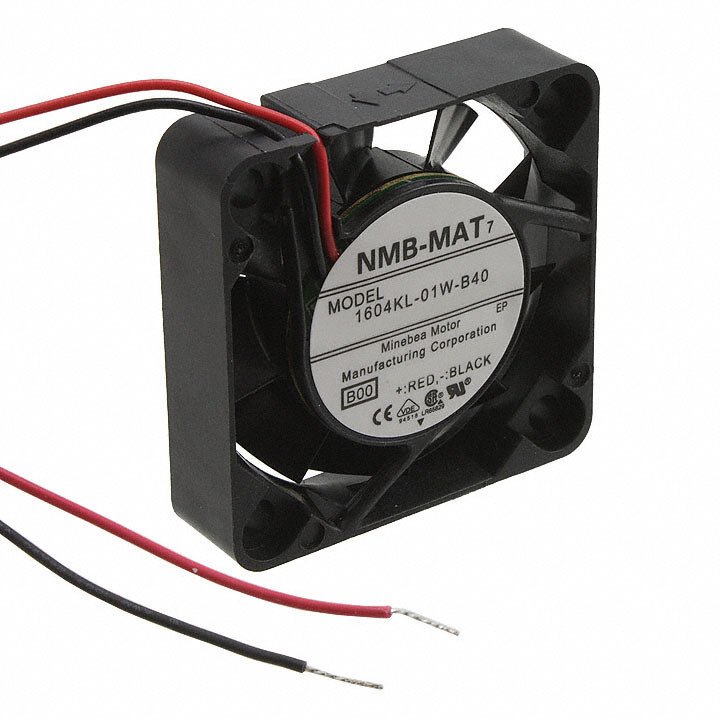

1604KL-01W-B40-B00 1604KL-01W-B40-B00

NMB Technologies Corp.
Manufacturer : NMB Technologies Corporation
Series : 04010KA
Part Status : Active
Voltage - Rated : 5VDC
Size / Dimension : Square - 40mm L x 40mm H
Width : 10.00mm
Air Flow : 5.3 CFM (0.148m鲁/min)
Static Pressure : 0.136 in H2O (33.9 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 25.0 dB
Power (Watts) : 600mW
RPM : 5500 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, CSA, UL, VDE
Weight : 0.033 lb (14.97g)
0
1628 in stock

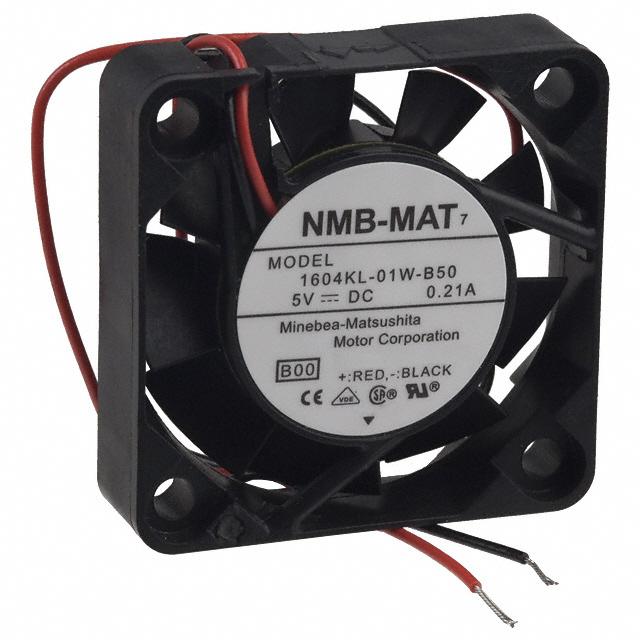

1604KL-01W-B50-B00 1604KL-01W-B50-B00

NMB Technologies Corp.
Manufacturer : NMB Technologies Corporation
Series : 04010KA
Part Status : Active
Voltage - Rated : 5VDC
Size / Dimension : Square - 40mm L x 40mm H
Width : 10.00mm
Air Flow : 6.0 CFM (0.168m鲁/min)
Static Pressure : 0.184 in H2O (46.0 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 29.0 dB
Power (Watts) : 775mW
RPM : 6500 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, CSA, UL, VDE
Weight : 0.033 lb (14.97g)
0
5375 in stock

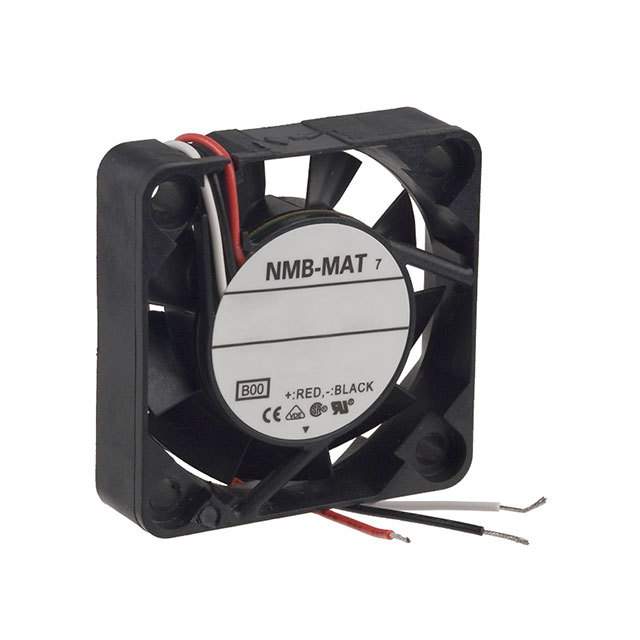

1604KL-01W-B59-B00 1604KL-01W-B59-B00

NMB Technologies Corp.
Manufacturer : NMB Technologies Corporation
Series : 04010KA
Part Status : Active
Voltage - Rated : 5VDC
Size / Dimension : Square - 40mm L x 40mm H
Width : 10.00mm
Air Flow : 6.0 CFM (0.168m鲁/min)
Static Pressure : 0.184 in H2O (46.0 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Locked Rotor Sensor
Noise : 29.0 dB
Power (Watts) : 775mW
RPM : 6500 RPM
Termination : 3 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, CSA, UL, VDE
Weight : 0.033 lb (14.97g)
0
303 in stock

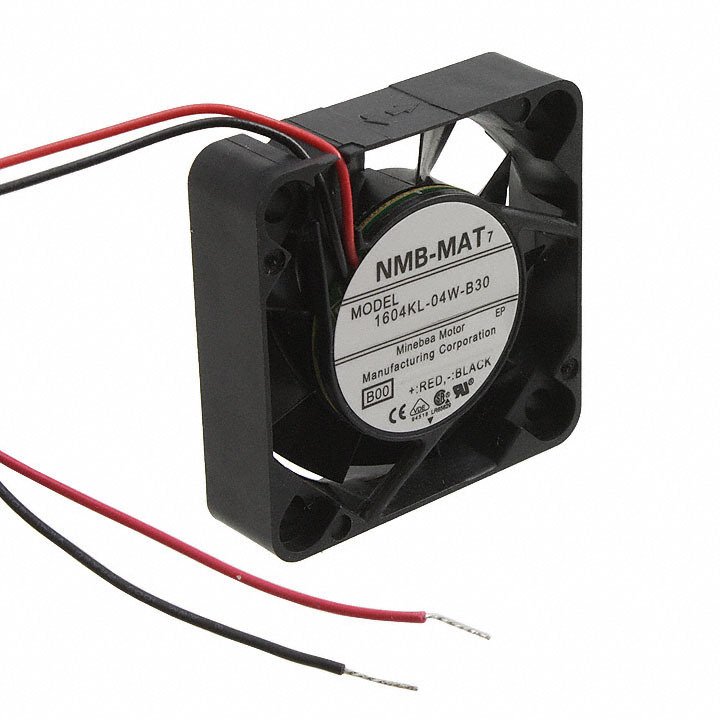

1604KL-04W-B30-B00 1604KL-04W-B30-B00

NMB Technologies Corp.
Manufacturer : NMB Technologies Corporation
Series : 04010KA
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 40mm L x 40mm H
Width : 10.00mm
Air Flow : 4.2 CFM (0.118m鲁/min)
Static Pressure : 0.096 in H2O (23.9 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 22.0 dB
Power (Watts) : 740mW
RPM : 4500 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, CSA, UL, VDE
Weight : 0.033 lb (14.97g)
0
47 in stock

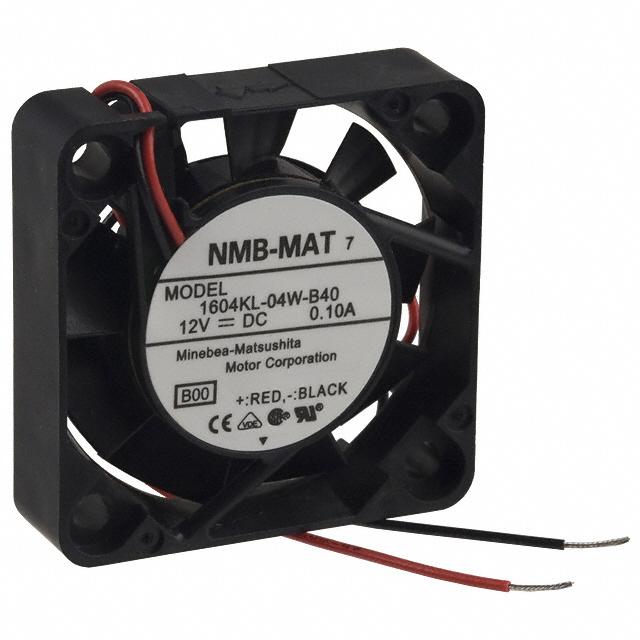

1604KL-04W-B40-B00 1604KL-04W-B40-B00

NMB Technologies Corp.
Manufacturer : NMB Technologies Corporation
Series : 04010KA
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 40mm L x 40mm H
Width : 10.00mm
Air Flow : 5.3 CFM (0.148m鲁/min)
Static Pressure : 0.136 in H2O (33.9 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 25.0 dB
Power (Watts) : 880mW
RPM : 5500 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, CSA, UL, VDE
Weight : 0.033 lb (14.97g)
0
937 in stock

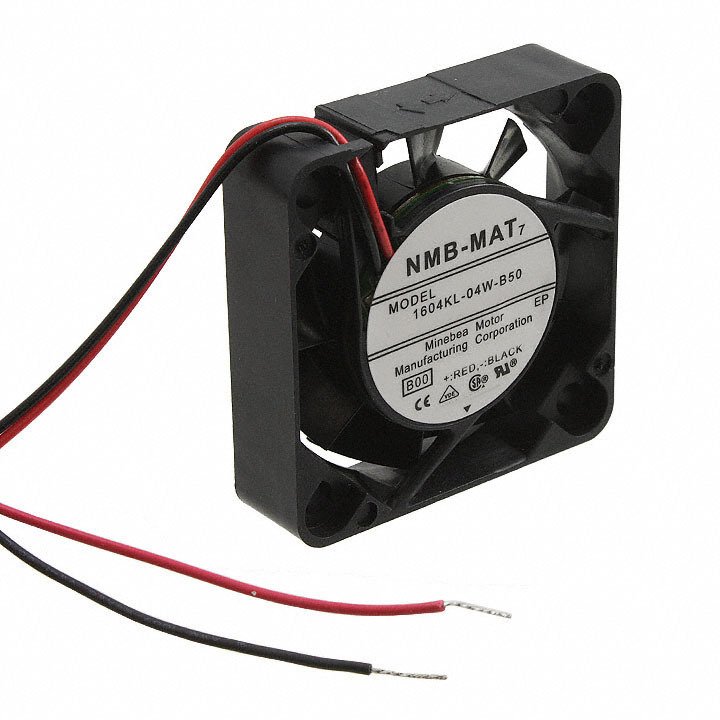

1604KL-04W-B50-B00 1604KL-04W-B50-B00

NMB Technologies Corp.
Manufacturer : NMB Technologies Corporation
Series : 04010KA
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 40mm L x 40mm H
Width : 10.00mm
Air Flow : 6.0 CFM (0.168m鲁/min)
Static Pressure : 0.184 in H2O (46.0 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 29.0 dB
Power (Watts) : 880mW
RPM : 6500 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, CSA, UL, VDE
Weight : 0.033 lb (14.97g)
0
1921 in stock

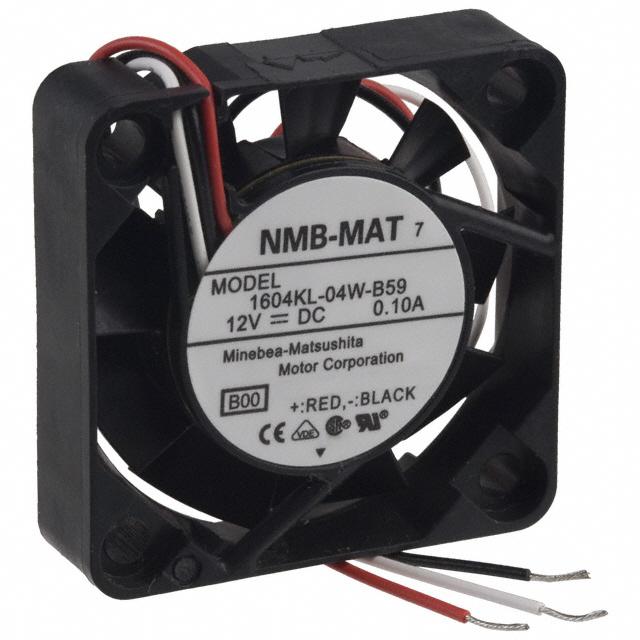

1604KL-04W-B59-B00 1604KL-04W-B59-B00

NMB Technologies Corp.
Manufacturer : NMB Technologies Corporation
Series : 04010KA
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 40mm L x 40mm H
Width : 10.00mm
Air Flow : 6.0 CFM (0.168m鲁/min)
Static Pressure : 0.184 in H2O (46.0 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Locked Rotor Sensor
Noise : 29.0 dB
Power (Watts) : 880mW
RPM : 6500 RPM
Termination : 3 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, CSA, UL, VDE
Weight : 0.033 lb (14.97g)
0
3926 in stock

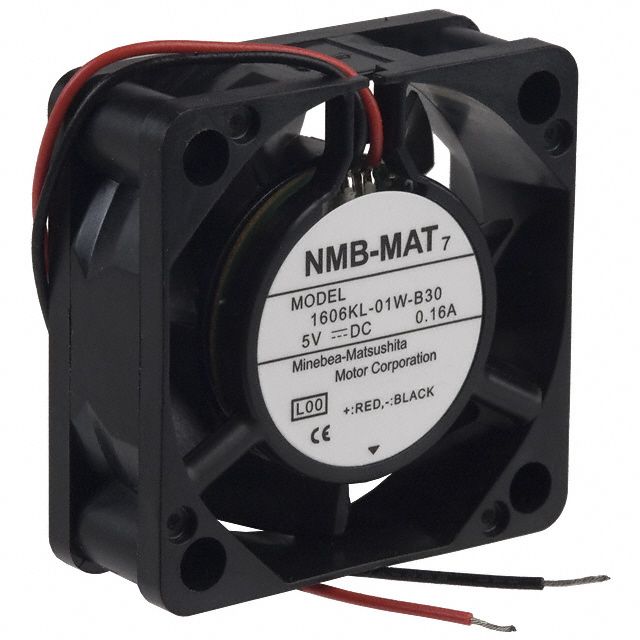

1606KL-01W-B30-L00 1606KL-01W-B30-L00

NMB Technologies Corp.
Manufacturer : NMB Technologies Corporation
Series : 1606KL
Part Status : Active
Voltage - Rated : 5VDC
Size / Dimension : Square - 40mm L x 40mm H
Width : 15.00mm
Air Flow : 6.0 CFM (0.168m鲁/min)
Static Pressure : 0.145 in H2O (36.1 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 28.0 dB
Power (Watts) : 600mW
RPM : 6000 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, CSA, UL, VDE
Weight : 0.044 lb (19.96g)
0
479 in stock
