Welcome to Weijie Semiconductor

NMB Technologies Corp.

- NMB Technologies Corp. headquartered in Novi, Michigan, NMB Technologies Corporation was founded in September 1968 as the sales and marketing arm for its parent company, Minebea Co., Ltd.

From the beginning, NMB has believed in creating strong partnerships with our customers. This commitment to our customers is demonstrated by making available local application engineers, knowledgeable direct sales, and partnering with world class distributors and local representatives who know our products and its quality inside out.

As part of the Minebea Group of Companies, NMB Technologies Corporation places a global manufacturing powerhouse in the hands of our customers. With R & D and manufacturing facilities located in Thailand, Cambodia, China, Singapore, Japan, Europe and North America, and over 60,000 people employed world wide, the NMB/Minebea Group of Companies remains a world leader in the design and manufacturing of electro-mechanical components.

At NMB, our commitment to our customers compels us to protect the supply chain, drive cost efficiency, and hold quality to the highest standard. Quality in our people, quality in our services, and quality in our products continues to be our primary component.

Part Number
Manufacturer
Description
Unit Price
In Stock

14PM-M264U 14PM-M264U

NMB Technologies Corp.
Manufacturer : NMB Technologies Corporation
Series : 14PM
Part Status : Active
Type : Hybrid
Coil Type : Unipolar
Voltage - Rated : 24VDC
Current Rating : 400mA
Steps per Revolution : 200
Step Angle : 1.8°
Accuracy : -
Torque - Holding (oz-in / mNm) : 3.40 / 24
Size / Dimension : Square - 1.378" x 1.378" (35.00mm x 35.00mm)
NEMA Frame Size : 14
Diameter - Shaft : 0.197" (5.00mm)
Length - Shaft and Bearing : 0.787" (20.00mm)
Mounting Hole Spacing : 1.023" (26.00mm)
Termination Style : Connector
Operating Temperature : -
Coil Resistance : 7.6 Ohms
Features : Round Shaft
0
100 in stock

14PM-M444B 14PM-M444B

NMB Technologies Corp.
Manufacturer : NMB Technologies Corporation
Series : 14PM
Part Status : Active
Type : Hybrid
Coil Type : Bipolar
Voltage - Rated : 24VDC
Current Rating : 700mA
Steps per Revolution : 200
Step Angle : 1.8°
Accuracy : -
Torque - Holding (oz-in / mNm) : 31.87 / 225
Size / Dimension : Square - 1.378" x 1.378" (35.00mm x 35.00mm)
NEMA Frame Size : 14
Diameter - Shaft : 0.197" (5.00mm)
Length - Shaft and Bearing : 0.984" (25.00mm)
Mounting Hole Spacing : 1.023" (26.00mm)
Termination Style : Wire Leads with Connector
Operating Temperature : -
Coil Resistance : 8 Ohms
Features : Round Shaft
0
100 in stock

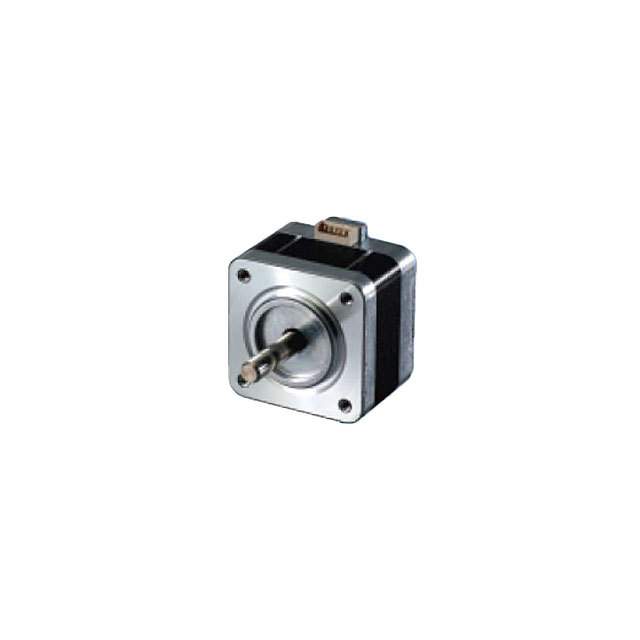

14PM-M444U 14PM-M444U

NMB Technologies Corp.
Manufacturer : NMB Technologies Corporation
Series : 14PM
Part Status : Active
Type : Hybrid
Coil Type : Unipolar
Voltage - Rated : 24VDC
Current Rating : 1A
Steps per Revolution : 200
Step Angle : 1.8°
Accuracy : -
Torque - Holding (oz-in / mNm) : 26.91 / 190
Size / Dimension : Square - 1.378" x 1.378" (35.00mm x 35.00mm)
NEMA Frame Size : 14
Diameter - Shaft : 0.197" (5.00mm)
Length - Shaft and Bearing : 0.787" (20.00mm)
Mounting Hole Spacing : 1.023" (26.00mm)
Termination Style : Connector
Operating Temperature : -
Coil Resistance : 4 Ohms
Features : Round Shaft
0
100 in stock

14PY-Z047B 14PY-Z047B

NMB Technologies Corp.
Manufacturer : NMB Technologies Corporation
Series : 14PY
Part Status : Active
Type : Hybrid
Coil Type : Bipolar
Voltage - Rated : 24VDC
Current Rating : 600mA
Steps per Revolution : 400
Step Angle : 0.9°
Accuracy : -
Torque - Holding (oz-in / mNm) : 7.79 / 55
Size / Dimension : Square - 1.378" x 1.378" (35.00mm x 35.00mm)
NEMA Frame Size : 14
Diameter - Shaft : 0.197" (5.00mm)
Length - Shaft and Bearing : 0.984" (25.00mm)
Mounting Hole Spacing : 1.023" (26.00mm)
Termination Style : Wire Leads with Connector
Operating Temperature : -
Coil Resistance : 4.8 Ohms
Features : Round Shaft
0
100 in stock

14PY-Z047U 14PY-Z047U

NMB Technologies Corp.
Manufacturer : NMB Technologies Corporation
Series : 14PY
Part Status : Active
Type : Hybrid
Coil Type : Unipolar
Voltage - Rated : 24VDC
Current Rating : 800mA
Steps per Revolution : 400
Step Angle : 0.9°
Accuracy : -
Torque - Holding (oz-in / mNm) : 5.67 / 40
Size / Dimension : Square - 1.378" x 1.378" (35.00mm x 35.00mm)
NEMA Frame Size : 14
Diameter - Shaft : 0.197" (5.00mm)
Length - Shaft and Bearing : 0.787" (20.00mm)
Mounting Hole Spacing : 1.023" (26.00mm)
Termination Style : Connector
Operating Temperature : -
Coil Resistance : 2.4 Ohms
Features : Round Shaft
0
100 in stock

14PY-Z064U 14PY-Z064U

NMB Technologies Corp.
Manufacturer : NMB Technologies Corporation
Series : 14PY
Part Status : Active
Type : Hybrid
Coil Type : Unipolar
Voltage - Rated : 24VDC
Current Rating : 400mA
Steps per Revolution : 400
Step Angle : 0.9°
Accuracy : -
Torque - Holding (oz-in / mNm) : 5.67 / 40
Size / Dimension : Square - 1.378" x 1.378" (35.00mm x 35.00mm)
NEMA Frame Size : 14
Diameter - Shaft : 0.197" (5.00mm)
Length - Shaft and Bearing : 0.787" (20.00mm)
Mounting Hole Spacing : 1.023" (26.00mm)
Termination Style : Connector
Operating Temperature : -
Coil Resistance : 9 Ohms
Features : Round Shaft
0
100 in stock

14PY-Z247B 14PY-Z247B

NMB Technologies Corp.
Manufacturer : NMB Technologies Corporation
Series : 14PY
Part Status : Active
Type : Hybrid
Coil Type : Bipolar
Voltage - Rated : 24VDC
Current Rating : 600mA
Steps per Revolution : 400
Step Angle : 0.9°
Accuracy : -
Torque - Holding (oz-in / mNm) : 7.79 / 55
Size / Dimension : Square - 1.378" x 1.378" (35.00mm x 35.00mm)
NEMA Frame Size : 14
Diameter - Shaft : 0.197" (5.00mm)
Length - Shaft and Bearing : 0.787" (20.00mm)
Mounting Hole Spacing : 1.023" (26.00mm)
Termination Style : Connector
Operating Temperature : -
Coil Resistance : 4.8 Ohms
Features : Round Shaft
0
100 in stock

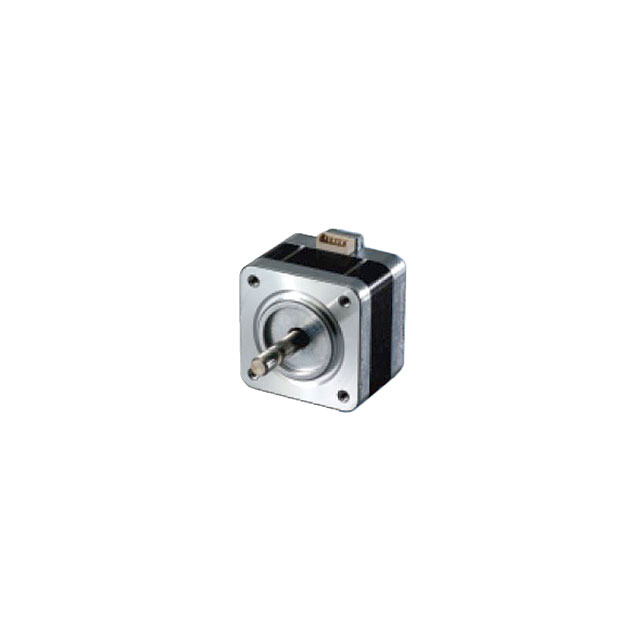

14PY-Z264U 14PY-Z264U

NMB Technologies Corp.
Manufacturer : NMB Technologies Corporation
Series : 14PY
Part Status : Active
Type : Hybrid
Coil Type : Unipolar
Voltage - Rated : 24VDC
Current Rating : 400mA
Steps per Revolution : 400
Step Angle : 0.9°
Accuracy : -
Torque - Holding (oz-in / mNm) : 3.12 / 22
Size / Dimension : Square - 1.378" x 1.378" (35.00mm x 35.00mm)
NEMA Frame Size : 14
Diameter - Shaft : 0.197" (5.00mm)
Length - Shaft and Bearing : 0.787" (20.00mm)
Mounting Hole Spacing : 1.023" (26.00mm)
Termination Style : Connector
Operating Temperature : -
Coil Resistance : 7 Ohms
Features : Round Shaft
0
100 in stock

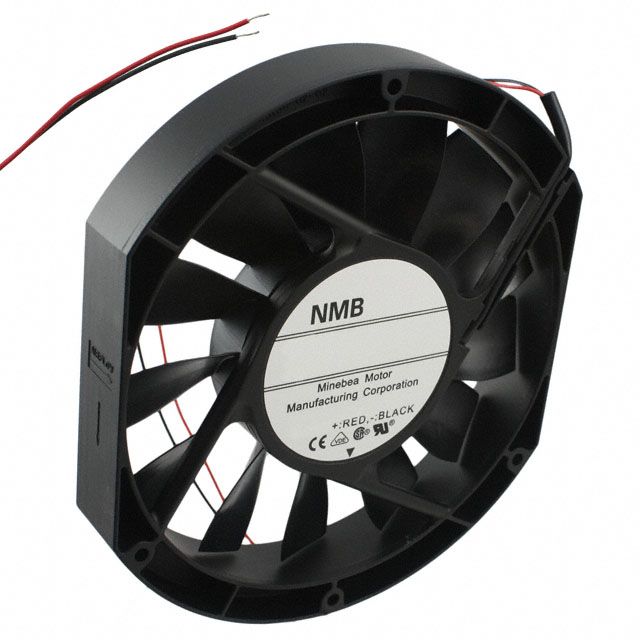

15025PA-12N-AA-00 15025PA-12N-AA-00

NMB Technologies Corp.
Manufacturer : NMB Technologies Corporation
Series : 5910PL
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Rectangular/Rounded - 172mm L x 150mm H
Width : 25.40mm
Air Flow : 250.0 CFM (7.00m鲁/min)
Static Pressure : 0.657 in H2O (163.7 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 62.5 dB
Power (Watts) : 24.70W
RPM : 3500 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, CSA, UL, VDE
Weight : 1.102 lb (500.0g)
0
15 in stock

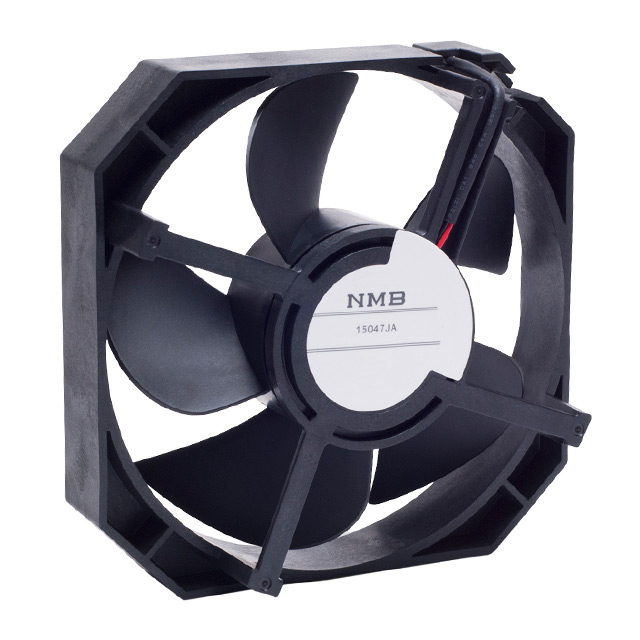

15047JA-12K-YA-00 15047JA-12K-YA-00

NMB Technologies Corp.
Manufacturer : NMB Technologies Corporation
Series : 15047JA
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 150mm L x 150mm H
Width : 47.00mm
Air Flow : 91.8 CFM (2.57m鲁/min)
Static Pressure : 0.090 in H2O (22.4 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Auto Restart
Noise : 32.0 dB
Power (Watts) : 2.28W
RPM : 1400 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 140°F (-10 ~ 60°C)
Approvals : -
Weight : -
0
35 in stock

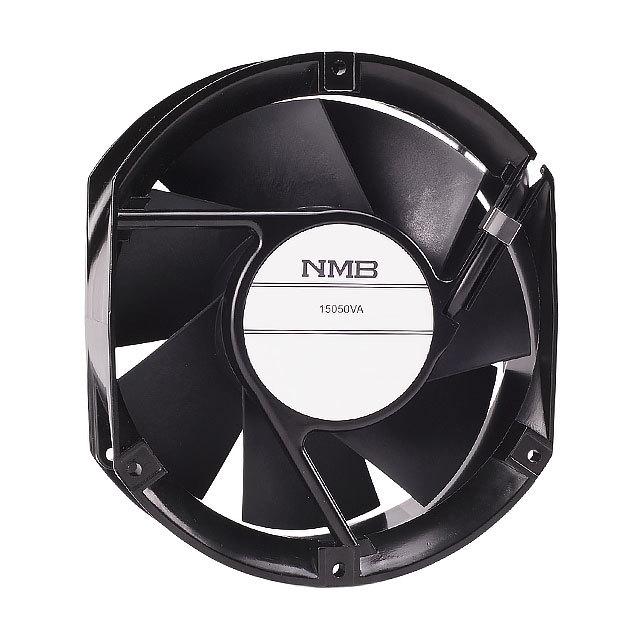

15050VA-24R-GA-00 15050VA-24R-GA-00

NMB Technologies Corp.
Manufacturer : NMB Technologies Corporation
Series : 15050VA
Part Status : Active
Voltage - Rated : 24VDC
Size / Dimension : Rectangular/Rounded - 172.7mm L x 150mm H
Width : 50.80mm
Air Flow : 346.1 CFM (9.69m鲁/min)
Static Pressure : 1.250 in H2O (312.0 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 68.0 dB(A)
Power (Watts) : 43.20W
RPM : 4600 RPM
Termination : 2 Wire Leads
Ingress Protection : IP69K - Dust Tight, High Temp Water Jets, Waterproof
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : -
Weight : 1.9 lbs (861.8g)
0
100 in stock

15050VA-48M-EA-YY 15050VA-48M-EA-YY

NMB Technologies Corp.
Manufacturer : NMB Technologies Corporation
Series : 5920VL
Part Status : Active
Voltage - Rated : 48VDC
Size / Dimension : Rectangular/Rounded - 172mm L x 150mm H
Width : 50.80mm
Air Flow : 194.5 CFM (5.45m鲁/min)
Static Pressure : 0.428 in H2O (106.6 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 51.0 dB(A)
Power (Watts) : 13.40W
RPM : 2550 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : -
Weight : 1.8 lbs (816.5g)
0
13 in stock
