- Opulent Americas, part of Singapore based Opulent Group, is a fully integrated global manufacturer for the lighting, automotive, and medical industries. The company brings 30 years of experience, state of the art manufacturing, full traceability and advanced quality control to every solution. ISO certifications include ISO 9001, ISO 14001, ISO 13485 and ISO 16949.

Opulent's goal is to accelerate the adoption of LED technology through simple, modular products and custom designs. Opulent customers get to market faster, with less resources, at lower costs. The North Carolina based office provides quick engineering and sales support with an R&D lab for prototype development and custom designs servicing the North, Central and South American markets. Full global manufacturing capabilities enable building domestic or overseas at scale.

Part Number
Manufacturer
Description
Unit Price
In Stock

MHDGWT-0000-000N0BN265E-SB01 MHDGWT-0000-000N0BN265E-SB01

Opulent Americas
Manufacturer : Opulent Americas
Packaging : Tray
Series : MHD-G
Part Status : Active
Type : LED Module
Color : White, Cool
CCT (K) : 6500K 5-Step MacAdam Ellipse
Wavelength : -
Configuration : Starboard
Flux @ Current/Temperature - Test : 1650 lm (1590 lm ~ 1710 lm)
Current - Test : 350mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 36.4V
Lumens/Watt @ Current - Test : 130 lm/W
Current - Max : 500mA
CRI (Color Rendering Index) : 70
Viewing Angle : 115°
Features : -
Size / Dimension : 19.89mm Diameter
Height : 1.5mm
Light Emitting Surface (LES) : -
Lens Type : Flat
0
157 in stock

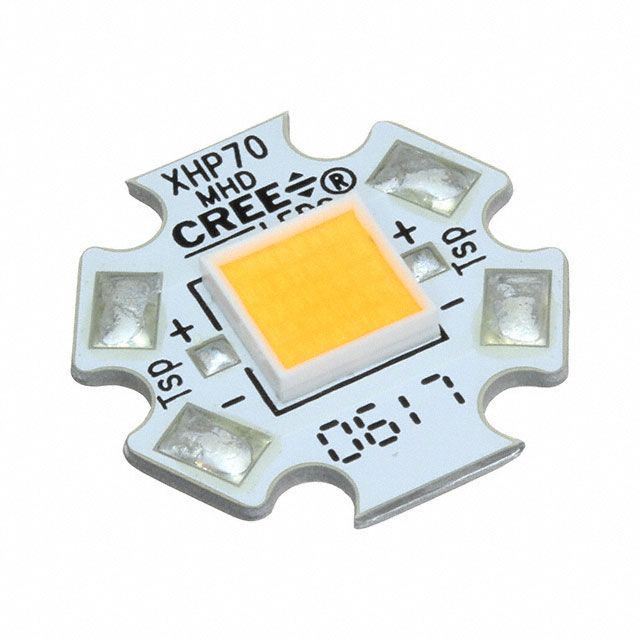

MHDGWT-0000-000N0HK427G-SB01 MHDGWT-0000-000N0HK427G-SB01

Opulent Americas
Manufacturer : Opulent Americas
Packaging : Tray
Series : MHD-G
Part Status : Active
Type : LED Module
Color : White, Warm
CCT (K) : 2700K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Starboard
Flux @ Current/Temperature - Test : 1335 lm (1290 lm ~ 1380 lm)
Current - Test : 350mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 36.4V
Lumens/Watt @ Current - Test : 105 lm/W
Current - Max : 500mA
CRI (Color Rendering Index) : 80
Viewing Angle : 115°
Features : -
Size / Dimension : 19.89mm Diameter
Height : 1.5mm
Light Emitting Surface (LES) : -
Lens Type : Flat
0
186 in stock

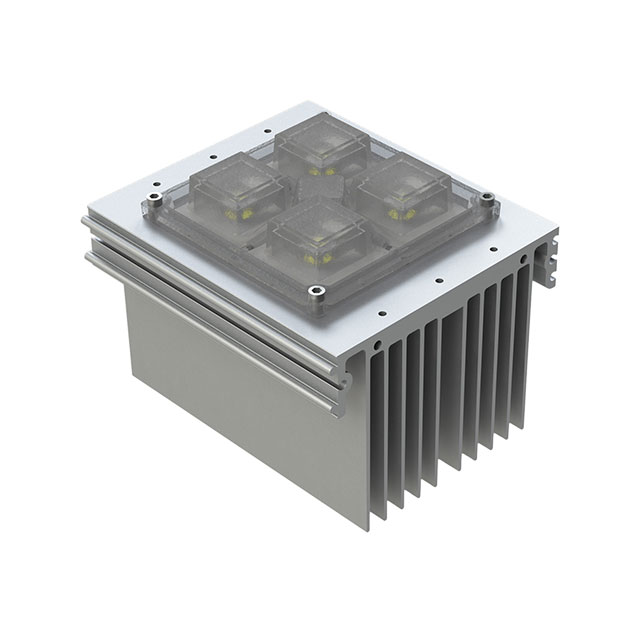

MP22T1-C24-4070-T2-1-00 MP22T1-C24-4070-T2-1-00

Opulent Americas
Manufacturer : Opulent Americas
Packaging : Bulk
Series : XHP70
Part Status : Active
Type : LED Module
Color : White, Neutral
CCT (K) : 4000K 5-Step MacAdam Ellipse
Wavelength : -
Configuration : Rectangle
Flux @ Current/Temperature - Test : 6360 lm (Typ)
Current - Test : 1.05A
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 46.4V
Lumens/Watt @ Current - Test : 131 lm/W
Current - Max : 2.4A
CRI (Color Rendering Index) : 70
Viewing Angle : -
Features : IP67
Size / Dimension : 127.00mm H x 111.00mm W
Height : 99.31mm
Light Emitting Surface (LES) : -
Lens Type : Domed
0
22 in stock

MP22T1-C24-4070-WW-1-00 MP22T1-C24-4070-WW-1-00

Opulent Americas
Manufacturer : Opulent Americas
Packaging : -
Series : XHP70.2
Part Status : Active
Type : LED Module
Color : White, Neutral
CCT (K) : 4000K 5-Step MacAdam Ellipse
Wavelength : -
Configuration : Rectangle
Flux @ Current/Temperature - Test : -
Current - Test : -
Temperature - Test : 25°C
Voltage - Forward (Vf) (Typ) : -
Lumens/Watt @ Current - Test : -
Current - Max : -
CRI (Color Rendering Index) : 70 (Typ)
Viewing Angle : -
Features : IP67
Size / Dimension : 127.00mm L x 110.99mm W
Height : 96.52mm
Light Emitting Surface (LES) : -
Lens Type : Domed
0
100 in stock

MP22T1-C24-5070-T2-1-00 MP22T1-C24-5070-T2-1-00

Opulent Americas
Manufacturer : Opulent Americas
Packaging : Bulk
Series : XHP70
Part Status : Active
Type : LED Module
Color : White, Cool
CCT (K) : 5000K 5-Step MacAdam Ellipse
Wavelength : -
Configuration : Rectangle
Flux @ Current/Temperature - Test : 6840 lm (Typ)
Current - Test : 1.05A
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 46.4V
Lumens/Watt @ Current - Test : 140 lm/W
Current - Max : 2.4A
CRI (Color Rendering Index) : 70
Viewing Angle : -
Features : IP67
Size / Dimension : 127.00mm H x 111.00mm W
Height : 99.31mm
Light Emitting Surface (LES) : -
Lens Type : Domed
0
21 in stock

MP22T1-C24-5070-WW-1-00 MP22T1-C24-5070-WW-1-00

Opulent Americas
Manufacturer : Opulent Americas
Packaging : -
Series : XHP70.2
Part Status : Active
Type : LED Module
Color : White, Cool
CCT (K) : 5000K 5-Step MacAdam Ellipse
Wavelength : -
Configuration : Rectangle
Flux @ Current/Temperature - Test : -
Current - Test : -
Temperature - Test : 25°C
Voltage - Forward (Vf) (Typ) : -
Lumens/Watt @ Current - Test : -
Current - Max : -
CRI (Color Rendering Index) : 70 (Typ)
Viewing Angle : -
Features : IP67
Size / Dimension : 127.00mm L x 110.99mm W
Height : 96.52mm
Light Emitting Surface (LES) : -
Lens Type : Domed
0
16 in stock

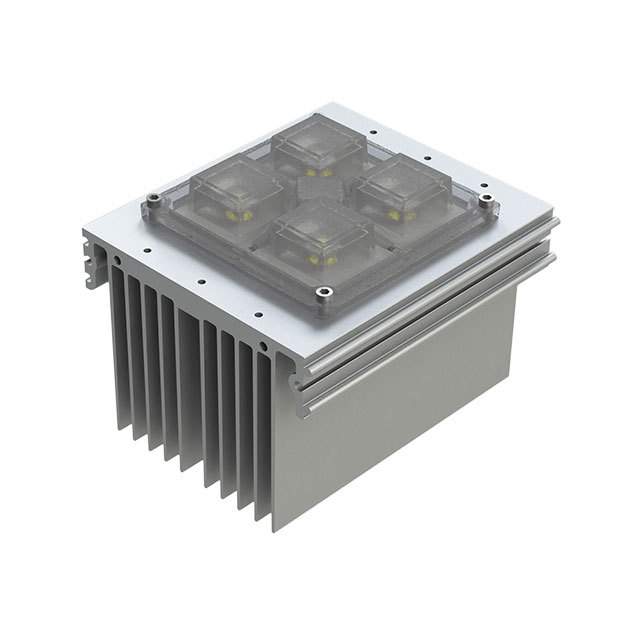

MS22T1-C22-4070-DWC-1-00 MS22T1-C22-4070-DWC-1-00

Opulent Americas
Manufacturer : Opulent Americas
Packaging : -
Series : *
Part Status : Active
Type : -
Color : -
CCT (K) : -
Wavelength : -
Configuration : -
Flux @ Current/Temperature - Test : -
Current - Test : -
Temperature - Test : -
Voltage - Forward (Vf) (Typ) : -
Lumens/Watt @ Current - Test : -
Current - Max : -
CRI (Color Rendering Index) : -
Viewing Angle : -
Features : -
Size / Dimension : -
Height : -
Light Emitting Surface (LES) : -
Lens Type : -
0
25 in stock

MS22T1-C22-4070-W-1-00 MS22T1-C22-4070-W-1-00

Opulent Americas
Manufacturer : Opulent Americas
Packaging : Bulk
Series : XHP50
Part Status : Active
Type : LED Module
Color : White, Neutral
CCT (K) : 4000K 5-Step MacAdam Ellipse
Wavelength : -
Configuration : Rectangle
Flux @ Current/Temperature - Test : 4480 lm (Typ)
Current - Test : 700mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 46V
Lumens/Watt @ Current - Test : 139 lm/W
Current - Max : 1.5A
CRI (Color Rendering Index) : 70
Viewing Angle : -
Features : IP67
Size / Dimension : 127.00mm H x 111.00mm W
Height : 99.31mm
Light Emitting Surface (LES) : -
Lens Type : Domed
0
23 in stock

MS22T1-C22-5070-DWC-1-00 MS22T1-C22-5070-DWC-1-00

Opulent Americas
Manufacturer : Opulent Americas
Packaging : -
Series : *
Part Status : Active
Type : -
Color : -
CCT (K) : -
Wavelength : -
Configuration : -
Flux @ Current/Temperature - Test : -
Current - Test : -
Temperature - Test : -
Voltage - Forward (Vf) (Typ) : -
Lumens/Watt @ Current - Test : -
Current - Max : -
CRI (Color Rendering Index) : -
Viewing Angle : -
Features : -
Size / Dimension : -
Height : -
Light Emitting Surface (LES) : -
Lens Type : -
0
23 in stock

MS22T1-C22-5070-W-1-00 MS22T1-C22-5070-W-1-00

Opulent Americas
Manufacturer : Opulent Americas
Packaging : Bulk
Series : XHP50
Part Status : Active
Type : LED Module
Color : White, Cool
CCT (K) : 5000K 5-Step MacAdam Ellipse
Wavelength : -
Configuration : Rectangle
Flux @ Current/Temperature - Test : 4480 lm (Typ)
Current - Test : 700mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 46V
Lumens/Watt @ Current - Test : 139 lm/W
Current - Max : 1.5A
CRI (Color Rendering Index) : 70
Viewing Angle : -
Features : IP67
Size / Dimension : 127.00mm H x 111.00mm W
Height : 99.31mm
Light Emitting Surface (LES) : -
Lens Type : Domed
0
24 in stock

ONAH-0504-01 ONAH-0504-01

Opulent Americas
Manufacturer : Opulent Americas
Packaging : -
Series : Interlocking 100W
Part Status : Active
Type : Heat Sink
For Use With/Related Products : Cree XHP70, XHP50 2x2 Modules
Shape : Rectangular
0
51 in stock

ONAH-0804-01 ONAH-0804-01

Opulent Americas
Manufacturer : Opulent Americas
Packaging : -
Series : Interlocking 100W
Part Status : Active
Type : Heat Sink
For Use With/Related Products : Cree XHP35 2x6 Modules
Shape : Rectangular
0
32 in stock
