- Opulent Americas, part of Singapore based Opulent Group, is a fully integrated global manufacturer for the lighting, automotive, and medical industries. The company brings 30 years of experience, state of the art manufacturing, full traceability and advanced quality control to every solution. ISO certifications include ISO 9001, ISO 14001, ISO 13485 and ISO 16949.

Opulent's goal is to accelerate the adoption of LED technology through simple, modular products and custom designs. Opulent customers get to market faster, with less resources, at lower costs. The North Carolina based office provides quick engineering and sales support with an R&D lab for prototype development and custom designs servicing the North, Central and South American markets. Full global manufacturing capabilities enable building domestic or overseas at scale.

Part Number
Manufacturer
Description
Unit Price
In Stock

LST1-01G01-RYL1-00 LST1-01G01-RYL1-00

Opulent Americas
Manufacturer : Opulent Americas
Packaging : -
Series : -
Part Status : Active
Type : Chip On Board (COB)
Color : Blue
CCT (K) : -
Wavelength : 450nm
Configuration : Starboard
Flux @ Current/Temperature - Test : 600mW
Current - Test : 350mA
Temperature - Test : 25°C
Voltage - Forward (Vf) (Typ) : 3V
Lumens/Watt @ Current - Test : -
Current - Max : -
CRI (Color Rendering Index) : -
Viewing Angle : 130°
Features : -
Size / Dimension : -
Height : -
Light Emitting Surface (LES) : -
Lens Type : -
0
100 in stock

LST1-01G01-UV01-00 LST1-01G01-UV01-00

Opulent Americas
Manufacturer : Opulent Americas
Packaging : -
Series : -
Part Status : Active
Type : Chip On Board (COB)
Color : Violet
CCT (K) : -
Wavelength : 365nm
Configuration : Starboard
Flux @ Current/Temperature - Test : 875mW
Current - Test : 500mA
Temperature - Test : 25°C
Voltage - Forward (Vf) (Typ) : 3.6V
Lumens/Watt @ Current - Test : -
Current - Max : -
CRI (Color Rendering Index) : -
Viewing Angle : 130°
Features : -
Size / Dimension : -
Height : -
Light Emitting Surface (LES) : -
Lens Type : -
0
87 in stock

LST1-01G01-UV02-00 LST1-01G01-UV02-00

Opulent Americas
Manufacturer : Opulent Americas
Packaging : -
Series : -
Part Status : Active
Type : Chip On Board (COB)
Color : Violet
CCT (K) : -
Wavelength : 385nm
Configuration : Starboard
Flux @ Current/Temperature - Test : 1015mW
Current - Test : 500mA
Temperature - Test : 25°C
Voltage - Forward (Vf) (Typ) : 3.4V
Lumens/Watt @ Current - Test : -
Current - Max : -
CRI (Color Rendering Index) : -
Viewing Angle : 130°
Features : -
Size / Dimension : -
Height : -
Light Emitting Surface (LES) : -
Lens Type : -
0
77 in stock

LST1-01G01-UV03-00 LST1-01G01-UV03-00

Opulent Americas
Manufacturer : Opulent Americas
Packaging : -
Series : -
Part Status : Active
Type : Chip On Board (COB)
Color : Violet
CCT (K) : -
Wavelength : 395nm
Configuration : Starboard
Flux @ Current/Temperature - Test : 1015mW
Current - Test : 500mA
Temperature - Test : 25°C
Voltage - Forward (Vf) (Typ) : 3.4V
Lumens/Watt @ Current - Test : -
Current - Max : -
CRI (Color Rendering Index) : -
Viewing Angle : 130°
Features : -
Size / Dimension : -
Height : -
Light Emitting Surface (LES) : -
Lens Type : -
0
87 in stock

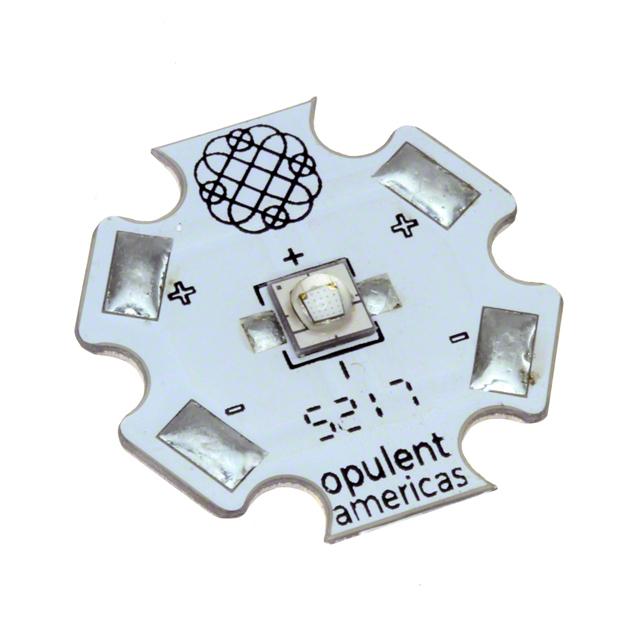

LST1-01G01-UV04-00 LST1-01G01-UV04-00

Opulent Americas
Manufacturer : Opulent Americas
Packaging : -
Series : -
Part Status : Active
Type : Chip On Board (COB)
Color : Violet
CCT (K) : -
Wavelength : 405nm
Configuration : Starboard
Flux @ Current/Temperature - Test : 930mW
Current - Test : 500mA
Temperature - Test : 25°C
Voltage - Forward (Vf) (Typ) : 3.4V
Lumens/Watt @ Current - Test : -
Current - Max : -
CRI (Color Rendering Index) : -
Viewing Angle : 130°
Features : -
Size / Dimension : -
Height : -
Light Emitting Surface (LES) : -
Lens Type : -
0
81 in stock

LVS1-04C05-2790-00 LVS1-04C05-2790-00

Opulent Americas
Manufacturer : Opulent Americas
Packaging : -
Series : MHD-G
Part Status : Active
Type : LED Module
Color : White, Warm
CCT (K) : 2700K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 2492 lm (Typ)
Current - Test : 350mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 34.2V
Lumens/Watt @ Current - Test : 104 lm/W
Current - Max : 2A
CRI (Color Rendering Index) : 90
Viewing Angle : -
Features : -
Size / Dimension : 70.00mm L x 70.00mm W
Height : -
Light Emitting Surface (LES) : -
Lens Type : Flat
0
49 in stock

LVS1-04C05-4070-00 LVS1-04C05-4070-00

Opulent Americas
Manufacturer : Opulent Americas
Packaging : -
Series : MHD-G
Part Status : Active
Type : LED Module
Color : White, Neutral
CCT (K) : 4000K 5-Step MacAdam Ellipse
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 3304 lm (Typ)
Current - Test : 350mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 34.2V
Lumens/Watt @ Current - Test : 138 lm/W
Current - Max : 2A
CRI (Color Rendering Index) : 70
Viewing Angle : -
Features : -
Size / Dimension : 70.00mm L x 70.00mm W
Height : -
Light Emitting Surface (LES) : -
Lens Type : Flat
0
98 in stock

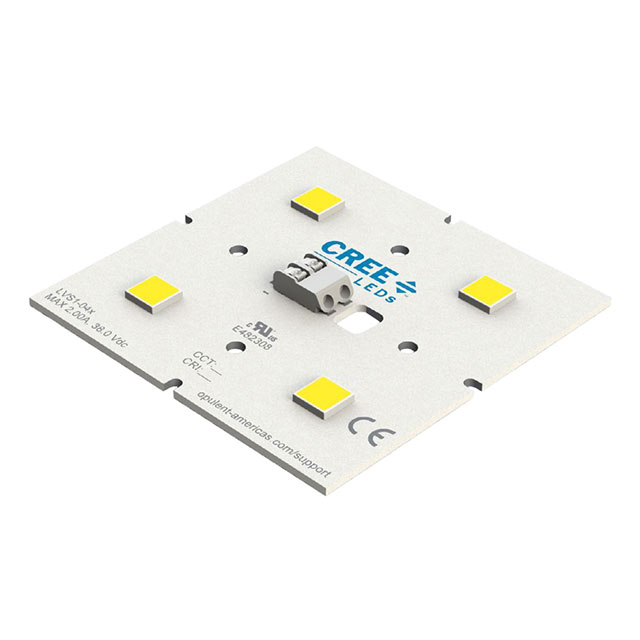

LVS1-04C05-5070-00 LVS1-04C05-5070-00

Opulent Americas
Manufacturer : Opulent Americas
Packaging : -
Series : MHD-G
Part Status : Active
Type : LED Module
Color : White, Cool
CCT (K) : 5000K 5-Step MacAdam Ellipse
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 3537 lm (Typ)
Current - Test : 350mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 34.2V
Lumens/Watt @ Current - Test : 148 lm/W
Current - Max : 2A
CRI (Color Rendering Index) : 70
Viewing Angle : -
Features : -
Size / Dimension : 70.00mm L x 70.00mm W
Height : -
Light Emitting Surface (LES) : -
Lens Type : Flat
0
100 in stock

MHBBWT-0000-000C0BE240E-SB01 MHBBWT-0000-000C0BE240E-SB01

Opulent Americas
Manufacturer : Opulent Americas
Packaging : Tray
Series : MHB-B
Part Status : Active
Type : LED Module
Color : White, Neutral
CCT (K) : 4000K 5-Step MacAdam Ellipse
Wavelength : -
Configuration : Starboard
Flux @ Current/Temperature - Test : 613 lm (590 lm ~ 635 lm)
Current - Test : 480mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 8.75V
Lumens/Watt @ Current - Test : 146 lm/W
Current - Max : 700mA
CRI (Color Rendering Index) : 70
Viewing Angle : 115°
Features : -
Size / Dimension : 19.89mm Diameter
Height : -
Light Emitting Surface (LES) : -
Lens Type : Flat
0
165 in stock

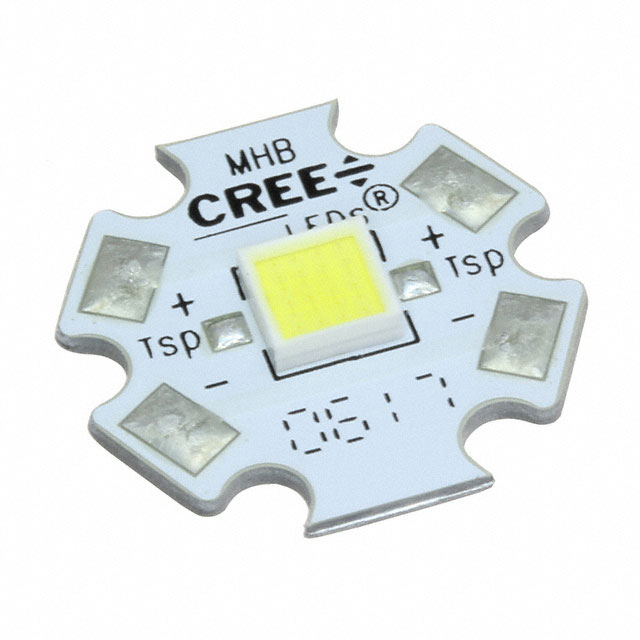

MHBBWT-0000-000C0BE265E-SB01 MHBBWT-0000-000C0BE265E-SB01

Opulent Americas
Manufacturer : Opulent Americas
Packaging : Tray
Series : MHB-B
Part Status : Active
Type : LED Module
Color : White, Cool
CCT (K) : 6500K 5-Step MacAdam Ellipse
Wavelength : -
Configuration : Starboard
Flux @ Current/Temperature - Test : 613 lm (590 lm ~ 635 lm)
Current - Test : 480mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 8.75V
Lumens/Watt @ Current - Test : 146 lm/W
Current - Max : 700mA
CRI (Color Rendering Index) : 70
Viewing Angle : 115°
Features : -
Size / Dimension : 19.89mm Diameter
Height : -
Light Emitting Surface (LES) : -
Lens Type : Flat
0
63 in stock

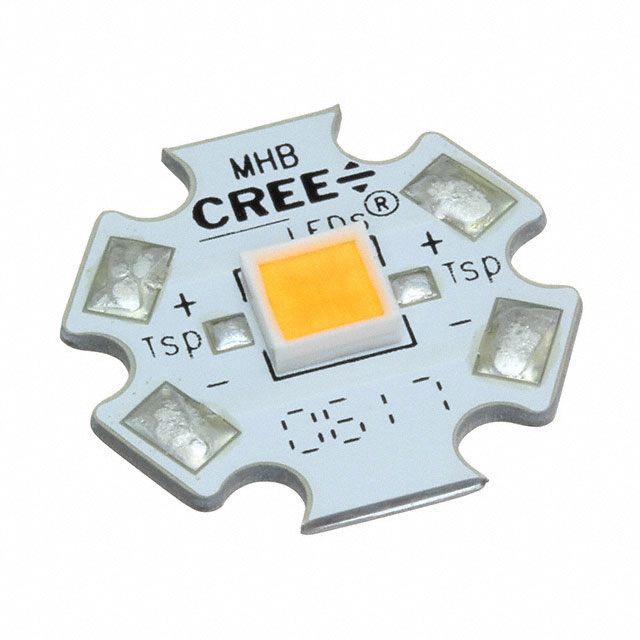

MHBBWT-0000-000C0HC427G-SB01 MHBBWT-0000-000C0HC427G-SB01

Opulent Americas
Manufacturer : Opulent Americas
Packaging : Tray
Series : MHB-B
Part Status : Active
Type : LED Module
Color : White, Warm
CCT (K) : 2700K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Starboard
Flux @ Current/Temperature - Test : 493 lm (475 lm ~ 510 lm)
Current - Test : 480mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 8.75V
Lumens/Watt @ Current - Test : 117 lm/W
Current - Max : 700mA
CRI (Color Rendering Index) : 80
Viewing Angle : 115°
Features : -
Size / Dimension : 19.89mm Diameter
Height : -
Light Emitting Surface (LES) : -
Lens Type : Flat
0
56 in stock

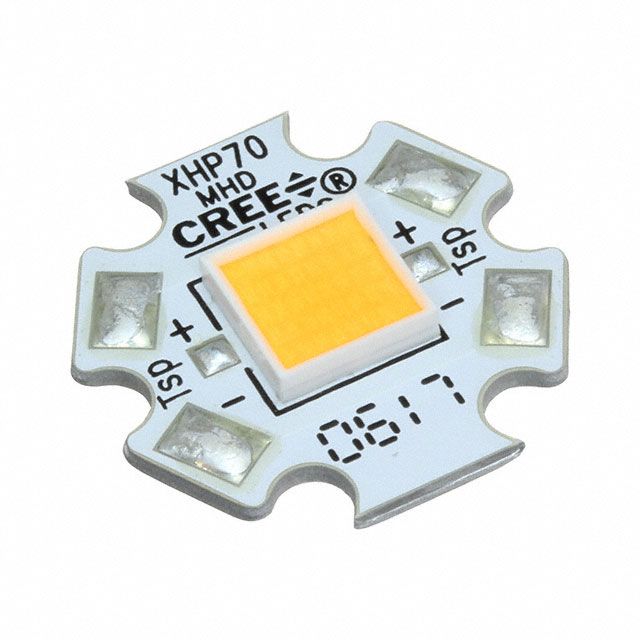

MHDGWT-0000-000N0BM440E-SB01 MHDGWT-0000-000N0BM440E-SB01

Opulent Americas
Manufacturer : Opulent Americas
Packaging : Tray
Series : MHD-G
Part Status : Active
Type : LED Module
Color : White, Neutral
CCT (K) : 4000K 5-Step MacAdam Ellipse
Wavelength : -
Configuration : Starboard
Flux @ Current/Temperature - Test : 1538 lm (1485 lm ~ 1590 lm)
Current - Test : 350mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 36.4V
Lumens/Watt @ Current - Test : 121 lm/W
Current - Max : 500mA
CRI (Color Rendering Index) : 70
Viewing Angle : 115°
Features : -
Size / Dimension : 19.89mm Diameter
Height : 1.5mm
Light Emitting Surface (LES) : -
Lens Type : Flat
0
200 in stock
