Orion Fans
- For nearly two decades Orion Fans, a division of Knight Electronics has been supplying and designing thermal management solutions for demanding applications worldwide. Orion provides one of the industry’s broadest lines of AC, DC fans, blowers, fan trays and accessories. Fast response and short lead times provide customers the right product when they need it. Orion offers price, quality and availability.
Part Number
Manufacturer
Description
Unit Price
In Stock

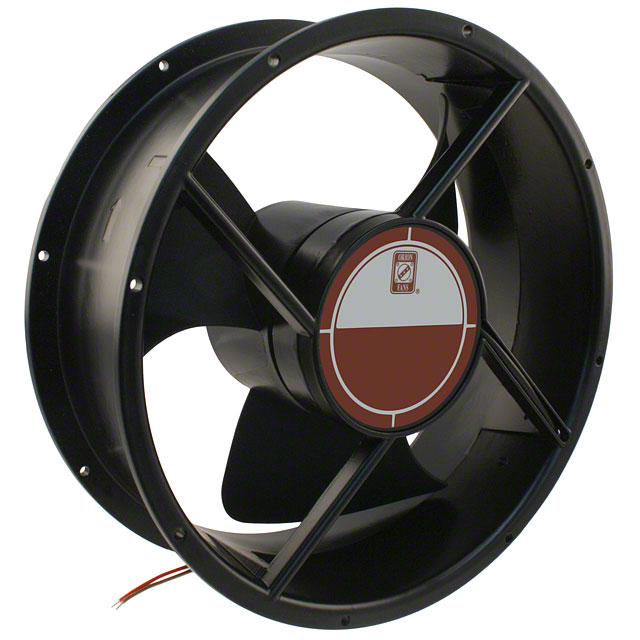

Orion Fans
Manufacturer : Orion Fans
Series : OD254AP
Part Status : Active
Voltage - Rated : 48VDC
Size / Dimension : Round - 254mm Dia
Width : 89.00mm
Air Flow : 690.0 CFM (19.32m鲁/min)
Static Pressure : 0.580 in H2O (144.5 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 47.0 dB
Power (Watts) : 24.00W
RPM : 2000 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -4 ~ 167°F (-20 ~ 75°C)
Approvals : cURus, TUV
Weight : -
0
53 in stock
Orion Fans
Manufacturer : Orion Fans
Series : OD300
Part Status : Active
Type : Fan Tray
Voltage - Input : 12VDC
Specifications : Fan Tray, DC, 3 Fans, 330 CFM
Size / Dimension : 19.00" L x 19.00" W x 1.75" H (482.6mm x 482.6mm x 44.4mm)
0
100 in stock
Orion Fans
Manufacturer : Orion Fans
Series : OD300
Part Status : Active
Type : Fan Tray
Voltage - Input : 24VDC
Specifications : Fan Tray, DC, 3 Fans, 330 CFM
Size / Dimension : 19.00" L x 19.00" W x 1.75" H (482.6mm x 482.6mm x 44.4mm)
0
100 in stock
Orion Fans
Manufacturer : Orion Fans
Series : OD300
Part Status : Active
Type : Fan Tray
Voltage - Input : 48VDC
Specifications : Fan Tray, DC, 3 Fans, 330 CFM
Size / Dimension : 19.00" L x 19.00" W x 1.75" H (482.6mm x 482.6mm x 44.4mm)
0
100 in stock
Orion Fans
Manufacturer : Orion Fans
Series : OD300
Part Status : Active
Type : Fan Tray
Voltage - Input : 12VDC
Specifications : Fan Tray, DC, 3 Fans, 330 CFM
Size / Dimension : 14.00" L x 19.00" W x 1.75" H (355.6mm x 482.6mm x 44.4mm)
0
100 in stock
Orion Fans
Manufacturer : Orion Fans
Series : OD300
Part Status : Active
Type : Fan Tray
Voltage - Input : 48VDC
Specifications : Fan Tray, DC, 3 Fans, 330 CFM
Size / Dimension : 14.00" L x 19.00" W x 1.75" H (355.6mm x 482.6mm x 44.4mm)
0
100 in stock
Orion Fans
Manufacturer : Orion Fans
Series : OD300
Part Status : Active
Type : Fan Tray
Voltage - Input : 24VDC
Specifications : Fan Tray, DC, 3 Fans, 330 CFM
Size / Dimension : 7.00" L x 19.00" W x 1.75" H (177.8mm x 482.6mm x 44.4mm)
0
100 in stock

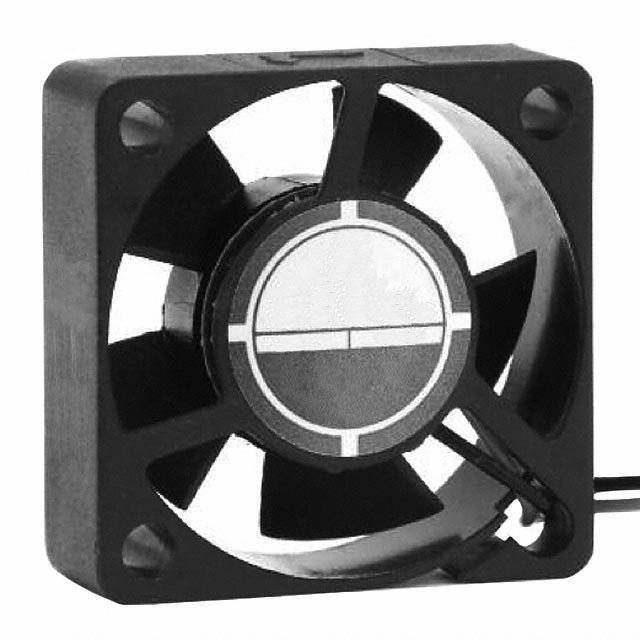

Orion Fans
Manufacturer : Orion Fans
Series : OD3010
Part Status : Active
Voltage - Rated : 5VDC
Size / Dimension : Square - 30mm L x 30mm H
Width : 10.20mm
Air Flow : 5.0 CFM (0.140m鲁/min)
Static Pressure : 0.200 in H2O (49.8 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 32.0 dB
Power (Watts) : -
RPM : 11000 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : cURus, TUV
Weight : -
0
1373 in stock

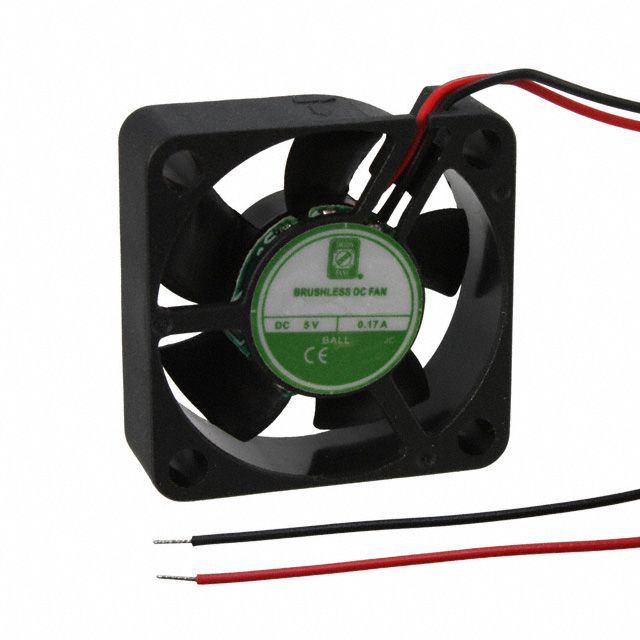

Orion Fans
Manufacturer : Orion Fans
Series : OD3010
Part Status : Active
Voltage - Rated : 5VDC
Size / Dimension : Square - 30mm L x 30mm H
Width : 10.20mm
Air Flow : -
Static Pressure : -
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : -
Power (Watts) : -
RPM : -
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -
Approvals : CE, cURus
Weight : -
0
168 in stock

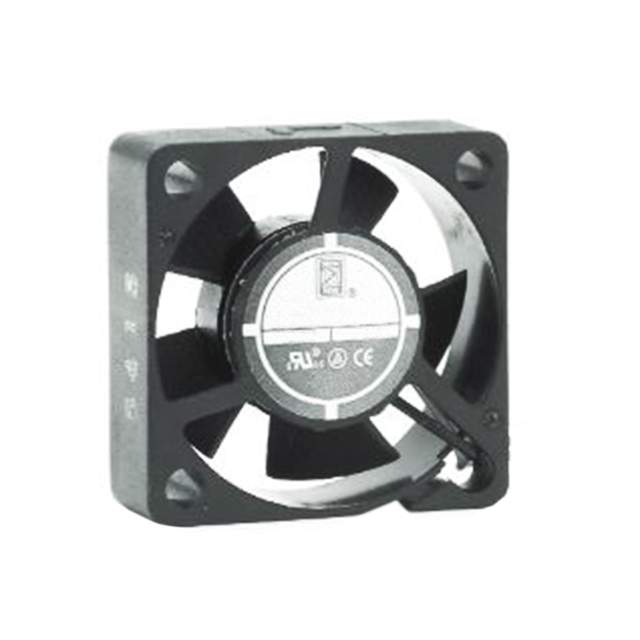

Orion Fans
Manufacturer : Orion Fans
Series : OD3010
Part Status : Active
Voltage - Rated : 5VDC
Size / Dimension : Square - 30mm L x 30mm H
Width : 10.00mm
Air Flow : 3.3 CFM (0.092m鲁/min)
Static Pressure : 0.150 in H2O (37.3 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Locked Rotor Sensor
Noise : 30.0 dB
Power (Watts) : 400mW
RPM : 9000 RPM
Termination : 3 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, cURus
Weight : 0.018 lb (8.16g)
0
40 in stock
Orion Fans
Manufacturer : Orion Fans
Series : OD3010
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 30mm L x 30mm H
Width : 10.20mm
Air Flow : 5.0 CFM (0.140m鲁/min)
Static Pressure : 0.200 in H2O (49.8 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 32.0 dB
Power (Watts) : -
RPM : 11000 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : cURus, TUV
Weight : -
0
2320 in stock

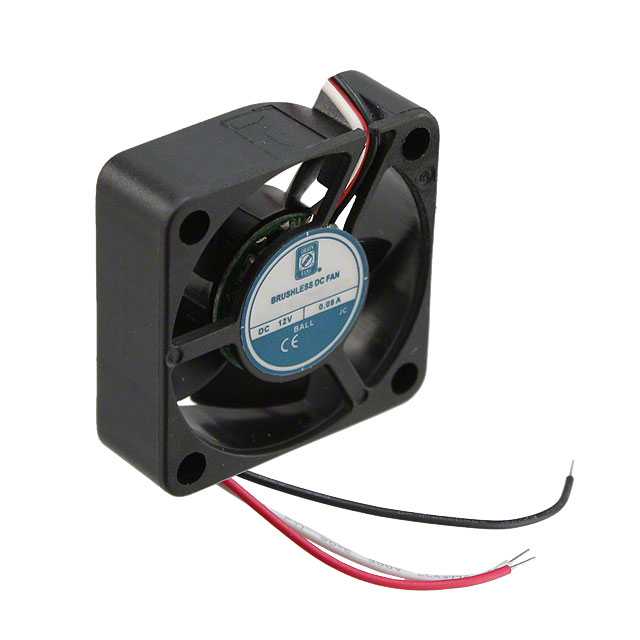

Orion Fans
Manufacturer : Orion Fans
Series : OD3010
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 30mm L x 30mm H
Width : 10.20mm
Air Flow : 5.0 CFM (0.140m鲁/min)
Static Pressure : 0.200 in H2O (49.8 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Speed Sensor (Tach)
Noise : 32.0 dB
Power (Watts) : -
RPM : 11000 RPM
Termination : 3 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : cURus, TUV
Weight : -
0
1400 in stock
