Orion Fans
- For nearly two decades Orion Fans, a division of Knight Electronics has been supplying and designing thermal management solutions for demanding applications worldwide. Orion provides one of the industry’s broadest lines of AC, DC fans, blowers, fan trays and accessories. Fast response and short lead times provide customers the right product when they need it. Orion offers price, quality and availability.
Part Number
Manufacturer
Description
Unit Price
In Stock

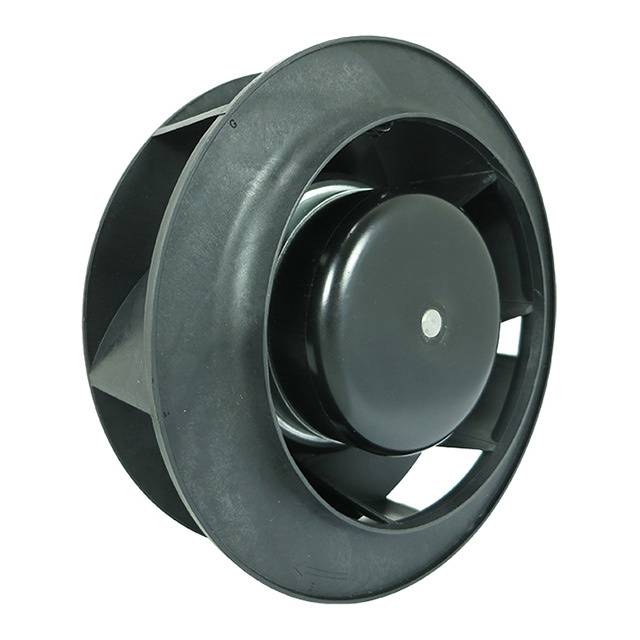

Orion Fans
Manufacturer : Orion Fans
Series : -
Part Status : Active
Voltage - Rated : 48VDC
Size / Dimension : Round - 189.5mm Dia
Width : 68.50mm
Air Flow : 432.0 CFM (12.10m鲁/min)
Static Pressure : 2.810 in H2O (700.0 Pa)
Bearing Type : Ball
Fan Type : Motorized Impellers
Features : PWM Control, Speed Sensor (Tach)
Noise : 77.0 dB
Power (Watts) : 122.0W
RPM : 3500 RPM
Termination : 4 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 149°F (-10 ~ 65°C)
Approvals : CE, cURus, TUV, UR
Weight : 2.205 lb (1kg)
0
1 in stock

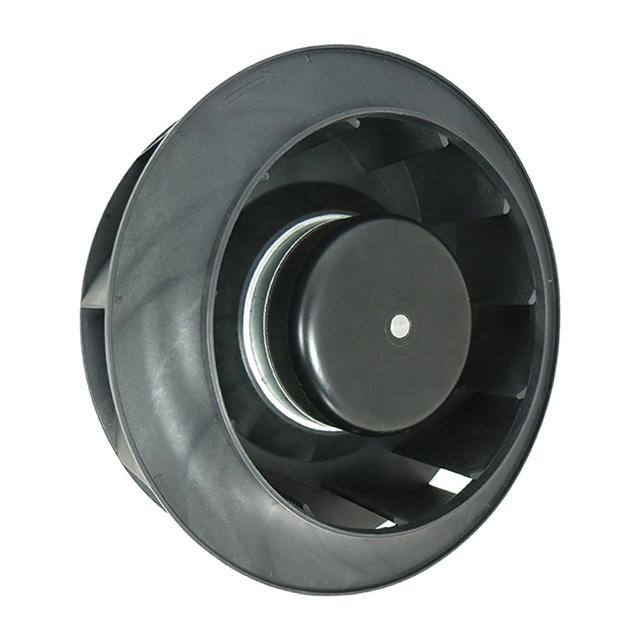

Orion Fans
Manufacturer : Orion Fans
Series : -
Part Status : Active
Voltage - Rated : 24VDC
Size / Dimension : Round - 221.5mm Dia
Width : 71.00mm
Air Flow : 618.0 CFM (17.30m鲁/min)
Static Pressure : 2.410 in H2O (600.0 Pa)
Bearing Type : Ball
Fan Type : Motorized Impellers
Features : PWM Control, Speed Sensor (Tach)
Noise : 68.0 dB
Power (Watts) : 106.0W
RPM : 3150 RPM
Termination : 4 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 149°F (-10 ~ 65°C)
Approvals : CE, cURus, TUV, UR
Weight : 3.1 lbs (1.4kg)
0
1 in stock
Orion Fans
Manufacturer : Orion Fans
Series : -
Part Status : Active
Voltage - Rated : 48VDC
Size / Dimension : Round - 221.5mm Dia
Width : 71.00mm
Air Flow : 618.0 CFM (17.30m鲁/min)
Static Pressure : 2.410 in H2O (600.0 Pa)
Bearing Type : Ball
Fan Type : Motorized Impellers
Features : PWM Control, Speed Sensor (Tach)
Noise : 68.0 dB
Power (Watts) : 130.0W
RPM : 3150 RPM
Termination : 4 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 149°F (-10 ~ 65°C)
Approvals : CE, cURus, TUV, UR
Weight : 3.1 lbs (1.4kg)
0
6 in stock

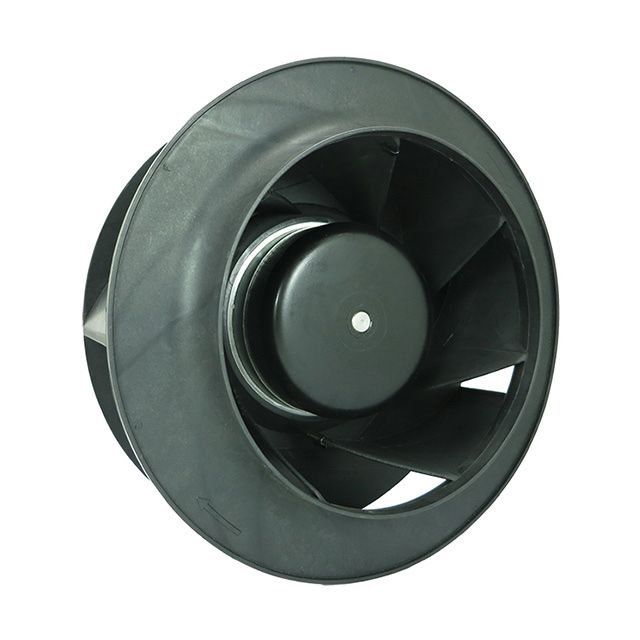

Orion Fans
Manufacturer : Orion Fans
Series : ODB
Part Status : Active
Voltage - Rated : 24VDC
Size / Dimension : Round - 225mm Dia
Width : 99.00mm
Air Flow : 835.0 CFM (23.38m鲁/min)
Static Pressure : 2.050 in H2O (510.6 Pa)
Bearing Type : Ball
Fan Type : Motorized Impellers
Features : PWM Control, Speed Sensor (Tach)
Noise : 55.0 dB
Power (Watts) : 110.4W
RPM : 2500 RPM
Termination : 4 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 149°F (-10 ~ 65°C)
Approvals : CE, cURus, TUV, UR
Weight : 3.3 lbs (1.5kg)
0
8 in stock
Orion Fans
Manufacturer : Orion Fans
Series : ODB
Part Status : Active
Voltage - Rated : 48VDC
Size / Dimension : Round - 225mm Dia
Width : 99.00mm
Air Flow : 835.0 CFM (23.38m鲁/min)
Static Pressure : 2.050 in H2O (510.6 Pa)
Bearing Type : Ball
Fan Type : Motorized Impellers
Features : PWM Control, Speed Sensor (Tach)
Noise : 55.0 dB
Power (Watts) : 110.4W
RPM : 2500 RPM
Termination : 4 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 149°F (-10 ~ 65°C)
Approvals : CE, cURus, TUV, UR
Weight : 3.3 lbs (1.5kg)
0
8 in stock

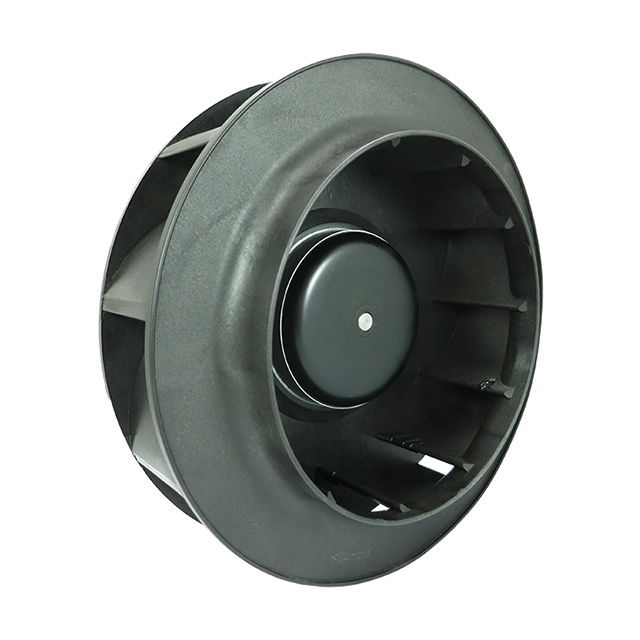

Orion Fans
Manufacturer : Orion Fans
Series : -
Part Status : Active
Voltage - Rated : 24VDC
Size / Dimension : Round - 250mm Dia
Width : 106.5mm
Air Flow : 790.0 CFM (22.12m鲁/min)
Static Pressure : 2.220 in H2O (553.0 Pa)
Bearing Type : Ball
Fan Type : Motorized Impellers
Features : PWM Control, Speed Sensor (Tach)
Noise : 78.0 dB
Power (Watts) : 130.0W
RPM : 2600 RPM
Termination : 4 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 149°F (-10 ~ 65°C)
Approvals : CE, cURus, TUV, UR
Weight : 5.1 lbs (2.3kg)
0
4 in stock
Orion Fans
Manufacturer : Orion Fans
Series : -
Part Status : Active
Voltage - Rated : 48VDC
Size / Dimension : Round - 250mm Dia
Width : 106.5mm
Air Flow : 790.0 CFM (22.12m鲁/min)
Static Pressure : 2.220 in H2O (553.0 Pa)
Bearing Type : Ball
Fan Type : Motorized Impellers
Features : PWM Control, Speed Sensor (Tach)
Noise : 78.0 dB
Power (Watts) : 130.0W
RPM : 2600 RPM
Termination : 4 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 149°F (-10 ~ 65°C)
Approvals : CE, cURus, TUV, UR
Weight : 5.1 lbs (2.3kg)
0
4 in stock
Orion Fans
Manufacturer : Orion Fans
Series : ODB5115
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Rectangular/Rounded - 51.11mm L x 47.76mm H
Width : 15.00mm
Air Flow : 4.2 CFM (0.118m鲁/min)
Static Pressure : 0.500 in H2O (124.5 Pa)
Bearing Type : Ball
Fan Type : Blower
Features : -
Noise : 38.0 dB
Power (Watts) : 1.92W
RPM : 5500 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, cURus
Weight : 0.059 lb (26.76g)
0
491 in stock
Orion Fans
Manufacturer : Orion Fans
Series : ODB5115
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Rectangular/Rounded - 51.11mm L x 47.76mm H
Width : 15.00mm
Air Flow : 2.4 CFM (0.067m鲁/min)
Static Pressure : 0.200 in H2O (49.8 Pa)
Bearing Type : Ball
Fan Type : Blower
Features : -
Noise : 32.0 dB
Power (Watts) : 840mW
RPM : 3500 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, cURus
Weight : 0.059 lb (26.76g)
0
17 in stock

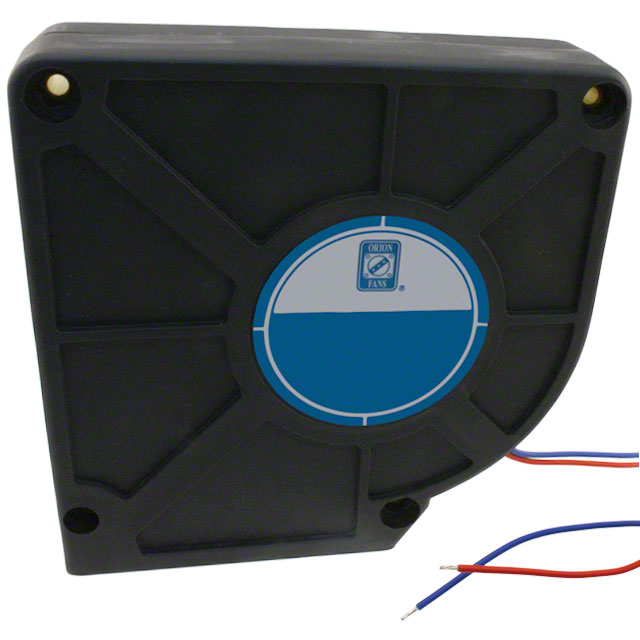

Orion Fans
Manufacturer : Orion Fans
Series : ODB600PT
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square/Rounded - 120.5mm L x 120.5mm H
Width : 32.00mm
Air Flow : 35.0 CFM (0.980m鲁/min)
Static Pressure : 0.590 in H2O (147.0 Pa)
Bearing Type : Ball
Fan Type : Blower
Features : -
Noise : 49.0 dB
Power (Watts) : -
RPM : 3000 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -4 ~ 176°F (-20 ~ 80°C)
Approvals : cURus
Weight : -
0
37 in stock

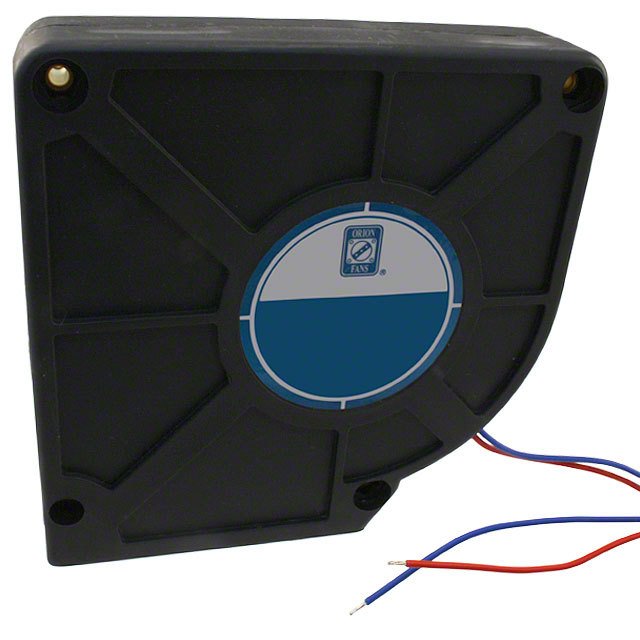

Orion Fans
Manufacturer : Orion Fans
Series : ODB600PT
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square/Rounded - 120.5mm L x 120.5mm H
Width : 32.00mm
Air Flow : 20.0 CFM (0.560m鲁/min)
Static Pressure : 0.390 in H2O (97.1 Pa)
Bearing Type : Ball
Fan Type : Blower
Features : -
Noise : 30.0 dB
Power (Watts) : -
RPM : 1800 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -4 ~ 176°F (-20 ~ 80°C)
Approvals : cURus
Weight : -
0
43 in stock

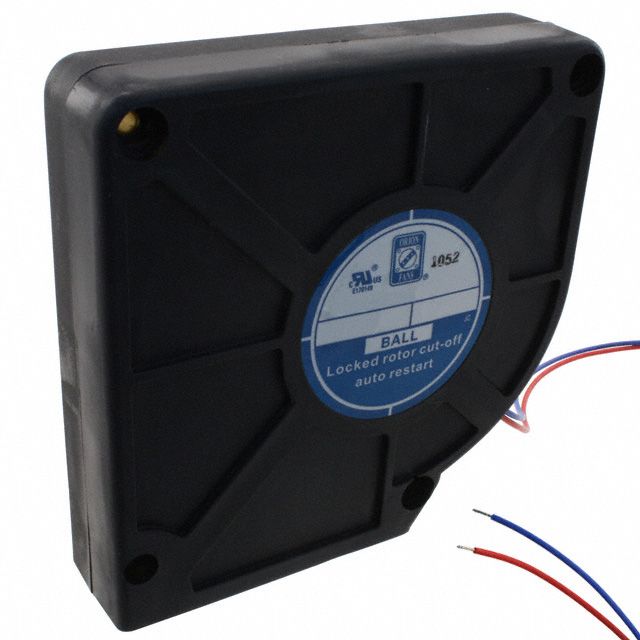

Orion Fans
Manufacturer : Orion Fans
Series : ODB600PT
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square/Rounded - 120.5mm L x 120.5mm H
Width : 32.00mm
Air Flow : 25.0 CFM (0.700m鲁/min)
Static Pressure : 0.470 in H2O (117.1 Pa)
Bearing Type : Ball
Fan Type : Blower
Features : -
Noise : 42.0 dB
Power (Watts) : -
RPM : 2500 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -4 ~ 176°F (-20 ~ 80°C)
Approvals : cURus
Weight : -
0
101 in stock
