Powerex, Inc.

- Powerex turns ideas into cost-effective products and is a leading supplier of discrete, modular and integrated high power semiconductor solutions, supporting many markets, including: AC and DC Motor Controls, Aircraft, Alternative Energy (WIND, Photovoltaic), Communications, Electrical, Industrial Heating, Medical Power Supplies, Transportation, UPS, Vehicles, and Welding.


Part Number

Manufacturer

Description

Unit Price

In Stock

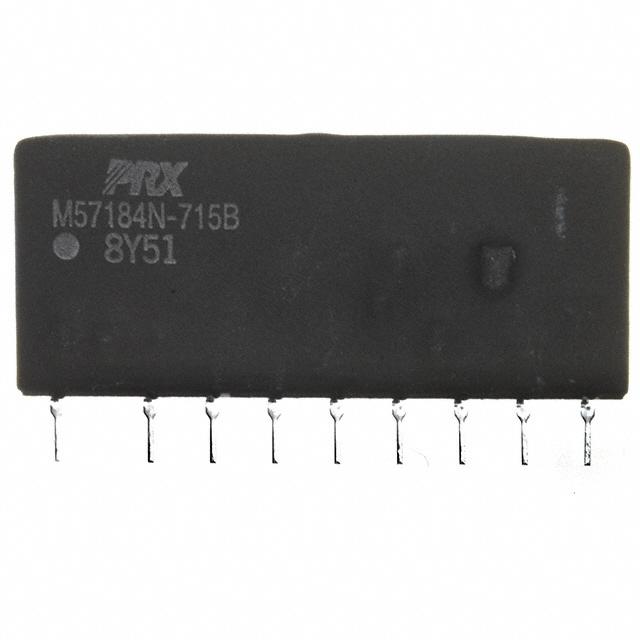

M57184N-715B

Powerex, Inc.

Manufacturer : Powerex Inc.
Packaging : Bulk
Series : -
Part Status : Active
Type : Non-Isolated PoL Module
Number of Outputs : 2
Voltage - Input (Min) : 140V
Voltage - Input (Max) : 360V
Voltage - Output 1 : 15V
Voltage - Output 2 : 5V
Voltage - Output 3 : -
Voltage - Output 4 : -
Current - Output (Max) : 350mA, 200mA
Power (Watts) : 6W
Voltage - Isolation : -
Applications : ITE (Commercial)
Features : -
Operating Temperature : -20°C ~ 70°C
Efficiency : -
Mounting Type : Through Hole
Package / Case : 18-SIP Module, 9 Leads
Size / Dimension : 2.05" L x 0.47" W x 0.95" H (52.1mm x 11.9mm x 24.1mm)
Supplier Device Package : -
Control Features : -

100 in stock

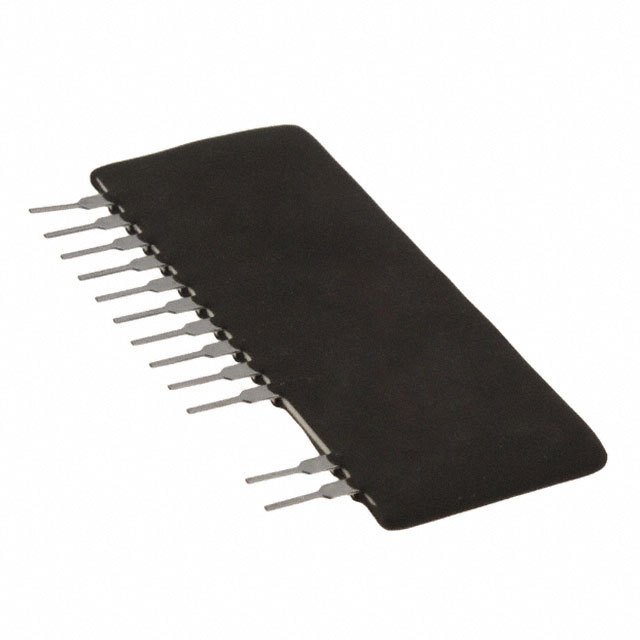

M57959L

Powerex, Inc.

Manufacturer : Powerex Inc.
Packaging : Bulk
Series : -
Part Status : Active
Driven Configuration : Low-Side
Channel Type : Single
Number of Drivers : 1
Gate Type : IGBT
Voltage - Supply : 14 V ~ 15 V
Logic Voltage - VIL, VIH : -
Current - Peak Output (Source, Sink) : 2A, 2A
Input Type : Non-Inverting
High Side Voltage - Max (Bootstrap) : -
Rise / Fall Time (Typ) : 500ns, 300ns
Operating Temperature : -20°C ~ 60°C (TA)
Mounting Type : Through Hole
Package / Case : 14-SIP Module, 12 Leads
Supplier Device Package : Module

2351 in stock

M57962L

Powerex, Inc.

Manufacturer : Powerex Inc.
Packaging : Bulk
Series : -
Part Status : Active
Driven Configuration : Low-Side
Channel Type : Single
Number of Drivers : 1
Gate Type : IGBT
Voltage - Supply : 14 V ~ 15 V
Logic Voltage - VIL, VIH : -
Current - Peak Output (Source, Sink) : 5A, 5A
Input Type : Non-Inverting
High Side Voltage - Max (Bootstrap) : -
Rise / Fall Time (Typ) : 600ns, 400ns
Operating Temperature : -20°C ~ 60°C (TA)
Mounting Type : Through Hole
Package / Case : 14-SIP Module, 12 Leads
Supplier Device Package : Module

5554 in stock

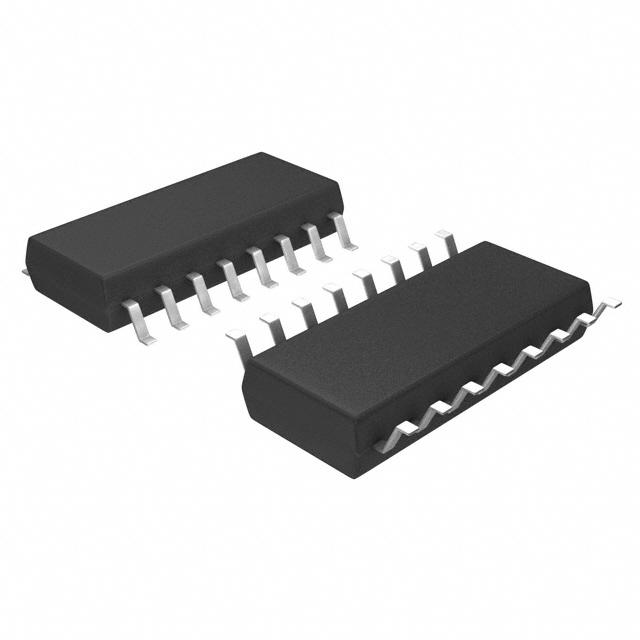

M81701FP

Powerex, Inc.

Manufacturer : Powerex Inc.
Packaging : Bulk
Series : -
Part Status : Obsolete
Output Configuration : Half Bridge (2)
Applications : AC Loads, Bulbs, General Purpose
Interface : Logic
Load Type : Inductive, Capacitive, Resistive
Technology : Power MOSFET
Rds On (Typ) : 2.5 Ohm LS, 10 Ohm HS
Current - Output / Channel : 2A
Current - Peak Output : 2.5A
Voltage - Supply : 5 V ~ 20 V
Voltage - Load : 500V (Max)
Operating Temperature : -20°C ~ 125°C (TJ)
Features : -
Fault Protection : -
Mounting Type : Surface Mount
Package / Case : 16-SOIC (0.209", 5.30mm Width)
Supplier Device Package : 16-SOP

100 in stock

M81708FP

Powerex, Inc.

Manufacturer : Powerex Inc.
Packaging : Bulk
Series : -
Part Status : Obsolete
Output Configuration : Half Bridge (2)
Applications : AC Loads, Bulbs, General Purpose
Interface : Logic
Load Type : Inductive, Capacitive, Resistive
Technology : Power MOSFET
Rds On (Typ) : 15 Ohm LS, 35 Ohm HS
Current - Output / Channel : -
Current - Peak Output : 200mA
Voltage - Supply : 10 V ~ 20 V
Voltage - Load : 500V (Max)
Operating Temperature : -20°C ~ 125°C (TJ)
Features : -
Fault Protection : Shoot-Through
Mounting Type : Surface Mount
Package / Case : 16-SOIC (0.209", 5.30mm Width)
Supplier Device Package : 16-SOP

100 in stock

MG150J7KS61

Powerex, Inc.

Manufacturer : Powerex Inc.
Series : IGBTMOD™
Part Status : Obsolete
IGBT Type : -
Configuration : Three Phase Inverter with Brake
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 150A
Power - Max : 750W
Vce(on) (Max) @ Vge, Ic : 2.3V @ 15V, 150A
Current - Collector Cutoff (Max) : 1mA
Input Capacitance (Cies) @ Vce : 30nF @ 10V
Input : Standard
NTC Thermistor : Yes
Operating Temperature : -20°C ~ 150°C (TJ)
Mounting Type : Chassis Mount
Package / Case : Module
Supplier Device Package : Module

100 in stock

MG200J6ES61

Powerex, Inc.

Manufacturer : Powerex Inc.
Series : IGBTMOD™
Part Status : Obsolete
IGBT Type : -
Configuration : Three Phase Inverter
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 200A
Power - Max : 1000W
Vce(on) (Max) @ Vge, Ic : 2.4V @ 15V, 200A
Current - Collector Cutoff (Max) : 1mA
Input Capacitance (Cies) @ Vce : 40nF @ 10V
Input : Standard
NTC Thermistor : Yes
Operating Temperature : -20°C ~ 150°C (TJ)
Mounting Type : Chassis Mount
Package / Case : Module
Supplier Device Package : Module

100 in stock

MG200Q2YS60A

Powerex, Inc.

Manufacturer : Powerex Inc.
Series : IGBTMOD™
Part Status : Obsolete
IGBT Type : -
Configuration : Half Bridge
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 200A
Power - Max : 2000W
Vce(on) (Max) @ Vge, Ic : 2.8V @ 15V, 200A
Current - Collector Cutoff (Max) : 1mA
Input Capacitance (Cies) @ Vce : 15nF @ 10V
Input : Standard
NTC Thermistor : No
Operating Temperature : -20°C ~ 150°C (TJ)
Mounting Type : Chassis Mount
Package / Case : Module
Supplier Device Package : Module

100 in stock

MG300Q2YS60A

Powerex, Inc.

Manufacturer : Powerex Inc.
Series : IGBTMOD™
Part Status : Obsolete
IGBT Type : -
Configuration : Half Bridge
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 300A
Power - Max : 2800W
Vce(on) (Max) @ Vge, Ic : 2.8V @ 15V, 300A
Current - Collector Cutoff (Max) : 1mA
Input Capacitance (Cies) @ Vce : 21nF @ 10V
Input : Standard
NTC Thermistor : No
Operating Temperature : -20°C ~ 150°C (TJ)
Mounting Type : Chassis Mount
Package / Case : Module
Supplier Device Package : Module

100 in stock

MG400J2YS61A

Powerex, Inc.

Manufacturer : Powerex Inc.
Series : IGBTMOD™
Part Status : Obsolete
IGBT Type : -
Configuration : Half Bridge
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 400A
Power - Max : 2160W
Vce(on) (Max) @ Vge, Ic : 2.2V @ 15V, 400A
Current - Collector Cutoff (Max) : 1mA
Input Capacitance (Cies) @ Vce : 85nF @ 10V
Input : Standard
NTC Thermistor : No
Operating Temperature : -20°C ~ 150°C (TJ)
Mounting Type : Chassis Mount
Package / Case : Module
Supplier Device Package : Module

100 in stock

MG400Q2YS60A

Powerex, Inc.

Manufacturer : Powerex Inc.
Series : IGBTMOD™
Part Status : Obsolete
IGBT Type : -
Configuration : Half Bridge
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 400A
Power - Max : 3750W
Vce(on) (Max) @ Vge, Ic : 2.8V @ 15V, 400A
Current - Collector Cutoff (Max) : 1mA
Input Capacitance (Cies) @ Vce : 31nF @ 10V
Input : Standard
NTC Thermistor : No
Operating Temperature : -20°C ~ 150°C (TJ)
Mounting Type : Chassis Mount
Package / Case : Module
Supplier Device Package : Module

100 in stock

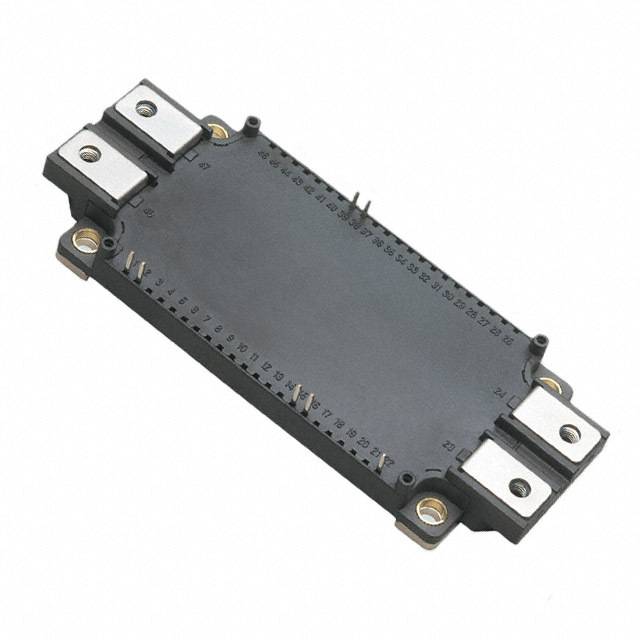

MG400V2YS60A

Powerex, Inc.

Manufacturer : Powerex Inc.
Series : IGBTMOD™
Part Status : Obsolete
IGBT Type : -
Configuration : Half Bridge
Voltage - Collector Emitter Breakdown (Max) : 1700V
Current - Collector (Ic) (Max) : 400A
Power - Max : 4300W
Vce(on) (Max) @ Vge, Ic : 3.4V @ 15V, 400A
Current - Collector Cutoff (Max) : 1mA
Input Capacitance (Cies) @ Vce : 45nF @ 10V
Input : Standard
NTC Thermistor : Yes
Operating Temperature : -20°C ~ 150°C (TJ)
Mounting Type : Chassis Mount
Package / Case : Module
Supplier Device Package : Module

100 in stock
