Powerex, Inc.

- Powerex turns ideas into cost-effective products and is a leading supplier of discrete, modular and integrated high power semiconductor solutions, supporting many markets, including: AC and DC Motor Controls, Aircraft, Alternative Energy (WIND, Photovoltaic), Communications, Electrical, Industrial Heating, Medical Power Supplies, Transportation, UPS, Vehicles, and Welding.


Part Number

Manufacturer

Description

Unit Price

In Stock

MG600J2YS61A

Powerex, Inc.

Manufacturer : Powerex Inc.
Series : IGBTMOD™
Part Status : Obsolete
IGBT Type : -
Configuration : Half Bridge
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 600A
Power - Max : 2770W
Vce(on) (Max) @ Vge, Ic : 2.5V @ 15V, 600A
Current - Collector Cutoff (Max) : 1mA
Input Capacitance (Cies) @ Vce : 125nF @ 10V
Input : Standard
NTC Thermistor : No
Operating Temperature : -20°C ~ 150°C (TJ)
Mounting Type : Chassis Mount
Package / Case : Module
Supplier Device Package : Module

100 in stock

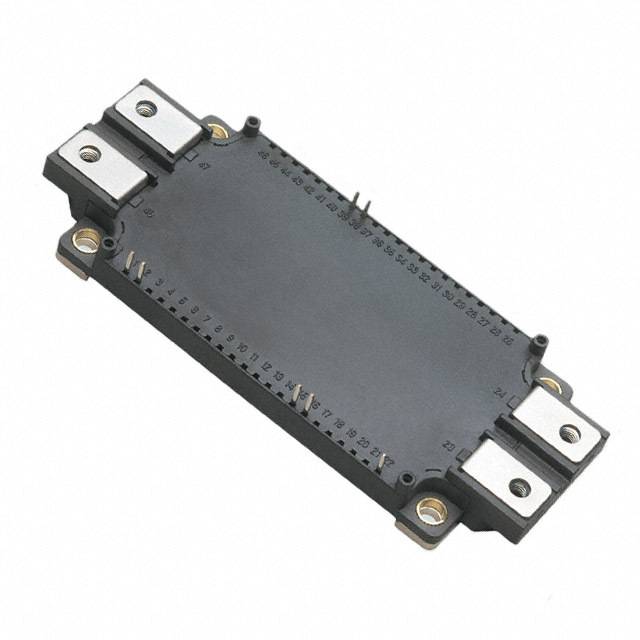

MG600Q2YS60A

Powerex, Inc.

Manufacturer : Powerex Inc.
Series : IGBTMOD™
Part Status : Obsolete
IGBT Type : -
Configuration : Half Bridge
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 600A
Power - Max : 4300W
Vce(on) (Max) @ Vge, Ic : 3.1V @ 15V, 600A
Current - Collector Cutoff (Max) : 1mA
Input Capacitance (Cies) @ Vce : 41nF @ 10V
Input : Standard
NTC Thermistor : Yes
Operating Temperature : -20°C ~ 150°C (TJ)
Mounting Type : Chassis Mount
Package / Case : Module
Supplier Device Package : Module

100 in stock

MG800J2YS50A

Powerex, Inc.

Manufacturer : Powerex Inc.
Series : IGBTMOD™
Part Status : Obsolete
IGBT Type : -
Configuration : Half Bridge
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 800A
Power - Max : 2900W
Vce(on) (Max) @ Vge, Ic : 3V @ 15V, 800A
Current - Collector Cutoff (Max) : 1mA
Input Capacitance (Cies) @ Vce : 93nF @ 10V
Input : Standard
NTC Thermistor : No
Operating Temperature : -20°C ~ 150°C (TJ)
Mounting Type : Chassis Mount
Package / Case : Module
Supplier Device Package : Module

100 in stock

MIG200Q2CSB1X

Powerex, Inc.

Manufacturer : Powerex Inc.
Series : -
Part Status : Obsolete
Type : IGBT
Configuration : Half Bridge
Current : 200A
Voltage : 1.2kV
Voltage - Isolation : 2500VDC
Package / Case : Power Module

100 in stock

MIG300J2CSB1W

Powerex, Inc.

Manufacturer : Powerex Inc.
Series : -
Part Status : Obsolete
Type : IGBT
Configuration : Half Bridge
Current : 300A
Voltage : 600V
Voltage - Isolation : 2500VDC
Package / Case : Power Module

100 in stock

MIG300Q2CMB1X

Powerex, Inc.

Manufacturer : Powerex Inc.
Series : -
Part Status : Obsolete
Type : IGBT
Configuration : Half Bridge
Current : 300A
Voltage : 1.2kV
Voltage - Isolation : 2500VDC
Package / Case : Power Module

100 in stock

MIG400J2CSB1W

Powerex, Inc.

Manufacturer : Powerex Inc.
Series : -
Part Status : Obsolete
Type : IGBT
Configuration : Half Bridge
Current : 400A
Voltage : 600V
Voltage - Isolation : 2500VDC
Package / Case : Power Module

100 in stock

MIG400Q2CMB1X

Powerex, Inc.

Manufacturer : Powerex Inc.
Series : -
Part Status : Obsolete
Type : IGBT
Configuration : Half Bridge
Current : 400A
Voltage : 1.2kV
Voltage - Isolation : 2500VDC
Package / Case : Power Module

100 in stock

MIG600J2CMB1W

Powerex, Inc.

Manufacturer : Powerex Inc.
Series : -
Part Status : Obsolete
Type : IGBT
Configuration : Half Bridge
Current : 600A
Voltage : 600V
Voltage - Isolation : 2500VDC
Package / Case : Power Module

100 in stock

ND411635

Powerex, Inc.

Manufacturer : Powerex Inc.
Packaging : -
Series : -
Part Status : Active
Diode Configuration : 1 Pair Series Connection
Diode Type : Standard
Voltage - DC Reverse (Vr) (Max) : 1600V
Current - Average Rectified (Io) (per Diode) : 350A
Voltage - Forward (Vf) (Max) @ If : 1.2V @ 1000A
Speed : Standard Recovery >500ns, > 200mA (Io)
Reverse Recovery Time (trr) : 10µs
Current - Reverse Leakage @ Vr : 30mA @ 1600V
Operating Temperature - Junction : -40°C ~ 150°C
Mounting Type : Chassis Mount
Package / Case : POW-R-BLOK™Module
Supplier Device Package : POW-R-BLOK™Module

100 in stock

ND421825

Powerex, Inc.

Manufacturer : Powerex Inc.
Packaging : Bulk
Series : -
Part Status : Active
Structure : Series Connection - SCR/Diode
Number of SCRs, Diodes : 1 SCR, 1 Diode
Voltage - Off State : 1.8kV
Current - On State (It (AV)) (Max) : 250A
Current - On State (It (RMS)) (Max) : 393A
Voltage - Gate Trigger (Vgt) (Max) : 3V
Current - Gate Trigger (Igt) (Max) : 150mA
Current - Non Rep. Surge 50, 60Hz (Itsm) : 8800A @ 60Hz
Current - Hold (Ih) (Max) : -
Operating Temperature : -40°C ~ 130°C (TJ)
Mounting Type : Chassis Mount
Package / Case : POW-R-BLOK™Module

5 in stock

ND431625

Powerex, Inc.

Manufacturer : Powerex Inc.
Packaging : Bulk
Series : -
Part Status : Active
Structure : Series Connection - All SCRs
Number of SCRs, Diodes : 2 SCRs
Voltage - Off State : 1.6kV
Current - On State (It (AV)) (Max) : 250A
Current - On State (It (RMS)) (Max) : 393A
Voltage - Gate Trigger (Vgt) (Max) : 3V
Current - Gate Trigger (Igt) (Max) : 150mA
Current - Non Rep. Surge 50, 60Hz (Itsm) : 8800A @ 60Hz
Current - Hold (Ih) (Max) : -
Operating Temperature : -40°C ~ 130°C (TJ)
Mounting Type : Chassis Mount
Package / Case : POW-R-BLOK™Module

25 in stock
