Schaffner EMC, Inc.
- Schaffner is the international leader in the fields of electromagnetic compatibility and power quality, supplying components that support the efficient and reliable use of electric energy. Customers benefit from the technological know-how of the Schaffner Group in the development, manufacturing and marketing of high-performance products that offer optimized and fault-free operation and compliance with all major quality and performance standards.
With its products and services, the Schaffner Group plays a key role in promoting technologies that support renewable energies, ensures the reliable functioning of electronic equipment and systems and meets the requirements for greater energy efficiency.
With its EMC and power quality components and modules plus a wide range of services for equipment manufacturers and systems integrators, the Schaffner Group strives for market leadership in all product and service categories.
Part Number
Manufacturer
Description
Unit Price
In Stock

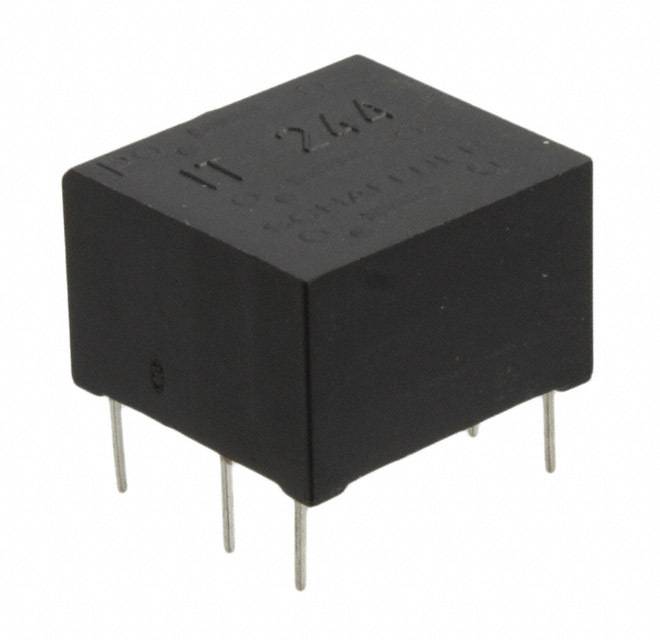

Schaffner EMC, Inc.
Manufacturer : Schaffner EMC Inc.
Packaging : Tray
Series : IT
Part Status : Active
Transformer Type : Data/Voice Coupling
Inductance : 1.1mH
Energy Time (E.T.) : -
Turns Ratio - Primary:Secondary : 1:1:1
Mounting Type : Through Hole
Size / Dimension : 0.693" L x 0.657" W (17.60mm x 16.70mm)
Height - Seated (Max) : 0.445" (11.30mm)
Operating Temperature : -25°C ~ 70°C
0
100 in stock
Schaffner EMC, Inc.
Manufacturer : Schaffner EMC Inc.
Packaging : Tray
Series : IT
Part Status : Active
Transformer Type : Data/Voice Coupling
Inductance : 2.2mH
Energy Time (E.T.) : -
Turns Ratio - Primary:Secondary : 1:1
Mounting Type : Through Hole
Size / Dimension : 0.693" L x 0.657" W (17.60mm x 16.70mm)
Height - Seated (Max) : 0.445" (11.30mm)
Operating Temperature : -25°C ~ 70°C
0
1337 in stock
Schaffner EMC, Inc.
Manufacturer : Schaffner EMC Inc.
Packaging : Tray
Series : IT
Part Status : Active
Transformer Type : Data/Voice Coupling
Inductance : 2.5mH
Energy Time (E.T.) : -
Turns Ratio - Primary:Secondary : 1:1
Mounting Type : Through Hole
Size / Dimension : 0.693" L x 0.657" W (17.60mm x 16.70mm)
Height - Seated (Max) : 0.445" (11.30mm)
Operating Temperature : -25°C ~ 70°C
0
995 in stock
Schaffner EMC, Inc.
Manufacturer : Schaffner EMC Inc.
Packaging : Tray
Series : IT
Part Status : Active
Transformer Type : Data/Voice Coupling
Inductance : 12mH
Energy Time (E.T.) : -
Turns Ratio - Primary:Secondary : 3:1
Mounting Type : Through Hole
Size / Dimension : 0.693" L x 0.657" W (17.60mm x 16.70mm)
Height - Seated (Max) : 0.445" (11.30mm)
Operating Temperature : -25°C ~ 70°C
0
946 in stock

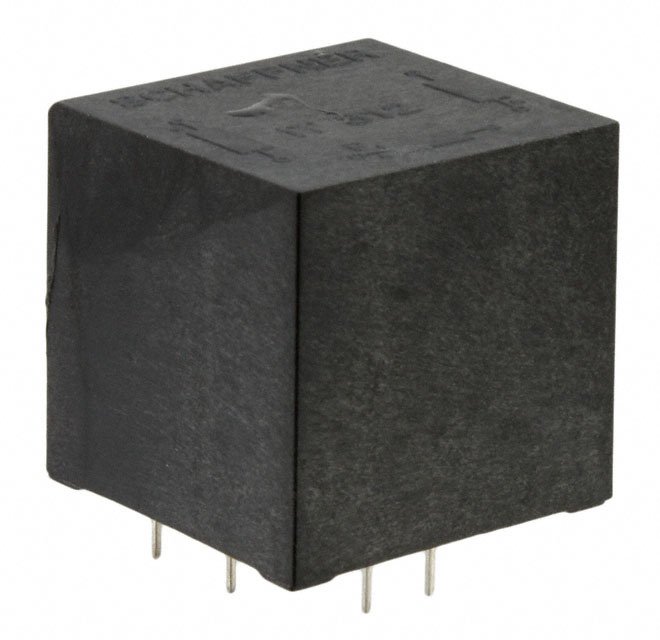

Schaffner EMC, Inc.
Manufacturer : Schaffner EMC Inc.
Packaging : Tray
Series : IT
Part Status : Active
Transformer Type : Data/Voice Coupling
Inductance : 21mH
Energy Time (E.T.) : -
Turns Ratio - Primary:Secondary : 1:1:1
Mounting Type : Through Hole
Size / Dimension : 1.004" L x 1.004" W (25.50mm x 25.50mm)
Height - Seated (Max) : 0.992" (25.20mm)
Operating Temperature : -25°C ~ 70°C
0
126 in stock
Schaffner EMC, Inc.
Manufacturer : Schaffner EMC Inc.
Packaging : Tray
Series : IT
Part Status : Active
Transformer Type : Data/Voice Coupling
Inductance : 3mH
Energy Time (E.T.) : -
Turns Ratio - Primary:Secondary : 1:1:1
Mounting Type : Through Hole
Size / Dimension : 1.004" L x 1.004" W (25.50mm x 25.50mm)
Height - Seated (Max) : 0.992" (25.20mm)
Operating Temperature : -25°C ~ 70°C
0
724 in stock
Schaffner EMC, Inc.
Manufacturer : Schaffner EMC Inc.
Packaging : Tray
Series : IT
Part Status : Active
Transformer Type : Data/Voice Coupling
Inductance : 35mH
Energy Time (E.T.) : -
Turns Ratio - Primary:Secondary : 3:1:1
Mounting Type : Through Hole
Size / Dimension : 1.004" L x 1.004" W (25.50mm x 25.50mm)
Height - Seated (Max) : 0.992" (25.20mm)
Operating Temperature : -25°C ~ 70°C
0
92 in stock
Schaffner EMC, Inc.
Manufacturer : Schaffner EMC Inc.
Packaging : Tray
Series : IT
Part Status : Active
Transformer Type : Data/Voice Coupling
Inductance : 1.5mH
Energy Time (E.T.) : -
Turns Ratio - Primary:Secondary : 1:1
Mounting Type : Through Hole
Size / Dimension : 1.969" L x 1.969" W (50.00mm x 50.00mm)
Height - Seated (Max) : 2.362" (60.00mm)
Operating Temperature : -25°C ~ 70°C
0
24 in stock
Schaffner EMC, Inc.
Manufacturer : Schaffner EMC Inc.
Packaging : Tray
Series : IT
Part Status : Active
Transformer Type : Data/Voice Coupling
Inductance : 300µH
Energy Time (E.T.) : -
Turns Ratio - Primary:Secondary : 1:1
Mounting Type : Through Hole
Size / Dimension : 1.063" L x 1.268" W (27.00mm x 32.20mm)
Height - Seated (Max) : 0.933" (23.70mm)
Operating Temperature : -25°C ~ 70°C
0
19 in stock
Schaffner EMC, Inc.
Manufacturer : Schaffner EMC Inc.
Packaging : Bulk
Series : RB
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 1mH @ 400Hz
Current Rating (Max) : 16A
DC Resistance (DCR) (Max) : 4.8 mOhm (Typ)
Voltage Rating - DC : 1000V (1kV)
Voltage Rating - AC : 600V
Operating Temperature : -40°C ~ 125°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Through Hole
Size / Dimension : 2.098" L x 2.020" W (53.29mm x 51.31mm)
Height (Max) : 1.634" (41.50mm)
Package / Case : Horizontal, 4 PC Pin
0
166 in stock
Schaffner EMC, Inc.
Manufacturer : Schaffner EMC Inc.
Packaging : Bulk
Series : RB
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 640µH @ 400Hz
Current Rating (Max) : 25A
DC Resistance (DCR) (Max) : 2.7 mOhm (Typ)
Voltage Rating - DC : 1000V (1kV)
Voltage Rating - AC : 600V
Operating Temperature : -40°C ~ 125°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Through Hole
Size / Dimension : 2.098" L x 2.020" W (53.29mm x 51.31mm)
Height (Max) : 1.634" (41.50mm)
Package / Case : Horizontal, 4 PC Pin
0
2 in stock
Schaffner EMC, Inc.
Manufacturer : Schaffner EMC Inc.
Packaging : Bulk
Series : RB
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 450µH @ 1kHz
Current Rating (Max) : 36A
DC Resistance (DCR) (Max) : 1.5 mOhm (Typ)
Voltage Rating - DC : 1000V (1kV)
Voltage Rating - AC : 600V
Operating Temperature : -40°C ~ 125°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Through Hole
Size / Dimension : 2.402" L x 2.276" W (61.00mm x 57.80mm)
Height (Max) : 1.496" (38.00mm)
Package / Case : Horizontal, 4 PC Pin
0
6 in stock
