Schaffner EMC, Inc.
- Schaffner is the international leader in the fields of electromagnetic compatibility and power quality, supplying components that support the efficient and reliable use of electric energy. Customers benefit from the technological know-how of the Schaffner Group in the development, manufacturing and marketing of high-performance products that offer optimized and fault-free operation and compliance with all major quality and performance standards.
With its products and services, the Schaffner Group plays a key role in promoting technologies that support renewable energies, ensures the reliable functioning of electronic equipment and systems and meets the requirements for greater energy efficiency.
With its EMC and power quality components and modules plus a wide range of services for equipment manufacturers and systems integrators, the Schaffner Group strives for market leadership in all product and service categories.
Part Number
Manufacturer
Description
Unit Price
In Stock
Schaffner EMC, Inc.
Manufacturer : Schaffner EMC Inc.
Packaging : -
Series : RT
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 3mH @ 100kHz
Current Rating (Max) : 20A
DC Resistance (DCR) (Max) : 7 mOhm (Typ)
Voltage Rating - DC : 425V
Voltage Rating - AC : 300V
Operating Temperature : -40°C ~ 100°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Through Hole
Size / Dimension : 2.205" L x 1.260" W (56.00mm x 32.00mm)
Height (Max) : 2.244" (57.00mm)
Package / Case : Vertical, 4 PC Pin
0
144 in stock
Schaffner EMC, Inc.
Manufacturer : Schaffner EMC Inc.
Packaging : -
Series : RT
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 10mH @ 100kHz
Current Rating (Max) : 6A
DC Resistance (DCR) (Max) : 33 mOhm (Typ)
Voltage Rating - DC : 425V
Voltage Rating - AC : 300V
Operating Temperature : -40°C ~ 100°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Through Hole
Size / Dimension : 1.693" L x 1.260" W (43.00mm x 32.00mm)
Height (Max) : 1.732" (44.00mm)
Package / Case : Vertical, 4 PC Pin
0
175 in stock

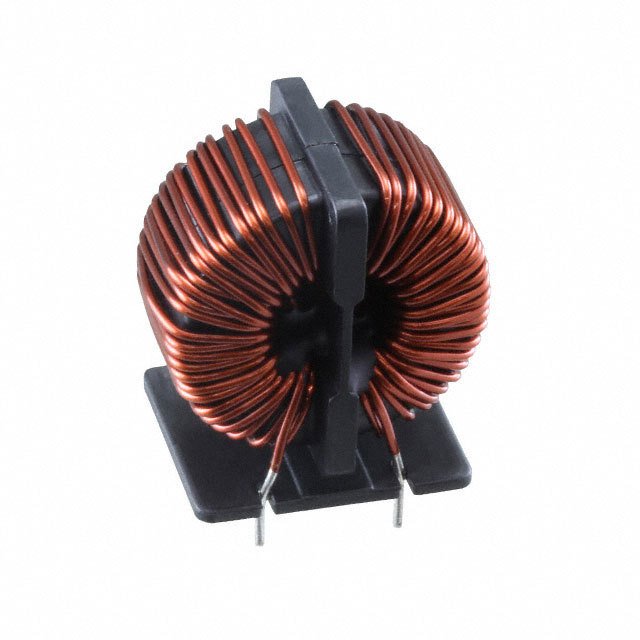

Schaffner EMC, Inc.
Manufacturer : Schaffner EMC Inc.
Packaging : -
Series : RT
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 8mH @ 100kHz
Current Rating (Max) : 8A
DC Resistance (DCR) (Max) : 21 mOhm (Typ)
Voltage Rating - DC : 425V
Voltage Rating - AC : 300V
Operating Temperature : -40°C ~ 100°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Through Hole
Size / Dimension : 1.693" L x 1.260" W (43.00mm x 32.00mm)
Height (Max) : 1.732" (44.00mm)
Package / Case : Vertical, 4 PC Pin
0
167 in stock
Schaffner EMC, Inc.
Manufacturer : Schaffner EMC Inc.
Packaging : -
Series : RT
Part Status : Active
Filter Type : Power Line
Number of Lines : 3
Impedance @ Frequency : -
Inductance @ Frequency : 4mH @ 100kHz
Current Rating (Max) : 10A
DC Resistance (DCR) (Max) : 15 mOhm (Typ)
Voltage Rating - DC : -
Voltage Rating - AC : 600V
Operating Temperature : -40°C ~ 100°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Through Hole
Size / Dimension : 1.929" L x 1.339" W (49.00mm x 34.00mm)
Height (Max) : 2.087" (53.00mm)
Package / Case : Vertical, 6 PC Pin
0
167 in stock
Schaffner EMC, Inc.
Manufacturer : Schaffner EMC Inc.
Packaging : -
Series : RT
Part Status : Active
Filter Type : Power Line
Number of Lines : 3
Impedance @ Frequency : -
Inductance @ Frequency : 3.6mH @ 100kHz
Current Rating (Max) : 12A
DC Resistance (DCR) (Max) : 12 mOhm (Typ)
Voltage Rating - DC : -
Voltage Rating - AC : 600V
Operating Temperature : -40°C ~ 100°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Through Hole
Size / Dimension : 1.929" L x 1.339" W (49.00mm x 34.00mm)
Height (Max) : 2.087" (53.00mm)
Package / Case : Vertical, 6 PC Pin
0
167 in stock
Schaffner EMC, Inc.
Manufacturer : Schaffner EMC Inc.
Packaging : -
Series : RT
Part Status : Active
Filter Type : Power Line
Number of Lines : 3
Impedance @ Frequency : -
Inductance @ Frequency : 3mH @ 100kHz
Current Rating (Max) : 16A
DC Resistance (DCR) (Max) : 8 mOhm (Typ)
Voltage Rating - DC : -
Voltage Rating - AC : 600V
Operating Temperature : -40°C ~ 100°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Through Hole
Size / Dimension : 2.205" L x 1.457" W (56.00mm x 37.00mm)
Height (Max) : 2.362" (60.00mm)
Package / Case : Vertical, 6 PC Pin
0
134 in stock
Schaffner EMC, Inc.
Manufacturer : Schaffner EMC Inc.
Packaging : -
Series : RT
Part Status : Active
Filter Type : Power Line
Number of Lines : 3
Impedance @ Frequency : -
Inductance @ Frequency : 2.5mH @ 100kHz
Current Rating (Max) : 20A
DC Resistance (DCR) (Max) : 7 mOhm (Typ)
Voltage Rating - DC : -
Voltage Rating - AC : 600V
Operating Temperature : -40°C ~ 100°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Through Hole
Size / Dimension : 2.205" L x 1.457" W (56.00mm x 37.00mm)
Height (Max) : 2.362" (60.00mm)
Package / Case : Vertical, 6 PC Pin
0
137 in stock
Schaffner EMC, Inc.
Manufacturer : Schaffner EMC Inc.
Packaging : -
Series : RT
Part Status : Active
Filter Type : Power Line
Number of Lines : 3
Impedance @ Frequency : -
Inductance @ Frequency : 6mH @ 100kHz
Current Rating (Max) : 6A
DC Resistance (DCR) (Max) : 27 mOhm (Typ)
Voltage Rating - DC : -
Voltage Rating - AC : 600V
Operating Temperature : -40°C ~ 100°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Through Hole
Size / Dimension : 1.732" L x 1.260" W (44.00mm x 32.00mm)
Height (Max) : 1.850" (47.00mm)
Package / Case : Vertical, 6 PC Pin
0
139 in stock

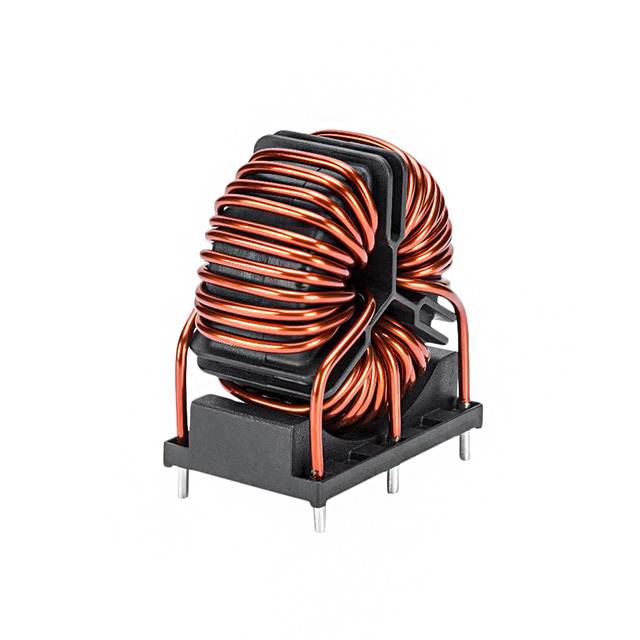

Schaffner EMC, Inc.
Manufacturer : Schaffner EMC Inc.
Packaging : -
Series : RT
Part Status : Active
Filter Type : Power Line
Number of Lines : 3
Impedance @ Frequency : -
Inductance @ Frequency : 4.8mH @ 100kHz
Current Rating (Max) : 8A
DC Resistance (DCR) (Max) : 17 mOhm (Typ)
Voltage Rating - DC : -
Voltage Rating - AC : 600V
Operating Temperature : -40°C ~ 100°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Through Hole
Size / Dimension : 1.732" L x 1.260" W (44.00mm x 32.00mm)
Height (Max) : 1.850" (47.00mm)
Package / Case : Vertical, 6 PC Pin
0
196 in stock
