Schaffner EMC, Inc.
- Schaffner is the international leader in the fields of electromagnetic compatibility and power quality, supplying components that support the efficient and reliable use of electric energy. Customers benefit from the technological know-how of the Schaffner Group in the development, manufacturing and marketing of high-performance products that offer optimized and fault-free operation and compliance with all major quality and performance standards.
With its products and services, the Schaffner Group plays a key role in promoting technologies that support renewable energies, ensures the reliable functioning of electronic equipment and systems and meets the requirements for greater energy efficiency.
With its EMC and power quality components and modules plus a wide range of services for equipment manufacturers and systems integrators, the Schaffner Group strives for market leadership in all product and service categories.
Part Number
Manufacturer
Description
Unit Price
In Stock

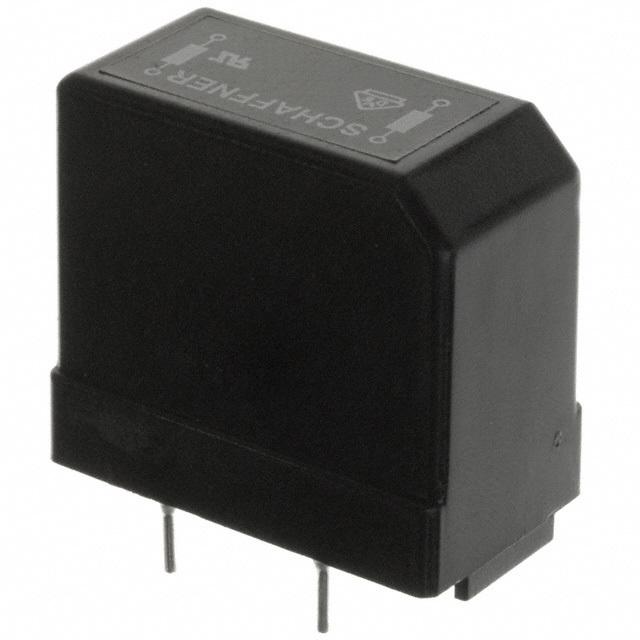

Schaffner EMC, Inc.
Manufacturer : Schaffner EMC Inc.
Packaging : Tray
Series : RN
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 1.8mH @ 10kHz
Current Rating (Max) : 6A
DC Resistance (DCR) (Max) : 20 mOhm (Typ)
Voltage Rating - DC : -
Voltage Rating - AC : 300V
Operating Temperature : -40°C ~ 100°C
Ratings : -
Approvals : ENEC, UR, VDE
Features : -
Mounting Type : Through Hole
Size / Dimension : 1.220" L x 0.709" W (31.00mm x 18.00mm)
Height (Max) : 1.362" (34.60mm)
Package / Case : Vertical, 4 PC Pin
0
648 in stock
Schaffner EMC, Inc.
Manufacturer : Schaffner EMC Inc.
Packaging : Tray
Series : RS
Part Status : Not For New Designs
Filter Type : Signal Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 200µH @ 1kHz
Current Rating (Max) : 500mA (Typ)
DC Resistance (DCR) (Max) : 650 mOhm (Typ)
Voltage Rating - DC : -
Voltage Rating - AC : 250V
Operating Temperature : -40°C ~ 125°C
Ratings : -
Approvals : UR, VDE
Features : -
Mounting Type : Through Hole
Size / Dimension : 0.697" L x 0.673" W (17.70mm x 17.10mm)
Height (Max) : 0.492" (12.50mm)
Package / Case : Horizontal, 4 PC Pin
0
475 in stock
Schaffner EMC, Inc.
Manufacturer : Schaffner EMC Inc.
Packaging : Tray
Series : RS
Part Status : Not For New Designs
Filter Type : Signal Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 55µH @ 1kHz
Current Rating (Max) : 1A (Typ)
DC Resistance (DCR) (Max) : 130 mOhm (Typ)
Voltage Rating - DC : -
Voltage Rating - AC : 250V
Operating Temperature : -40°C ~ 125°C
Ratings : -
Approvals : UR, VDE
Features : -
Mounting Type : Through Hole
Size / Dimension : 0.697" L x 0.673" W (17.70mm x 17.10mm)
Height (Max) : 0.492" (12.50mm)
Package / Case : Horizontal, 4 PC Pin
0
100 in stock

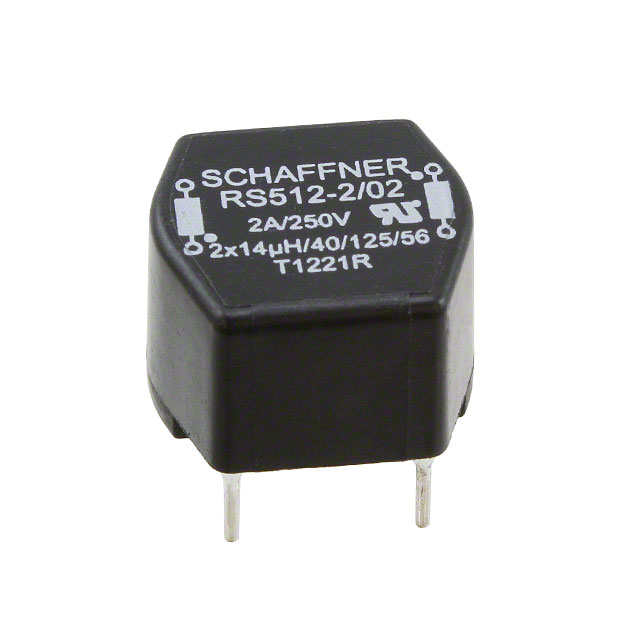

Schaffner EMC, Inc.
Manufacturer : Schaffner EMC Inc.
Packaging : Tray
Series : RS
Part Status : Not For New Designs
Filter Type : Signal Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 13µH @ 1kHz
Current Rating (Max) : 2A (Typ)
DC Resistance (DCR) (Max) : 30 mOhm (Typ)
Voltage Rating - DC : -
Voltage Rating - AC : 250V
Operating Temperature : -40°C ~ 125°C
Ratings : -
Approvals : UR, VDE
Features : -
Mounting Type : Through Hole
Size / Dimension : 0.697" L x 0.673" W (17.70mm x 17.10mm)
Height (Max) : 0.492" (12.50mm)
Package / Case : Horizontal, 4 PC Pin
0
774 in stock
Schaffner EMC, Inc.
Manufacturer : Schaffner EMC Inc.
Packaging : Tray
Series : RS
Part Status : Not For New Designs
Filter Type : Signal Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 3µH @ 1kHz
Current Rating (Max) : 4A (Typ)
DC Resistance (DCR) (Max) : 10 mOhm (Typ)
Voltage Rating - DC : -
Voltage Rating - AC : 250V
Operating Temperature : -40°C ~ 125°C
Ratings : -
Approvals : UR, VDE
Features : -
Mounting Type : Through Hole
Size / Dimension : 0.697" L x 0.673" W (17.70mm x 17.10mm)
Height (Max) : 0.492" (12.50mm)
Package / Case : Horizontal, 4 PC Pin
0
100 in stock
Schaffner EMC, Inc.
Manufacturer : Schaffner EMC Inc.
Packaging : Tray
Series : RS
Part Status : Not For New Designs
Filter Type : Signal Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 480µH @ 1kHz
Current Rating (Max) : 500mA (Typ)
DC Resistance (DCR) (Max) : 800 mOhm (Typ)
Voltage Rating - DC : -
Voltage Rating - AC : 250V
Operating Temperature : -40°C ~ 125°C
Ratings : -
Approvals : UR, VDE
Features : -
Mounting Type : Through Hole
Size / Dimension : 0.886" L x 0.846" W (22.50mm x 21.50mm)
Height (Max) : 0.520" (13.20mm)
Package / Case : Horizontal, 4 PC Pin
0
100 in stock
Schaffner EMC, Inc.
Manufacturer : Schaffner EMC Inc.
Packaging : Tray
Series : RS
Part Status : Not For New Designs
Filter Type : Signal Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 120µH @ 1kHz
Current Rating (Max) : 1A (Typ)
DC Resistance (DCR) (Max) : 200 mOhm (Typ)
Voltage Rating - DC : -
Voltage Rating - AC : 250V
Operating Temperature : -40°C ~ 125°C
Ratings : -
Approvals : UR, VDE
Features : -
Mounting Type : Through Hole
Size / Dimension : 0.886" L x 0.846" W (22.50mm x 21.50mm)
Height (Max) : 0.520" (13.20mm)
Package / Case : Horizontal, 4 PC Pin
0
350 in stock
Schaffner EMC, Inc.
Manufacturer : Schaffner EMC Inc.
Packaging : Tray
Series : RS
Part Status : Not For New Designs
Filter Type : Signal Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 30µH @ 1kHz
Current Rating (Max) : 2A (Typ)
DC Resistance (DCR) (Max) : 50 mOhm (Typ)
Voltage Rating - DC : -
Voltage Rating - AC : 250V
Operating Temperature : -40°C ~ 125°C
Ratings : -
Approvals : UR, VDE
Features : -
Mounting Type : Through Hole
Size / Dimension : 0.886" L x 0.846" W (22.50mm x 21.50mm)
Height (Max) : 0.520" (13.20mm)
Package / Case : Horizontal, 4 PC Pin
0
450 in stock
Schaffner EMC, Inc.
Manufacturer : Schaffner EMC Inc.
Packaging : Tray
Series : RS
Part Status : Not For New Designs
Filter Type : Signal Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 8µH @ 1kHz
Current Rating (Max) : 4A (Typ)
DC Resistance (DCR) (Max) : 20 mOhm (Typ)
Voltage Rating - DC : -
Voltage Rating - AC : 250V
Operating Temperature : -40°C ~ 125°C
Ratings : -
Approvals : UR, VDE
Features : -
Mounting Type : Through Hole
Size / Dimension : 0.886" L x 0.846" W (22.50mm x 21.50mm)
Height (Max) : 0.520" (13.20mm)
Package / Case : Horizontal, 4 PC Pin
0
425 in stock
Schaffner EMC, Inc.
Manufacturer : Schaffner EMC Inc.
Packaging : Tray
Series : RS
Part Status : Not For New Designs
Filter Type : Signal Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 200µH @ 1kHz
Current Rating (Max) : 500mA (Typ)
DC Resistance (DCR) (Max) : 650 mOhm (Typ)
Voltage Rating - DC : -
Voltage Rating - AC : 250V
Operating Temperature : -40°C ~ 125°C
Ratings : -
Approvals : UR, VDE
Features : -
Mounting Type : Through Hole
Size / Dimension : 0.709" L x 0.492" W (18.00mm x 12.50mm)
Height (Max) : 0.787" (20.00mm)
Package / Case : Vertical, 4 PC Pin
0
100 in stock
Schaffner EMC, Inc.
Manufacturer : Schaffner EMC Inc.
Packaging : Tray
Series : RS
Part Status : Not For New Designs
Filter Type : Signal Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 55µH @ 1kHz
Current Rating (Max) : 1A (Typ)
DC Resistance (DCR) (Max) : 130 mOhm (Typ)
Voltage Rating - DC : -
Voltage Rating - AC : 250V
Operating Temperature : -40°C ~ 125°C
Ratings : -
Approvals : UR, VDE
Features : -
Mounting Type : Through Hole
Size / Dimension : 0.709" L x 0.492" W (18.00mm x 12.50mm)
Height (Max) : 0.787" (20.00mm)
Package / Case : Vertical, 4 PC Pin
0
300 in stock
Schaffner EMC, Inc.
Manufacturer : Schaffner EMC Inc.
Packaging : Tray
Series : RS
Part Status : Not For New Designs
Filter Type : Signal Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 13µH @ 1kHz
Current Rating (Max) : 2A (Typ)
DC Resistance (DCR) (Max) : 30 mOhm (Typ)
Voltage Rating - DC : -
Voltage Rating - AC : 250V
Operating Temperature : -40°C ~ 125°C
Ratings : -
Approvals : UR, VDE
Features : -
Mounting Type : Through Hole
Size / Dimension : 0.709" L x 0.492" W (18.00mm x 12.50mm)
Height (Max) : 0.787" (20.00mm)
Package / Case : Vertical, 4 PC Pin
0
100 in stock
