Schaffner EMC, Inc.

- Schaffner is the international leader in the fields of electromagnetic compatibility and power quality, supplying components that support the efficient and reliable use of electric energy. Customers benefit from the technological know-how of the Schaffner Group in the development, manufacturing and marketing of high-performance products that offer optimized and fault-free operation and compliance with all major quality and performance standards.

With its products and services, the Schaffner Group plays a key role in promoting technologies that support renewable energies, ensures the reliable functioning of electronic equipment and systems and meets the requirements for greater energy efficiency.

With its EMC and power quality components and modules plus a wide range of services for equipment manufacturers and systems integrators, the Schaffner Group strives for market leadership in all product and service categories.


Part Number

Manufacturer

Description

Unit Price

In Stock

RN222-3-02-4M5

Schaffner EMC, Inc.

Manufacturer : Schaffner EMC Inc.
Packaging : Tray
Series : RN
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 4.5mH @ 10kHz
Current Rating (Max) : 3A
DC Resistance (DCR) (Max) : 80 mOhm (Typ)
Voltage Rating - DC : -
Voltage Rating - AC : 300V
Operating Temperature : -40°C ~ 100°C
Ratings : -
Approvals : ENEC, UR, VDE
Features : -
Mounting Type : Through Hole
Size / Dimension : 1.220" L x 0.709" W (31.00mm x 18.00mm)
Height (Max) : 1.165" (29.60mm)
Package / Case : Vertical, 4 PC Pin

543 in stock

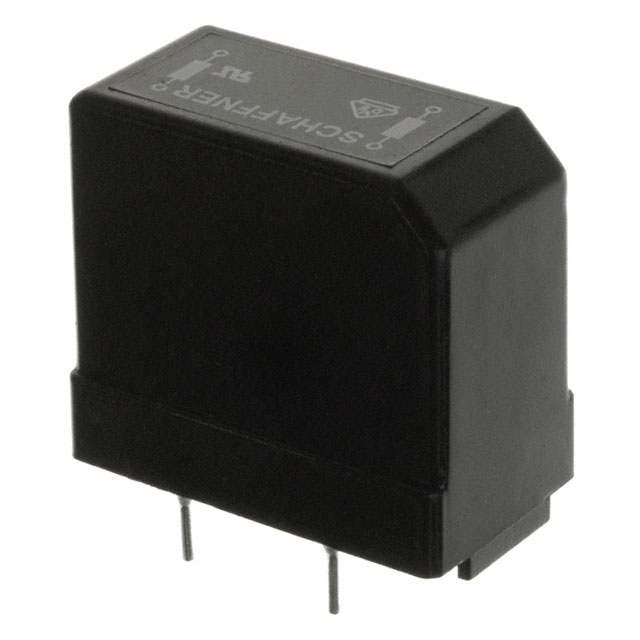

RN222-4-02

Schaffner EMC, Inc.

Manufacturer : Schaffner EMC Inc.
Packaging : Tray
Series : RN
Part Status : Obsolete
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 3.3mH @ 1kHz
Current Rating (Max) : 4A (Typ)
DC Resistance (DCR) (Max) : 48 mOhm (Typ)
Voltage Rating - DC : -
Voltage Rating - AC : 250V
Operating Temperature : -40°C ~ 125°C
Ratings : -
Approvals : UR, VDE
Features : -
Mounting Type : Through Hole
Size / Dimension : 1.220" L x 0.709" W (31.00mm x 18.00mm)
Height (Max) : 1.165" (29.60mm)
Package / Case : Vertical, 4 PC Pin

100 in stock

RN222-4-02-3M3

Schaffner EMC, Inc.

Manufacturer : Schaffner EMC Inc.
Packaging : Tray
Series : RN
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 3.3mH @ 10kHz
Current Rating (Max) : 4A
DC Resistance (DCR) (Max) : 46 mOhm (Typ)
Voltage Rating - DC : -
Voltage Rating - AC : 300V
Operating Temperature : -40°C ~ 100°C
Ratings : -
Approvals : ENEC, UR, VDE
Features : -
Mounting Type : Through Hole
Size / Dimension : 1.220" L x 0.709" W (31.00mm x 18.00mm)
Height (Max) : 1.165" (29.60mm)
Package / Case : Vertical, 4 PC Pin

2018 in stock

RN232-0.6-02

Schaffner EMC, Inc.

Manufacturer : Schaffner EMC Inc.
Packaging : -
Series : RN
Part Status : Obsolete
Filter Type : -
Number of Lines : -
Impedance @ Frequency : -
Inductance @ Frequency : -
Current Rating (Max) : -
DC Resistance (DCR) (Max) : -
Voltage Rating - DC : -
Voltage Rating - AC : -
Operating Temperature : -
Ratings : -
Approvals : -
Features : -
Mounting Type : -
Size / Dimension : -
Height (Max) : -
Package / Case : -

100 in stock

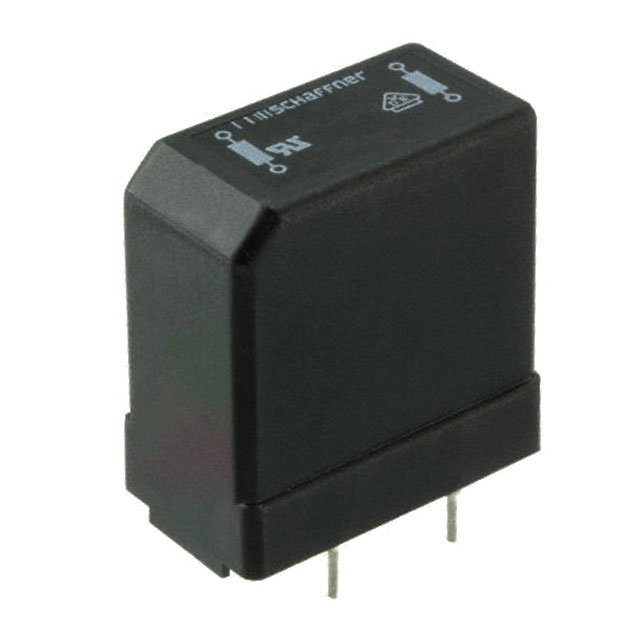

RN232-0.6-02-47M

Schaffner EMC, Inc.

Manufacturer : Schaffner EMC Inc.
Packaging : Tray
Series : RN
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 47mH @ 10kHz
Current Rating (Max) : 600mA
DC Resistance (DCR) (Max) : 1.3 Ohm (Typ)
Voltage Rating - DC : -
Voltage Rating - AC : 300V
Operating Temperature : -40°C ~ 100°C
Ratings : -
Approvals : ENEC, UR, VDE
Features : -
Mounting Type : Through Hole
Size / Dimension : 1.220" L x 0.709" W (31.00mm x 18.00mm)
Height (Max) : 1.362" (34.60mm)
Package / Case : Vertical, 4 PC Pin

300 in stock

RN232-1.6-02

Schaffner EMC, Inc.

100 in stock

RN232-1.6-02-10M

Schaffner EMC, Inc.

Manufacturer : Schaffner EMC Inc.
Packaging : Tray
Series : RN
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 10mH @ 10kHz
Current Rating (Max) : 1.6A
DC Resistance (DCR) (Max) : 170 mOhm (Typ)
Voltage Rating - DC : -
Voltage Rating - AC : 300V
Operating Temperature : -40°C ~ 100°C
Ratings : -
Approvals : ENEC, UR, VDE
Features : -
Mounting Type : Through Hole
Size / Dimension : 1.220" L x 0.709" W (31.00mm x 18.00mm)
Height (Max) : 1.362" (34.60mm)
Package / Case : Vertical, 4 PC Pin

120 in stock

RN232-1-02

Schaffner EMC, Inc.

100 in stock

RN232-1-02-18M

Schaffner EMC, Inc.

Manufacturer : Schaffner EMC Inc.
Packaging : Tray
Series : RN
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 18mH @ 10kHz
Current Rating (Max) : 1A
DC Resistance (DCR) (Max) : 390 mOhm (Typ)
Voltage Rating - DC : -
Voltage Rating - AC : 300V
Operating Temperature : -40°C ~ 100°C
Ratings : -
Approvals : ENEC, UR, VDE
Features : -
Mounting Type : Through Hole
Size / Dimension : 1.220" L x 0.709" W (31.00mm x 18.00mm)
Height (Max) : 1.362" (34.60mm)
Package / Case : Vertical, 4 PC Pin

274 in stock

RN232-2.5-02

Schaffner EMC, Inc.

100 in stock

RN232-2.5-02-5M6

Schaffner EMC, Inc.

Manufacturer : Schaffner EMC Inc.
Packaging : Tray
Series : RN
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 5.6mH @ 10kHz
Current Rating (Max) : 2.5A
DC Resistance (DCR) (Max) : 86 mOhm (Typ)
Voltage Rating - DC : -
Voltage Rating - AC : 300V
Operating Temperature : -40°C ~ 100°C
Ratings : -
Approvals : ENEC, UR, VDE
Features : -
Mounting Type : Through Hole
Size / Dimension : 1.220" L x 0.709" W (31.00mm x 18.00mm)
Height (Max) : 1.362" (34.60mm)
Package / Case : Vertical, 4 PC Pin

284 in stock

RN232-4-02

Schaffner EMC, Inc.

100 in stock
