Standex-Meder Electronics
- Standex-Meder Electronics is a worldwide market leader in the design, development and manufacture of standard and custom electro-magnetic components, including magnetics products and reed switch-based solutions.
Our magnetic offerings include planar, Rogowski, current, and low- and high-frequency transformers and inductors. Our reed switch-based solutions include Meder, Standex and OKI brand reed switches, as well as a complete portfolio of reed relays, and a comprehensive array of fluid level, proximity, motion, water flow, HVAC condensate, hydraulic pressure differential, capacitive, conductive and inductive sensors.
Part Number
Manufacturer
Description
Unit Price
In Stock

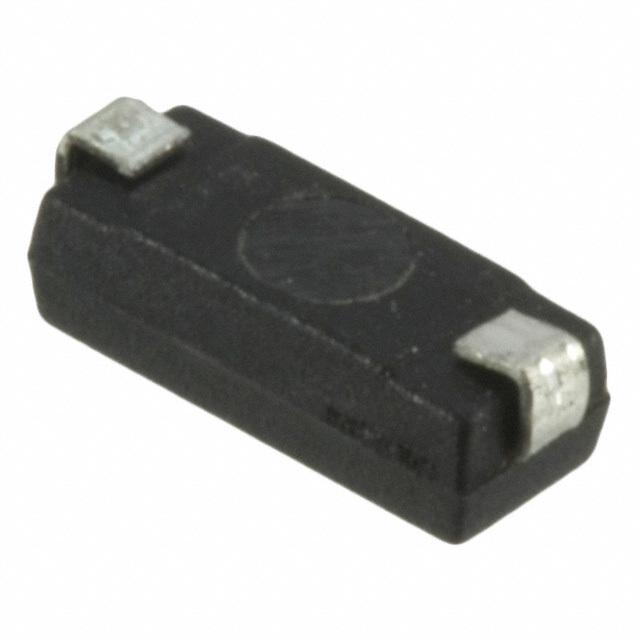

Standex-Meder Electronics
Manufacturer : Standex-Meder Electronics
Packaging : Cut Tape (CT)
Alternate Packaging
Series : MK24
Part Status : Active
Type : Molded Body
Circuit : SPST-NO
Operate Range : 50 ~ 112AT
Release Range : -
Current - Switching : 300mA (AC/DC)
Voltage - Switching AC : 30V
Voltage - Switching DC : 30V
Power - Rated : 3W
Operate Time : 0.2ms
Release Time : 0.15ms
Mounting Type : Surface Mount
Termination Style : J Lead
Length - Overall : 0.217" (5.51mm)
Size - Body : 0.197" L x 0.087" W x 0.067" H (5.00mm x 2.20mm x 1.70mm)
Height Above Board : 0.071" (1.80mm)
Operating Temperature : -40°C ~ 130°C
Capacitance : 0.1pF
Current - Carry : 500mA (AC/DC)
0
3703 in stock
Standex-Meder Electronics
Manufacturer : Standex-Meder Electronics
Packaging : Bulk
Series : MMS
Part Status : Obsolete
Type : Molded Body
Circuit : SPST-NO
Operate Range : 2.2 ~ 5.25mT
Release Range : 1.76 ~ 4.73mT
Current - Switching : 0.1mA (AC/DC)
Voltage - Switching AC : 3V
Voltage - Switching DC : 3V
Power - Rated : 0.3mW
Operate Time : 0.2ms
Release Time : 0.1ms
Mounting Type : Surface Mount
Termination Style : SMD (SMT) Tab
Length - Overall : 0.051" (1.30mm)
Size - Body : -
Height Above Board : -
Operating Temperature : -20°C ~ 100°C
Capacitance : 0.3pF
Current - Carry : 0.1mA (AC/DC)
0
100 in stock

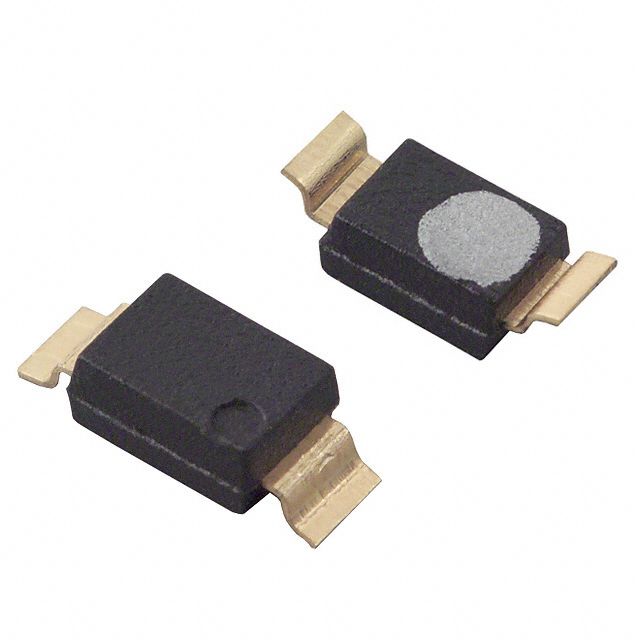

Standex-Meder Electronics
Manufacturer : Standex-Meder Electronics
Packaging : Tape & Reel (TR)
Series : MMS
Part Status : Obsolete
Type : Molded Body
Circuit : SPST-NO
Operate Range : 1.8 ~ 4mT
Release Range : 0.5 ~ 3.2mT
Current - Switching : 0.1mA (AC/DC)
Voltage - Switching AC : 3V
Voltage - Switching DC : 3V
Power - Rated : 0.3mW
Operate Time : 0.1ms
Release Time : 0.05ms
Mounting Type : Surface Mount
Termination Style : Gull Wing
Length - Overall : 0.189" (4.80mm)
Size - Body : 0.110" L x 0.081" W x 0.049" H (2.80mm x 2.05mm x 1.25mm)
Height Above Board : 0.053" (1.35mm)
Operating Temperature : -20°C ~ 100°C
Capacitance : 0.2pF
Current - Carry : 0.1mA (AC/DC)
0
100 in stock
Standex-Meder Electronics
Manufacturer : Standex-Meder Electronics
Packaging : Tube
Series : MRX
Part Status : Active
Coil Type : Non Latching
Coil Current : 9.0mA
Coil Voltage : 12VDC
Contact Form : SPST-NO (1 Form A)
Contact Rating (Current) : 500mA
Switching Voltage : 200VAC, 200VDC - Max
Turn On Voltage (Max) : 9 VDC
Turn Off Voltage (Min) : 2 VDC
Operate Time : 0.5ms
Release Time : 0.2ms
Features : Sealed - Fully
Mounting Type : Through Hole
Termination Style : PC Pin
Operating Temperature : -20°C ~ 85°C
0
30 in stock

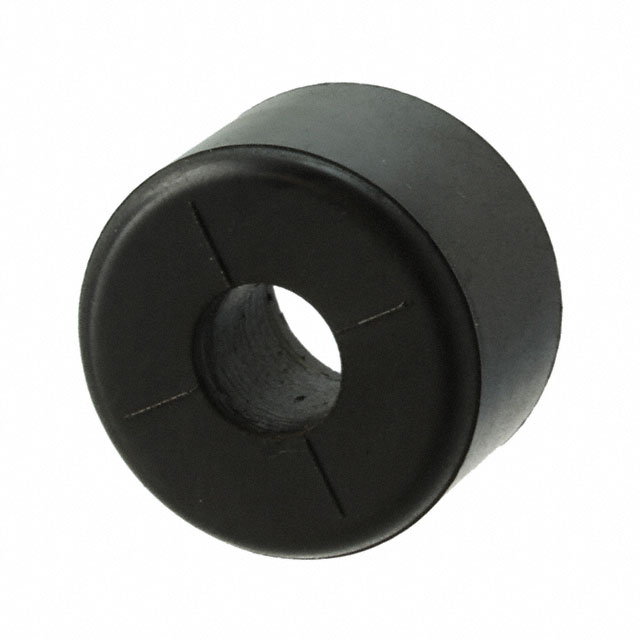

Standex-Meder Electronics
Manufacturer : Standex-Meder Electronics
Series : -
Part Status : Active
Accessory Type : Magnetic Float
For Use With/Related Products : Sensors LS01, LS02, LS02-S, LS04, LS05
0
490 in stock

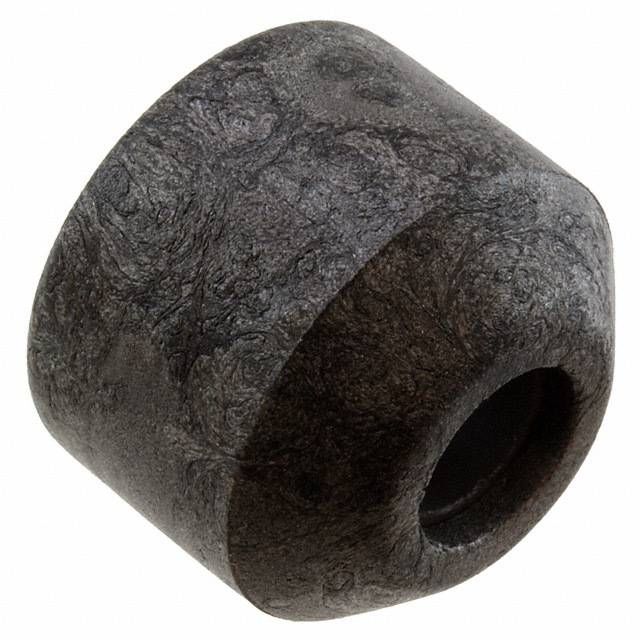

Standex-Meder Electronics
Manufacturer : Standex-Meder Electronics
Series : -
Part Status : Active
Accessory Type : Magnetic Float
For Use With/Related Products : Level Sensors
0
5597 in stock

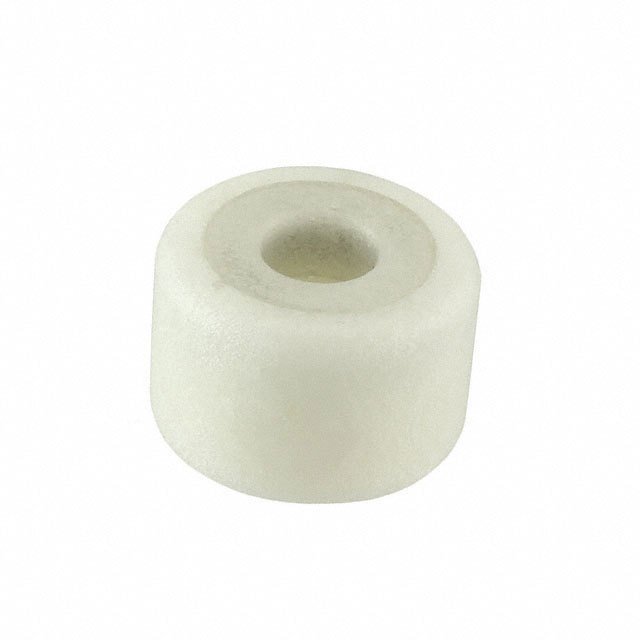

Standex-Meder Electronics
Manufacturer : Standex-Meder Electronics
Series : -
Part Status : Active
Accessory Type : Magnetic Float
For Use With/Related Products : Level Sensors
0
152 in stock
Standex-Meder Electronics
Manufacturer : Standex-Meder Electronics
Packaging : Tube
Series : MS
Part Status : Obsolete
Coil Type : Non Latching
Coil Current : 50.0mA
Coil Voltage : 5VDC
Contact Form : SPST-NO (1 Form A)
Contact Rating (Current) : 2A
Switching Voltage : 1000VAC, 1000VDC - Max
Turn On Voltage (Max) : 3.5 VDC
Turn Off Voltage (Min) : 0.75 VDC
Operate Time : 1ms
Release Time : 0.7ms
Features : -
Mounting Type : Through Hole
Termination Style : PC Pin
Operating Temperature : -20°C ~ 70°C
0
100 in stock
Standex-Meder Electronics
Manufacturer : Standex-Meder Electronics
Packaging : Tube
Series : MS
Part Status : Obsolete
Coil Type : Non Latching
Coil Current : 10.0mA
Coil Voltage : 5VDC
Contact Form : SPST-NO (1 Form A)
Contact Rating (Current) : 500mA
Switching Voltage : 200VAC, 200VDC - Max
Turn On Voltage (Max) : 3.5 VDC
Turn Off Voltage (Min) : 0.75 VDC
Operate Time : 0.5ms
Release Time : 0.1ms
Features : -
Mounting Type : Through Hole
Termination Style : PC Pin
Operating Temperature : -20°C ~ 65°C
0
100 in stock
Standex-Meder Electronics
Manufacturer : Standex-Meder Electronics
Packaging : Tube
Series : MS
Part Status : Active
Coil Type : Non Latching
Coil Current : 10.0mA
Coil Voltage : 5VDC
Contact Form : SPST-NO (1 Form A)
Contact Rating (Current) : 500mA
Switching Voltage : 200VAC, 200VDC - Max
Turn On Voltage (Max) : 3.75 VDC
Turn Off Voltage (Min) : 0.75 VDC
Operate Time : 0.5ms
Release Time : 0.1ms
Features : Diode
Mounting Type : Through Hole
Termination Style : PC Pin
Operating Temperature : -20°C ~ 70°C
0
178 in stock
Standex-Meder Electronics
Manufacturer : Standex-Meder Electronics
Packaging : Tube
Series : MS
Part Status : Active
Coil Type : Non Latching
Coil Current : 18.0mA
Coil Voltage : 5VDC
Contact Form : SPST-NO (1 Form A)
Contact Rating (Current) : 500mA
Switching Voltage : 200VAC, 200VDC - Max
Turn On Voltage (Max) : 3.75 VDC
Turn Off Voltage (Min) : 0.75 VDC
Operate Time : 0.5ms
Release Time : 0.1ms
Features : -
Mounting Type : Through Hole
Termination Style : PC Pin
Operating Temperature : -20°C ~ 70°C
0
256 in stock
Standex-Meder Electronics
Manufacturer : Standex-Meder Electronics
Packaging : Tube
Series : MS
Part Status : Active
Coil Type : Non Latching
Coil Current : 10.0mA
Coil Voltage : 5VDC
Contact Form : SPST-NO (1 Form A)
Contact Rating (Current) : 500mA
Switching Voltage : 200VAC, 200VDC - Max
Turn On Voltage (Max) : 3.75 VDC
Turn Off Voltage (Min) : 0.75 VDC
Operate Time : 0.5ms
Release Time : 0.1ms
Features : -
Mounting Type : Through Hole
Termination Style : PC Pin
Operating Temperature : -20°C ~ 70°C
0
78 in stock
