Standex-Meder Electronics
- Standex-Meder Electronics is a worldwide market leader in the design, development and manufacture of standard and custom electro-magnetic components, including magnetics products and reed switch-based solutions.
Our magnetic offerings include planar, Rogowski, current, and low- and high-frequency transformers and inductors. Our reed switch-based solutions include Meder, Standex and OKI brand reed switches, as well as a complete portfolio of reed relays, and a comprehensive array of fluid level, proximity, motion, water flow, HVAC condensate, hydraulic pressure differential, capacitive, conductive and inductive sensors.
Part Number
Manufacturer
Description
Unit Price
In Stock

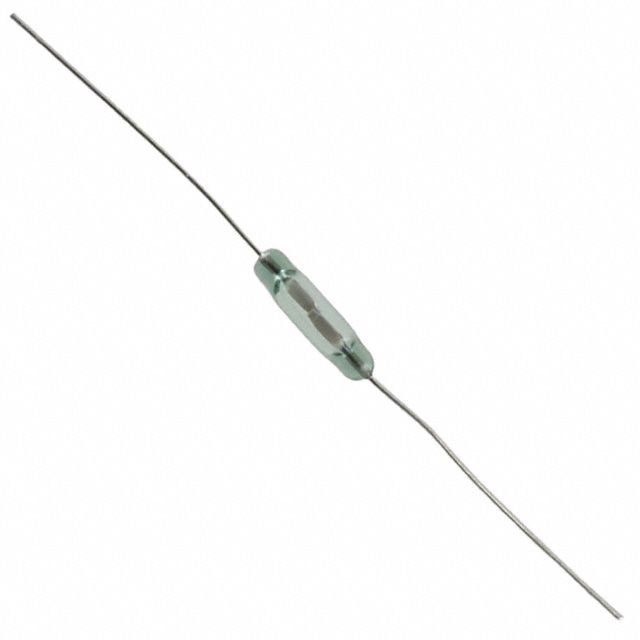

Standex-Meder Electronics
Manufacturer : Standex-Meder Electronics
Packaging : Bulk
Series : ORD
Part Status : Active
Type : Glass Body
Circuit : SPST-NO
Operate Range : 20 ~ 30AT
Release Range : -
Current - Switching : 100mA (AC/DC)
Voltage - Switching AC : 24V
Voltage - Switching DC : 24V
Power - Rated : 1VA
Operate Time : 0.3ms
Release Time : 0.05ms
Mounting Type : Through Hole
Termination Style : Axial
Length - Overall : 1.409" (35.80mm)
Size - Body : 0.071" Dia x 0.276" L (1.80mm x 7.00mm)
Height Above Board : -
Operating Temperature : -
Capacitance : 0.4pF
Current - Carry : 300mA (AC/DC)
0
793 in stock

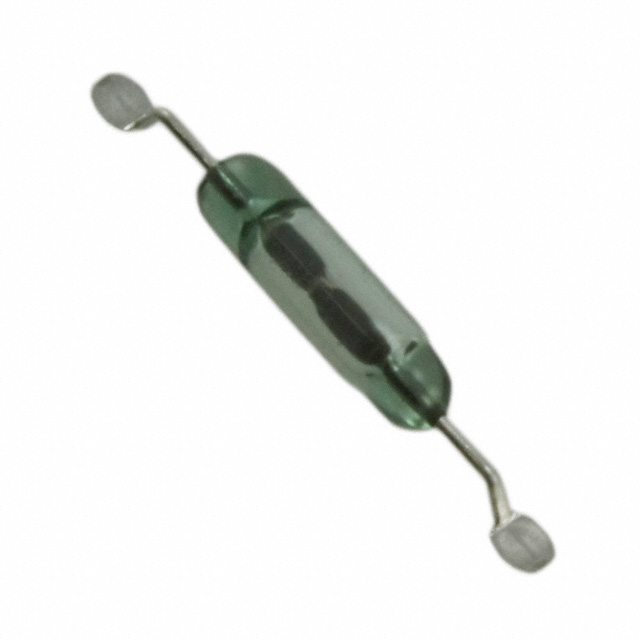

Standex-Meder Electronics
Manufacturer : Standex-Meder Electronics
Packaging : Bulk
Series : ORD
Part Status : Active
Type : Glass Body
Circuit : SPST-NO
Operate Range : 10 ~ 15AT
Release Range : -
Current - Switching : 100mA (AC/DC)
Voltage - Switching AC : 24V
Voltage - Switching DC : 24V
Power - Rated : 1VA
Operate Time : 0.3ms
Release Time : 0.05ms
Mounting Type : Surface Mount
Termination Style : Gull Wing
Length - Overall : -
Size - Body : 0.071" Dia x 0.276" L (1.80mm x 7.00mm)
Height Above Board : -
Operating Temperature : -
Capacitance : 0.4pF
Current - Carry : 300mA (AC/DC)
0
100 in stock
Standex-Meder Electronics
Manufacturer : Standex-Meder Electronics
Packaging : Bulk
Series : ORD
Part Status : Active
Type : Glass Body
Circuit : SPST-NO
Operate Range : 10 ~ 15AT
Release Range : -
Current - Switching : 500mA (AC/DC)
Voltage - Switching AC : 100V
Voltage - Switching DC : 100V
Power - Rated : 10W
Operate Time : 0.4ms
Release Time : 0.05ms
Mounting Type : Through Hole
Termination Style : Axial
Length - Overall : 1.744" (44.30mm)
Size - Body : 0.079" Dia x 0.472" L (2.00mm x 12.00mm)
Height Above Board : -
Operating Temperature : -
Capacitance : 0.3pF
Current - Carry : 1A (AC/DC)
0
915 in stock

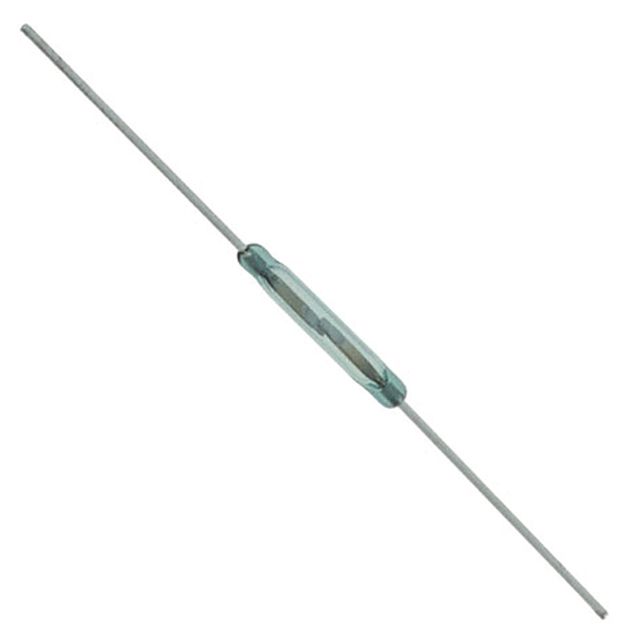

Standex-Meder Electronics
Manufacturer : Standex-Meder Electronics
Packaging : Bulk
Series : ORD
Part Status : Obsolete
Type : Glass Body
Circuit : SPST-NO
Operate Range : 10 ~ 20AT
Release Range : -
Current - Switching : 700mA (AC), 1A (DC)
Voltage - Switching AC : 150V
Voltage - Switching DC : 200V
Power - Rated : 50W
Operate Time : 0.6ms
Release Time : 0.05ms
Mounting Type : Through Hole
Termination Style : Axial
Length - Overall : 2.181" (55.40mm)
Size - Body : 0.108" Dia x 0.827" L (2.75mm x 21.00mm)
Height Above Board : -
Operating Temperature : -
Capacitance : 0.5pF
Current - Carry : 2.5A (AC/DC)
0
100 in stock
Standex-Meder Electronics
Manufacturer : Standex-Meder Electronics
Packaging : Bulk
Series : ORD
Part Status : Obsolete
Type : Glass Body
Circuit : SPST-NO
Operate Range : 20 ~ 30AT
Release Range : -
Current - Switching : 200mA (AC/DC)
Voltage - Switching AC : 100V
Voltage - Switching DC : 100V
Power - Rated : 10W
Operate Time : 0.4ms
Release Time : 0.05ms
Mounting Type : Through Hole
Termination Style : Axial
Length - Overall : 1.728" (43.90mm)
Size - Body : 0.110" Dia x 0.650" L (2.80mm x 16.50mm)
Height Above Board : -
Operating Temperature : -
Capacitance : 0.5pF
Current - Carry : 500mA (AC/DC)
0
100 in stock

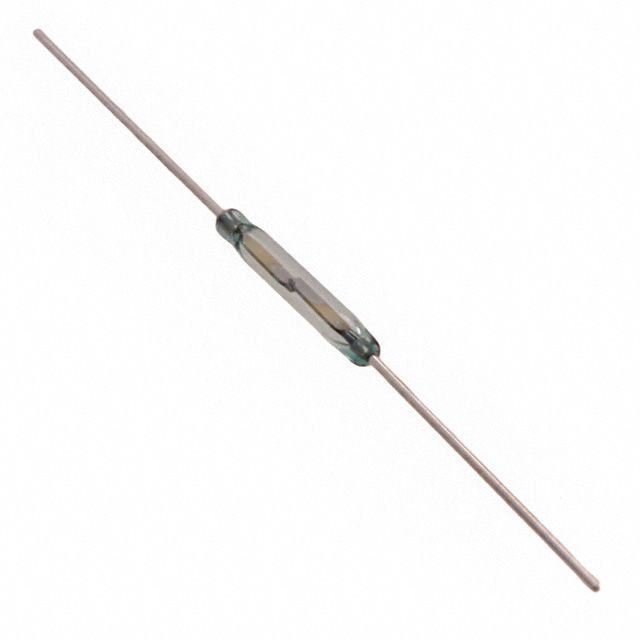

Standex-Meder Electronics
Manufacturer : Standex-Meder Electronics
Packaging : Bulk
Series : ORD
Part Status : Active
Type : Glass Body
Circuit : SPST-NO
Operate Range : 10 ~ 15AT
Release Range : -
Current - Switching : 500mA (AC/DC)
Voltage - Switching AC : 100V
Voltage - Switching DC : 100V
Power - Rated : 10W
Operate Time : 0.4ms
Release Time : 0.05ms
Mounting Type : Through Hole
Termination Style : Axial
Length - Overall : 1.744" (44.30mm)
Size - Body : 0.087" Dia x 0.551" L (2.20mm x 14.00mm)
Height Above Board : -
Operating Temperature : -
Capacitance : 0.3pF
Current - Carry : 1A (AC/DC)
0
16679 in stock

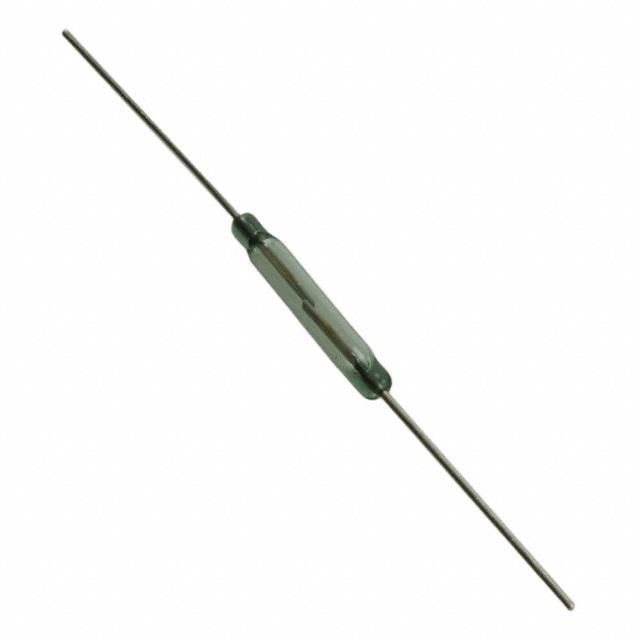

Standex-Meder Electronics
Manufacturer : Standex-Meder Electronics
Packaging : Bulk
Series : ORD
Part Status : Active
Type : Glass Body
Circuit : SPST-NO
Operate Range : 15 ~ 20AT
Release Range : -
Current - Switching : 500mA (AC/DC)
Voltage - Switching AC : 100V
Voltage - Switching DC : 100V
Power - Rated : 10W
Operate Time : 0.4ms
Release Time : 0.05ms
Mounting Type : Through Hole
Termination Style : Axial
Length - Overall : 1.744" (44.30mm)
Size - Body : 0.087" Dia x 0.551" L (2.20mm x 14.00mm)
Height Above Board : -
Operating Temperature : -
Capacitance : 0.3pF
Current - Carry : 1A (AC/DC)
0
100 in stock

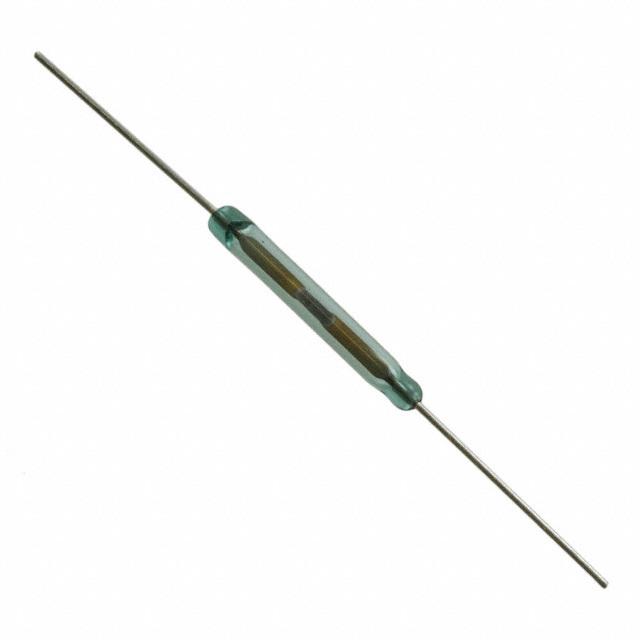

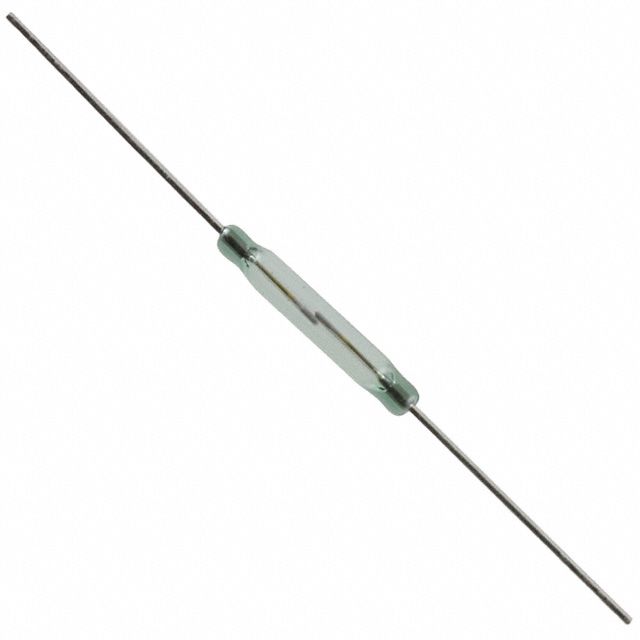

Standex-Meder Electronics
Manufacturer : Standex-Meder Electronics
Packaging : Bulk
Series : ORD
Part Status : Active
Type : Glass Body
Circuit : SPST-NO
Operate Range : 20 ~ 30AT
Release Range : -
Current - Switching : 500mA (AC/DC)
Voltage - Switching AC : 100V
Voltage - Switching DC : 100V
Power - Rated : 10W
Operate Time : 0.4ms
Release Time : 0.05ms
Mounting Type : Through Hole
Termination Style : Axial
Length - Overall : 1.744" (44.30mm)
Size - Body : 0.087" Dia x 0.551" L (2.20mm x 14.00mm)
Height Above Board : -
Operating Temperature : -
Capacitance : 0.3pF
Current - Carry : 1A (AC/DC)
0
1609 in stock

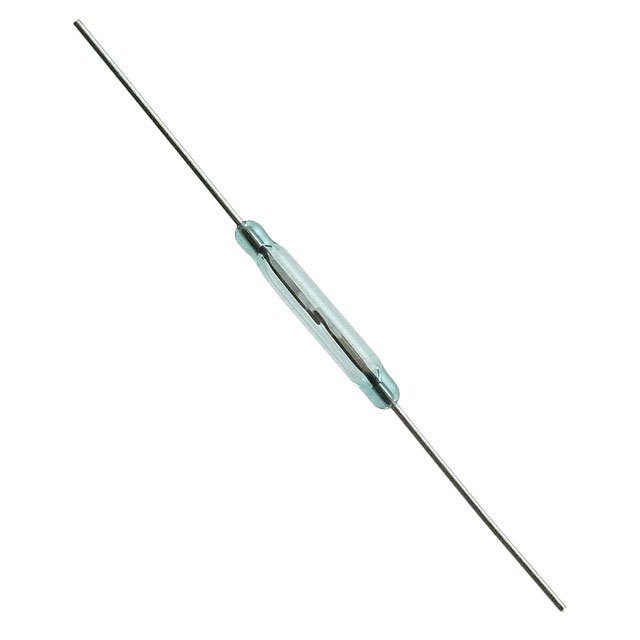

Standex-Meder Electronics
Manufacturer : Standex-Meder Electronics
Packaging : Bulk
Series : ORD
Part Status : Active
Type : Glass Body
Circuit : SPST-NO
Operate Range : 20 ~ 25AT
Release Range : -
Current - Switching : 500mA (AC), 700mA (DC)
Voltage - Switching AC : 300V
Voltage - Switching DC : 350V
Power - Rated : 50W
Operate Time : 0.6ms
Release Time : 0.05ms
Mounting Type : Through Hole
Termination Style : Axial
Length - Overall : 2.181" (55.40mm)
Size - Body : 0.108" Dia x 0.827" L (2.75mm x 21.00mm)
Height Above Board : -
Operating Temperature : -
Capacitance : 0.5pF
Current - Carry : 2.5A (AC/DC)
0
11863 in stock
Standex-Meder Electronics
Manufacturer : Standex-Meder Electronics
Packaging : Bulk
Series : ORD
Part Status : Active
Type : Glass Body
Circuit : SPST-NO
Operate Range : 10 ~ 15AT
Release Range : -
Current - Switching : 1A (AC/DC)
Voltage - Switching AC : 100V
Voltage - Switching DC : 100V
Power - Rated : 10W
Operate Time : 0.3ms
Release Time : 0.05ms
Mounting Type : Through Hole
Termination Style : Axial
Length - Overall : 1.409" (35.80mm)
Size - Body : 0.071" Dia x 0.276" L (1.80mm x 7.00mm)
Height Above Board : -
Operating Temperature : -
Capacitance : 0.4pF
Current - Carry : 500mA (AC/DC)
0
2913 in stock
Standex-Meder Electronics
Manufacturer : Standex-Meder Electronics
Packaging : Bulk
Series : ORD
Part Status : Active
Type : Glass Body
Circuit : SPST-NO
Operate Range : 10 ~ 15AT
Release Range : -
Current - Switching : 500mA (AC/DC)
Voltage - Switching AC : 100V
Voltage - Switching DC : 200V
Power - Rated : 30W
Operate Time : 0.4ms
Release Time : 0.05ms
Mounting Type : Through Hole
Termination Style : Axial
Length - Overall : 1.744" (44.30mm)
Size - Body : 0.079" Dia x 0.472" L (2.00mm x 12.00mm)
Height Above Board : -
Operating Temperature : -
Capacitance : 0.3pF
Current - Carry : 1A (AC/DC)
0
500 in stock
Standex-Meder Electronics
Manufacturer : Standex-Meder Electronics
Packaging : Bulk
Series : ORD
Part Status : Active
Type : Glass Body
Circuit : SPST-NO
Operate Range : 10 ~ 15AT
Release Range : -
Current - Switching : 500mA (DC)
Voltage - Switching AC : -
Voltage - Switching DC : 200V
Power - Rated : 10W
Operate Time : 0.4ms
Release Time : 0.05ms
Mounting Type : Through Hole
Termination Style : Axial
Length - Overall : 1.744" (44.30mm)
Size - Body : 0.087" Dia x 0.551" L (2.20mm x 14.00mm)
Height Above Board : -
Operating Temperature : -40°C ~ 125°C
Capacitance : 0.3pF
Current - Carry : 1A (DC)
0
3275 in stock
