Standex-Meder Electronics
- Standex-Meder Electronics is a worldwide market leader in the design, development and manufacture of standard and custom electro-magnetic components, including magnetics products and reed switch-based solutions.
Our magnetic offerings include planar, Rogowski, current, and low- and high-frequency transformers and inductors. Our reed switch-based solutions include Meder, Standex and OKI brand reed switches, as well as a complete portfolio of reed relays, and a comprehensive array of fluid level, proximity, motion, water flow, HVAC condensate, hydraulic pressure differential, capacitive, conductive and inductive sensors.
Part Number
Manufacturer
Description
Unit Price
In Stock

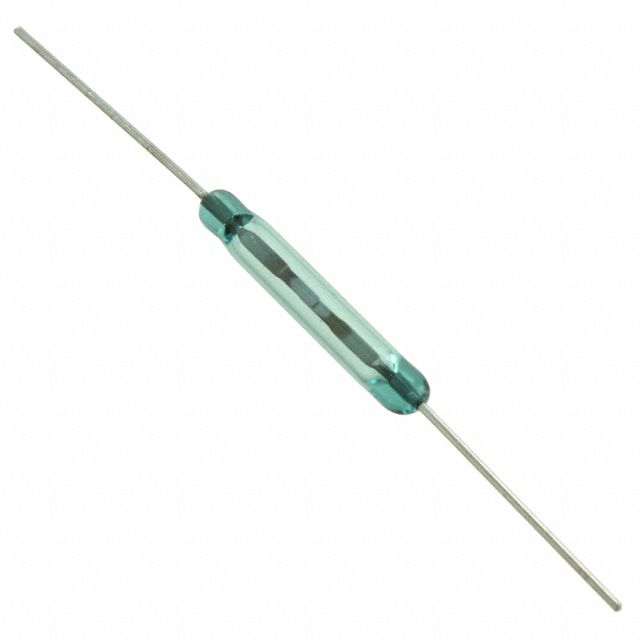

Standex-Meder Electronics
Manufacturer : Standex-Meder Electronics
Packaging : Bulk
Series : ORD
Part Status : Active
Type : Glass Body
Circuit : SPST-NO
Operate Range : 15 ~ 20AT
Release Range : -
Current - Switching : 500mA (DC)
Voltage - Switching AC : -
Voltage - Switching DC : 200V
Power - Rated : 10W
Operate Time : 0.4ms
Release Time : 0.05ms
Mounting Type : Through Hole
Termination Style : Axial
Length - Overall : 1.744" (44.30mm)
Size - Body : 0.087" Dia x 0.551" L (2.20mm x 14.00mm)
Height Above Board : -
Operating Temperature : -40°C ~ 125°C
Capacitance : 0.3pF
Current - Carry : 1A (DC)
0
7577 in stock
Standex-Meder Electronics
Manufacturer : Standex-Meder Electronics
Packaging : Bulk
Series : ORD
Part Status : Obsolete
Type : Glass Body
Circuit : SPST-NO
Operate Range : 10 ~ 15AT
Release Range : -
Current - Switching : 500mA (AC/DC)
Voltage - Switching AC : 150V
Voltage - Switching DC : 200V
Power - Rated : 10VA
Operate Time : 0.4ms
Release Time : 0.05ms
Mounting Type : Through Hole
Termination Style : Axial
Length - Overall : 2.232" (56.70mm)
Size - Body : 0.087" Dia x 0.551" L (2.20mm x 14.00mm)
Height Above Board : -
Operating Temperature : -
Capacitance : 0.3pF
Current - Carry : 1A (AC/DC)
0
100 in stock

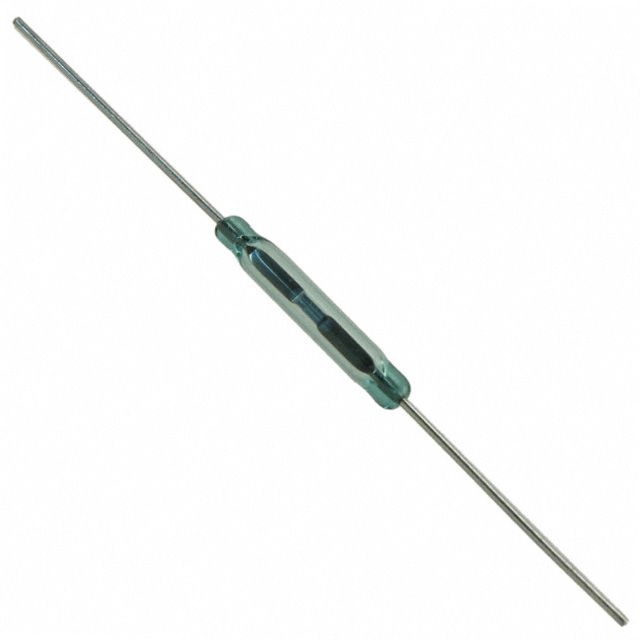

Standex-Meder Electronics
Manufacturer : Standex-Meder Electronics
Packaging : Bulk
Series : ORD
Part Status : Obsolete
Type : Glass Body
Circuit : SPST-NO
Operate Range : 15 ~ 20AT
Release Range : -
Current - Switching : 500mA (AC/DC)
Voltage - Switching AC : 150V
Voltage - Switching DC : 200V
Power - Rated : 10VA
Operate Time : 0.4ms
Release Time : 0.05ms
Mounting Type : Through Hole
Termination Style : Axial
Length - Overall : 2.232" (56.70mm)
Size - Body : 0.087" Dia x 0.551" L (2.20mm x 14.00mm)
Height Above Board : -
Operating Temperature : -
Capacitance : 0.3pF
Current - Carry : 1A (AC/DC)
0
100 in stock

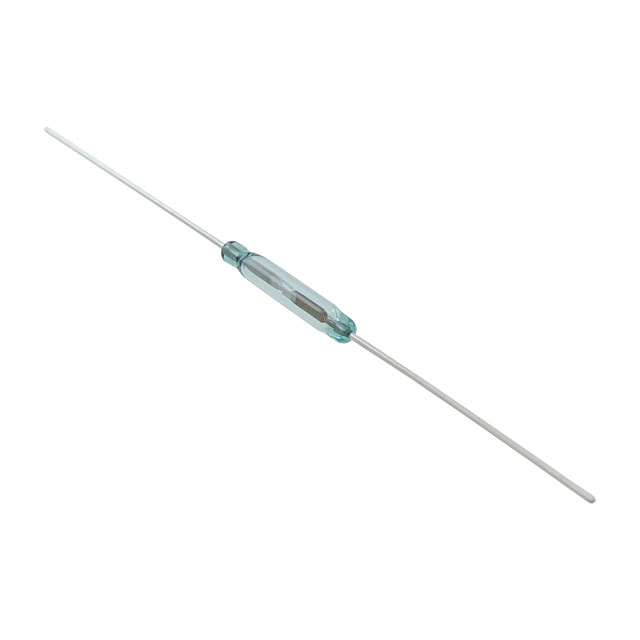

Standex-Meder Electronics
Manufacturer : Standex-Meder Electronics
Packaging : Bulk
Series : ORD
Part Status : Obsolete
Type : Glass Body
Circuit : SPST-NO
Operate Range : 10 ~ 15AT
Release Range : -
Current - Switching : 500mA (AC/DC)
Voltage - Switching AC : 150V
Voltage - Switching DC : 200V
Power - Rated : 10VA
Operate Time : 0.4ms
Release Time : 0.05ms
Mounting Type : Through Hole
Termination Style : Axial
Length - Overall : 1.736" (44.10mm)
Size - Body : 0.110" Dia x 0.669" L (2.80mm x 17.00mm)
Height Above Board : -
Operating Temperature : -
Capacitance : 0.3pF
Current - Carry : 1A (AC/DC)
0
100 in stock

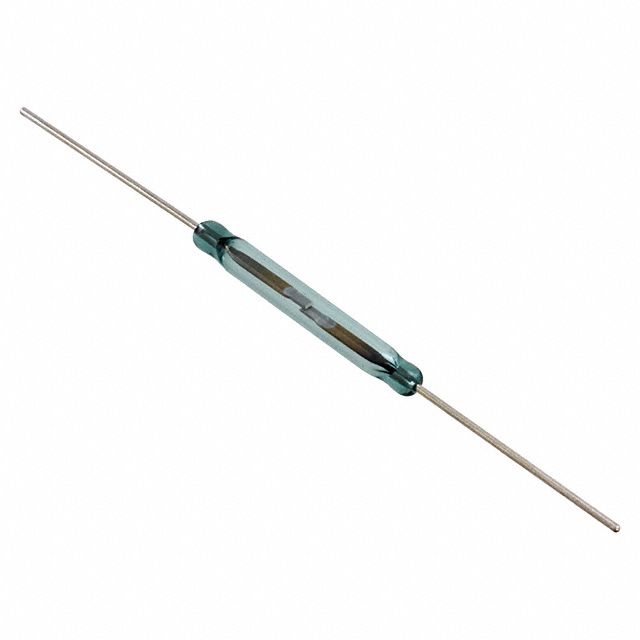

Standex-Meder Electronics
Manufacturer : Standex-Meder Electronics
Packaging : Bulk
Series : ORD
Part Status : Obsolete
Type : Glass Body
Circuit : SPST-NO
Operate Range : 15 ~ 20AT
Release Range : -
Current - Switching : 500mA (AC/DC)
Voltage - Switching AC : 150V
Voltage - Switching DC : 200V
Power - Rated : 10VA
Operate Time : 0.4ms
Release Time : 0.05ms
Mounting Type : Through Hole
Termination Style : Axial
Length - Overall : 1.736" (44.10mm)
Size - Body : 0.110" Dia x 0.669" L (2.80mm x 17.00mm)
Height Above Board : -
Operating Temperature : -
Capacitance : 0.3pF
Current - Carry : 1A (AC/DC)
0
100 in stock
Standex-Meder Electronics
Manufacturer : Standex-Meder Electronics
Packaging : Bulk
Series : ORD
Part Status : Obsolete
Type : Glass Body
Circuit : SPST-NO
Operate Range : 20 ~ 30AT
Release Range : -
Current - Switching : 500mA (AC/DC)
Voltage - Switching AC : 100V
Voltage - Switching DC : 100V
Power - Rated : 10W
Operate Time : 0.4ms
Release Time : 0.05ms
Mounting Type : Through Hole
Termination Style : Axial
Length - Overall : 1.744" (44.30mm)
Size - Body : 0.087" Dia x 0.551" L (2.20mm x 14.00mm)
Height Above Board : -
Operating Temperature : -
Capacitance : 0.3pF
Current - Carry : 1A (AC/DC)
0
100 in stock

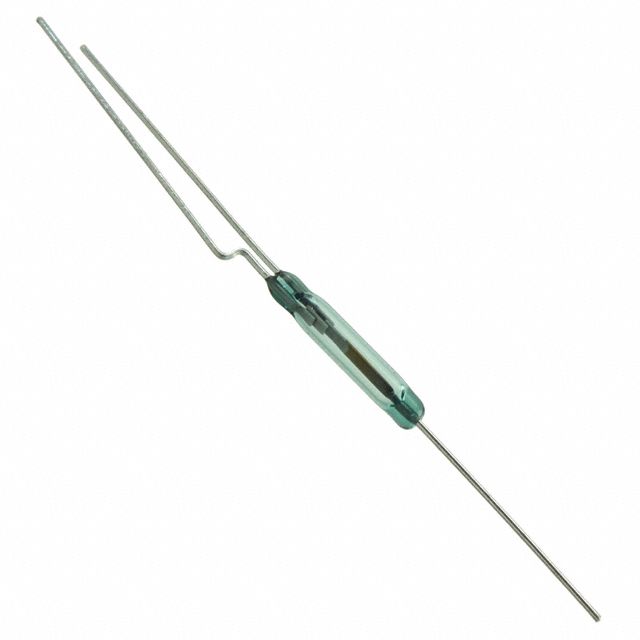

Standex-Meder Electronics
Manufacturer : Standex-Meder Electronics
Packaging : Bulk
Series : ORD
Part Status : Active
Type : Glass Body
Circuit : SPDT
Operate Range : 10 ~ 15AT
Release Range : -
Current - Switching : 200mA (AC/DC)
Voltage - Switching AC : 30V
Voltage - Switching DC : 30V
Power - Rated : 3VA
Operate Time : 1ms
Release Time : 0.5ms
Mounting Type : Through Hole
Termination Style : Axial
Length - Overall : 2.209" (56.10mm)
Size - Body : 0.100" Dia x 0.551" L (2.54mm x 14.00mm)
Height Above Board : -
Operating Temperature : -
Capacitance : 1.5pF
Current - Carry : 500mA (AC/DC)
0
1252 in stock

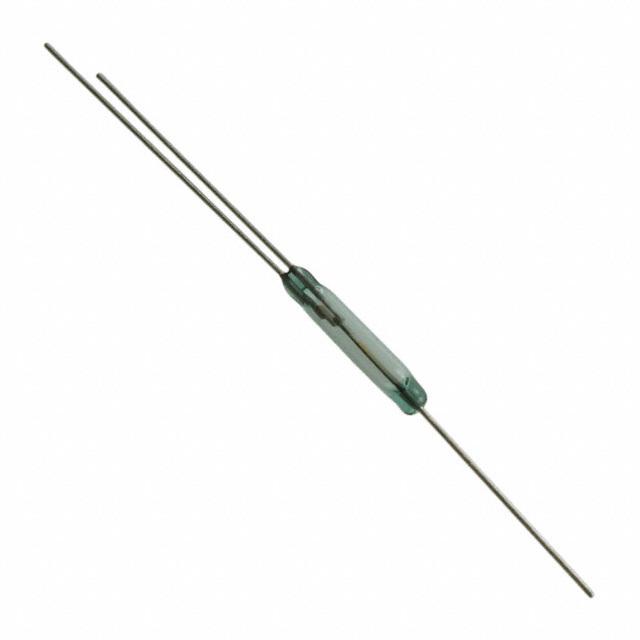

Standex-Meder Electronics
Manufacturer : Standex-Meder Electronics
Packaging : Bulk
Series : ORD
Part Status : Active
Type : Glass Body
Circuit : SPDT
Operate Range : 10 ~ 15AT
Release Range : -
Current - Switching : 200mA (AC/DC)
Voltage - Switching AC : 30V
Voltage - Switching DC : 30V
Power - Rated : 3VA
Operate Time : 1ms
Release Time : 0.5ms
Mounting Type : Through Hole
Termination Style : Axial
Length - Overall : 2.209" (56.10mm)
Size - Body : 0.100" Dia x 0.551" L (2.54mm x 14.00mm)
Height Above Board : -
Operating Temperature : -
Capacitance : 1.5pF
Current - Carry : 500mA (AC/DC)
0
100 in stock

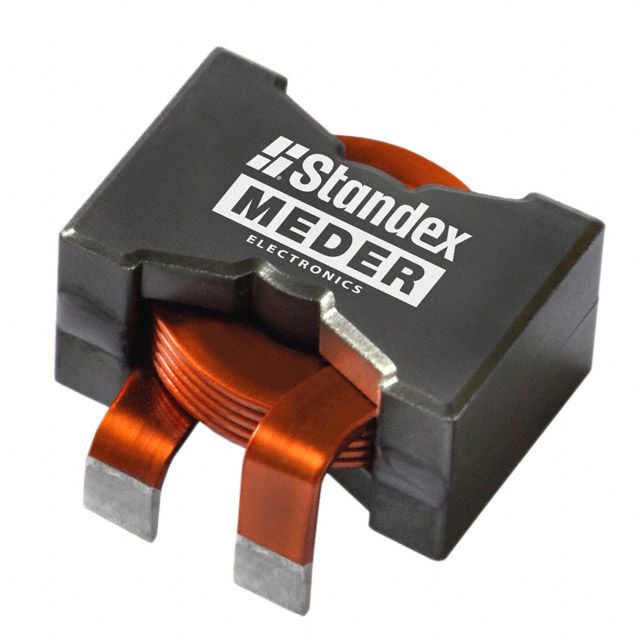

Standex-Meder Electronics
Manufacturer : Standex-Meder Electronics
Packaging : Bulk
Series : PQ
Part Status : Active
Type : Planar
Material - Core : Ferrite
Inductance : 3.3µH
Tolerance : -
Current Rating : 70A
Current - Saturation : 80A
Shielding : Unshielded
DC Resistance (DCR) : 1.1 mOhm
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -30°C ~ 125°C
Inductance Frequency - Test : -
Features : -
Mounting Type : Through Hole
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 1.260" L x 0.886" W (32.00mm x 22.50mm)
Height - Seated (Max) : 0.728" (18.50mm)
0
516 in stock
Standex-Meder Electronics
Manufacturer : Standex-Meder Electronics
Packaging : Bulk
Series : PQ
Part Status : Active
Type : Planar
Material - Core : Ferrite
Inductance : 6µH
Tolerance : -
Current Rating : 50A
Current - Saturation : 57A
Shielding : Unshielded
DC Resistance (DCR) : 1.5 mOhm
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -30°C ~ 125°C
Inductance Frequency - Test : -
Features : -
Mounting Type : Through Hole
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 1.260" L x 0.886" W (32.00mm x 22.50mm)
Height - Seated (Max) : 0.728" (18.50mm)
0
400 in stock

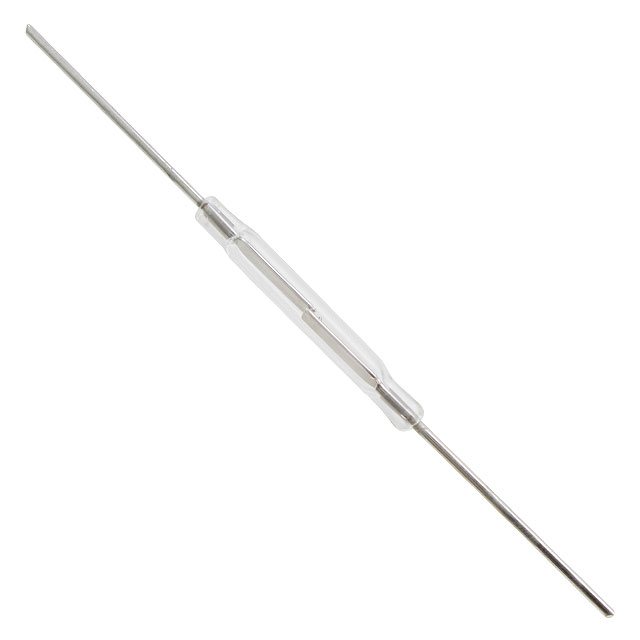

Standex-Meder Electronics
Manufacturer : Standex-Meder Electronics
Packaging : Bulk
Series : PR126
Part Status : Active
Type : Glass Body
Circuit : SPST-NO
Operate Range : 25 ~ 30AT
Release Range : 16 ~ 23AT
Current - Switching : 1.5A (AC/DC)
Voltage - Switching AC : 300V
Voltage - Switching DC : 300V
Power - Rated : 70VA
Operate Time : 0.8ms
Release Time : 0.1ms
Mounting Type : Through Hole
Termination Style : Axial
Length - Overall : 2.126" (54.00mm)
Size - Body : 0.098" Dia x 0.799" L (2.50mm x 20.30mm)
Height Above Board : -
Operating Temperature : -40°C ~ 130°C
Capacitance : 0.3pF
Current - Carry : 2.5A (AC/DC)
0
4136 in stock
Standex-Meder Electronics
Manufacturer : Standex-Meder Electronics
Packaging : Bulk
Series : RM
Part Status : Active
Coil Type : Non Latching
Coil Current : 27.0mA
Coil Voltage : 5VDC
Contact Form : SPST-NO (1 Form A) x 4
Contact Rating (Current) : 300mA
Switching Voltage : 180VAC, 180VDC - Max
Turn On Voltage (Max) : 3.75 VDC
Turn Off Voltage (Min) : 0.5 VDC
Operate Time : 0.6ms
Release Time : 0.05ms
Features : -
Mounting Type : Surface Mount
Termination Style : BGA
Operating Temperature : -20°C ~ 85°C
0
100 in stock
