Sullins Connector Solutions

- Sullins Connector Solutions headquartered in San Marcos, CA, has been a world leader in the design, engineering, and manufacturing of high-quality edge cards and headers since 1971.

Sullins Connector Solutions provides the industry’s widest selection of UL/CUL approved edge cards, and additionally offers product development services together with engineering support. Sullins Connector Solutions' edge cards, headers, bi-level, high density, and high temperature connectors are widely specified for use in mission-critical applications by a broad spectrum of leading industrial, commercial, military and consumer products manufacturers. Sullins Connector Solutions' connectors and interconnect systems are offered through a global network of sales representatives and distributors.


Part Number

Manufacturer

Description

Unit Price

In Stock

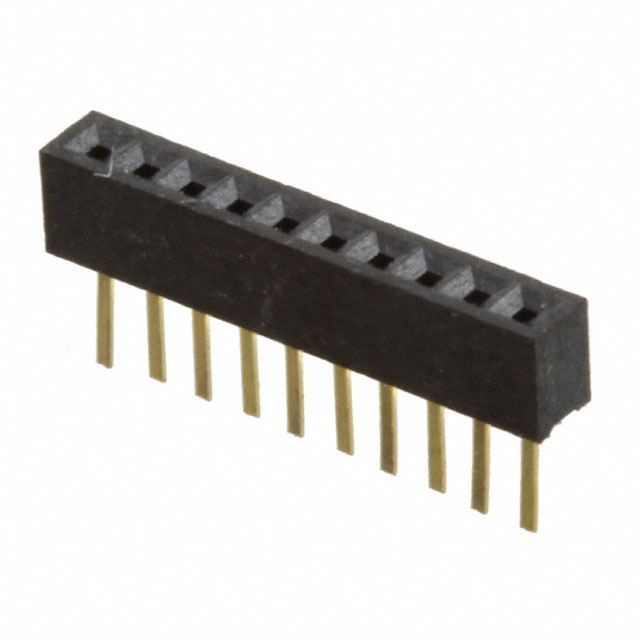

SFM210-LPSE-S10-ST-BK

Sullins Connector Solutions

Manufacturer : Sullins Connector Solutions
Packaging : Tube
Series : SFM210
Part Status : Active
Connector Type : Header
Contact Type : Female Socket
Style : Board to Board
Number of Positions : 10
Number of Positions Loaded : All
Pitch - Mating : 0.039" (1.00mm)
Number of Rows : 1
Row Spacing - Mating : -
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Push-Pull
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 10.0µin (0.25µm)
Insulation Color : Black
Insulation Height : 0.083" (2.10mm)
Contact Length - Post : 0.094" (2.40mm)
Operating Temperature : -40°C ~ 125°C
Material Flammability Rating : UL94 V-0
Contact Finish - Post : Gold
Mated Stacking Heights : -
Ingress Protection : -
Features : -
Current Rating : 1A
Voltage Rating : -

5110 in stock

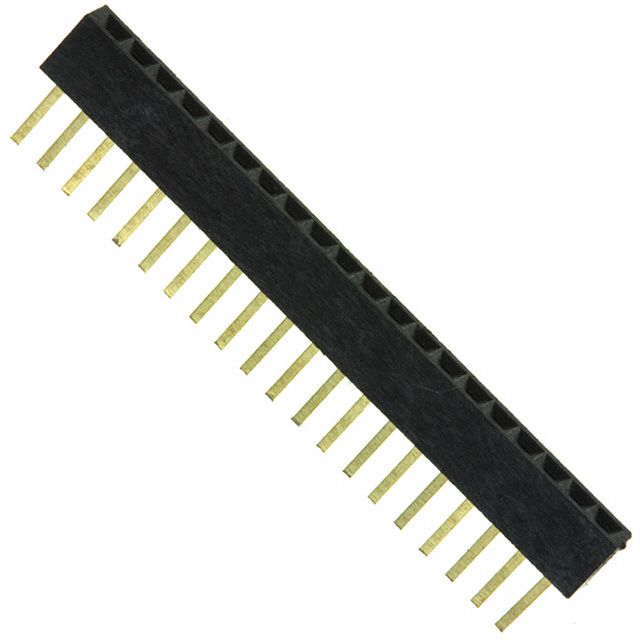

SFM210-LPSE-S20-ST-BK

Sullins Connector Solutions

Manufacturer : Sullins Connector Solutions
Packaging : Tube
Series : SFM210
Part Status : Active
Connector Type : Header
Contact Type : Female Socket
Style : Board to Board
Number of Positions : 20
Number of Positions Loaded : All
Pitch - Mating : 0.039" (1.00mm)
Number of Rows : 1
Row Spacing - Mating : -
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Push-Pull
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 10.0µin (0.25µm)
Insulation Color : Black
Insulation Height : 0.083" (2.10mm)
Contact Length - Post : 0.094" (2.40mm)
Operating Temperature : -40°C ~ 125°C
Material Flammability Rating : UL94 V-0
Contact Finish - Post : Gold
Mated Stacking Heights : -
Ingress Protection : -
Features : -
Current Rating : 1A
Voltage Rating : -

338 in stock

SFM210-LPSE-S25-ST-BK

Sullins Connector Solutions

Manufacturer : Sullins Connector Solutions
Packaging : Tube
Series : SFM210
Part Status : Active
Connector Type : Header
Contact Type : Female Socket
Style : Board to Board
Number of Positions : 25
Number of Positions Loaded : All
Pitch - Mating : 0.039" (1.00mm)
Number of Rows : 1
Row Spacing - Mating : -
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Push-Pull
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 10.0µin (0.25µm)
Insulation Color : Black
Insulation Height : 0.083" (2.10mm)
Contact Length - Post : 0.094" (2.40mm)
Operating Temperature : -40°C ~ 125°C
Material Flammability Rating : UL94 V-0
Contact Finish - Post : Gold
Mated Stacking Heights : -
Ingress Protection : -
Features : -
Current Rating : 1A
Voltage Rating : -

305 in stock

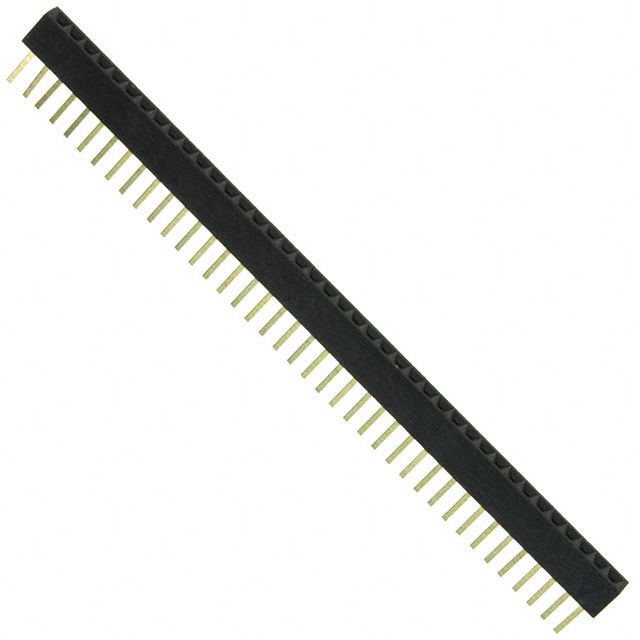

SFM210-LPSE-S40-ST-BK

Sullins Connector Solutions

Manufacturer : Sullins Connector Solutions
Packaging : Tube
Series : SFM210
Part Status : Active
Connector Type : Header
Contact Type : Female Socket
Style : Board to Board
Number of Positions : 40
Number of Positions Loaded : All
Pitch - Mating : 0.039" (1.00mm)
Number of Rows : 1
Row Spacing - Mating : -
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Push-Pull
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 10.0µin (0.25µm)
Insulation Color : Black
Insulation Height : 0.083" (2.10mm)
Contact Length - Post : 0.094" (2.40mm)
Operating Temperature : -40°C ~ 125°C
Material Flammability Rating : UL94 V-0
Contact Finish - Post : Gold
Mated Stacking Heights : -
Ingress Protection : -
Features : -
Current Rating : 1A
Voltage Rating : -

752 in stock

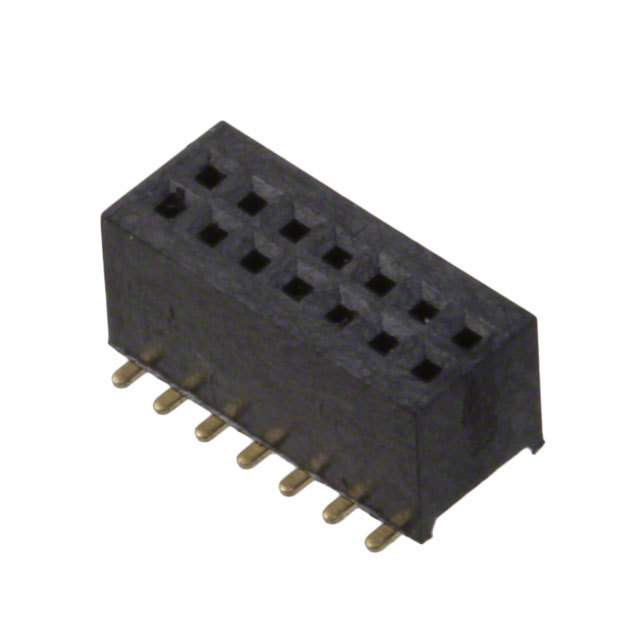

SFM315-LPGE-D07-SP-BK

Sullins Connector Solutions

Manufacturer : Sullins Connector Solutions
Packaging : Tube
Series : SFM315
Part Status : Active
Connector Type : Header
Contact Type : Female Socket
Style : Board to Board
Number of Positions : 14
Number of Positions Loaded : All
Pitch - Mating : 0.039" (1.00mm)
Number of Rows : 2
Row Spacing - Mating : 0.039" (1.00mm)
Mounting Type : Surface Mount
Termination : Solder
Fastening Type : Push-Pull
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 10.0µin (0.25µm)
Insulation Color : Black
Insulation Height : 0.130" (3.30mm)
Contact Length - Post : -
Operating Temperature : -40°C ~ 125°C
Material Flammability Rating : UL94 V-0
Contact Finish - Post : Gold
Mated Stacking Heights : -
Ingress Protection : -
Features : Board Guide
Current Rating : 1A
Voltage Rating : -

292 in stock

SIP110-PPPC-D05-ST-BK

Sullins Connector Solutions

Manufacturer : Sullins Connector Solutions
Packaging : Tray
Series : SIP110
Part Status : Active
Connector Type : Ribbon Cable, DIP Header
Number of Positions : 10
Cable Pitch : 0.050" (1.27mm)
Board-Side Pitch : 0.100" (2.54mm)
Number of Rows : 2
Row Spacing : 0.100" (2.54mm)
Mounting Type : Through Hole, Press-Fit
Cable Termination : IDC
Wire Gauge : 28 AWG
Features : Feed Through
Contact Finish : Gold
Contact Finish Thickness : Flash
Color : Black

8490 in stock

SIP110-PPPC-D08-ST-BK

Sullins Connector Solutions

Manufacturer : Sullins Connector Solutions
Packaging : Tray
Series : SIP110
Part Status : Active
Connector Type : Ribbon Cable, DIP Header
Number of Positions : 16
Cable Pitch : 0.050" (1.27mm)
Board-Side Pitch : 0.100" (2.54mm)
Number of Rows : 2
Row Spacing : 0.100" (2.54mm)
Mounting Type : Through Hole, Press-Fit
Cable Termination : IDC
Wire Gauge : 28 AWG
Features : Feed Through
Contact Finish : Gold
Contact Finish Thickness : Flash
Color : Black

775 in stock

SIP110-PPPC-D10-ST-BK

Sullins Connector Solutions

Manufacturer : Sullins Connector Solutions
Packaging : Tray
Series : SIP110
Part Status : Active
Connector Type : Ribbon Cable, DIP Header
Number of Positions : 20
Cable Pitch : 0.050" (1.27mm)
Board-Side Pitch : 0.100" (2.54mm)
Number of Rows : 2
Row Spacing : 0.100" (2.54mm)
Mounting Type : Through Hole, Press-Fit
Cable Termination : IDC
Wire Gauge : 28 AWG
Features : Feed Through
Contact Finish : Gold
Contact Finish Thickness : Flash
Color : Black

1154 in stock

SMH100-LPSE-D07-ST-BK

Sullins Connector Solutions

Manufacturer : Sullins Connector Solutions
Packaging : Bulk
Series : SMH
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.039" (1.00mm)
Number of Positions : 14
Number of Rows : 2
Row Spacing - Mating : 0.039" (1.00mm)
Number of Positions Loaded : All
Style : Board to Board
Shrouding : Unshrouded
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Push-Pull
Contact Length - Mating : 0.071" (1.80mm)
Contact Length - Post : 0.098" (2.50mm)
Overall Contact Length : 0.209" (5.30mm)
Insulation Height : 0.039" (1.00mm)
Contact Shape : Square
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 10.0µin (0.25µm)
Contact Finish - Post : Gold
Contact Material : Phosphor Bronze
Insulation Material : Liquid Crystal Polymer (LCP)
Features : -
Operating Temperature : -40°C ~ 125°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : 1A
Voltage Rating : -

397 in stock

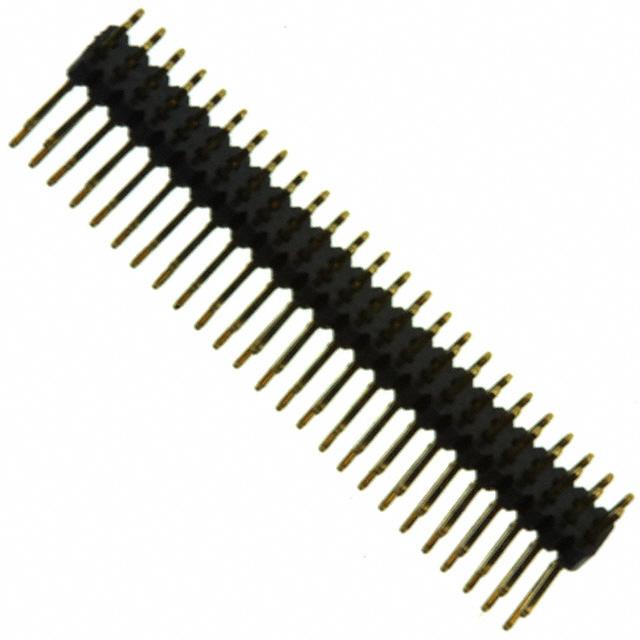

SMH100-LPSE-D25-RA-BK

Sullins Connector Solutions

Manufacturer : Sullins Connector Solutions
Packaging : Bulk
Series : SMH
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.039" (1.00mm)
Number of Positions : 50
Number of Rows : 2
Row Spacing - Mating : 0.039" (1.00mm)
Number of Positions Loaded : All
Style : Board to Board
Shrouding : Unshrouded
Mounting Type : Through Hole, Right Angle
Termination : Solder
Fastening Type : Push-Pull
Contact Length - Mating : 0.071" (1.80mm)
Contact Length - Post : 0.102" (2.60mm)
Overall Contact Length : -
Insulation Height : 0.122" (3.10mm)
Contact Shape : Square
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 10.0µin (0.25µm)
Contact Finish - Post : Gold
Contact Material : Phosphor Bronze
Insulation Material : Liquid Crystal Polymer (LCP)
Features : -
Operating Temperature : -40°C ~ 125°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : 1A
Voltage Rating : -

704 in stock

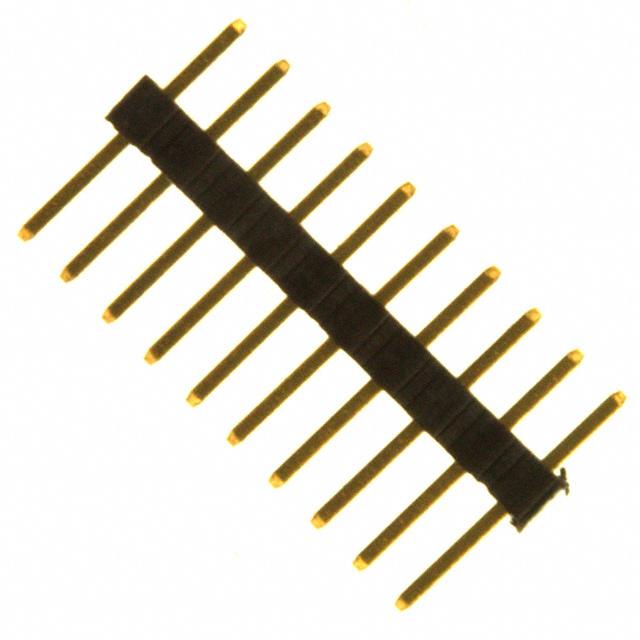

SMH100-LPSE-S10-ST-BK

Sullins Connector Solutions

Manufacturer : Sullins Connector Solutions
Packaging : Bulk
Series : SMH
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.039" (1.00mm)
Number of Positions : 10
Number of Rows : 1
Row Spacing - Mating : -
Number of Positions Loaded : All
Style : Board to Board
Shrouding : Unshrouded
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Push-Pull
Contact Length - Mating : 0.071" (1.80mm)
Contact Length - Post : 0.098" (2.50mm)
Overall Contact Length : 0.209" (5.30mm)
Insulation Height : 0.039" (1.00mm)
Contact Shape : Square
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 10.0µin (0.25µm)
Contact Finish - Post : Gold
Contact Material : Phosphor Bronze
Insulation Material : Liquid Crystal Polymer (LCP)
Features : -
Operating Temperature : -40°C ~ 125°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : 1A
Voltage Rating : -

1009 in stock

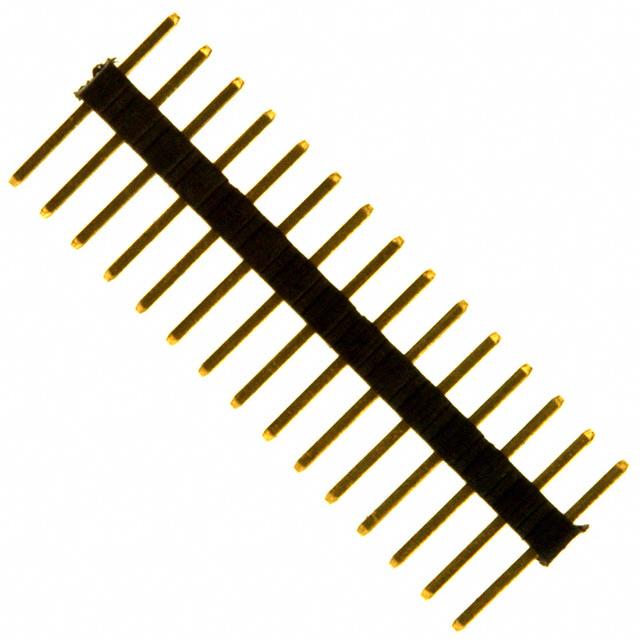

SMH100-LPSE-S15-ST-BK

Sullins Connector Solutions

Manufacturer : Sullins Connector Solutions
Packaging : Bulk
Series : SMH
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.039" (1.00mm)
Number of Positions : 15
Number of Rows : 1
Row Spacing - Mating : -
Number of Positions Loaded : All
Style : Board to Board
Shrouding : Unshrouded
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Push-Pull
Contact Length - Mating : 0.071" (1.80mm)
Contact Length - Post : 0.098" (2.50mm)
Overall Contact Length : 0.209" (5.30mm)
Insulation Height : 0.039" (1.00mm)
Contact Shape : Square
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 10.0µin (0.25µm)
Contact Finish - Post : Gold
Contact Material : Phosphor Bronze
Insulation Material : Liquid Crystal Polymer (LCP)
Features : -
Operating Temperature : -40°C ~ 125°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : 1A
Voltage Rating : -

579 in stock
