Sullins Connector Solutions
- Sullins Connector Solutions headquartered in San Marcos, CA, has been a world leader in the design, engineering, and manufacturing of high-quality edge cards and headers since 1971.
Sullins Connector Solutions provides the industry’s widest selection of UL/CUL approved edge cards, and additionally offers product development services together with engineering support. Sullins Connector Solutions' edge cards, headers, bi-level, high density, and high temperature connectors are widely specified for use in mission-critical applications by a broad spectrum of leading industrial, commercial, military and consumer products manufacturers. Sullins Connector Solutions' connectors and interconnect systems are offered through a global network of sales representatives and distributors.
Part Number
Manufacturer
Description
Unit Price
In Stock

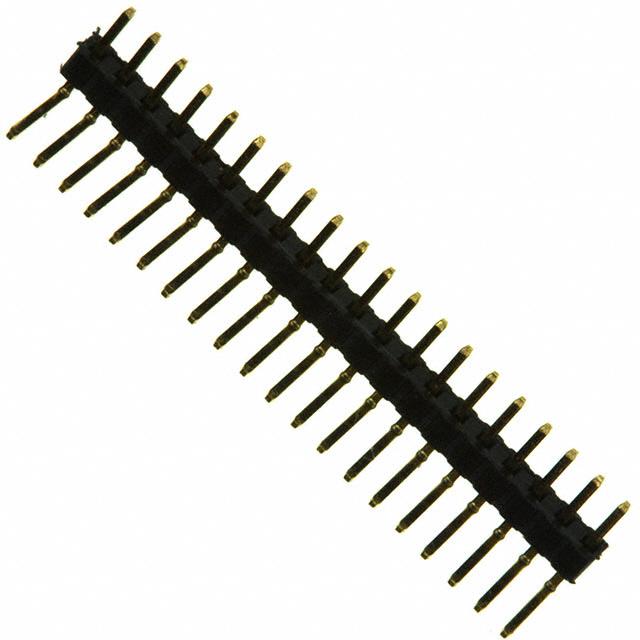

Sullins Connector Solutions
Manufacturer : Sullins Connector Solutions
Packaging : Bulk
Series : SMH
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.039" (1.00mm)
Number of Positions : 20
Number of Rows : 1
Row Spacing - Mating : -
Number of Positions Loaded : All
Style : Board to Board
Shrouding : Unshrouded
Mounting Type : Through Hole, Right Angle
Termination : Solder
Fastening Type : Push-Pull
Contact Length - Mating : 0.071" (1.80mm)
Contact Length - Post : 0.102" (2.60mm)
Overall Contact Length : -
Insulation Height : 0.050" (1.27mm)
Contact Shape : Square
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 10.0µin (0.25µm)
Contact Finish - Post : Gold
Contact Material : Phosphor Bronze
Insulation Material : Liquid Crystal Polymer (LCP)
Features : -
Operating Temperature : -40°C ~ 125°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : 1A
Voltage Rating : -
0
1521 in stock

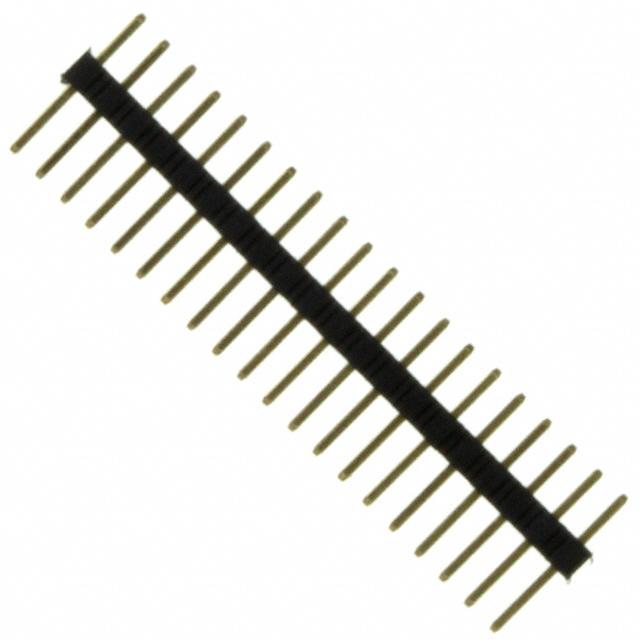

Sullins Connector Solutions
Manufacturer : Sullins Connector Solutions
Packaging : Bulk
Series : SMH
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.039" (1.00mm)
Number of Positions : 20
Number of Rows : 1
Row Spacing - Mating : -
Number of Positions Loaded : All
Style : Board to Board
Shrouding : Unshrouded
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Push-Pull
Contact Length - Mating : 0.071" (1.80mm)
Contact Length - Post : 0.098" (2.50mm)
Overall Contact Length : 0.209" (5.30mm)
Insulation Height : 0.039" (1.00mm)
Contact Shape : Square
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 10.0µin (0.25µm)
Contact Finish - Post : Gold
Contact Material : Phosphor Bronze
Insulation Material : Liquid Crystal Polymer (LCP)
Features : -
Operating Temperature : -40°C ~ 125°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : 1A
Voltage Rating : -
0
673 in stock

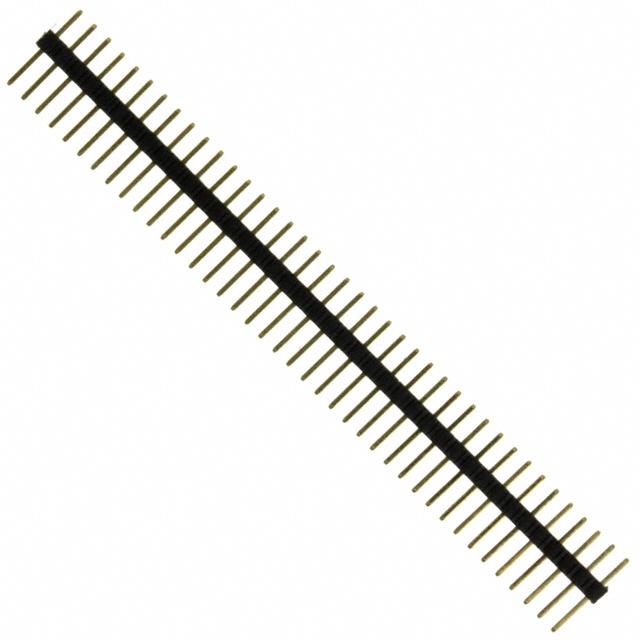

Sullins Connector Solutions
Manufacturer : Sullins Connector Solutions
Packaging : Bulk
Series : SMH
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.039" (1.00mm)
Number of Positions : 40
Number of Rows : 1
Row Spacing - Mating : -
Number of Positions Loaded : All
Style : Board to Board
Shrouding : Unshrouded
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Push-Pull
Contact Length - Mating : 0.071" (1.80mm)
Contact Length - Post : 0.098" (2.50mm)
Overall Contact Length : 0.209" (5.30mm)
Insulation Height : 0.039" (1.00mm)
Contact Shape : Square
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 10.0µin (0.25µm)
Contact Finish - Post : Gold
Contact Material : Phosphor Bronze
Insulation Material : Liquid Crystal Polymer (LCP)
Features : -
Operating Temperature : -40°C ~ 125°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : 1A
Voltage Rating : -
0
466 in stock

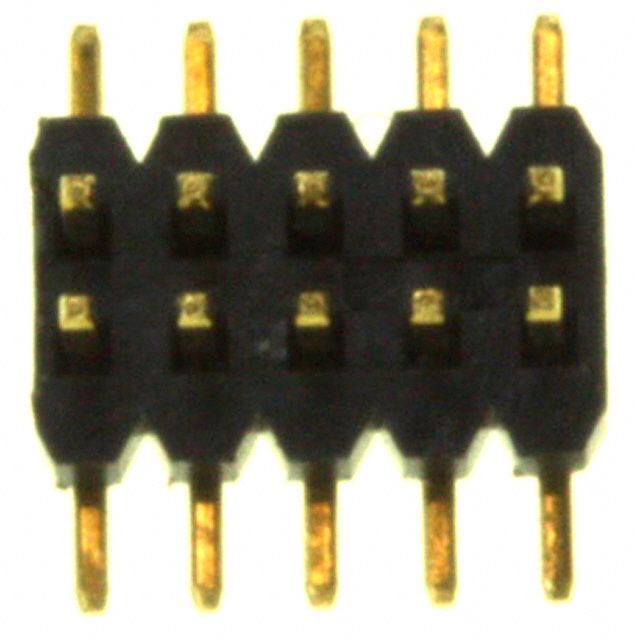

Sullins Connector Solutions
Manufacturer : Sullins Connector Solutions
Packaging : Tube
Series : SMH
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.039" (1.00mm)
Number of Positions : 10
Number of Rows : 2
Row Spacing - Mating : 0.039" (1.00mm)
Number of Positions Loaded : All
Style : Board to Board
Shrouding : Unshrouded
Mounting Type : Surface Mount
Termination : Solder
Fastening Type : Push-Pull
Contact Length - Mating : 0.065" (1.65mm)
Contact Length - Post : -
Overall Contact Length : -
Insulation Height : 0.039" (1.00mm)
Contact Shape : Square
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 10.0µin (0.25µm)
Contact Finish - Post : Gold
Contact Material : Phosphor Bronze
Insulation Material : Liquid Crystal Polymer (LCP)
Features : Board Guide
Operating Temperature : -40°C ~ 125°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : 1A
Voltage Rating : -
0
799 in stock

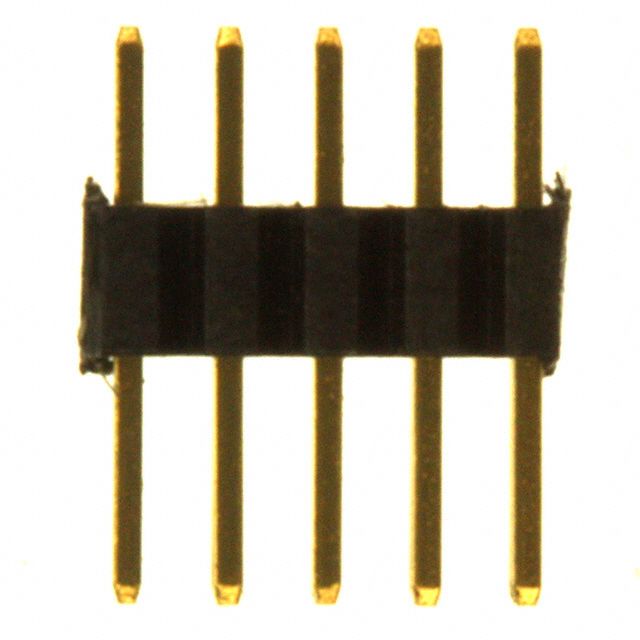

Sullins Connector Solutions
Manufacturer : Sullins Connector Solutions
Packaging : Tube
Series : SMH
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.039" (1.00mm)
Number of Positions : 10
Number of Rows : 2
Row Spacing - Mating : 0.039" (1.00mm)
Number of Positions Loaded : All
Style : Board to Board
Shrouding : Unshrouded
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Push-Pull
Contact Length - Mating : 0.071" (1.80mm)
Contact Length - Post : 0.098" (2.50mm)
Overall Contact Length : 0.228" (5.80mm)
Insulation Height : 0.059" (1.50mm)
Contact Shape : Square
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 10.0µin (0.25µm)
Contact Finish - Post : Gold
Contact Material : Phosphor Bronze
Insulation Material : Liquid Crystal Polymer (LCP)
Features : -
Operating Temperature : -40°C ~ 125°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : 1A
Voltage Rating : -
0
1306 in stock

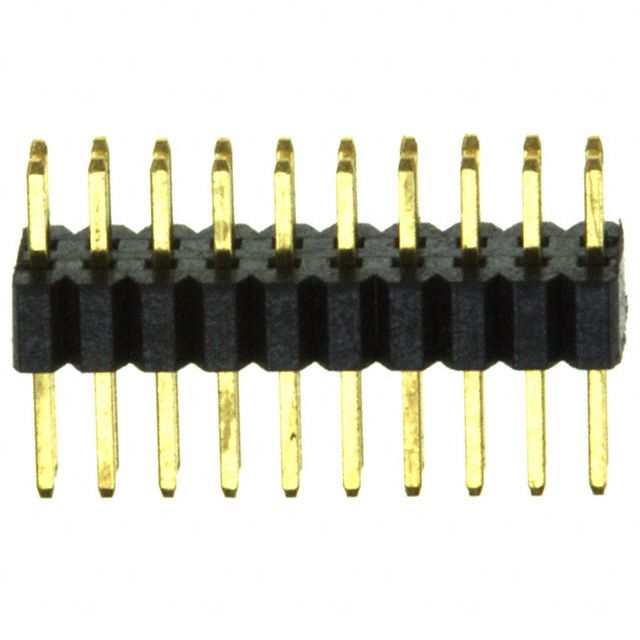

Sullins Connector Solutions
Manufacturer : Sullins Connector Solutions
Packaging : Tube
Series : SMH
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.039" (1.00mm)
Number of Positions : 20
Number of Rows : 2
Row Spacing - Mating : 0.039" (1.00mm)
Number of Positions Loaded : All
Style : Board to Board
Shrouding : Unshrouded
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Push-Pull
Contact Length - Mating : 0.071" (1.80mm)
Contact Length - Post : 0.098" (2.50mm)
Overall Contact Length : 0.228" (5.80mm)
Insulation Height : 0.059" (1.50mm)
Contact Shape : Square
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 10.0µin (0.25µm)
Contact Finish - Post : Gold
Contact Material : Phosphor Bronze
Insulation Material : Liquid Crystal Polymer (LCP)
Features : -
Operating Temperature : -40°C ~ 125°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : 1A
Voltage Rating : -
0
2401 in stock

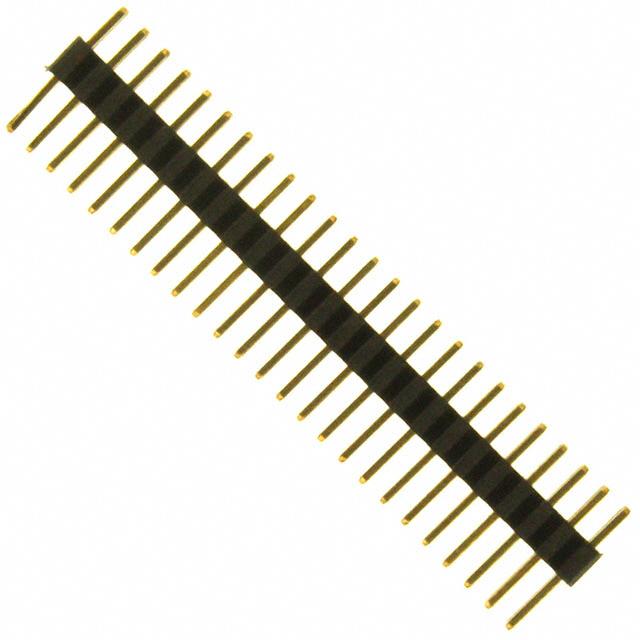

Sullins Connector Solutions
Manufacturer : Sullins Connector Solutions
Packaging : Tube
Series : SMH
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.039" (1.00mm)
Number of Positions : 50
Number of Rows : 2
Row Spacing - Mating : 0.039" (1.00mm)
Number of Positions Loaded : All
Style : Board to Board
Shrouding : Unshrouded
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Push-Pull
Contact Length - Mating : 0.071" (1.80mm)
Contact Length - Post : 0.098" (2.50mm)
Overall Contact Length : 0.228" (5.80mm)
Insulation Height : 0.059" (1.50mm)
Contact Shape : Square
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 10.0µin (0.25µm)
Contact Finish - Post : Gold
Contact Material : Phosphor Bronze
Insulation Material : Liquid Crystal Polymer (LCP)
Features : -
Operating Temperature : -40°C ~ 125°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : 1A
Voltage Rating : -
0
259 in stock

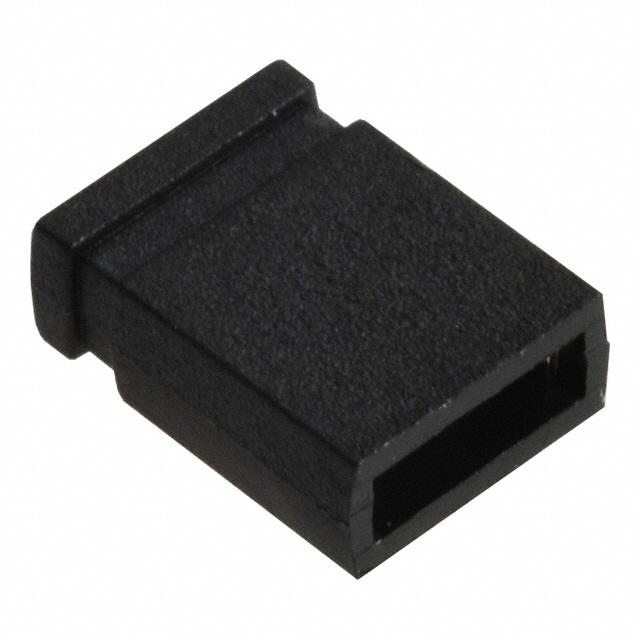

Sullins Connector Solutions
Manufacturer : Sullins Connector Solutions
Packaging : Bulk
Series : -
Part Status : Active
Type : Closed Top
Gender : Female Sockets
Number of Positions or Pins (Grid) : 2 (1 x 2)
Pitch : 0.100" (2.54mm)
Height : 0.235" (5.97mm)
Contact Finish : Gold
Contact Finish Thickness : Flash
Color : -
0
53087 in stock
Sullins Connector Solutions
Manufacturer : Sullins Connector Solutions
Packaging : Bulk
Series : -
Part Status : Active
Type : Closed Top
Gender : Female Sockets
Number of Positions or Pins (Grid) : 2 (1 x 2)
Pitch : 0.100" (2.54mm)
Height : 0.335" (8.50mm)
Contact Finish : Gold
Contact Finish Thickness : Flash
Color : -
0
20840 in stock

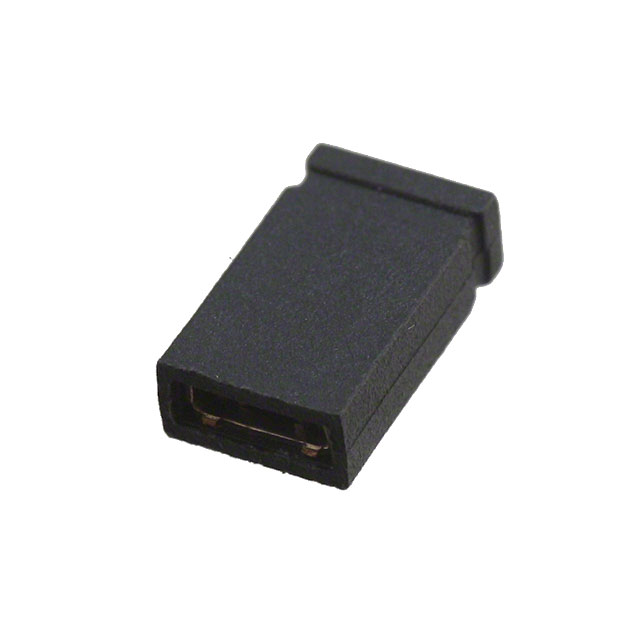

Sullins Connector Solutions
Manufacturer : Sullins Connector Solutions
Packaging : Bulk
Series : -
Part Status : Active
Type : Open Top
Gender : Female Sockets
Number of Positions or Pins (Grid) : 2 (1 x 2)
Pitch : 0.100" (2.54mm)
Height : 0.177" (4.50mm)
Contact Finish : Gold
Contact Finish Thickness : Flash
Color : -
0
30175 in stock
Sullins Connector Solutions
Manufacturer : Sullins Connector Solutions
Packaging : Bulk
Series : -
Part Status : Active
Type : Open Top
Gender : Female Sockets
Number of Positions or Pins (Grid) : 2 (1 x 2)
Pitch : 0.100" (2.54mm)
Height : 0.315" (8.00mm)
Contact Finish : Gold
Contact Finish Thickness : Flash
Color : -
0
28588 in stock

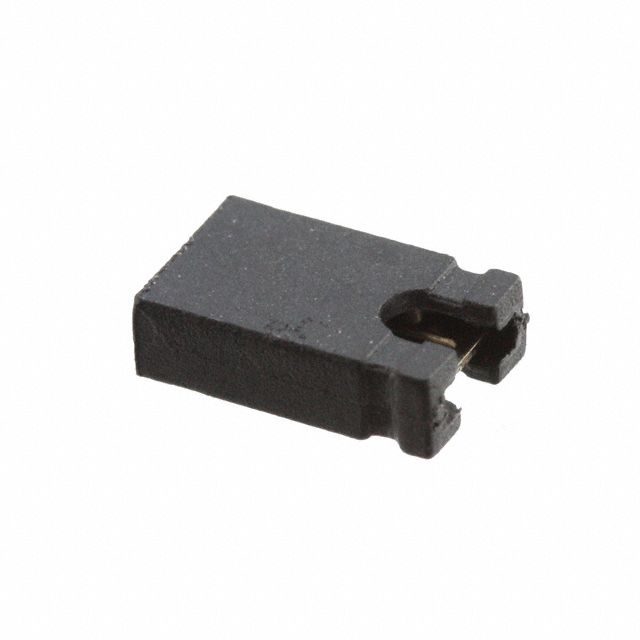

Sullins Connector Solutions
Manufacturer : Sullins Connector Solutions
Packaging : Bulk
Series : -
Part Status : Active
Type : Closed Top
Gender : Female Sockets
Number of Positions or Pins (Grid) : 2 (1 x 2)
Pitch : 0.100" (2.54mm)
Height : 0.256" (6.50mm)
Contact Finish : Gold
Contact Finish Thickness : Flash
Color : Black
0
692967 in stock
