Welcome to Weijie Semiconductor

Sunon

- Founded in 1980, Sunonwealth Electric Machine Industry Company Limited has always adhered to the business philosophy of “Brand, Innovation, and Value”. Step by step, it has now become a global leader in the fields of precision motors, mini fans, and thermal modules.

Sunon designs and manufactures a full range of high-performance fans, blowers and coolers. The company is committed to supplying the widest selection of quality axial fans and blowers, which includes DC brushless fans, micro DC blowers, CPU coolers, graphic card coolers and AC fans. Sunon manufactures some of the industries smallest, thinnest and most power efficient fans and blowers in sizes ranging from 0.315 inches (8mm) to 10 inches (250mm) in outside diameter and from 0.157 inches (4mm) to 1.5 inches (38mm) in thickness. More than 700 different models are available to customers.

Sunon’s fans, blowers and coolers find application in a wide range of industries and products. The company’s products are used in many of the world’s most popular personal computers, workstations, servers, networking hubs, scanners, printers and more. In office equipment, Sunon products can be found in copiers, fax machines and projectors. Sunon is equally at home in the appliance market, with applications for refrigerators, air cleaners and air heaters. Other markets include medical, laboratory and manufacturing equipment, as well as vending machines.

Part Number
Manufacturer
Description
Unit Price
In Stock

EE45100S1-000U-999 EE45100S1-000U-999

Sunon
Manufacturer : Sunon Fans
Series : EE
Part Status : Active
Voltage - Rated : 5VDC
Size / Dimension : Square - 45mm L x 45mm H
Width : 10.00mm
Air Flow : 11.0 CFM (0.308m鲁/min)
Static Pressure : 0.170 in H2O (42.3 Pa)
Bearing Type : Sleeve
Fan Type : Tubeaxial
Features : -
Noise : 32.0 dB(A)
Power (Watts) : 1.30W
RPM : 6000 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, CUR, TUV, UL
Weight : 0.036 lb (16.33g)
0
30 in stock

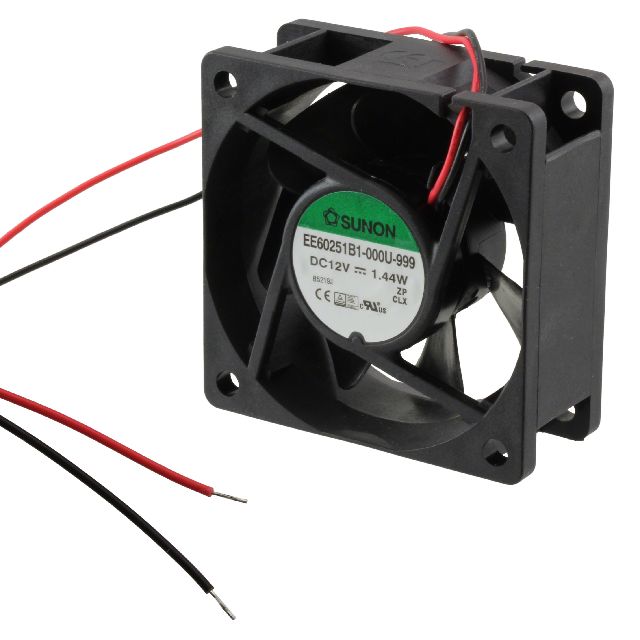

EE60251B1-000U-999 EE60251B1-000U-999

Sunon
Manufacturer : Sunon Fans
Series : EE
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 60mm L x 60mm H
Width : 25.00mm
Air Flow : 23.5 CFM (0.658m鲁/min)
Static Pressure : 0.210 in H2O (52.3 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 34.5 dB(A)
Power (Watts) : 1.44W
RPM : 4500 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -
Approvals : CE, CUR, TUV, UL
Weight : 0.111 lb (50.35g)
0
610 in stock

EE60251B2-000U-999 EE60251B2-000U-999

Sunon
Manufacturer : Sunon Fans
Series : EE
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 60mm L x 60mm H
Width : 25.00mm
Air Flow : 19.3 CFM (0.540m鲁/min)
Static Pressure : 0.150 in H2O (37.3 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 30.0 dB(A)
Power (Watts) : 940mW
RPM : 3800 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -
Approvals : CE, CUR, TUV, UL
Weight : 0.111 lb (50.35g)
0
30 in stock

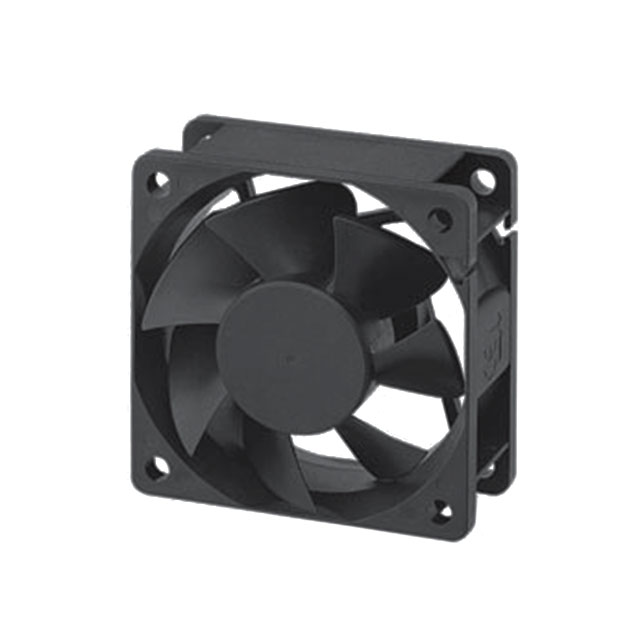

EE60252B1-000U-A99 EE60252B1-000U-A99

Sunon
Manufacturer : Sunon Fans
Series : EE
Part Status : Active
Voltage - Rated : 24VDC
Size / Dimension : Square - 60mm L x 60mm H
Width : 25.00mm
Air Flow : 23.5 CFM (0.658m鲁/min)
Static Pressure : 0.210 in H2O (52.3 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Auto Restart
Noise : 34.5 dB(A)
Power (Watts) : 1.68W
RPM : 4500 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, CUR, TUV, UL
Weight : 0.111 lb (50.35g)
0
779 in stock

EE70201S1-000U-A99 EE70201S1-000U-A99

Sunon
Manufacturer : Sunon Fans
Series : EE
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 70mm L x 70mm H
Width : 20.00mm
Air Flow : 29.0 CFM (0.812m鲁/min)
Static Pressure : 0.140 in H2O (34.9 Pa)
Bearing Type : Sleeve
Fan Type : Tubeaxial
Features : Auto Restart
Noise : 33.0 dB(A)
Power (Watts) : 1.62W
RPM : 3200 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, CUR, TUV, UL
Weight : 0.133 lb (60.33g)
0
30 in stock

EE80251B1-000U-A99 EE80251B1-000U-A99

Sunon
Manufacturer : Sunon Fans
Series : EE
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 80mm L x 80mm H
Width : 25.00mm
Air Flow : 41.0 CFM (1.15m鲁/min)
Static Pressure : 0.180 in H2O (44.8 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Auto Restart
Noise : 33.0 dB(A)
Power (Watts) : 1.70W
RPM : 3200 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, CUR, TUV, UL
Weight : 0.165 lb (74.84g)
0
784 in stock

EE80251B3-000U-999 EE80251B3-000U-999

Sunon
Manufacturer : Sunon Fans
Series : EE
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 80mm L x 80mm H
Width : 25.00mm
Air Flow : 33.0 CFM (0.924m鲁/min)
Static Pressure : 0.110 in H2O (27.4 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 28.0 dB(A)
Power (Watts) : 1.08W
RPM : 2600 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, CUR, TUV, UL
Weight : 0.165 lb (74.84g)
0
100 in stock

EE80251BX-000U-A99 EE80251BX-000U-A99

Sunon
Manufacturer : Sunon Fans
Series : EE
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 80mm L x 80mm H
Width : 25.00mm
Air Flow : 45.0 CFM (1.26m鲁/min)
Static Pressure : 0.230 in H2O (57.3 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Auto Restart
Noise : 38.0 dB(A)
Power (Watts) : 1.80W
RPM : 3600 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CUR, TUV, UL
Weight : 0.196 lb (88.9g)
0
27 in stock

EE80251S2-000U-999 EE80251S2-000U-999

Sunon
Manufacturer : Sunon Fans
Series : EE
Part Status : Obsolete
Voltage - Rated : 12VDC
Size / Dimension : Square - 80mm L x 80mm H
Width : 25.00mm
Air Flow : 37.0 CFM (1.04m鲁/min)
Static Pressure : 0.150 in H2O (37.4 Pa)
Bearing Type : Sleeve
Fan Type : Tubeaxial
Features : -
Noise : 30.0 dB(A)
Power (Watts) : 1.40W
RPM : 2900 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CUR, TUV, UL
Weight : 0.165 lb (74.84g)
0
1402 in stock

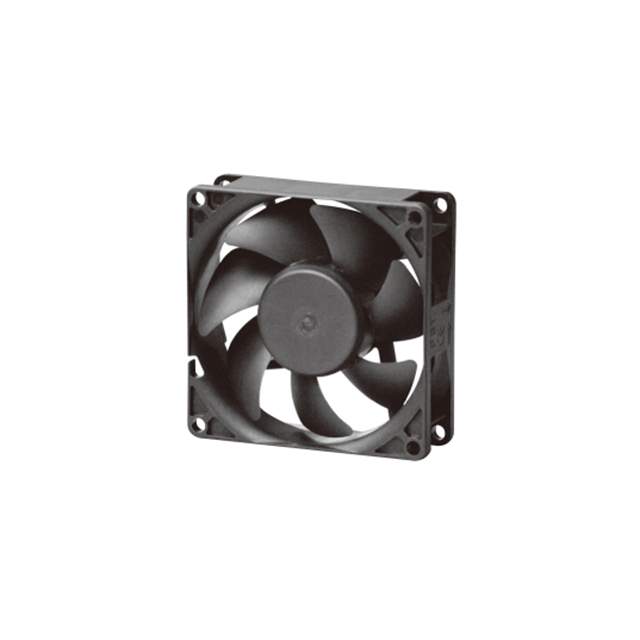

EE80251S2-1000U-999 EE80251S2-1000U-999

Sunon
Manufacturer : Sunon Fans
Series : EE
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 80mm L x 80mm H
Width : 25.00mm
Air Flow : 37.0 CFM (1.04m鲁/min)
Static Pressure : 0.150 in H2O (37.3 Pa)
Bearing Type : Sleeve
Fan Type : Tubeaxial
Features : -
Noise : 30.0 dB(A)
Power (Watts) : 1.40W
RPM : 2900 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -
Approvals : CE, CUR, TUV, UL
Weight : 0.165 lb (74.84g)
0
230 in stock

EE80251S3-000U-999 EE80251S3-000U-999

Sunon
Manufacturer : Sunon Fans
Series : EE
Part Status : Obsolete
Voltage - Rated : 12VDC
Size / Dimension : Square - 80mm L x 80mm H
Width : 25.00mm
Air Flow : 33.0 CFM (0.924m鲁/min)
Static Pressure : 0.110 in H2O (27.4 Pa)
Bearing Type : Sleeve
Fan Type : Tubeaxial
Features : -
Noise : 28.0 dB(A)
Power (Watts) : 1.10W
RPM : 2600 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CUR, TUV, UL
Weight : 0.165 lb (74.84g)
0
236 in stock

EE80251S3-1000U-999 EE80251S3-1000U-999

Sunon
Manufacturer : Sunon Fans
Series : EE
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 80mm L x 80mm H
Width : 25.00mm
Air Flow : 33.0 CFM (0.924m鲁/min)
Static Pressure : 0.110 in H2O (27.4 Pa)
Bearing Type : Sleeve
Fan Type : Tubeaxial
Features : -
Noise : 30.0 dB(A)
Power (Watts) : 1.06W
RPM : 2600 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -
Approvals : CE, CUR, TUV, UL
Weight : 0.165 lb (74.84g)
0
155 in stock
