Sunon

- Founded in 1980, Sunonwealth Electric Machine Industry Company Limited has always adhered to the business philosophy of “Brand, Innovation, and Value”. Step by step, it has now become a global leader in the fields of precision motors, mini fans, and thermal modules.

Sunon designs and manufactures a full range of high-performance fans, blowers and coolers. The company is committed to supplying the widest selection of quality axial fans and blowers, which includes DC brushless fans, micro DC blowers, CPU coolers, graphic card coolers and AC fans. Sunon manufactures some of the industries smallest, thinnest and most power efficient fans and blowers in sizes ranging from 0.315 inches (8mm) to 10 inches (250mm) in outside diameter and from 0.157 inches (4mm) to 1.5 inches (38mm) in thickness. More than 700 different models are available to customers.

Sunon’s fans, blowers and coolers find application in a wide range of industries and products. The company’s products are used in many of the world’s most popular personal computers, workstations, servers, networking hubs, scanners, printers and more. In office equipment, Sunon products can be found in copiers, fax machines and projectors. Sunon is equally at home in the appliance market, with applications for refrigerators, air cleaners and air heaters. Other markets include medical, laboratory and manufacturing equipment, as well as vending machines.

Part Number
Manufacturer
Description
Unit Price
In Stock

EE80252B1-000U-A99 EE80252B1-000U-A99

Sunon
Manufacturer : Sunon Fans
Series : EE
Part Status : Active
Voltage - Rated : 24VDC
Size / Dimension : Square - 80mm L x 80mm H
Width : 25.00mm
Air Flow : 41.0 CFM (1.15m鲁/min)
Static Pressure : 0.180 in H2O (44.8 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Auto Restart
Noise : 33.0 dB(A)
Power (Watts) : 1.80W
RPM : 3200 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, CUR, TUV, UL
Weight : 0.165 lb (74.84g)
0
3164 in stock

EE80252B2-000U-A99 EE80252B2-000U-A99

Sunon
Manufacturer : Sunon Fans
Series : EE
Part Status : Active
Voltage - Rated : 24VDC
Size / Dimension : Square - 80mm L x 80mm H
Width : 25.00mm
Air Flow : 37.0 CFM (1.04m鲁/min)
Static Pressure : 0.150 in H2O (37.3 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Auto Restart
Noise : 30.0 dB(A)
Power (Watts) : 1.50W
RPM : 2900 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -
Approvals : CE, cURus, TUV
Weight : 0.167 lb (75.75g)
0
30 in stock

EE80252B3-000U-999 EE80252B3-000U-999

Sunon
Manufacturer : Sunon Fans
Series : EE
Part Status : Active
Voltage - Rated : 24VDC
Size / Dimension : Square - 80mm L x 80mm H
Width : 25.00mm
Air Flow : 33.0 CFM (0.924m鲁/min)
Static Pressure : 0.110 in H2O (27.4 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 28.0 dB(A)
Power (Watts) : 1.10W
RPM : 2600 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, CUR, TUV, UL
Weight : 0.165 lb (74.84g)
0
28 in stock

EE80252S1-000U-A99 EE80252S1-000U-A99

Sunon
Manufacturer : Sunon Fans
Series : EE
Part Status : Active
Voltage - Rated : 24VDC
Size / Dimension : Square - 80mm L x 80mm H
Width : 25.00mm
Air Flow : 41.0 CFM (1.15m鲁/min)
Static Pressure : 0.180 in H2O (44.8 Pa)
Bearing Type : Sleeve
Fan Type : Tubeaxial
Features : Auto Restart
Noise : 33.0 dB(A)
Power (Watts) : 1.80W
RPM : 3200 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CUR, TUV, UL
Weight : 0.165 lb (74.84g)
0
100 in stock

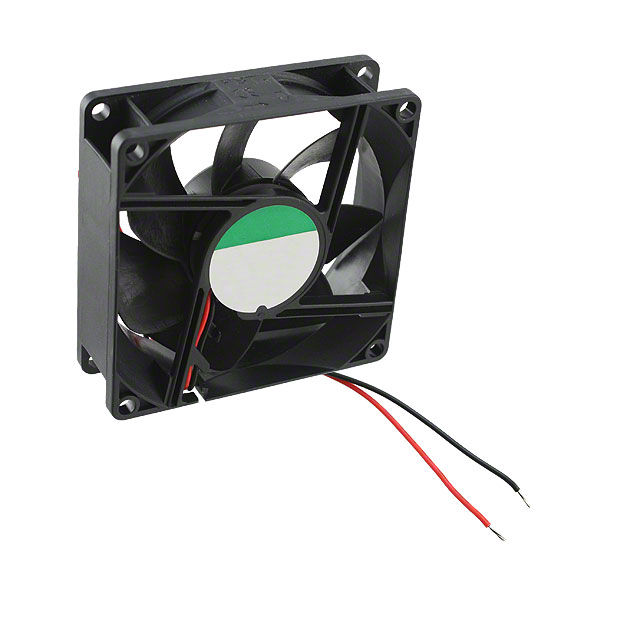

EE80252S2-000U-999 EE80252S2-000U-999

Sunon
Manufacturer : Sunon Fans
Series : EE
Part Status : Active
Voltage - Rated : 24VDC
Size / Dimension : Square - 80mm L x 80mm H
Width : 25.00mm
Air Flow : 37.0 CFM (1.04m鲁/min)
Static Pressure : 0.150 in H2O (37.4 Pa)
Bearing Type : Sleeve
Fan Type : Tubeaxial
Features : -
Noise : 30.0 dB(A)
Power (Watts) : 1.40W
RPM : 2900 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, CUR, TUV, UL
Weight : 0.165 lb (74.84g)
0
30 in stock

EE80252S3-000U-999 EE80252S3-000U-999

Sunon
Manufacturer : Sunon Fans
Series : EE
Part Status : Active
Voltage - Rated : 24VDC
Size / Dimension : Square - 80mm L x 80mm H
Width : 25.00mm
Air Flow : 33.0 CFM (0.924m鲁/min)
Static Pressure : 0.110 in H2O (27.4 Pa)
Bearing Type : Sleeve
Fan Type : Tubeaxial
Features : -
Noise : 28.0 dB(A)
Power (Watts) : 1.20W
RPM : 2600 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, CUR, TUV, UL
Weight : 0.165 lb (74.84g)
0
100 in stock

EE80252S3-000U-A99 EE80252S3-000U-A99

Sunon
Manufacturer : Sunon Fans
Series : EE
Part Status : Active
Voltage - Rated : 24VDC
Size / Dimension : Square - 80mm L x 80mm H
Width : 25.00mm
Air Flow : 33.0 CFM (0.924m鲁/min)
Static Pressure : 0.110 in H2O (27.4 Pa)
Bearing Type : Sleeve
Fan Type : Tubeaxial
Features : Auto Restart
Noise : 28.0 dB(A)
Power (Watts) : 1.30W
RPM : 2600 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -
Approvals : CE, cURus, TUV
Weight : 0.167 lb (75.75g)
0
30 in stock

EE92251B1-000U-A99 EE92251B1-000U-A99

Sunon
Manufacturer : Sunon Fans
Series : EE
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 92mm L x 92mm H
Width : 25.00mm
Air Flow : 51.5 CFM (1.44m鲁/min)
Static Pressure : 0.150 in H2O (37.4 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Auto Restart
Noise : 34.0 dB(A)
Power (Watts) : 1.98W
RPM : 3000 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, CUR, TUV, UL
Weight : 0.207 lb (93.89g)
0
848 in stock

EE92251B2-000U-999 EE92251B2-000U-999

Sunon
Manufacturer : Sunon Fans
Series : EE
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 92mm L x 92mm H
Width : 25.00mm
Air Flow : 45.0 CFM (1.26m鲁/min)
Static Pressure : 0.130 in H2O (32.4 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 32.0 dB(A)
Power (Watts) : 1.62W
RPM : 2700 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, CUR, TUV, UL
Weight : 0.207 lb (93.89g)
0
527 in stock

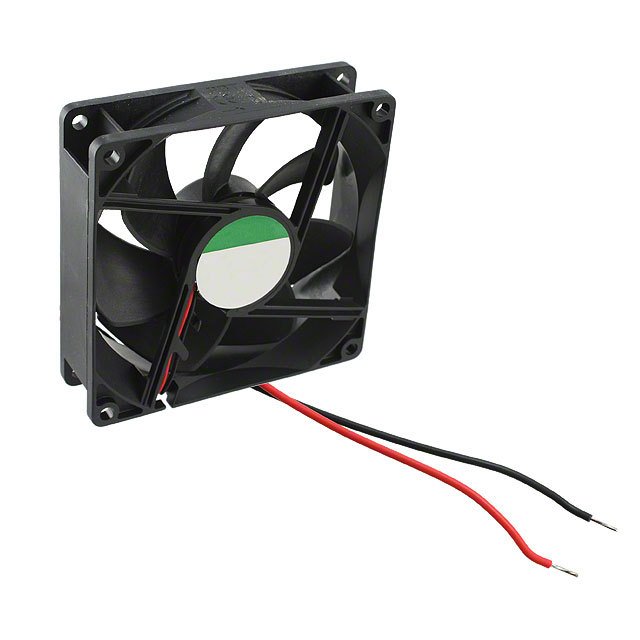

EE92251B3-000U-999 EE92251B3-000U-999

Sunon
Manufacturer : Sunon Fans
Series : EE
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 92mm L x 92mm H
Width : 25.00mm
Air Flow : 39.5 CFM (1.11m鲁/min)
Static Pressure : 0.100 in H2O (24.9 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 28.0 dB(A)
Power (Watts) : 1.26W
RPM : 2400 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, CUR, TUV, UL
Weight : 0.207 lb (93.89g)
0
45 in stock

EE92251S2-000U-999 EE92251S2-000U-999

Sunon
Manufacturer : Sunon Fans
Series : EE
Part Status : Obsolete
Voltage - Rated : 12VDC
Size / Dimension : Square - 92mm L x 92mm H
Width : 25.00mm
Air Flow : 45.0 CFM (1.26m鲁/min)
Static Pressure : 0.130 in H2O (32.4 Pa)
Bearing Type : Sleeve
Fan Type : Tubeaxial
Features : -
Noise : 32.0 dB(A)
Power (Watts) : 1.60W
RPM : 2700 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, CUR, TUV, UL
Weight : 0.207 lb (93.89g)
0
424 in stock

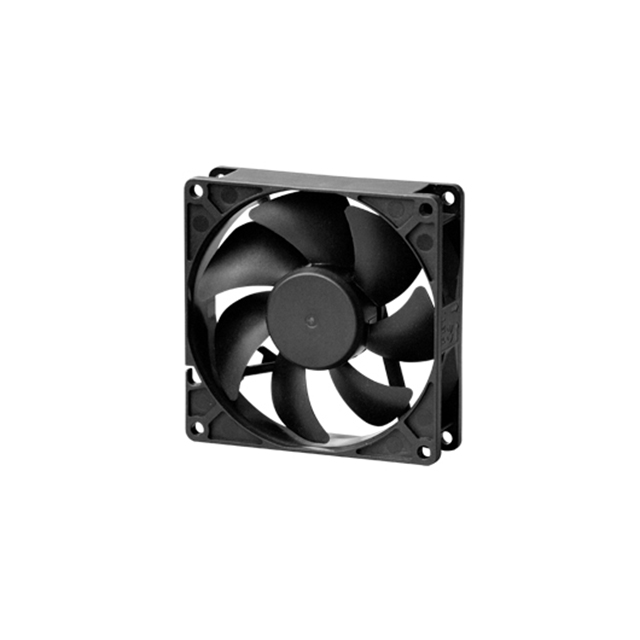

EE92251S2-1000U-999 EE92251S2-1000U-999

Sunon
Manufacturer : Sunon Fans
Series : EE
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 92mm L x 92mm H
Width : 25.00mm
Air Flow : 45.0 CFM (1.26m鲁/min)
Static Pressure : 0.130 in H2O (32.4 Pa)
Bearing Type : Sleeve
Fan Type : Tubeaxial
Features : -
Noise : 32.0 dB(A)
Power (Watts) : 1.60W
RPM : 2700 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -
Approvals : CE, CUR, TUV, UL
Weight : 0.203 lb (92.08g)
0
211 in stock
