TDK Corporation

TDK Corporation (Tokyo Denkikagaku Kogyo) was established in December 1935 with the aim of becoming the world's first commercial manufacturer of the magnetic material ferrite. TDK, since then, has continued ceaselessly to turn out a variety of products and services making use of its materials technology, centering on ferrite and ceramics, and processing technology, which draws out the properties of materials to the maximum degree. The founding spirit of TDK, "contribute to culture and industry through creativity," continues to this day to pulsate throughout the company.

Part Number
Manufacturer
Description
Unit Price
In Stock

VLS4012ET-100M VLS4012ET-100M

TDK Corporation
Manufacturer : TDK Corporation
Packaging : Tape & Reel (TR)
Alternate Packaging
Series : VLS
Part Status : Not For New Designs
Type : Wirewound
Material - Core : Ferrite
Inductance : 10µH
Tolerance : ±20%
Current Rating : 890mA
Current - Saturation : 890mA
Shielding : Shielded
DC Resistance (DCR) : 228 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 105°C
Inductance Frequency - Test : 1MHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.157" L x 0.157" W (4.00mm x 4.00mm)
Height - Seated (Max) : 0.047" (1.20mm)
0
38000 in stock

VLS4012ET-100M-CA VLS4012ET-100M-CA

TDK Corporation
Manufacturer : TDK Corporation
Packaging : Tape & Reel (TR)
Alternate Packaging
Series : VLS-E-CA
Part Status : Not For New Designs
Type : Wirewound
Material - Core : Ferrite
Inductance : 10µH
Tolerance : ±20%
Current Rating : 1.33A
Current - Saturation : 890mA
Shielding : Shielded
DC Resistance (DCR) : 228 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 105°C
Inductance Frequency - Test : 1MHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.157" L x 0.157" W (4.00mm x 4.00mm)
Height - Seated (Max) : 0.047" (1.20mm)
0
1000 in stock

VLS4012ET-150M VLS4012ET-150M

TDK Corporation
Manufacturer : TDK Corporation
Packaging : Tape & Reel (TR)
Alternate Packaging
Series : VLS
Part Status : Not For New Designs
Type : Wirewound
Material - Core : Ferrite
Inductance : 15µH
Tolerance : ±20%
Current Rating : 700mA
Current - Saturation : 700mA
Shielding : Shielded
DC Resistance (DCR) : 372 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 105°C
Inductance Frequency - Test : 1MHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.157" L x 0.157" W (4.00mm x 4.00mm)
Height - Seated (Max) : 0.047" (1.20mm)
0
1000 in stock

VLS4012ET-150M-CA VLS4012ET-150M-CA

TDK Corporation
Manufacturer : TDK Corporation
Packaging : Tape & Reel (TR)
Alternate Packaging
Series : VLS-E-CA
Part Status : Not For New Designs
Type : Wirewound
Material - Core : Ferrite
Inductance : 15µH
Tolerance : ±20%
Current Rating : 1.05A
Current - Saturation : 700mA
Shielding : Shielded
DC Resistance (DCR) : 372 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 105°C
Inductance Frequency - Test : 1MHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.157" L x 0.157" W (4.00mm x 4.00mm)
Height - Seated (Max) : 0.047" (1.20mm)
0
1000 in stock

VLS4012ET-1R0N VLS4012ET-1R0N

TDK Corporation
Manufacturer : TDK Corporation
Packaging : Tape & Reel (TR)
Alternate Packaging
Series : VLS
Part Status : Not For New Designs
Type : Wirewound
Material - Core : Ferrite
Inductance : 1µH
Tolerance : ±30%
Current Rating : 2.5A
Current - Saturation : 2.5A
Shielding : Shielded
DC Resistance (DCR) : 60 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 105°C
Inductance Frequency - Test : 1MHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.157" L x 0.157" W (4.00mm x 4.00mm)
Height - Seated (Max) : 0.047" (1.20mm)
0
37000 in stock

VLS4012ET-1R0N-CA VLS4012ET-1R0N-CA

TDK Corporation
Manufacturer : TDK Corporation
Packaging : Tape & Reel (TR)
Alternate Packaging
Series : VLS-E-CA
Part Status : Not For New Designs
Type : Wirewound
Material - Core : Ferrite
Inductance : 1µH
Tolerance : ±30%
Current Rating : 2.65A
Current - Saturation : 2.5A
Shielding : Shielded
DC Resistance (DCR) : 60 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 105°C
Inductance Frequency - Test : 1MHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.157" L x 0.157" W (4.00mm x 4.00mm)
Height - Seated (Max) : 0.047" (1.20mm)
0
1000 in stock

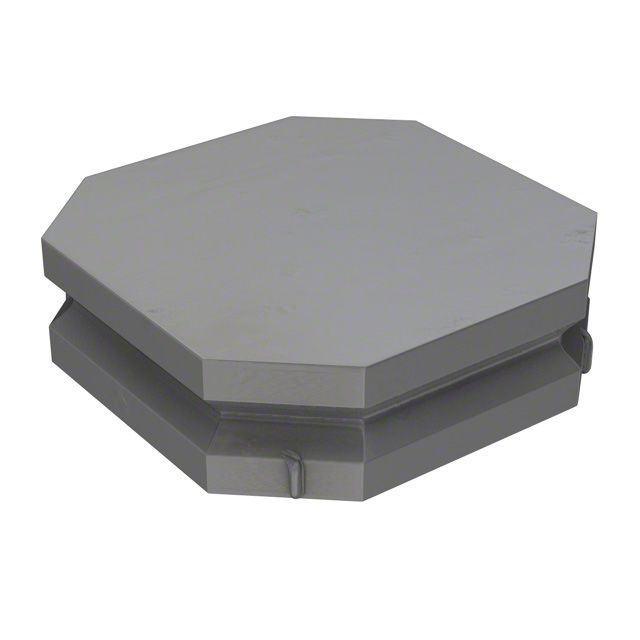

VLS4012ET-1R5N VLS4012ET-1R5N

TDK Corporation
Manufacturer : TDK Corporation
Packaging : Tape & Reel (TR)
Alternate Packaging
Series : VLS
Part Status : Not For New Designs
Type : Wirewound
Material - Core : Ferrite
Inductance : 1.5µH
Tolerance : ±30%
Current Rating : 2.1A
Current - Saturation : 2.1A
Shielding : Shielded
DC Resistance (DCR) : 72 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 105°C
Inductance Frequency - Test : 1MHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.157" L x 0.157" W (4.00mm x 4.00mm)
Height - Seated (Max) : 0.047" (1.20mm)
0
5000 in stock

VLS4012ET-1R5N-CA VLS4012ET-1R5N-CA

TDK Corporation
Manufacturer : TDK Corporation
Packaging : Tape & Reel (TR)
Alternate Packaging
Series : VLS-E-CA
Part Status : Not For New Designs
Type : Wirewound
Material - Core : Ferrite
Inductance : 1.5µH
Tolerance : ±30%
Current Rating : 2.45A
Current - Saturation : 2.1A
Shielding : Shielded
DC Resistance (DCR) : 72 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 105°C
Inductance Frequency - Test : 1MHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.157" L x 0.157" W (4.00mm x 4.00mm)
Height - Seated (Max) : 0.047" (1.20mm)
0
100 in stock

VLS4012ET-220M VLS4012ET-220M

TDK Corporation
Manufacturer : TDK Corporation
Packaging : Tape & Reel (TR)
Alternate Packaging
Series : VLS
Part Status : Not For New Designs
Type : Wirewound
Material - Core : Ferrite
Inductance : 22µH
Tolerance : ±20%
Current Rating : 630mA
Current - Saturation : 630mA
Shielding : Shielded
DC Resistance (DCR) : 468 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 105°C
Inductance Frequency - Test : 1MHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.157" L x 0.157" W (4.00mm x 4.00mm)
Height - Seated (Max) : 0.047" (1.20mm)
0
100 in stock

VLS4012ET-220M-CA VLS4012ET-220M-CA

TDK Corporation
Manufacturer : TDK Corporation
Packaging : Tape & Reel (TR)
Alternate Packaging
Series : VLS-E-CA
Part Status : Not For New Designs
Type : Wirewound
Material - Core : Ferrite
Inductance : 22µH
Tolerance : ±20%
Current Rating : 950mA
Current - Saturation : 630mA
Shielding : Shielded
DC Resistance (DCR) : 468 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 105°C
Inductance Frequency - Test : 1MHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.157" L x 0.157" W (4.00mm x 4.00mm)
Height - Seated (Max) : 0.047" (1.20mm)
0
13000 in stock

VLS4012ET-2R2M VLS4012ET-2R2M

TDK Corporation
Manufacturer : TDK Corporation
Packaging : Tape & Reel (TR)
Alternate Packaging
Series : VLS
Part Status : Not For New Designs
Type : Wirewound
Material - Core : Ferrite
Inductance : 2.2µH
Tolerance : ±20%
Current Rating : 1.7A
Current - Saturation : 1.7A
Shielding : Shielded
DC Resistance (DCR) : 81 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 105°C
Inductance Frequency - Test : 1MHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.157" L x 0.157" W (4.00mm x 4.00mm)
Height - Seated (Max) : 0.047" (1.20mm)
0
45000 in stock

VLS4012ET-2R2M-CA VLS4012ET-2R2M-CA

TDK Corporation
Manufacturer : TDK Corporation
Packaging : Tape & Reel (TR)
Alternate Packaging
Series : VLS-E-CA
Part Status : Not For New Designs
Type : Wirewound
Material - Core : Ferrite
Inductance : 2.2µH
Tolerance : ±20%
Current Rating : 2.2A
Current - Saturation : 1.7A
Shielding : Shielded
DC Resistance (DCR) : 81 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 105°C
Inductance Frequency - Test : 1MHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.157" L x 0.157" W (4.00mm x 4.00mm)
Height - Seated (Max) : 0.047" (1.20mm)
0
100 in stock
