TDK Corporation
TDK Corporation (Tokyo Denkikagaku Kogyo) was established in December 1935 with the aim of becoming the world's first commercial manufacturer of the magnetic material ferrite. TDK, since then, has continued ceaselessly to turn out a variety of products and services making use of its materials technology, centering on ferrite and ceramics, and processing technology, which draws out the properties of materials to the maximum degree. The founding spirit of TDK, "contribute to culture and industry through creativity," continues to this day to pulsate throughout the company.
Part Number
Manufacturer
Description
Unit Price
In Stock
TDK Corporation
Manufacturer : TDK Corporation
Packaging : Cut Tape (CT)
Alternate Packaging
Series : VLS-HBX
Part Status : Active
Type : Wirewound
Material - Core : Metal
Inductance : 22µH
Tolerance : ±20%
Current Rating : 1.28A
Current - Saturation : 1.57A
Shielding : Shielded
DC Resistance (DCR) : 648 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 105°C
Inductance Frequency - Test : 1MHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.157" L x 0.157" W (4.00mm x 4.00mm)
Height - Seated (Max) : 0.047" (1.20mm)
0
100 in stock
TDK Corporation
Manufacturer : TDK Corporation
Packaging : Cut Tape (CT)
Alternate Packaging
Series : VLS-HBX
Part Status : Active
Type : Wirewound
Material - Core : Metal
Inductance : 2.2µH
Tolerance : ±20%
Current Rating : 3.72A
Current - Saturation : 5.2A
Shielding : Shielded
DC Resistance (DCR) : 94 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 105°C
Inductance Frequency - Test : 1MHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.157" L x 0.157" W (4.00mm x 4.00mm)
Height - Seated (Max) : 0.047" (1.20mm)
0
100 in stock
TDK Corporation
Manufacturer : TDK Corporation
Packaging : Cut Tape (CT)
Alternate Packaging
Series : VLS-HBX
Part Status : Active
Type : Wirewound
Material - Core : Metal
Inductance : 4.7µH
Tolerance : ±20%
Current Rating : 2.77A
Current - Saturation : 3.6A
Shielding : Shielded
DC Resistance (DCR) : 159 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 105°C
Inductance Frequency - Test : 1MHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.157" L x 0.157" W (4.00mm x 4.00mm)
Height - Seated (Max) : 0.047" (1.20mm)
0
100 in stock

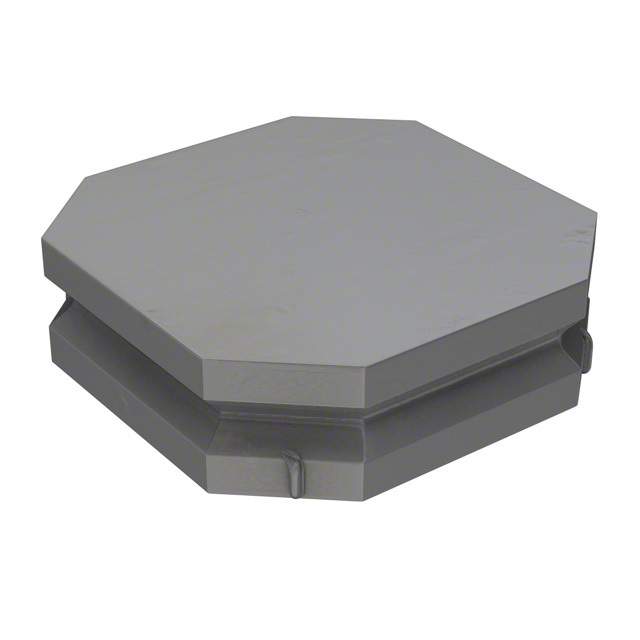

TDK Corporation
Manufacturer : TDK Corporation
Packaging : Tape & Reel (TR)
Alternate Packaging
Series : VLS
Part Status : Not For New Designs
Type : Wirewound
Material - Core : -
Inductance : 10µH
Tolerance : ±20%
Current Rating : 820mA
Current - Saturation : 890mA
Shielding : Shielded
DC Resistance (DCR) : 240 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 105°C
Inductance Frequency - Test : 1MHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.157" L x 0.157" W (4.00mm x 4.00mm)
Height - Seated (Max) : 0.047" (1.20mm)
0
3000 in stock
TDK Corporation
Manufacturer : TDK Corporation
Packaging : Tape & Reel (TR)
Alternate Packaging
Series : VLS
Part Status : Not For New Designs
Type : Wirewound
Material - Core : -
Inductance : 1µH
Tolerance : ±30%
Current Rating : 1.6A
Current - Saturation : 2.5A
Shielding : Shielded
DC Resistance (DCR) : 60 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 105°C
Inductance Frequency - Test : 1MHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.157" L x 0.157" W (4.00mm x 4.00mm)
Height - Seated (Max) : 0.047" (1.20mm)
0
100 in stock
TDK Corporation
Manufacturer : TDK Corporation
Packaging : Tape & Reel (TR)
Alternate Packaging
Series : VLS
Part Status : Not For New Designs
Type : Wirewound
Material - Core : -
Inductance : 1.5µH
Tolerance : ±30%
Current Rating : 1.5A
Current - Saturation : 2.1A
Shielding : Shielded
DC Resistance (DCR) : 72 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 105°C
Inductance Frequency - Test : 1MHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.157" L x 0.157" W (4.00mm x 4.00mm)
Height - Seated (Max) : 0.047" (1.20mm)
0
2000 in stock
TDK Corporation
Manufacturer : TDK Corporation
Packaging : Tape & Reel (TR)
Alternate Packaging
Series : VLS
Part Status : Not For New Designs
Type : Wirewound
Material - Core : -
Inductance : 22µH
Tolerance : ±20%
Current Rating : 570mA
Current - Saturation : 630mA
Shielding : Shielded
DC Resistance (DCR) : 492 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 105°C
Inductance Frequency - Test : 1MHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.157" L x 0.157" W (4.00mm x 4.00mm)
Height - Seated (Max) : 0.047" (1.20mm)
0
100 in stock
TDK Corporation
Manufacturer : TDK Corporation
Packaging : Tape & Reel (TR)
Alternate Packaging
Series : VLS
Part Status : Not For New Designs
Type : Wirewound
Material - Core : -
Inductance : 2.2µH
Tolerance : ±20%
Current Rating : 1.4A
Current - Saturation : 1.7A
Shielding : Shielded
DC Resistance (DCR) : 84 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 105°C
Inductance Frequency - Test : 1MHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.157" L x 0.157" W (4.00mm x 4.00mm)
Height - Seated (Max) : 0.047" (1.20mm)
0
100 in stock
TDK Corporation
Manufacturer : TDK Corporation
Packaging : Tape & Reel (TR)
Alternate Packaging
Series : VLS
Part Status : Not For New Designs
Type : Wirewound
Material - Core : -
Inductance : 33µH
Tolerance : ±20%
Current Rating : 440mA
Current - Saturation : 470mA
Shielding : Shielded
DC Resistance (DCR) : 816 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 105°C
Inductance Frequency - Test : 1MHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.157" L x 0.157" W (4.00mm x 4.00mm)
Height - Seated (Max) : 0.047" (1.20mm)
0
100 in stock
TDK Corporation
Manufacturer : TDK Corporation
Packaging : Tape & Reel (TR)
Alternate Packaging
Series : VLS
Part Status : Not For New Designs
Type : Wirewound
Material - Core : -
Inductance : 3.3µH
Tolerance : ±20%
Current Rating : 1.2A
Current - Saturation : 1.4A
Shielding : Shielded
DC Resistance (DCR) : 102 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 105°C
Inductance Frequency - Test : 1MHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.157" L x 0.157" W (4.00mm x 4.00mm)
Height - Seated (Max) : 0.047" (1.20mm)
0
1000 in stock
TDK Corporation
Manufacturer : TDK Corporation
Packaging : Tape & Reel (TR)
Alternate Packaging
Series : VLS
Part Status : Not For New Designs
Type : Wirewound
Material - Core : -
Inductance : 47µH
Tolerance : ±20%
Current Rating : 390mA
Current - Saturation : 410mA
Shielding : Shielded
DC Resistance (DCR) : 1.02 Ohm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 105°C
Inductance Frequency - Test : 1MHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.157" L x 0.157" W (4.00mm x 4.00mm)
Height - Seated (Max) : 0.047" (1.20mm)
0
1000 in stock
TDK Corporation
Manufacturer : TDK Corporation
Packaging : Tape & Reel (TR)
Alternate Packaging
Series : VLS
Part Status : Not For New Designs
Type : Wirewound
Material - Core : -
Inductance : 4.7µH
Tolerance : ±20%
Current Rating : 1.1A
Current - Saturation : 1.2A
Shielding : Shielded
DC Resistance (DCR) : 132 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 105°C
Inductance Frequency - Test : 1MHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.157" L x 0.157" W (4.00mm x 4.00mm)
Height - Seated (Max) : 0.047" (1.20mm)
0
3000 in stock
