TDK Corporation

TDK Corporation (Tokyo Denkikagaku Kogyo) was established in December 1935 with the aim of becoming the world's first commercial manufacturer of the magnetic material ferrite. TDK, since then, has continued ceaselessly to turn out a variety of products and services making use of its materials technology, centering on ferrite and ceramics, and processing technology, which draws out the properties of materials to the maximum degree. The founding spirit of TDK, "contribute to culture and industry through creativity," continues to this day to pulsate throughout the company.

Part Number
Manufacturer
Description
Unit Price
In Stock

VLS5045EX-1R5N-CA VLS5045EX-1R5N-CA

TDK Corporation
Manufacturer : TDK Corporation
Packaging : Cut Tape (CT)
Alternate Packaging
Series : VLS-EX
Part Status : Active
Type : Wirewound
Material - Core : Ferrite
Inductance : 1.5µH
Tolerance : ±30%
Current Rating : 5A
Current - Saturation : 7.4A
Shielding : Shielded
DC Resistance (DCR) : 22.1 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 105°C
Inductance Frequency - Test : 100kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.197" L x 0.197" W (5.00mm x 5.00mm)
Height - Seated (Max) : 0.177" (4.50mm)
0
3000 in stock

VLS5045EX-1R8N VLS5045EX-1R8N

TDK Corporation
Manufacturer : TDK Corporation
Packaging : Tape & Reel (TR)
Alternate Packaging
Series : VLS-EX
Part Status : Not For New Designs
Type : Wirewound
Material - Core : Ferrite
Inductance : 1.8µH
Tolerance : ±30%
Current Rating : 4.8A
Current - Saturation : -
Shielding : Shielded
DC Resistance (DCR) : 19 mOhm
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 105°C
Inductance Frequency - Test : 100kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.197" L x 0.197" W (5.00mm x 5.00mm)
Height - Seated (Max) : 0.177" (4.50mm)
0
1500 in stock

VLS5045EX-220M VLS5045EX-220M

TDK Corporation
Manufacturer : TDK Corporation
Packaging : Cut Tape (CT)
Alternate Packaging
Series : VLS-EX
Part Status : Active
Type : Wirewound
Material - Core : Ferrite
Inductance : 22µH
Tolerance : ±20%
Current Rating : 1.8A
Current - Saturation : 2A
Shielding : Shielded
DC Resistance (DCR) : 162.5 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 105°C
Inductance Frequency - Test : 100kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.197" L x 0.197" W (5.00mm x 5.00mm)
Height - Seated (Max) : 0.177" (4.50mm)
0
4249 in stock

VLS5045EX-220M-CA VLS5045EX-220M-CA

TDK Corporation
Manufacturer : TDK Corporation
Packaging : Cut Tape (CT)
Alternate Packaging
Series : VLS-EX
Part Status : Active
Type : Wirewound
Material - Core : Ferrite
Inductance : 22µH
Tolerance : ±20%
Current Rating : 1.8A
Current - Saturation : 2A
Shielding : Shielded
DC Resistance (DCR) : 162.5 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 105°C
Inductance Frequency - Test : 100kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.197" L x 0.197" W (5.00mm x 5.00mm)
Height - Seated (Max) : 0.177" (4.50mm)
0
2956 in stock

VLS5045EX-221M VLS5045EX-221M

TDK Corporation
Manufacturer : TDK Corporation
Packaging : Cut Tape (CT)
Alternate Packaging
Series : VLS-EX
Part Status : Active
Type : Wirewound
Material - Core : Ferrite
Inductance : 220µH
Tolerance : ±20%
Current Rating : 450mA
Current - Saturation : 450mA
Shielding : Shielded
DC Resistance (DCR) : 1.365 Ohm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 105°C
Inductance Frequency - Test : 100kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.197" L x 0.197" W (5.00mm x 5.00mm)
Height - Seated (Max) : 0.177" (4.50mm)
0
860 in stock

VLS5045EX-221M-CA VLS5045EX-221M-CA

TDK Corporation
Manufacturer : TDK Corporation
Packaging : Cut Tape (CT)
Alternate Packaging
Series : VLS-EX
Part Status : Active
Type : Wirewound
Material - Core : Ferrite
Inductance : 220µH
Tolerance : ±20%
Current Rating : 450mA
Current - Saturation : 450mA
Shielding : Shielded
DC Resistance (DCR) : 1.365 Ohm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 105°C
Inductance Frequency - Test : 100kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.197" L x 0.197" W (5.00mm x 5.00mm)
Height - Seated (Max) : 0.177" (4.50mm)
0
100 in stock

VLS5045EX-2R2N VLS5045EX-2R2N

TDK Corporation
Manufacturer : TDK Corporation
Packaging : Cut Tape (CT)
Alternate Packaging
Series : VLS-EX
Part Status : Active
Type : Wirewound
Material - Core : Ferrite
Inductance : 2.2µH
Tolerance : ±30%
Current Rating : 4.7A
Current - Saturation : 6.4A
Shielding : Shielded
DC Resistance (DCR) : 28.6 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 105°C
Inductance Frequency - Test : 100kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.197" L x 0.197" W (5.00mm x 5.00mm)
Height - Seated (Max) : 0.177" (4.50mm)
0
23025 in stock

VLS5045EX-2R2N-CA VLS5045EX-2R2N-CA

TDK Corporation
Manufacturer : TDK Corporation
Packaging : Cut Tape (CT)
Alternate Packaging
Series : VLS-EX
Part Status : Active
Type : Wirewound
Material - Core : Ferrite
Inductance : 2.2µH
Tolerance : ±30%
Current Rating : 4.7A
Current - Saturation : 6.4A
Shielding : Shielded
DC Resistance (DCR) : 28.6 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 105°C
Inductance Frequency - Test : 100kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.197" L x 0.197" W (5.00mm x 5.00mm)
Height - Seated (Max) : 0.177" (4.50mm)
0
1311 in stock

VLS5045EX-330M VLS5045EX-330M

TDK Corporation
Manufacturer : TDK Corporation
Packaging : Cut Tape (CT)
Alternate Packaging
Series : VLS-EX
Part Status : Active
Type : Wirewound
Material - Core : Ferrite
Inductance : 33µH
Tolerance : ±20%
Current Rating : 1.3A
Current - Saturation : 1.5A
Shielding : Shielded
DC Resistance (DCR) : 312 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 105°C
Inductance Frequency - Test : 100kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.197" L x 0.197" W (5.00mm x 5.00mm)
Height - Seated (Max) : 0.177" (4.50mm)
0
4023 in stock

VLS5045EX-330M-CA VLS5045EX-330M-CA

TDK Corporation
Manufacturer : TDK Corporation
Packaging : Cut Tape (CT)
Alternate Packaging
Series : VLS-EX
Part Status : Active
Type : Wirewound
Material - Core : Ferrite
Inductance : 33µH
Tolerance : ±20%
Current Rating : 1.3A
Current - Saturation : 1.5A
Shielding : Shielded
DC Resistance (DCR) : 312 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 105°C
Inductance Frequency - Test : 100kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.197" L x 0.197" W (5.00mm x 5.00mm)
Height - Seated (Max) : 0.177" (4.50mm)
0
2959 in stock

VLS5045EX-3R3N VLS5045EX-3R3N

TDK Corporation
Manufacturer : TDK Corporation
Packaging : Cut Tape (CT)
Alternate Packaging
Series : VLS-EX
Part Status : Active
Type : Wirewound
Material - Core : Ferrite
Inductance : 3.3µH
Tolerance : ±30%
Current Rating : 4.2A
Current - Saturation : 5.2A
Shielding : Shielded
DC Resistance (DCR) : 35.1 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 105°C
Inductance Frequency - Test : 100kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.197" L x 0.197" W (5.00mm x 5.00mm)
Height - Seated (Max) : 0.177" (4.50mm)
0
1237 in stock

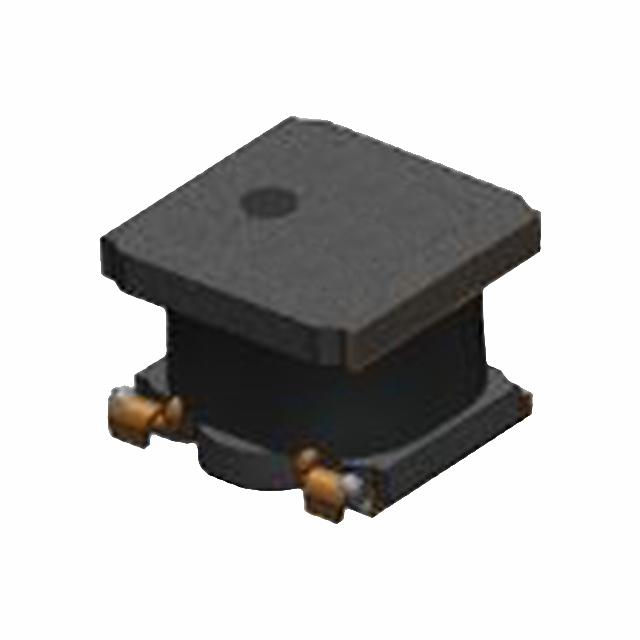

VLS5045EX-3R3N-CA VLS5045EX-3R3N-CA

TDK Corporation
Manufacturer : TDK Corporation
Packaging : Cut Tape (CT)
Alternate Packaging
Series : VLS-EX
Part Status : Active
Type : Wirewound
Material - Core : Ferrite
Inductance : 3.3µH
Tolerance : ±30%
Current Rating : 4.2A
Current - Saturation : 5.2A
Shielding : Shielded
DC Resistance (DCR) : 35.1 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 105°C
Inductance Frequency - Test : 100kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.197" L x 0.197" W (5.00mm x 5.00mm)
Height - Seated (Max) : 0.177" (4.50mm)
0
819 in stock
