TDK Corporation

TDK Corporation (Tokyo Denkikagaku Kogyo) was established in December 1935 with the aim of becoming the world's first commercial manufacturer of the magnetic material ferrite. TDK, since then, has continued ceaselessly to turn out a variety of products and services making use of its materials technology, centering on ferrite and ceramics, and processing technology, which draws out the properties of materials to the maximum degree. The founding spirit of TDK, "contribute to culture and industry through creativity," continues to this day to pulsate throughout the company.

Part Number
Manufacturer
Description
Unit Price
In Stock

VLS5045EX-470M VLS5045EX-470M

TDK Corporation
Manufacturer : TDK Corporation
Packaging : Cut Tape (CT)
Alternate Packaging
Series : VLS-EX
Part Status : Active
Type : Wirewound
Material - Core : Ferrite
Inductance : 47µH
Tolerance : ±20%
Current Rating : 1A
Current - Saturation : 1.3A
Shielding : Shielded
DC Resistance (DCR) : 390 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 105°C
Inductance Frequency - Test : 100kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.197" L x 0.197" W (5.00mm x 5.00mm)
Height - Seated (Max) : 0.177" (4.50mm)
0
14771 in stock

VLS5045EX-470M-CA VLS5045EX-470M-CA

TDK Corporation
Manufacturer : TDK Corporation
Packaging : Cut Tape (CT)
Alternate Packaging
Series : VLS-EX
Part Status : Active
Type : Wirewound
Material - Core : Ferrite
Inductance : 47µH
Tolerance : ±20%
Current Rating : 1A
Current - Saturation : 1.3A
Shielding : Shielded
DC Resistance (DCR) : 390 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 105°C
Inductance Frequency - Test : 100kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.197" L x 0.197" W (5.00mm x 5.00mm)
Height - Seated (Max) : 0.177" (4.50mm)
0
3000 in stock

VLS5045EX-4R7M VLS5045EX-4R7M

TDK Corporation
Manufacturer : TDK Corporation
Packaging : Cut Tape (CT)
Alternate Packaging
Series : VLS-EX
Part Status : Active
Type : Wirewound
Material - Core : Ferrite
Inductance : 4.7µH
Tolerance : ±20%
Current Rating : 3.2A
Current - Saturation : 4.4A
Shielding : Shielded
DC Resistance (DCR) : 46.8 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 105°C
Inductance Frequency - Test : 100kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.197" L x 0.197" W (5.00mm x 5.00mm)
Height - Seated (Max) : 0.177" (4.50mm)
0
886 in stock

VLS5045EX-4R7M-CA VLS5045EX-4R7M-CA

TDK Corporation
Manufacturer : TDK Corporation
Packaging : Cut Tape (CT)
Alternate Packaging
Series : VLS-EX
Part Status : Active
Type : Wirewound
Material - Core : Ferrite
Inductance : 4.7µH
Tolerance : ±20%
Current Rating : 3.2A
Current - Saturation : 4.4A
Shielding : Shielded
DC Resistance (DCR) : 46.8 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 105°C
Inductance Frequency - Test : 100kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.197" L x 0.197" W (5.00mm x 5.00mm)
Height - Seated (Max) : 0.177" (4.50mm)
0
1713 in stock

VLS5045EX-680M VLS5045EX-680M

TDK Corporation
Manufacturer : TDK Corporation
Packaging : Cut Tape (CT)
Alternate Packaging
Series : VLS-EX
Part Status : Active
Type : Wirewound
Material - Core : Ferrite
Inductance : 68µH
Tolerance : ±20%
Current Rating : 900mA
Current - Saturation : 1.1A
Shielding : Shielded
DC Resistance (DCR) : 533 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 105°C
Inductance Frequency - Test : 100kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.197" L x 0.197" W (5.00mm x 5.00mm)
Height - Seated (Max) : 0.177" (4.50mm)
0
2325 in stock

VLS5045EX-680M-CA VLS5045EX-680M-CA

TDK Corporation
Manufacturer : TDK Corporation
Packaging : Cut Tape (CT)
Alternate Packaging
Series : VLS-EX
Part Status : Active
Type : Wirewound
Material - Core : Ferrite
Inductance : 68µH
Tolerance : ±20%
Current Rating : 900mA
Current - Saturation : 1.1A
Shielding : Shielded
DC Resistance (DCR) : 533 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 105°C
Inductance Frequency - Test : 100kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.197" L x 0.197" W (5.00mm x 5.00mm)
Height - Seated (Max) : 0.177" (4.50mm)
0
100 in stock

VLS5045EX-6R8M VLS5045EX-6R8M

TDK Corporation
Manufacturer : TDK Corporation
Packaging : Cut Tape (CT)
Alternate Packaging
Series : VLS-EX
Part Status : Active
Type : Wirewound
Material - Core : Ferrite
Inductance : 6.8µH
Tolerance : ±20%
Current Rating : 2.9A
Current - Saturation : 3.6A
Shielding : Shielded
DC Resistance (DCR) : 59.8 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 105°C
Inductance Frequency - Test : 100kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.197" L x 0.197" W (5.00mm x 5.00mm)
Height - Seated (Max) : 0.177" (4.50mm)
0
349 in stock

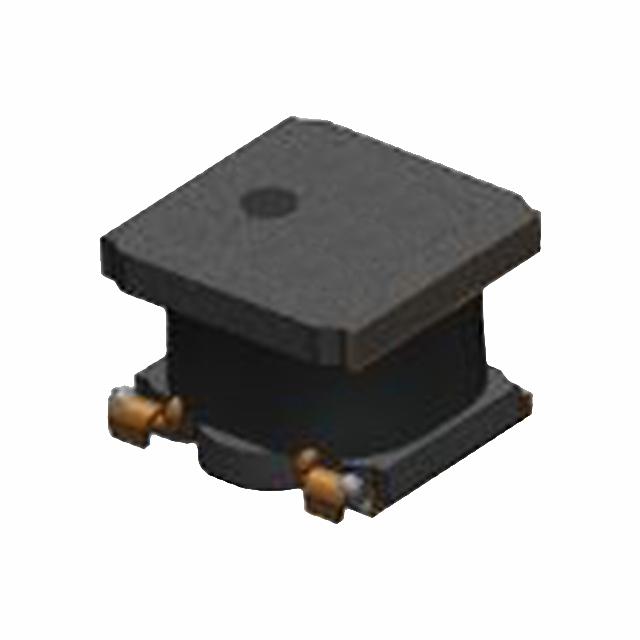

VLS5045EX-6R8M-CA VLS5045EX-6R8M-CA

TDK Corporation
Manufacturer : TDK Corporation
Packaging : Cut Tape (CT)
Alternate Packaging
Series : VLS-EX
Part Status : Active
Type : Wirewound
Material - Core : Ferrite
Inductance : 6.8µH
Tolerance : ±20%
Current Rating : 2.9A
Current - Saturation : 3.6A
Shielding : Shielded
DC Resistance (DCR) : 59.8 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 105°C
Inductance Frequency - Test : 100kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.197" L x 0.197" W (5.00mm x 5.00mm)
Height - Seated (Max) : 0.177" (4.50mm)
0
1371 in stock

VLS5045EX-8R2M VLS5045EX-8R2M

TDK Corporation
Manufacturer : TDK Corporation
Packaging : Tape & Reel (TR)
Alternate Packaging
Series : VLS-EX
Part Status : Not For New Designs
Type : Wirewound
Material - Core : Ferrite
Inductance : 8.2µH
Tolerance : ±20%
Current Rating : 2.8A
Current - Saturation : -
Shielding : Shielded
DC Resistance (DCR) : 55 mOhm
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 105°C
Inductance Frequency - Test : 100kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.197" L x 0.197" W (5.00mm x 5.00mm)
Height - Seated (Max) : 0.177" (4.50mm)
0
1500 in stock

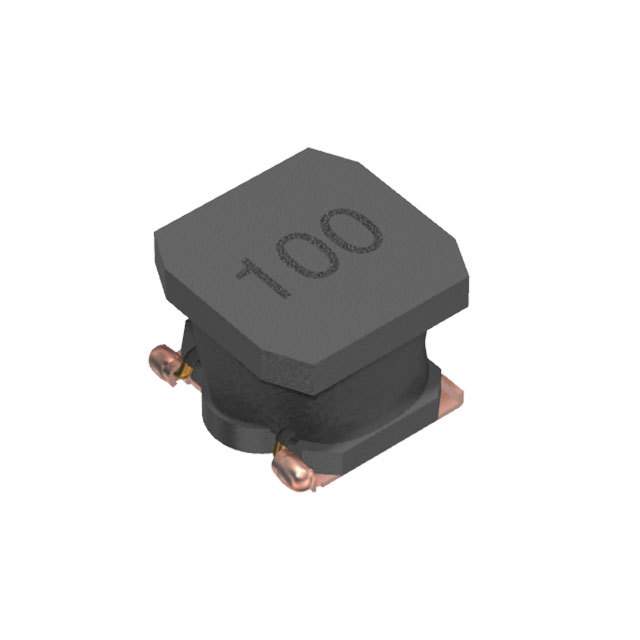

VLS6045AF-100M VLS6045AF-100M

TDK Corporation
Manufacturer : TDK Corporation
Packaging : Cut Tape (CT)
Alternate Packaging
Series : VLS
Part Status : Active
Type : Wirewound
Material - Core : Ferrite
Inductance : 10µH
Tolerance : ±20%
Current Rating : 3.4A
Current - Saturation : 3A
Shielding : Shielded
DC Resistance (DCR) : 54 mOhm
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 105°C
Inductance Frequency - Test : 100kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.236" L x 0.236" W (6.00mm x 6.00mm)
Height - Seated (Max) : 0.177" (4.50mm)
0
3000 in stock

VLS6045AF-101M VLS6045AF-101M

TDK Corporation
Manufacturer : TDK Corporation
Packaging : Cut Tape (CT)
Alternate Packaging
Series : VLS
Part Status : Active
Type : Wirewound
Material - Core : Ferrite
Inductance : 100µH
Tolerance : ±20%
Current Rating : 1A
Current - Saturation : 1A
Shielding : Shielded
DC Resistance (DCR) : 527 mOhm
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 105°C
Inductance Frequency - Test : 100kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.236" L x 0.236" W (6.00mm x 6.00mm)
Height - Seated (Max) : 0.177" (4.50mm)
0
3000 in stock

VLS6045AF-150M VLS6045AF-150M

TDK Corporation
Manufacturer : TDK Corporation
Packaging : Cut Tape (CT)
Alternate Packaging
Series : VLS
Part Status : Active
Type : Wirewound
Material - Core : Ferrite
Inductance : 15µH
Tolerance : ±20%
Current Rating : 2.8A
Current - Saturation : 2.5A
Shielding : Shielded
DC Resistance (DCR) : 77 mOhm
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 105°C
Inductance Frequency - Test : 100kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.236" L x 0.236" W (6.00mm x 6.00mm)
Height - Seated (Max) : 0.177" (4.50mm)
0
3000 in stock
