TDK Corporation

TDK Corporation (Tokyo Denkikagaku Kogyo) was established in December 1935 with the aim of becoming the world's first commercial manufacturer of the magnetic material ferrite. TDK, since then, has continued ceaselessly to turn out a variety of products and services making use of its materials technology, centering on ferrite and ceramics, and processing technology, which draws out the properties of materials to the maximum degree. The founding spirit of TDK, "contribute to culture and industry through creativity," continues to this day to pulsate throughout the company.

Part Number
Manufacturer
Description
Unit Price
In Stock

VLS6045EX-150M VLS6045EX-150M

TDK Corporation
Manufacturer : TDK Corporation
Packaging : Cut Tape (CT)
Alternate Packaging
Series : VLS-EX
Part Status : Active
Type : Wirewound
Material - Core : Ferrite
Inductance : 15µH
Tolerance : ±20%
Current Rating : 2.5A
Current - Saturation : 3.1A
Shielding : Shielded
DC Resistance (DCR) : 98 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 105°C
Inductance Frequency - Test : 100kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.236" L x 0.236" W (6.00mm x 6.00mm)
Height - Seated (Max) : 0.177" (4.50mm)
0
17697 in stock

VLS6045EX-150M-CA VLS6045EX-150M-CA

TDK Corporation
Manufacturer : TDK Corporation
Packaging : Cut Tape (CT)
Alternate Packaging
Series : VLS-EX
Part Status : Active
Type : Wirewound
Material - Core : Ferrite
Inductance : 15µH
Tolerance : ±20%
Current Rating : 2.5A
Current - Saturation : 3.1A
Shielding : Shielded
DC Resistance (DCR) : 97.5 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 105°C
Inductance Frequency - Test : 100kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.236" L x 0.236" W (6.00mm x 6.00mm)
Height - Seated (Max) : 0.177" (4.50mm)
0
2925 in stock

VLS6045EX-151M VLS6045EX-151M

TDK Corporation
Manufacturer : TDK Corporation
Packaging : Cut Tape (CT)
Alternate Packaging
Series : VLS-EX
Part Status : Active
Type : Wirewound
Material - Core : Ferrite
Inductance : 150µH
Tolerance : ±20%
Current Rating : 700mA
Current - Saturation : 900mA
Shielding : Shielded
DC Resistance (DCR) : 988 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 105°C
Inductance Frequency - Test : 100kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.236" L x 0.236" W (6.00mm x 6.00mm)
Height - Seated (Max) : 0.177" (4.50mm)
0
1231 in stock

VLS6045EX-151M-CA VLS6045EX-151M-CA

TDK Corporation
Manufacturer : TDK Corporation
Packaging : Cut Tape (CT)
Alternate Packaging
Series : VLS-EX
Part Status : Active
Type : Wirewound
Material - Core : Ferrite
Inductance : 150µH
Tolerance : ±20%
Current Rating : 700mA
Current - Saturation : 900mA
Shielding : Shielded
DC Resistance (DCR) : 988 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 105°C
Inductance Frequency - Test : 100kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.236" L x 0.236" W (6.00mm x 6.00mm)
Height - Seated (Max) : 0.177" (4.50mm)
0
2419 in stock

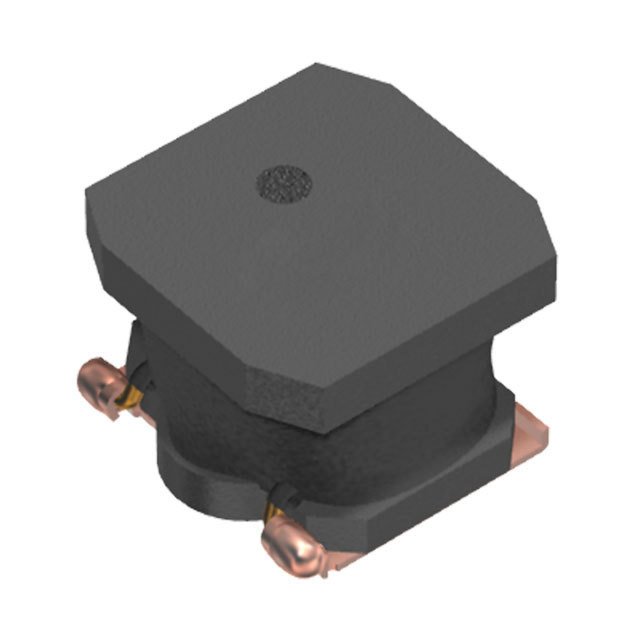

VLS6045EX-1R0N VLS6045EX-1R0N

TDK Corporation
Manufacturer : TDK Corporation
Packaging : Cut Tape (CT)
Alternate Packaging
Series : VLS-EX
Part Status : Active
Type : Wirewound
Material - Core : Ferrite
Inductance : 1µH
Tolerance : ±30%
Current Rating : 6A
Current - Saturation : 12A
Shielding : Shielded
DC Resistance (DCR) : 16 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 105°C
Inductance Frequency - Test : 100kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.236" L x 0.236" W (6.00mm x 6.00mm)
Height - Seated (Max) : 0.177" (4.50mm)
0
6000 in stock

VLS6045EX-1R0N-CA VLS6045EX-1R0N-CA

TDK Corporation
Manufacturer : TDK Corporation
Packaging : Cut Tape (CT)
Alternate Packaging
Series : VLS-EX
Part Status : Active
Type : Wirewound
Material - Core : Ferrite
Inductance : 1µH
Tolerance : ±30%
Current Rating : 6A
Current - Saturation : 12A
Shielding : Shielded
DC Resistance (DCR) : 15.6 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 105°C
Inductance Frequency - Test : 100kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.236" L x 0.236" W (6.00mm x 6.00mm)
Height - Seated (Max) : 0.177" (4.50mm)
0
2973 in stock

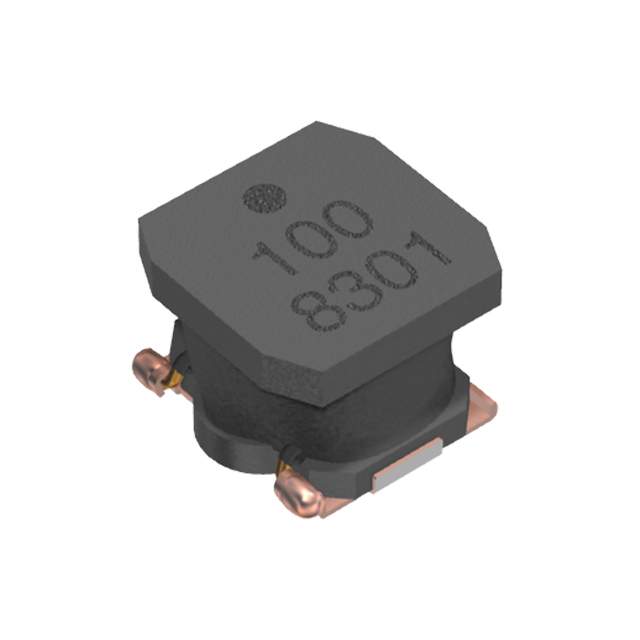

VLS6045EX-1R0N-H VLS6045EX-1R0N-H

TDK Corporation
Manufacturer : TDK Corporation
Packaging : Cut Tape (CT)
Alternate Packaging
Series : VLS-EX-H
Part Status : Active
Type : Wirewound
Material - Core : Ferrite
Inductance : 1µH
Tolerance : ±30%
Current Rating : 6A
Current - Saturation : 12A
Shielding : Shielded
DC Resistance (DCR) : 12 mOhm
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : AEC-Q200
Operating Temperature : -40°C ~ 125°C
Inductance Frequency - Test : 100kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.248" L x 0.236" W (6.30mm x 6.00mm)
Height - Seated (Max) : 0.177" (4.50mm)
0
3000 in stock

VLS6045EX-1R2N VLS6045EX-1R2N

TDK Corporation
Manufacturer : TDK Corporation
Packaging : Tape & Reel (TR)
Alternate Packaging
Series : VLS-EX
Part Status : Not For New Designs
Type : Wirewound
Material - Core : Ferrite
Inductance : 1.2µH
Tolerance : ±30%
Current Rating : 5.4A
Current - Saturation : -
Shielding : Shielded
DC Resistance (DCR) : 14 mOhm
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 105°C
Inductance Frequency - Test : 100kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.236" L x 0.236" W (6.00mm x 6.00mm)
Height - Seated (Max) : 0.177" (4.50mm)
0
1500 in stock

VLS6045EX-1R5N VLS6045EX-1R5N

TDK Corporation
Manufacturer : TDK Corporation
Packaging : Cut Tape (CT)
Alternate Packaging
Series : VLS-EX
Part Status : Active
Type : Wirewound
Material - Core : Ferrite
Inductance : 1.5µH
Tolerance : ±30%
Current Rating : 5.3A
Current - Saturation : 8.2A
Shielding : Shielded
DC Resistance (DCR) : 22 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 105°C
Inductance Frequency - Test : 100kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.236" L x 0.236" W (6.00mm x 6.00mm)
Height - Seated (Max) : 0.177" (4.50mm)
0
2775 in stock

VLS6045EX-1R5N-CA VLS6045EX-1R5N-CA

TDK Corporation
Manufacturer : TDK Corporation
Packaging : Cut Tape (CT)
Alternate Packaging
Series : VLS-EX
Part Status : Active
Type : Wirewound
Material - Core : Ferrite
Inductance : 1.5µH
Tolerance : ±30%
Current Rating : 5.3A
Current - Saturation : 8.2A
Shielding : Shielded
DC Resistance (DCR) : 22.1 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 105°C
Inductance Frequency - Test : 100kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.236" L x 0.236" W (6.00mm x 6.00mm)
Height - Seated (Max) : 0.177" (4.50mm)
0
1365 in stock

VLS6045EX-220M VLS6045EX-220M

TDK Corporation
Manufacturer : TDK Corporation
Packaging : Cut Tape (CT)
Alternate Packaging
Series : VLS-EX
Part Status : Active
Type : Wirewound
Material - Core : Ferrite
Inductance : 22µH
Tolerance : ±20%
Current Rating : 1.9A
Current - Saturation : 2.4A
Shielding : Shielded
DC Resistance (DCR) : 137 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 105°C
Inductance Frequency - Test : 100kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.236" L x 0.236" W (6.00mm x 6.00mm)
Height - Seated (Max) : 0.177" (4.50mm)
0
3501 in stock

VLS6045EX-220M-CA VLS6045EX-220M-CA

TDK Corporation
Manufacturer : TDK Corporation
Packaging : Cut Tape (CT)
Alternate Packaging
Series : VLS-EX
Part Status : Active
Type : Wirewound
Material - Core : Ferrite
Inductance : 22µH
Tolerance : ±20%
Current Rating : 1.9A
Current - Saturation : 2.4A
Shielding : Shielded
DC Resistance (DCR) : 136.5 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 105°C
Inductance Frequency - Test : 100kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.236" L x 0.236" W (6.00mm x 6.00mm)
Height - Seated (Max) : 0.177" (4.50mm)
0
2661 in stock
