TDK Corporation

TDK Corporation (Tokyo Denkikagaku Kogyo) was established in December 1935 with the aim of becoming the world's first commercial manufacturer of the magnetic material ferrite. TDK, since then, has continued ceaselessly to turn out a variety of products and services making use of its materials technology, centering on ferrite and ceramics, and processing technology, which draws out the properties of materials to the maximum degree. The founding spirit of TDK, "contribute to culture and industry through creativity," continues to this day to pulsate throughout the company.

Part Number
Manufacturer
Description
Unit Price
In Stock

VLS6045AF-220M VLS6045AF-220M

TDK Corporation
Manufacturer : TDK Corporation
Packaging : Cut Tape (CT)
Alternate Packaging
Series : VLS
Part Status : Active
Type : Wirewound
Material - Core : Ferrite
Inductance : 22µH
Tolerance : ±20%
Current Rating : 2.3A
Current - Saturation : 2.1A
Shielding : Shielded
DC Resistance (DCR) : 108 mOhm
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 105°C
Inductance Frequency - Test : 100kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.236" L x 0.236" W (6.00mm x 6.00mm)
Height - Seated (Max) : 0.177" (4.50mm)
0
3000 in stock

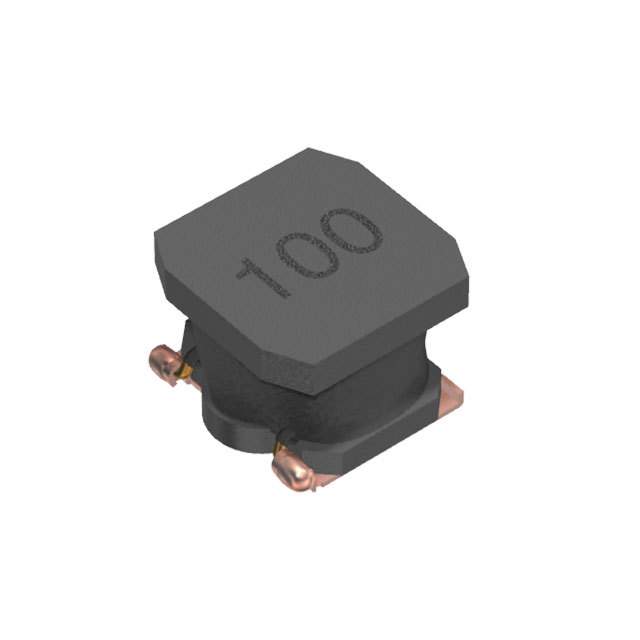

VLS6045AF-330M VLS6045AF-330M

TDK Corporation
Manufacturer : TDK Corporation
Packaging : Cut Tape (CT)
Alternate Packaging
Series : VLS
Part Status : Active
Type : Wirewound
Material - Core : Ferrite
Inductance : 33µH
Tolerance : ±20%
Current Rating : 1.8A
Current - Saturation : 1.6A
Shielding : Shielded
DC Resistance (DCR) : 164 mOhm
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 105°C
Inductance Frequency - Test : 100kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.236" L x 0.236" W (6.00mm x 6.00mm)
Height - Seated (Max) : 0.177" (4.50mm)
0
3000 in stock

VLS6045AF-3R3N VLS6045AF-3R3N

TDK Corporation
Manufacturer : TDK Corporation
Packaging : Cut Tape (CT)
Alternate Packaging
Series : VLS
Part Status : Active
Type : Wirewound
Material - Core : Ferrite
Inductance : 3.3µH
Tolerance : ±30%
Current Rating : 5A
Current - Saturation : 5A
Shielding : Shielded
DC Resistance (DCR) : 22 mOhm
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 105°C
Inductance Frequency - Test : 100kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.236" L x 0.236" W (6.00mm x 6.00mm)
Height - Seated (Max) : 0.177" (4.50mm)
0
3000 in stock

VLS6045AF-4R7M VLS6045AF-4R7M

TDK Corporation
Manufacturer : TDK Corporation
Packaging : Cut Tape (CT)
Alternate Packaging
Series : VLS
Part Status : Active
Type : Wirewound
Material - Core : Ferrite
Inductance : 4.7µH
Tolerance : ±20%
Current Rating : 4.7A
Current - Saturation : 4.3A
Shielding : Shielded
DC Resistance (DCR) : 26 mOhm
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 105°C
Inductance Frequency - Test : 100kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.236" L x 0.236" W (6.00mm x 6.00mm)
Height - Seated (Max) : 0.177" (4.50mm)
0
3000 in stock

VLS6045AF-6R8M VLS6045AF-6R8M

TDK Corporation
Manufacturer : TDK Corporation
Packaging : Cut Tape (CT)
Alternate Packaging
Series : VLS
Part Status : Active
Type : Wirewound
Material - Core : Ferrite
Inductance : 6.8µH
Tolerance : ±20%
Current Rating : 3.9A
Current - Saturation : 3.5A
Shielding : Shielded
DC Resistance (DCR) : 37 mOhm
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 105°C
Inductance Frequency - Test : 100kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.236" L x 0.236" W (6.00mm x 6.00mm)
Height - Seated (Max) : 0.177" (4.50mm)
0
3000 in stock

VLS6045AF-8R2M VLS6045AF-8R2M

TDK Corporation
Manufacturer : TDK Corporation
Packaging : Cut Tape (CT)
Alternate Packaging
Series : VLS
Part Status : Active
Type : Wirewound
Material - Core : Ferrite
Inductance : 8.2µH
Tolerance : ±20%
Current Rating : 3.7A
Current - Saturation : 3.2A
Shielding : Shielded
DC Resistance (DCR) : 42 mOhm
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 105°C
Inductance Frequency - Test : 100kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.236" L x 0.236" W (6.00mm x 6.00mm)
Height - Seated (Max) : 0.177" (4.50mm)
0
3000 in stock

VLS6045EX-100M VLS6045EX-100M

TDK Corporation
Manufacturer : TDK Corporation
Packaging : Cut Tape (CT)
Alternate Packaging
Series : VLS-EX
Part Status : Active
Type : Wirewound
Material - Core : Ferrite
Inductance : 10µH
Tolerance : ±20%
Current Rating : 3.4A
Current - Saturation : 3.9A
Shielding : Shielded
DC Resistance (DCR) : 61 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 105°C
Inductance Frequency - Test : 100kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.236" L x 0.236" W (6.00mm x 6.00mm)
Height - Seated (Max) : 0.177" (4.50mm)
0
3861 in stock

VLS6045EX-100M-CA VLS6045EX-100M-CA

TDK Corporation
Manufacturer : TDK Corporation
Packaging : Cut Tape (CT)
Alternate Packaging
Series : VLS-EX
Part Status : Active
Type : Wirewound
Material - Core : Ferrite
Inductance : 10µH
Tolerance : ±20%
Current Rating : 3.4A
Current - Saturation : 3.9A
Shielding : Shielded
DC Resistance (DCR) : 61.1 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 105°C
Inductance Frequency - Test : 100kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.236" L x 0.236" W (6.00mm x 6.00mm)
Height - Seated (Max) : 0.177" (4.50mm)
0
2741 in stock

VLS6045EX-100M-H VLS6045EX-100M-H

TDK Corporation
Manufacturer : TDK Corporation
Packaging : Cut Tape (CT)
Alternate Packaging
Series : VLS-EX-H
Part Status : Active
Type : Wirewound
Material - Core : Ferrite
Inductance : 10µH
Tolerance : ±20%
Current Rating : 3.4A
Current - Saturation : 3.9A
Shielding : Shielded
DC Resistance (DCR) : 47 mOhm
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : AEC-Q200
Operating Temperature : -40°C ~ 125°C
Inductance Frequency - Test : 100kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.248" L x 0.236" W (6.30mm x 6.00mm)
Height - Seated (Max) : 0.177" (4.50mm)
0
100 in stock

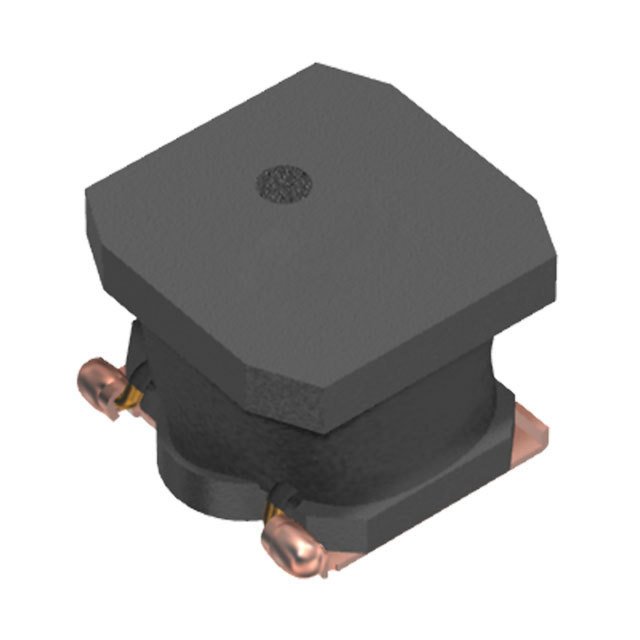

VLS6045EX-101M VLS6045EX-101M

TDK Corporation
Manufacturer : TDK Corporation
Packaging : Cut Tape (CT)
Alternate Packaging
Series : VLS-EX
Part Status : Active
Type : Wirewound
Material - Core : Ferrite
Inductance : 100µH
Tolerance : ±20%
Current Rating : 900mA
Current - Saturation : 1.1A
Shielding : Shielded
DC Resistance (DCR) : 611 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 105°C
Inductance Frequency - Test : 100kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.236" L x 0.236" W (6.00mm x 6.00mm)
Height - Seated (Max) : 0.177" (4.50mm)
0
4934 in stock

VLS6045EX-101M-CA VLS6045EX-101M-CA

TDK Corporation
Manufacturer : TDK Corporation
Packaging : Cut Tape (CT)
Alternate Packaging
Series : VLS-EX
Part Status : Active
Type : Wirewound
Material - Core : Ferrite
Inductance : 100µH
Tolerance : ±20%
Current Rating : 900mA
Current - Saturation : 1.1A
Shielding : Shielded
DC Resistance (DCR) : 611 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 105°C
Inductance Frequency - Test : 100kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.236" L x 0.236" W (6.00mm x 6.00mm)
Height - Seated (Max) : 0.177" (4.50mm)
0
1968 in stock

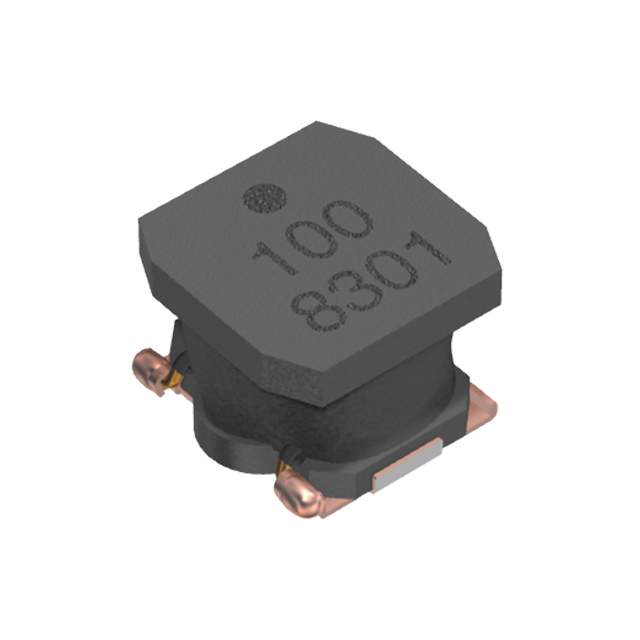

VLS6045EX-101M-H VLS6045EX-101M-H

TDK Corporation
Manufacturer : TDK Corporation
Packaging : Cut Tape (CT)
Alternate Packaging
Series : VLS-EX-H
Part Status : Active
Type : Wirewound
Material - Core : Ferrite
Inductance : 100µH
Tolerance : ±20%
Current Rating : 900mA
Current - Saturation : 1.1A
Shielding : Shielded
DC Resistance (DCR) : 470 mOhm
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : AEC-Q200
Operating Temperature : -40°C ~ 125°C
Inductance Frequency - Test : 100kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.248" L x 0.236" W (6.30mm x 6.00mm)
Height - Seated (Max) : 0.177" (4.50mm)
0
100 in stock
