TDK Corporation
TDK Corporation (Tokyo Denkikagaku Kogyo) was established in December 1935 with the aim of becoming the world's first commercial manufacturer of the magnetic material ferrite. TDK, since then, has continued ceaselessly to turn out a variety of products and services making use of its materials technology, centering on ferrite and ceramics, and processing technology, which draws out the properties of materials to the maximum degree. The founding spirit of TDK, "contribute to culture and industry through creativity," continues to this day to pulsate throughout the company.
Part Number
Manufacturer
Description
Unit Price
In Stock

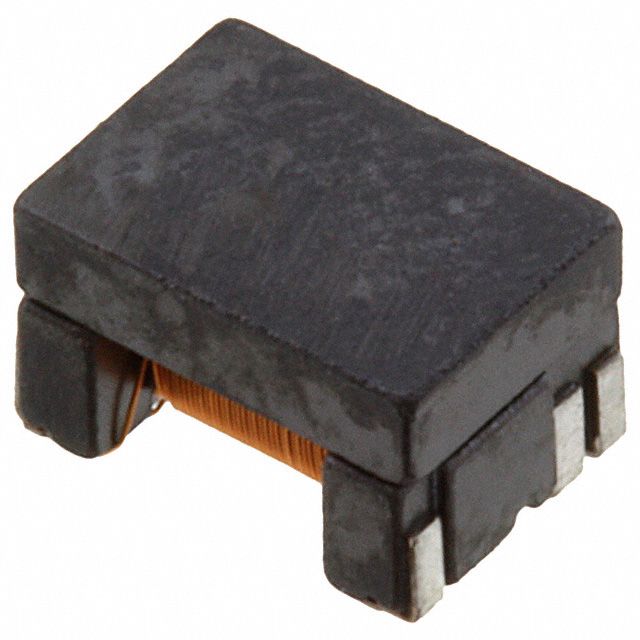

TDK Corporation
Manufacturer : TDK Corporation
Packaging : Cut Tape (CT)
Alternate Packaging
Series : ALT
Part Status : Active
Transformer Type : LAN
Inductance : 200µH
Energy Time (E.T.) : -
Turns Ratio - Primary:Secondary : 1CT:1CT
Mounting Type : Surface Mount
Size / Dimension : 0.177" L x 0.126" W (4.50mm x 3.20mm)
Height - Seated (Max) : 0.114" (2.90mm)
Operating Temperature : -40°C ~ 85°C
0
27411 in stock

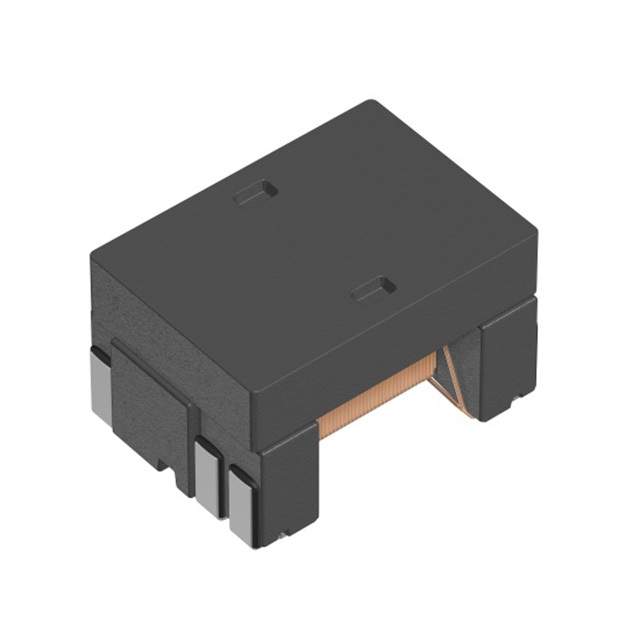

TDK Corporation
Manufacturer : TDK Corporation
Packaging : Cut Tape (CT)
Alternate Packaging
Series : ALT
Part Status : Active
Transformer Type : LAN
Inductance : 180µH
Energy Time (E.T.) : -
Turns Ratio - Primary:Secondary : 1CT:1CT
Mounting Type : Surface Mount
Size / Dimension : 0.177" L x 0.126" W (4.50mm x 3.20mm)
Height - Seated (Max) : 0.114" (2.90mm)
Operating Temperature : -40°C ~ 105°C
0
1279 in stock

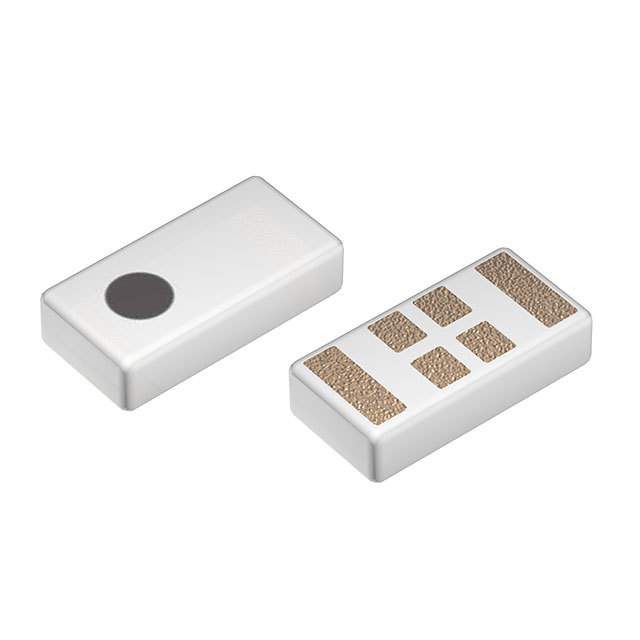

TDK Corporation
Manufacturer : TDK Corporation
Packaging : Cut Tape (CT)
Alternate Packaging
Series : ANT
Part Status : Active
Frequency Group : UHF (1 GHz ~ 2 GHz), UHF (2 GHz ~ 3 GHz)
Frequency (Center/Band) : 1.575GHz, 2.4GHz
Frequency Range : 1.574GHz ~ 1.576GHz, 2.4GHz ~ 2.484GHz
Antenna Type : Chip
Number of Bands : 2
VSWR : 4
Return Loss : -
Gain : -2.9dBic, 2.97dBi
Power - Max : -
Features : -
Termination : Solder
Ingress Protection : -
Mounting Type : Surface Mount
Height (Max) : 0.016" (0.40mm)
Applications : GPS
0
5714 in stock
TDK Corporation
Manufacturer : TDK Corporation
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Frequency Group : UHF (2 GHz ~ 3 GHz), SHF (f > 4 GHz)
Frequency (Center/Band) : 2.4GHz, 5.5GHz
Frequency Range : 2.4GHz ~ 2.485GHz, 5.15GHz ~ 5.85GHz
Antenna Type : Chip
Number of Bands : 2
VSWR : 6.5, 4
Return Loss : -
Gain : 2.27dBi, 5.18dBi
Power - Max : -
Features : -
Termination : Solder
Ingress Protection : -
Mounting Type : Surface Mount
Height (Max) : 0.016" (0.40mm)
Applications : WLAN
0
4253 in stock
TDK Corporation
Manufacturer : TDK Corporation
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Frequency Group : UHF (2 GHz ~ 3 GHz)
Frequency (Center/Band) : 2.4GHz
Frequency Range : 2.4GHz ~ 2.484GHz
Antenna Type : Chip
Number of Bands : 1
VSWR : 3
Return Loss : -
Gain : 1.6dBi
Power - Max : -
Features : -
Termination : Solder
Ingress Protection : -
Mounting Type : Surface Mount
Height (Max) : 0.016" (0.40mm)
Applications : -
0
6063 in stock
TDK Corporation
Manufacturer : TDK Corporation
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Frequency Group : UHF (2 GHz ~ 3 GHz)
Frequency (Center/Band) : 2.4GHz
Frequency Range : 2.4GHz ~ 2.484GHz
Antenna Type : Chip
Number of Bands : 1
VSWR : 3
Return Loss : -
Gain : 2.5dBi
Power - Max : -
Features : -
Termination : Solder
Ingress Protection : -
Mounting Type : Surface Mount
Height (Max) : 0.016" (0.40mm)
Applications : -
0
1265 in stock
TDK Corporation
Manufacturer : TDK Corporation
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Frequency Group : Wide Band
Frequency (Center/Band) : 1.575GHz, 2.4GHz, 5.5GHz
Frequency Range : 1.574GHz ~ 1.577GHz, 2.4GHz ~ 2.484GHz, 5.15GHz ~ 5.85GHz
Antenna Type : Chip
Number of Bands : 3
VSWR : 1.3, 1.8, 2.4
Return Loss : -
Gain : -
Power - Max : -
Features : -
Termination : Solder
Ingress Protection : -
Mounting Type : Surface Mount
Height (Max) : 0.024" (0.60mm)
Applications : -
0
3978 in stock
TDK Corporation
Manufacturer : TDK Corporation
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
Frequency Group : UHF (2 GHz ~ 3 GHz)
Frequency (Center/Band) : 2.4GHz
Frequency Range : 2.4GHz ~ 2.485GHz
Antenna Type : Chip
Number of Bands : 1
VSWR : 3.5
Return Loss : -
Gain : 2.32dBi
Power - Max : -
Features : -
Termination : Solder
Ingress Protection : -
Mounting Type : Surface Mount
Height (Max) : 0.073" (1.85mm)
Applications : -
0
100 in stock

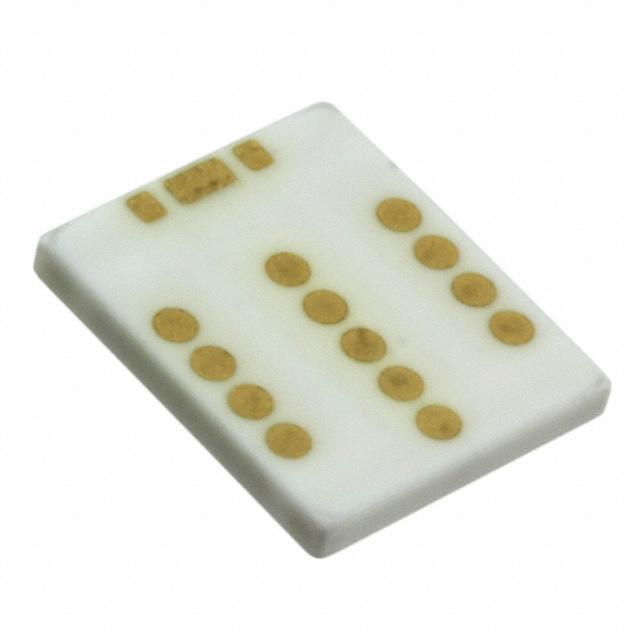

TDK Corporation
Manufacturer : TDK Corporation
Packaging : Tape & Reel (TR)
Alternate Packaging
Series : -
Part Status : Obsolete
Frequency Group : UHF (3 GHz ~ 4 GHz), SHF (f > 4 GHz)
Frequency (Center/Band) : 4.2GHz
Frequency Range : 3.1GHz ~ 5.2GHz
Antenna Type : Chip
Number of Bands : 1
VSWR : 3
Return Loss : -
Gain : 2dBi
Power - Max : -
Features : -
Termination : Solder
Ingress Protection : -
Mounting Type : Surface Mount
Height (Max) : 0.047" (1.20mm)
Applications : -
0
1500 in stock
TDK Corporation
Manufacturer : TDK Corporation
Packaging : Cut Tape (CT)
Alternate Packaging
Series : *
Part Status : Active
Frequency Group : -
Frequency (Center/Band) : -
Frequency Range : -
Antenna Type : -
Number of Bands : -
VSWR : -
Return Loss : -
Gain : -
Power - Max : -
Features : -
Termination : -
Ingress Protection : -
Mounting Type : -
Height (Max) : -
Applications : -
0
7795 in stock
TDK Corporation
Manufacturer : TDK Corporation
Packaging : Cut Tape (CT)
Alternate Packaging
Series : *
Part Status : Active
Frequency Group : -
Frequency (Center/Band) : -
Frequency Range : -
Antenna Type : -
Number of Bands : -
VSWR : -
Return Loss : -
Gain : -
Power - Max : -
Features : -
Termination : -
Ingress Protection : -
Mounting Type : -
Height (Max) : -
Applications : -
0
7890 in stock
TDK Corporation
Manufacturer : TDK Corporation
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Frequency Group : Wide Band
Frequency (Center/Band) : 1.575GHz, 2.4GHz, 5.5GHz
Frequency Range : 1.574GHz ~ 1.577GHz, 2.4GHz ~ 2.484GHz, 5.15GHz ~ 5.85GHz
Antenna Type : Chip
Number of Bands : 3
VSWR : 1.2, 1.8, 3.3
Return Loss : -
Gain : -
Power - Max : -
Features : -
Termination : Solder
Ingress Protection : -
Mounting Type : Surface Mount
Height (Max) : 0.016" (0.40mm)
Applications : -
0
7945 in stock
