TDK Corporation

TDK Corporation (Tokyo Denkikagaku Kogyo) was established in December 1935 with the aim of becoming the world's first commercial manufacturer of the magnetic material ferrite. TDK, since then, has continued ceaselessly to turn out a variety of products and services making use of its materials technology, centering on ferrite and ceramics, and processing technology, which draws out the properties of materials to the maximum degree. The founding spirit of TDK, "contribute to culture and industry through creativity," continues to this day to pulsate throughout the company.

Part Number
Manufacturer
Description
Unit Price
In Stock

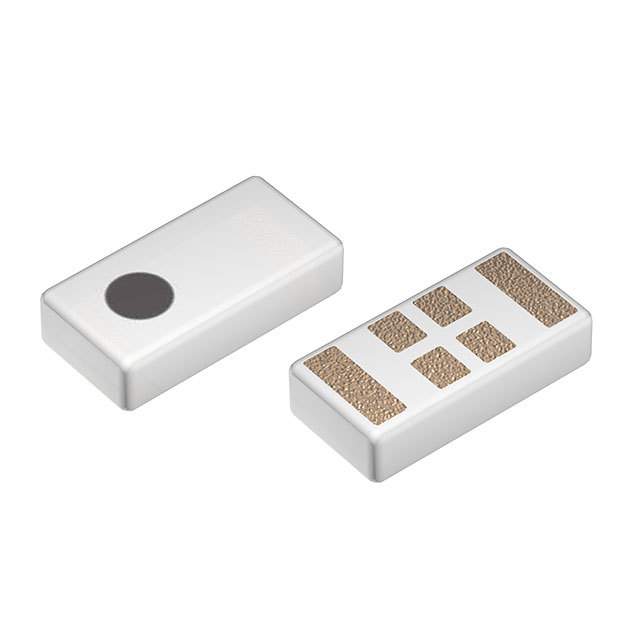

ANT162442DT-2001A2 ANT162442DT-2001A2

TDK Corporation
Manufacturer : TDK Corporation
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Frequency Group : UHF (2 GHz ~ 3 GHz), SHF (f > 4 GHz)
Frequency (Center/Band) : 2.4GHz, 5.5GHz
Frequency Range : 2.4GHz ~ 2.48GHz, 5.15GHz ~ 5.85GHz
Antenna Type : Chip
Number of Bands : 2
VSWR : 1.5
Return Loss : -
Gain : -
Power - Max : -
Features : -
Termination : Solder
Ingress Protection : -
Mounting Type : Surface Mount
Height (Max) : 0.016" (0.40mm)
Applications : -
0
4000 in stock

ANT162442DT-2200A1 ANT162442DT-2200A1

TDK Corporation
Manufacturer : TDK Corporation
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Frequency Group : Wide Band
Frequency (Center/Band) : 2.4GHz, 5.5GHz
Frequency Range : 2.4GHz ~ 2.485GHz, 5.15GHz ~ 5.85GHz
Antenna Type : Chip
Number of Bands : 2
VSWR : 1.5, 1.9
Return Loss : -
Gain : -
Power - Max : -
Features : -
Termination : Solder
Ingress Protection : -
Mounting Type : Surface Mount
Height (Max) : 0.016" (0.40mm)
Applications : -
0
8000 in stock

ANT165550ST-1003A1 ANT165550ST-1003A1

TDK Corporation
Manufacturer : TDK Corporation
Packaging : Cut Tape (CT)
Alternate Packaging
Series : *
Part Status : Active
Frequency Group : SHF (f > 4 GHz)
Frequency (Center/Band) : 5.6GHz
Frequency Range : 5.15GHz ~ 5.9GHz
Antenna Type : Chip
Number of Bands : 1
VSWR : 1.6
Return Loss : -
Gain : -
Power - Max : -
Features : -
Termination : Solder
Ingress Protection : -
Mounting Type : Surface Mount
Height (Max) : 0.016" (0.40mm)
Applications : WLAN
0
7831 in stock

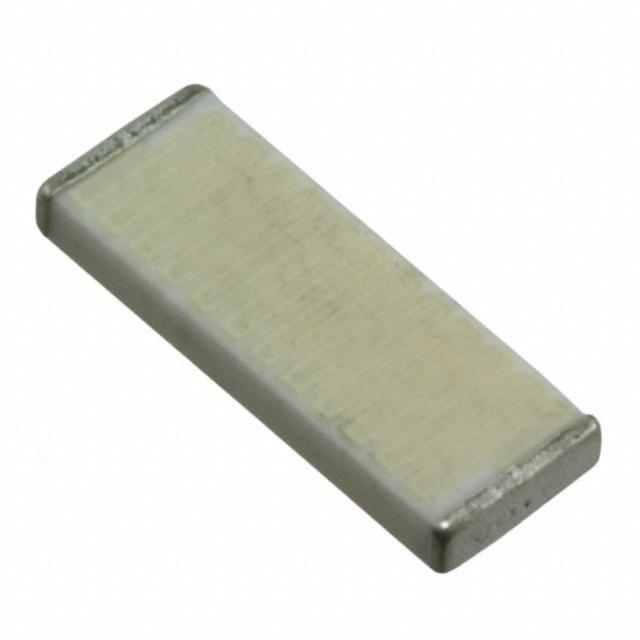

ANT8030-2R4-01A ANT8030-2R4-01A

TDK Corporation
Manufacturer : TDK Corporation
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
Frequency Group : UHF (2 GHz ~ 3 GHz)
Frequency (Center/Band) : 2.4GHz
Frequency Range : 2.4GHz ~ 2.5GHz
Antenna Type : Chip
Number of Bands : 1
VSWR : 2
Return Loss : -15dB
Gain : 2dBi
Power - Max : -
Features : -
Termination : Solder
Ingress Protection : -
Mounting Type : Surface Mount
Height (Max) : 0.039" (1.00mm)
Applications : Bluetooth, WLAN
0
100 in stock

ATB2012-50011M ATB2012-50011M

TDK Corporation
Manufacturer : TDK Corporation
Packaging : Tape & Reel (TR)
Series : -
Part Status : Not For New Designs
Frequency Range : 40MHz ~ 860MHz
Impedance - Unbalanced/Balanced : 50 / 50 Ohm
Phase Difference : -
Insertion Loss (Max) : 1.02dB
Return Loss (Min) : -
Package / Case : 0805 (2012 Metric)
Mounting Type : Surface Mount
0
100 in stock

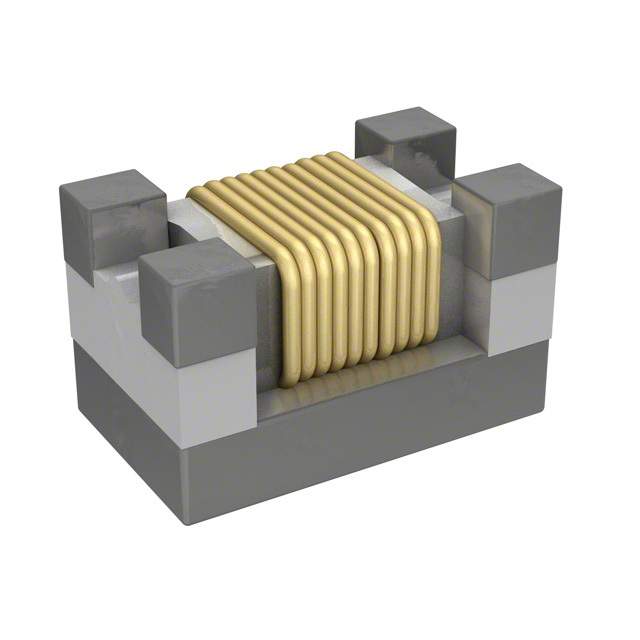

ATB2012-50011-T000 ATB2012-50011-T000

TDK Corporation
Manufacturer : TDK Corporation
Packaging : Cut Tape (CT)
Alternate Packaging
Series : ATB
Part Status : Active
Frequency Range : 40MHz ~ 860MHz
Impedance - Unbalanced/Balanced : 50 / 50 Ohm
Phase Difference : -
Insertion Loss (Max) : 2.5dB
Return Loss (Min) : -
Package / Case : 0805 (2012 Metric)
Mounting Type : Surface Mount
0
9611 in stock

ATB2012-75011M ATB2012-75011M

TDK Corporation
Manufacturer : TDK Corporation
Packaging : Tape & Reel (TR)
Series : -
Part Status : Not For New Designs
Frequency Range : 50MHz ~ 1.2GHz
Impedance - Unbalanced/Balanced : 75 / 75 Ohm
Phase Difference : -
Insertion Loss (Max) : 0.8dB
Return Loss (Min) : -
Package / Case : 0805 (2012 Metric)
Mounting Type : Surface Mount
0
100 in stock

ATB2012-75011-T000 ATB2012-75011-T000

TDK Corporation
Manufacturer : TDK Corporation
Packaging : Cut Tape (CT)
Alternate Packaging
Series : ATB
Part Status : Active
Frequency Range : 50MHz ~ 1.2GHz
Impedance - Unbalanced/Balanced : 75 / 75 Ohm
Phase Difference : -
Insertion Loss (Max) : 1.2dB
Return Loss (Min) : -
Package / Case : 0805 (2012 Metric)
Mounting Type : Surface Mount
0
26068 in stock

ATB2012E-20011-T06 ATB2012E-20011-T06

TDK Corporation
Manufacturer : TDK Corporation
Packaging : Cut Tape (CT)
Alternate Packaging
Series : ATB
Part Status : Active
Frequency Range : 13.56MHz
Impedance - Unbalanced/Balanced : 20 / 20 Ohm
Phase Difference : -
Insertion Loss (Max) : 1.0dB
Return Loss (Min) : -
Package / Case : 0805 (2012 Metric)
Mounting Type : Surface Mount
0
11810 in stock

ATB2012E-50011M-T01 ATB2012E-50011M-T01

TDK Corporation
Manufacturer : TDK Corporation
Packaging : Cut Tape (CT)
Alternate Packaging
Series : ATB
Part Status : Active
Frequency Range : 400MHz ~ 1.8GHz
Impedance - Unbalanced/Balanced : 50 / 50 Ohm
Phase Difference : -
Insertion Loss (Max) : 2.2dB
Return Loss (Min) : -
Package / Case : 0805 (2012 Metric)
Mounting Type : Surface Mount
0
20859 in stock

ATB2012E-50012M-T01 ATB2012E-50012M-T01

TDK Corporation
Manufacturer : TDK Corporation
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Frequency Range : 400MHz ~ 1.8GHz
Impedance - Unbalanced/Balanced : 50 / 100 Ohm
Phase Difference : -
Insertion Loss (Max) : 1.0dB
Return Loss (Min) : -
Package / Case : 0805 (2012 Metric)
Mounting Type : Surface Mount
0
1959 in stock

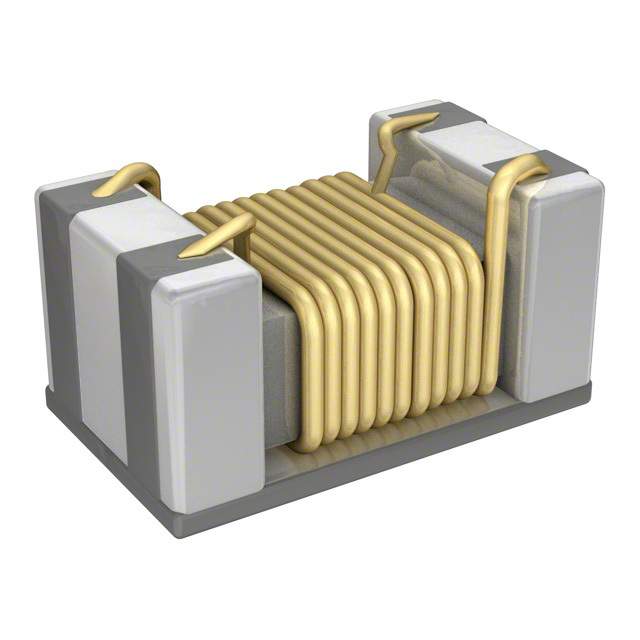

ATB2012E-75011M-T000 ATB2012E-75011M-T000

TDK Corporation
Manufacturer : TDK Corporation
Packaging : Cut Tape (CT)
Alternate Packaging
Series : ATB
Part Status : Active
Frequency Range : 400MHz ~ 1.8GHz
Impedance - Unbalanced/Balanced : 75 / 75 Ohm
Phase Difference : -
Insertion Loss (Max) : 2.0dB
Return Loss (Min) : -
Package / Case : 0805 (2012 Metric)
Mounting Type : Surface Mount
0
1498 in stock
