Thomas Research Products
- TRP provides complete component solutions for OEMs using LEDs for lighting: a comprehensive line of LED Drivers and LED Light Engines, a range of cost-effective Surge Protectors that offers a superior level protection for LED lighting from dangerous powerline transients, Step-Down Transformers for lighting and Wireless Lighting Controls. TRP's Norlux brand custom services include design and manufacturing for Light Engines and Fixtures. Electronic lighting components from TRP provide high quality, long life, high efficiency, and are cost-competitive.
Part Number
Manufacturer
Description
Unit Price
In Stock

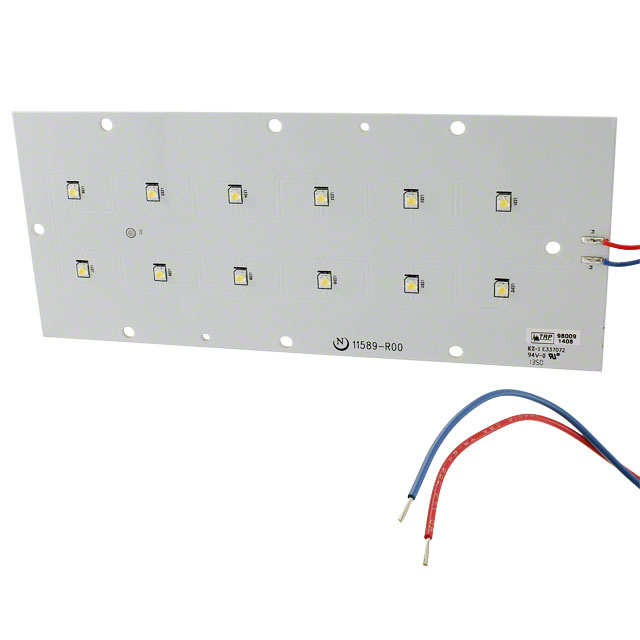

Thomas Research Products
Manufacturer : Thomas Research Products
Packaging : Box
Series : Canopy
Part Status : Obsolete
Type : LED Module
Color : White, Cool
CCT (K) : 5000K
Wavelength : -
Configuration : Rectangle
Flux @ Current/Temperature - Test : 3420 lm (Typ)
Current - Test : 700mA
Temperature - Test : 25°C
Voltage - Forward (Vf) (Typ) : 37V
Lumens/Watt @ Current - Test : 132 lm/W
Current - Max : -
CRI (Color Rendering Index) : 70 (Typ)
Viewing Angle : 120°
Features : -
Size / Dimension : 81.28mm L x 177.80mm W
Height : 3.56mm
Light Emitting Surface (LES) : -
Lens Type : Flat
0
100 in stock

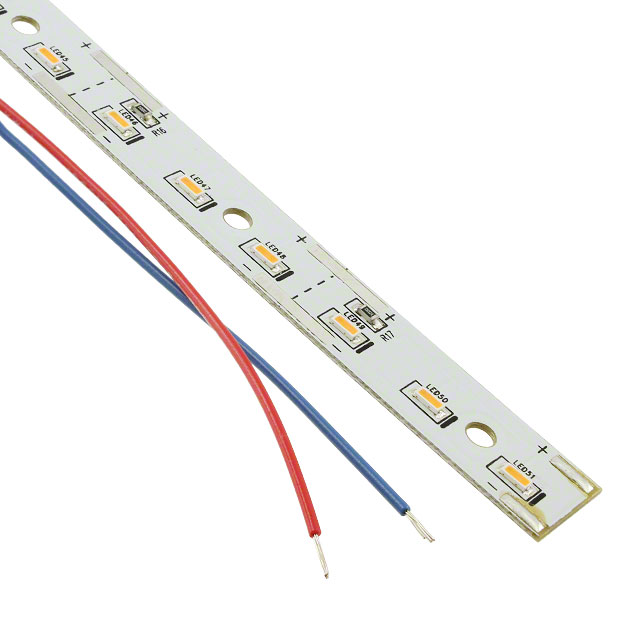

Thomas Research Products
Manufacturer : Thomas Research Products
Packaging : Box
Series : Linear
Part Status : Obsolete
Type : LED Module
Color : White, Warm
CCT (K) : 3000K
Wavelength : -
Configuration : Linear Light Strip
Flux @ Current/Temperature - Test : 465 lm (Typ)
Current - Test : 445mA
Temperature - Test : 25°C
Voltage - Forward (Vf) (Typ) : 12V
Lumens/Watt @ Current - Test : 87 lm/W
Current - Max : -
CRI (Color Rendering Index) : 85 (Typ)
Viewing Angle : 120°
Features : -
Size / Dimension : 575.82mm L x 11.11mm W
Height : 12.95mm
Light Emitting Surface (LES) : -
Lens Type : Flat
0
100 in stock

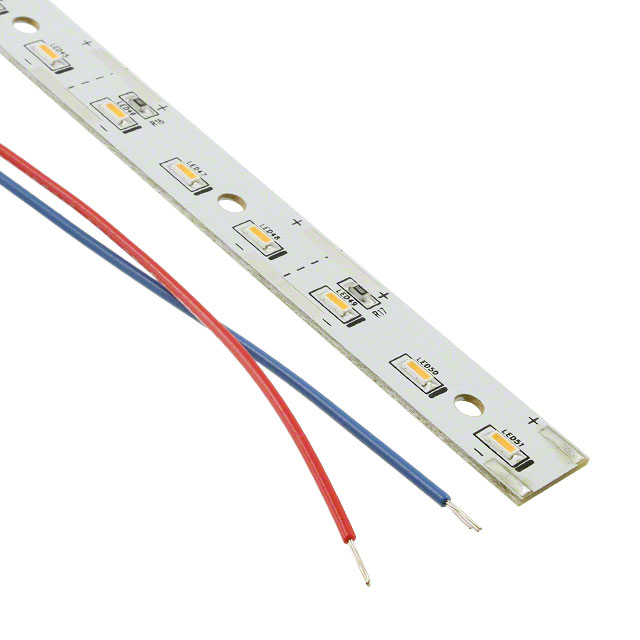

Thomas Research Products
Manufacturer : Thomas Research Products
Packaging : Box
Series : Linear
Part Status : Obsolete
Type : LED Module
Color : White, Warm
CCT (K) : 3500K
Wavelength : -
Configuration : Linear Light Strip
Flux @ Current/Temperature - Test : 465 lm (Typ)
Current - Test : 445mA
Temperature - Test : 25°C
Voltage - Forward (Vf) (Typ) : 12V
Lumens/Watt @ Current - Test : 87 lm/W
Current - Max : -
CRI (Color Rendering Index) : 85 (Typ)
Viewing Angle : 120°
Features : -
Size / Dimension : 575.82mm L x 11.11mm W
Height : 12.95mm
Light Emitting Surface (LES) : -
Lens Type : Flat
0
100 in stock

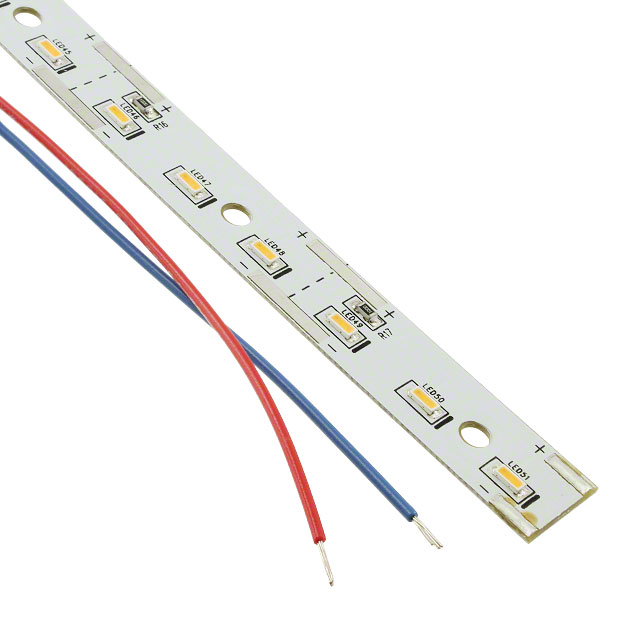

Thomas Research Products
Manufacturer : Thomas Research Products
Packaging : Box
Series : Linear
Part Status : Obsolete
Type : LED Module
Color : White, Neutral
CCT (K) : 4000K
Wavelength : -
Configuration : Linear Light Strip
Flux @ Current/Temperature - Test : 504 lm (Typ)
Current - Test : 445mA
Temperature - Test : -
Voltage - Forward (Vf) (Typ) : 12V
Lumens/Watt @ Current - Test : 94 lm/W
Current - Max : -
CRI (Color Rendering Index) : 85 (Typ)
Viewing Angle : 120°
Features : -
Size / Dimension : 575.82mm L x 11.11mm W
Height : 12.95mm
Light Emitting Surface (LES) : -
Lens Type : Flat
0
100 in stock

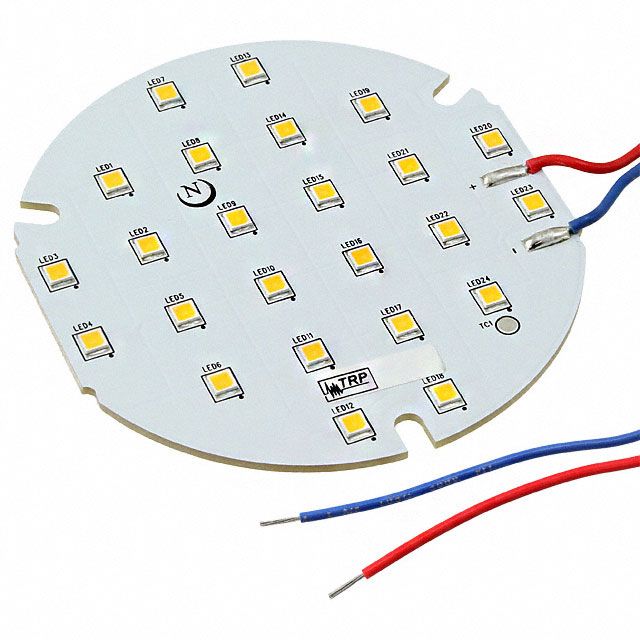

Thomas Research Products
Manufacturer : Thomas Research Products
Packaging : Box
Series : Round
Part Status : Obsolete
Type : LED Module
Color : White, Warm
CCT (K) : 2700K
Wavelength : -
Configuration : Round
Flux @ Current/Temperature - Test : 769 lm (Typ)
Current - Test : 350mA
Temperature - Test : 25°C
Voltage - Forward (Vf) (Typ) : 17.9V
Lumens/Watt @ Current - Test : 123 lm/W
Current - Max : -
CRI (Color Rendering Index) : 83 (Typ)
Viewing Angle : 120°
Features : -
Size / Dimension : 76.20mm Diameter
Height : 2.08mm
Light Emitting Surface (LES) : -
Lens Type : Flat
0
100 in stock
Thomas Research Products
Manufacturer : Thomas Research Products
Packaging : Box
Series : Round
Part Status : Obsolete
Type : LED Module
Color : White, Warm
CCT (K) : 3000K
Wavelength : -
Configuration : Round
Flux @ Current/Temperature - Test : 820 lm (Typ)
Current - Test : 350mA
Temperature - Test : 25°C
Voltage - Forward (Vf) (Typ) : 17.9V
Lumens/Watt @ Current - Test : 131 lm/W
Current - Max : -
CRI (Color Rendering Index) : 83 (Typ)
Viewing Angle : 120°
Features : -
Size / Dimension : 76.20mm Diameter
Height : 2.08mm
Light Emitting Surface (LES) : -
Lens Type : Flat
0
100 in stock
Thomas Research Products
Manufacturer : Thomas Research Products
Packaging : Box
Series : Round
Part Status : Obsolete
Type : LED Module
Color : White, Warm
CCT (K) : 3500K
Wavelength : -
Configuration : Round
Flux @ Current/Temperature - Test : 860 lm (Typ)
Current - Test : 350mA
Temperature - Test : 25°C
Voltage - Forward (Vf) (Typ) : 17.9V
Lumens/Watt @ Current - Test : 137 lm/W
Current - Max : -
CRI (Color Rendering Index) : 83 (Typ)
Viewing Angle : 120°
Features : -
Size / Dimension : 76.20mm Diameter
Height : 2.08mm
Light Emitting Surface (LES) : -
Lens Type : Flat
0
100 in stock
Thomas Research Products
Manufacturer : Thomas Research Products
Packaging : Box
Series : Round
Part Status : Obsolete
Type : LED Module
Color : White, Neutral
CCT (K) : 4000K
Wavelength : -
Configuration : Round
Flux @ Current/Temperature - Test : 883 lm (Typ)
Current - Test : 350mA
Temperature - Test : 25°C
Voltage - Forward (Vf) (Typ) : 17.9V
Lumens/Watt @ Current - Test : 141 lm/W
Current - Max : -
CRI (Color Rendering Index) : 83 (Typ)
Viewing Angle : 120°
Features : -
Size / Dimension : 76.20mm Diameter
Height : 2.08mm
Light Emitting Surface (LES) : -
Lens Type : Flat
0
100 in stock

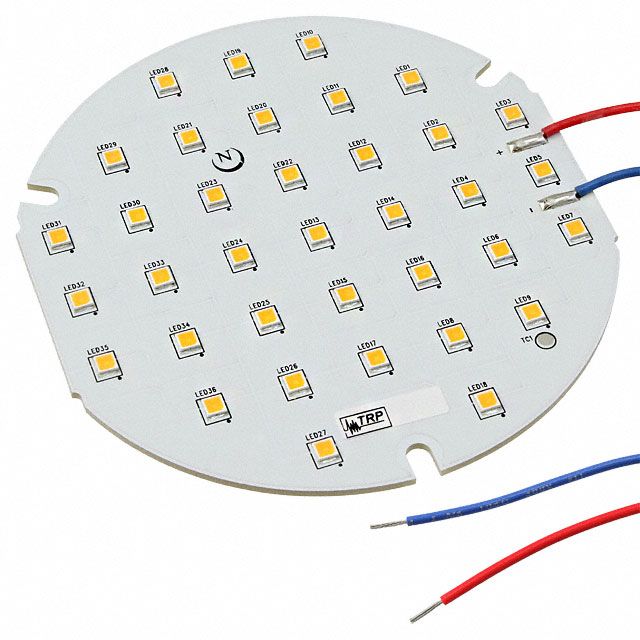

Thomas Research Products
Manufacturer : Thomas Research Products
Packaging : Box
Series : Round
Part Status : Obsolete
Type : LED Module
Color : White, Warm
CCT (K) : 2700K
Wavelength : -
Configuration : Round
Flux @ Current/Temperature - Test : 1150 lm (Typ)
Current - Test : 350mA
Temperature - Test : 25°C
Voltage - Forward (Vf) (Typ) : 26.8V
Lumens/Watt @ Current - Test : 123 lm/W
Current - Max : -
CRI (Color Rendering Index) : 83 (Typ)
Viewing Angle : 120°
Features : -
Size / Dimension : 93.98mm Diameter
Height : 2.08mm
Light Emitting Surface (LES) : -
Lens Type : Flat
0
100 in stock
Thomas Research Products
Manufacturer : Thomas Research Products
Packaging : Box
Series : Round
Part Status : Obsolete
Type : LED Module
Color : White, Warm
CCT (K) : 3000K
Wavelength : -
Configuration : Round
Flux @ Current/Temperature - Test : 1230 lm (Typ)
Current - Test : 350mA
Temperature - Test : 25°C
Voltage - Forward (Vf) (Typ) : 26.8V
Lumens/Watt @ Current - Test : 131 lm/W
Current - Max : -
CRI (Color Rendering Index) : 83 (Typ)
Viewing Angle : 120°
Features : -
Size / Dimension : 93.98mm Diameter
Height : 2.08mm
Light Emitting Surface (LES) : -
Lens Type : Flat
0
100 in stock
Thomas Research Products
Manufacturer : Thomas Research Products
Packaging : Box
Series : Round
Part Status : Obsolete
Type : LED Module
Color : White, Warm
CCT (K) : 3500K
Wavelength : -
Configuration : Round
Flux @ Current/Temperature - Test : 1290 lm (Typ)
Current - Test : 350mA
Temperature - Test : 25°C
Voltage - Forward (Vf) (Typ) : 26.8V
Lumens/Watt @ Current - Test : 138 lm/W
Current - Max : -
CRI (Color Rendering Index) : 83 (Typ)
Viewing Angle : 120°
Features : -
Size / Dimension : 93.98mm Diameter
Height : 2.08mm
Light Emitting Surface (LES) : -
Lens Type : Flat
0
100 in stock
Thomas Research Products
Manufacturer : Thomas Research Products
Packaging : Box
Series : Round
Part Status : Obsolete
Type : LED Module
Color : White, Neutral
CCT (K) : 4000K
Wavelength : -
Configuration : Round
Flux @ Current/Temperature - Test : 1320 lm (Typ)
Current - Test : 350mA
Temperature - Test : 25°C
Voltage - Forward (Vf) (Typ) : 26.8V
Lumens/Watt @ Current - Test : 141 lm/W
Current - Max : -
CRI (Color Rendering Index) : 83 (Typ)
Viewing Angle : 120°
Features : -
Size / Dimension : 93.98mm Diameter
Height : 2.08mm
Light Emitting Surface (LES) : -
Lens Type : Flat
0
100 in stock
