Thomas Research Products
- TRP provides complete component solutions for OEMs using LEDs for lighting: a comprehensive line of LED Drivers and LED Light Engines, a range of cost-effective Surge Protectors that offers a superior level protection for LED lighting from dangerous powerline transients, Step-Down Transformers for lighting and Wireless Lighting Controls. TRP's Norlux brand custom services include design and manufacturing for Light Engines and Fixtures. Electronic lighting components from TRP provide high quality, long life, high efficiency, and are cost-competitive.
Part Number
Manufacturer
Description
Unit Price
In Stock

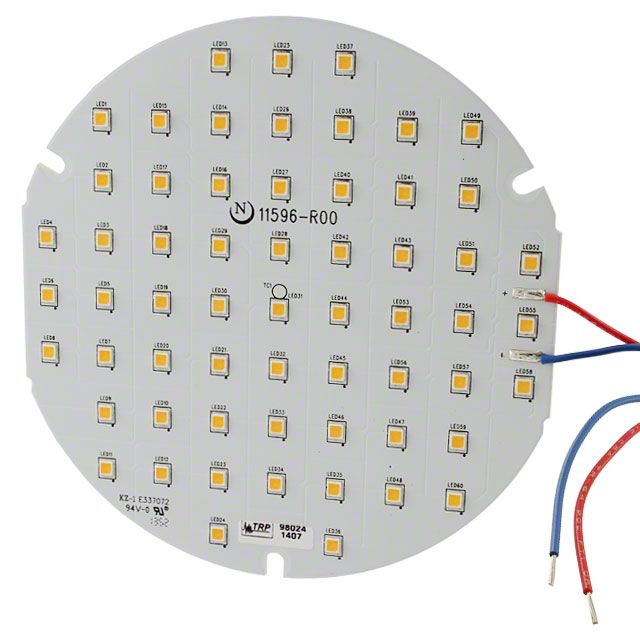

Thomas Research Products
Manufacturer : Thomas Research Products
Packaging : Box
Series : Round
Part Status : Obsolete
Type : LED Module
Color : White, Warm
CCT (K) : 2700K
Wavelength : -
Configuration : Round
Flux @ Current/Temperature - Test : 1970 lm (Typ)
Current - Test : 450mA
Temperature - Test : 25°C
Voltage - Forward (Vf) (Typ) : 35.9V
Lumens/Watt @ Current - Test : 122 lm/W
Current - Max : -
CRI (Color Rendering Index) : 83 (Typ)
Viewing Angle : 120°
Features : -
Size / Dimension : 119.38mm Diameter
Height : 2.08mm
Light Emitting Surface (LES) : -
Lens Type : Flat
0
100 in stock

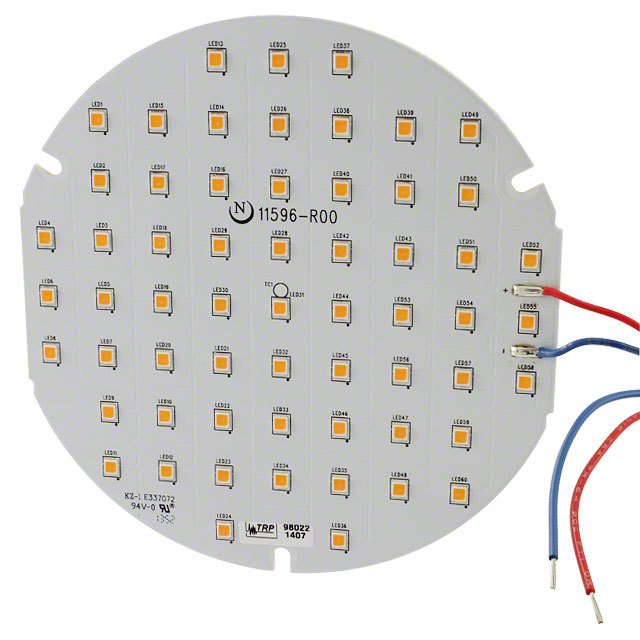

Thomas Research Products
Manufacturer : Thomas Research Products
Packaging : Box
Series : Round
Part Status : Obsolete
Type : LED Module
Color : White, Warm
CCT (K) : 3000K
Wavelength : -
Configuration : Round
Flux @ Current/Temperature - Test : 2100 lm (Typ)
Current - Test : 450mA
Temperature - Test : 25°C
Voltage - Forward (Vf) (Typ) : 35.9V
Lumens/Watt @ Current - Test : 130 lm/W
Current - Max : -
CRI (Color Rendering Index) : 83 (Typ)
Viewing Angle : 120°
Features : -
Size / Dimension : 119.38mm Diameter
Height : 2.08mm
Light Emitting Surface (LES) : -
Lens Type : Flat
0
100 in stock

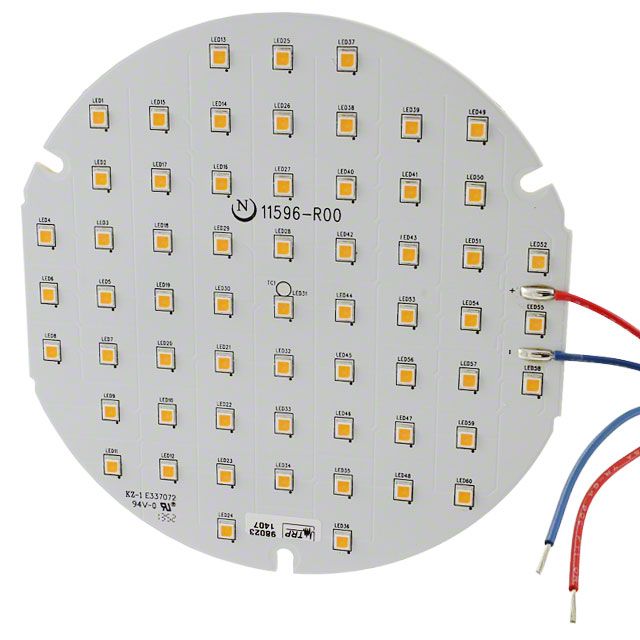

Thomas Research Products
Manufacturer : Thomas Research Products
Packaging : Box
Series : Round
Part Status : Obsolete
Type : LED Module
Color : White, Warm
CCT (K) : 3500K
Wavelength : -
Configuration : Round
Flux @ Current/Temperature - Test : 2200 lm (Typ)
Current - Test : 450mA
Temperature - Test : 25°C
Voltage - Forward (Vf) (Typ) : 35.9V
Lumens/Watt @ Current - Test : 136 lm/W
Current - Max : -
CRI (Color Rendering Index) : 83 (Typ)
Viewing Angle : 120°
Features : -
Size / Dimension : 119.38mm Diameter
Height : 2.08mm
Light Emitting Surface (LES) : -
Lens Type : Flat
0
100 in stock

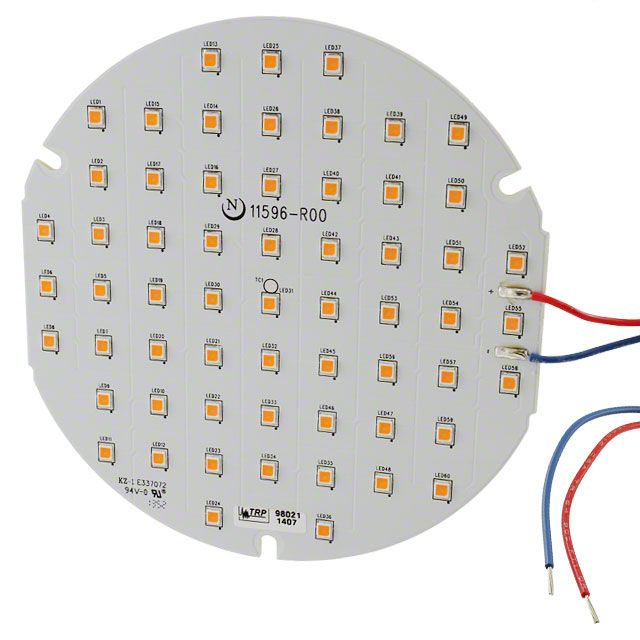

Thomas Research Products
Manufacturer : Thomas Research Products
Packaging : Box
Series : Round
Part Status : Obsolete
Type : LED Module
Color : White, Neutral
CCT (K) : 4000K
Wavelength : -
Configuration : Round
Flux @ Current/Temperature - Test : 2265 lm (Typ)
Current - Test : 450mA
Temperature - Test : 25°C
Voltage - Forward (Vf) (Typ) : 35.9V
Lumens/Watt @ Current - Test : 140 lm/W
Current - Max : -
CRI (Color Rendering Index) : 83 (Typ)
Viewing Angle : 120°
Features : -
Size / Dimension : 119.38mm Diameter
Height : 2.08mm
Light Emitting Surface (LES) : -
Lens Type : Flat
0
100 in stock

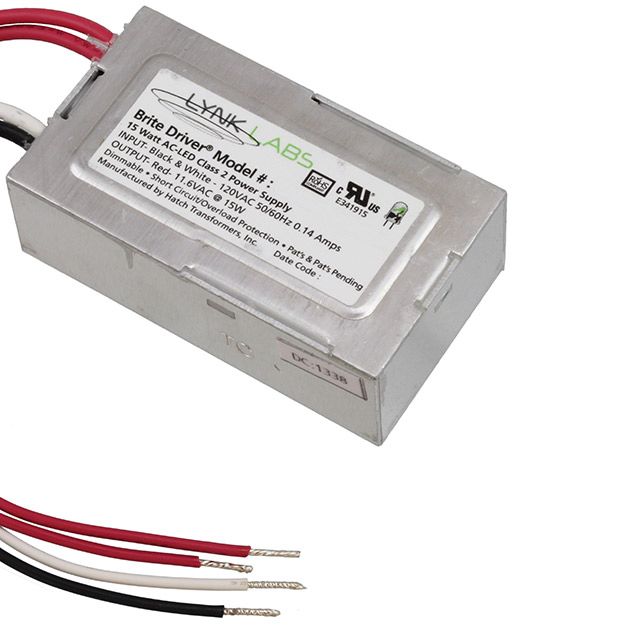

Thomas Research Products
Manufacturer : Thomas Research Products
Series : -
Part Status : Obsolete
Type : Constant Voltage
Topology : AC AC Converter
Number of Outputs : 1
Voltage - Input (Min) : -
Voltage - Input (Max) : 120VAC
Voltage - Output : 12VAC
Current - Output (Max) : 1.25A
Power (Watts) : 15W
Voltage - Isolation : -
Dimming : Triac
Features : SCP
Ratings : -
Operating Temperature : -
Efficiency : -
Termination Style : Wire Leads
Size / Dimension : -
0
100 in stock
Thomas Research Products
Manufacturer : Thomas Research Products
Series : -
Part Status : Obsolete
Type : Constant Voltage
Topology : AC AC Converter
Number of Outputs : 1
Voltage - Input (Min) : -
Voltage - Input (Max) : 120VAC
Voltage - Output : 12VAC
Current - Output (Max) : 2.5A
Power (Watts) : 30W
Voltage - Isolation : -
Dimming : Triac
Features : SCP
Ratings : -
Operating Temperature : -
Efficiency : -
Termination Style : Wire Leads
Size / Dimension : -
0
100 in stock
Thomas Research Products
Manufacturer : Thomas Research Products
Series : -
Part Status : Obsolete
Type : Constant Voltage
Topology : AC AC Converter
Number of Outputs : 1
Voltage - Input (Min) : -
Voltage - Input (Max) : 120VAC
Voltage - Output : 12VAC
Current - Output (Max) : 5A
Power (Watts) : 60W
Voltage - Isolation : -
Dimming : Triac
Features : SCP
Ratings : -
Operating Temperature : -
Efficiency : -
Termination Style : Wire Leads
Size / Dimension : -
0
100 in stock

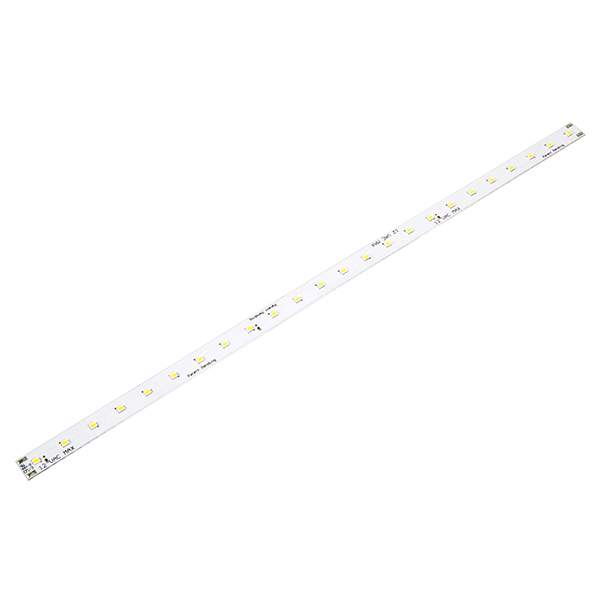

Thomas Research Products
Manufacturer : Thomas Research Products
Packaging : Tray
Series : -
Part Status : Obsolete
Type : LED Engine
Color : White, Warm
CCT (K) : 3000K
Wavelength : -
Configuration : Linear Light Strip
Flux @ Current/Temperature - Test : 726 lm (Typ)
Current - Test : 833mA
Temperature - Test : 25°C
Voltage - Forward (Vf) (Typ) : 12VAC
Lumens/Watt @ Current - Test : 73 lm/W
Current - Max : 1.3A
CRI (Color Rendering Index) : -
Viewing Angle : 120°
Features : With Connector
Size / Dimension : 254.00mm L x 10.00mm W
Height : 5.50mm
Light Emitting Surface (LES) : -
Lens Type : Flat
0
100 in stock

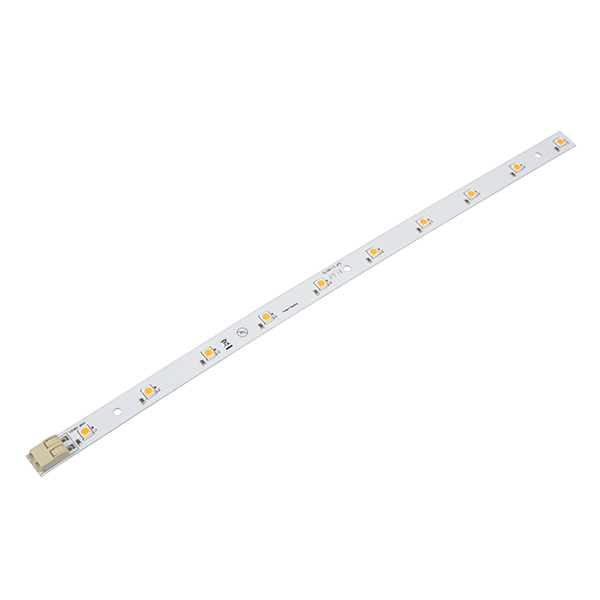

Thomas Research Products
Manufacturer : Thomas Research Products
Packaging : Tray
Series : -
Part Status : Obsolete
Type : LED Engine
Color : White, Warm
CCT (K) : 3000K
Wavelength : -
Configuration : Linear Light Strip
Flux @ Current/Temperature - Test : 779 lm (Typ)
Current - Test : 1.05A
Temperature - Test : 25°C
Voltage - Forward (Vf) (Typ) : 12VAC
Lumens/Watt @ Current - Test : 62 lm/W
Current - Max : 1.17A
CRI (Color Rendering Index) : -
Viewing Angle : 120°
Features : -
Size / Dimension : 254.00mm L x 9.80mm W
Height : 2.00mm
Light Emitting Surface (LES) : -
Lens Type : Flat
0
100 in stock

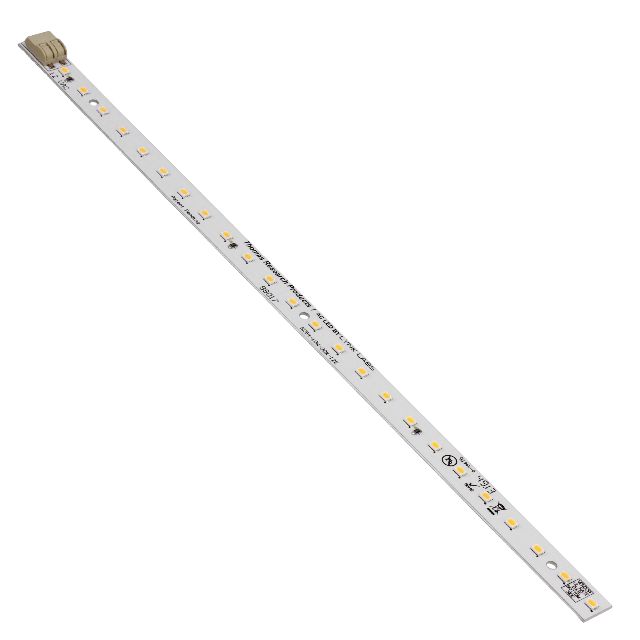

Thomas Research Products
Manufacturer : Thomas Research Products
Packaging : Tray
Series : -
Part Status : Obsolete
Type : LED Engine
Color : White, Warm
CCT (K) : 3000K
Wavelength : -
Configuration : Linear Light Strip
Flux @ Current/Temperature - Test : 390 lm (Typ)
Current - Test : 465mA
Temperature - Test : 25°C
Voltage - Forward (Vf) (Typ) : 11.7 VAC
Lumens/Watt @ Current - Test : 72 lm/W
Current - Max : 630mA
CRI (Color Rendering Index) : -
Viewing Angle : 120°
Features : -
Size / Dimension : 295.00mm L x 10.00mm W
Height : 2.00mm
Light Emitting Surface (LES) : -
Lens Type : Flat
0
100 in stock
Thomas Research Products
Manufacturer : Thomas Research Products
Packaging : Tray
Series : -
Part Status : Obsolete
Type : LED Engine
Color : White, Neutral
CCT (K) : 4000K
Wavelength : -
Configuration : Linear Light Strip
Flux @ Current/Temperature - Test : 326 lm (Typ)
Current - Test : 465mA
Temperature - Test : 25°C
Voltage - Forward (Vf) (Typ) : 11.7 VAC
Lumens/Watt @ Current - Test : 60 lm/W
Current - Max : 630mA
CRI (Color Rendering Index) : -
Viewing Angle : 120°
Features : -
Size / Dimension : 295.00mm L x 10.00mm W
Height : 2.00mm
Light Emitting Surface (LES) : -
Lens Type : Flat
0
100 in stock
Thomas Research Products
Manufacturer : Thomas Research Products
Packaging : Tray
Series : -
Part Status : Obsolete
Type : LED Engine
Color : White, Warm
CCT (K) : 2700K
Wavelength : -
Configuration : Linear Light Strip
Flux @ Current/Temperature - Test : 365 lm (Typ)
Current - Test : 425mA
Temperature - Test : 25°C
Voltage - Forward (Vf) (Typ) : 12VAC
Lumens/Watt @ Current - Test : 72 lm/W
Current - Max : 560mA
CRI (Color Rendering Index) : -
Viewing Angle : 120°
Features : -
Size / Dimension : 295.00mm L x 10.00mm W
Height : 2.00mm
Light Emitting Surface (LES) : -
Lens Type : Flat
0
100 in stock
