Triad Magnetics

- For over 70 years, consumer, commercial and industrial electronic devices have relied on innovative magnetics technology from Triad Magnetics. We offer solutions for power conversion, filtering, isolation and more. Our products include transformers for audio, gate drive, power, medical/dental, wall-mount and plug-in applications; as well as inductors for current sense, common mode, toroidal, filtering and power applications.

Today, you’ll find a wide range of Triad magnetic components in advanced computers, telecommunication systems, automation controls, audio devices and other equipment. Lewis W. Howard founded Triad during the 1940s in Venice, California. He was a UC Berkley graduate, a Wescon Trade Show cofounder and was recognized as an IEEE life member.

Part Number
Manufacturer
Description
Unit Price
In Stock

WSU060-1250-13 WSU060-1250-13

Triad Magnetics
Manufacturer : Triad Magnetics
Series : WSU
Part Status : Active
Region Utilized : North America
Form : Wall Mount
Input Type : Fixed Blade
Voltage - Input : 90 ~ 264 VAC
Voltage - Output : 5.9V
Current - Output (Max) : 1.25A
Power (Watts) : 7.4W
No Load Power Consumption : 100mW (Max)
Polarization : Positive Center
Applications : ITE (Commercial)
Efficiency : Level VI
Operating Temperature : 0°C ~ 40°C
Output Connector : Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 11.0mm
Size / Dimension : 2.80" L x 1.69" W x 1.18" H (71.0mm x 43.0mm x 30.0mm)
Approvals : cETLus
0
187 in stock

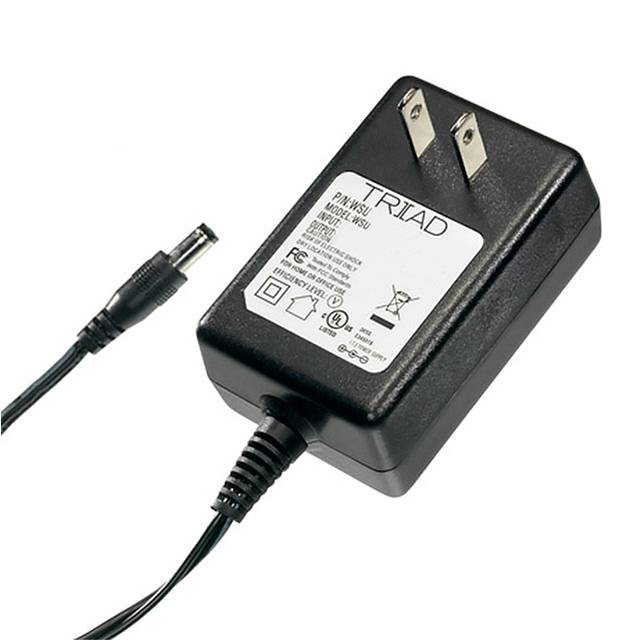

WSU060-1250-R WSU060-1250-R

Triad Magnetics
Manufacturer : Triad Magnetics
Series : WSU
Part Status : Active
Region Utilized : North America
Form : Wall Mount
Input Type : Fixed Blade
Voltage - Input : 90 ~ 264 VAC
Voltage - Output : 5.9V
Current - Output (Max) : 1.25A
Power (Watts) : 7.4W
No Load Power Consumption : 100mW (Max)
Polarization : Negative Center
Applications : ITE (Commercial)
Efficiency : Level VI
Operating Temperature : 0°C ~ 40°C
Output Connector : Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm
Size / Dimension : 2.80" L x 1.69" W x 1.18" H (71.0mm x 43.0mm x 30.0mm)
Approvals : cETLus
0
50 in stock

WSU060-1250-R13 WSU060-1250-R13

Triad Magnetics
Manufacturer : Triad Magnetics
Series : WSU
Part Status : Active
Region Utilized : North America
Form : Wall Mount
Input Type : Fixed Blade
Voltage - Input : 90 ~ 264 VAC
Voltage - Output : 5.9V
Current - Output (Max) : 1.25A
Power (Watts) : 7.4W
No Load Power Consumption : 100mW (Max)
Polarization : Negative Center
Applications : ITE (Commercial)
Efficiency : Level VI
Operating Temperature : 0°C ~ 40°C
Output Connector : Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 11.0mm
Size / Dimension : 2.80" L x 1.69" W x 1.18" H (71.0mm x 43.0mm x 30.0mm)
Approvals : cETLus
0
156 in stock

WSU060-2000 WSU060-2000

Triad Magnetics
Manufacturer : Triad Magnetics
Series : WSU
Part Status : Active
Region Utilized : North America
Form : Wall Mount
Input Type : Fixed Blade
Voltage - Input : 90 ~ 264 VAC
Voltage - Output : 5.9V
Current - Output (Max) : 2A
Power (Watts) : 12W
No Load Power Consumption : 100mW (Max)
Polarization : Positive Center
Applications : ITE (Commercial)
Efficiency : Level VI
Operating Temperature : 0°C ~ 40°C
Output Connector : Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm
Size / Dimension : 2.80" L x 1.69" W x 1.18" H (71.0mm x 43.0mm x 30.0mm)
Approvals : cETLus
0
164 in stock

WSU060-2000-13 WSU060-2000-13

Triad Magnetics
Manufacturer : Triad Magnetics
Series : WSU
Part Status : Active
Region Utilized : North America
Form : Wall Mount
Input Type : Fixed Blade
Voltage - Input : 90 ~ 264 VAC
Voltage - Output : 5.9V
Current - Output (Max) : 2A
Power (Watts) : 12W
No Load Power Consumption : 100mW (Max)
Polarization : Positive Center
Applications : ITE (Commercial)
Efficiency : Level VI
Operating Temperature : 0°C ~ 40°C
Output Connector : Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 11.0mm
Size / Dimension : 2.80" L x 1.69" W x 1.18" H (71.0mm x 42.8mm x 30.0mm)
Approvals : cETLus
0
146 in stock

WSU060-2000-R WSU060-2000-R

Triad Magnetics
Manufacturer : Triad Magnetics
Series : WSU
Part Status : Active
Region Utilized : North America
Form : Wall Mount
Input Type : Fixed Blade
Voltage - Input : 90 ~ 264 VAC
Voltage - Output : 5.9V
Current - Output (Max) : 2A
Power (Watts) : 12W
No Load Power Consumption : 100mW (Max)
Polarization : Negative Center
Applications : ITE (Commercial)
Efficiency : Level VI
Operating Temperature : 0°C ~ 40°C
Output Connector : Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm
Size / Dimension : 2.80" L x 1.69" W x 1.18" H (71.0mm x 43.0mm x 30.0mm)
Approvals : cETLus
0
477 in stock

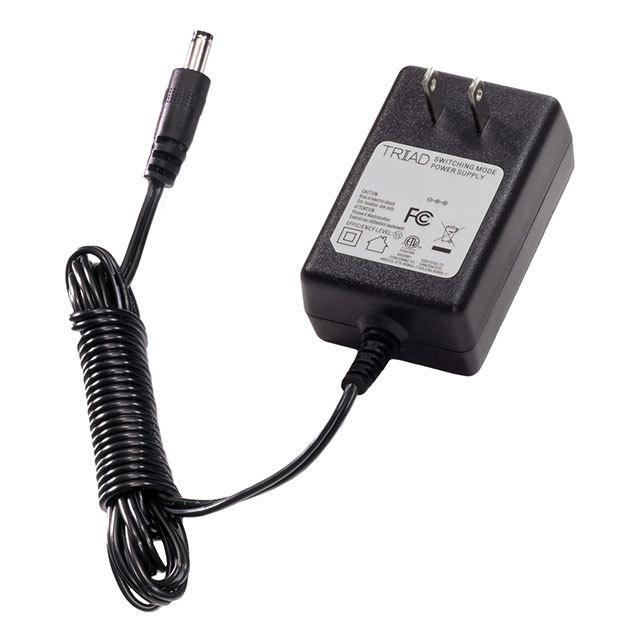

WSU060-2000-R13 WSU060-2000-R13

Triad Magnetics
Manufacturer : Triad Magnetics
Series : WSU
Part Status : Active
Region Utilized : North America
Form : Wall Mount
Input Type : Fixed Blade
Voltage - Input : 90 ~ 264 VAC
Voltage - Output : 5.9V
Current - Output (Max) : 2A
Power (Watts) : 12W
No Load Power Consumption : 100mW (Max)
Polarization : Negative Center
Applications : ITE (Commercial)
Efficiency : Level VI
Operating Temperature : 0°C ~ 40°C
Output Connector : Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 11.0mm
Size / Dimension : 2.80" L x 1.69" W x 1.18" H (71.0mm x 42.8mm x 30.0mm)
Approvals : cETLus
0
65 in stock

WSU060-3000 WSU060-3000

Triad Magnetics
Manufacturer : Triad Magnetics
Series : WSU
Part Status : Active
Region Utilized : North America
Form : Wall Mount
Input Type : Fixed Blade
Voltage - Input : 90 ~ 264 VAC
Voltage - Output : 5.9V
Current - Output (Max) : 3A
Power (Watts) : 18W
No Load Power Consumption : 100mW (Max)
Polarization : Positive Center
Applications : ITE (Commercial)
Efficiency : Level VI
Operating Temperature : 0°C ~ 40°C
Output Connector : Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm
Size / Dimension : 2.80" L x 1.69" W x 1.18" H (71.0mm x 43.0mm x 30.0mm)
Approvals : cETLus
0
25 in stock

WSU060-3000-13 WSU060-3000-13

Triad Magnetics
Manufacturer : Triad Magnetics
Series : WSU
Part Status : Active
Region Utilized : North America
Form : Wall Mount
Input Type : Fixed Blade
Voltage - Input : 90 ~ 264 VAC
Voltage - Output : 5.9V
Current - Output (Max) : 3A
Power (Watts) : 18W
No Load Power Consumption : 100mW (Max)
Polarization : Positive Center
Applications : ITE (Commercial)
Efficiency : Level VI
Operating Temperature : 0°C ~ 40°C
Output Connector : Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 11.0mm
Size / Dimension : 3.03" L x 1.89" W x 1.22" H (77.0mm x 48.0mm x 31.0mm)
Approvals : cETLus
0
149 in stock

WSU060-3000-R WSU060-3000-R

Triad Magnetics
Manufacturer : Triad Magnetics
Series : WSU
Part Status : Active
Region Utilized : North America
Form : Wall Mount
Input Type : Fixed Blade
Voltage - Input : 90 ~ 264 VAC
Voltage - Output : 5.9V
Current - Output (Max) : 3A
Power (Watts) : 18W
No Load Power Consumption : 100mW (Max)
Polarization : Negative Center
Applications : ITE (Commercial)
Efficiency : Level VI
Operating Temperature : 0°C ~ 40°C
Output Connector : Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm
Size / Dimension : 2.80" L x 1.69" W x 1.18" H (71.0mm x 43.0mm x 30.0mm)
Approvals : cETLus
0
245 in stock

WSU060-3000-R13 WSU060-3000-R13

Triad Magnetics
Manufacturer : Triad Magnetics
Series : WSU
Part Status : Active
Region Utilized : North America
Form : Wall Mount
Input Type : Fixed Blade
Voltage - Input : 90 ~ 264 VAC
Voltage - Output : 5.9V
Current - Output (Max) : 3A
Power (Watts) : 18W
No Load Power Consumption : 100mW (Max)
Polarization : Negative Center
Applications : ITE (Commercial)
Efficiency : Level VI
Operating Temperature : 0°C ~ 40°C
Output Connector : Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 11.0mm
Size / Dimension : 3.03" L x 1.89" W x 1.22" H (77.0mm x 48.0mm x 31.0mm)
Approvals : cETLus
0
78 in stock

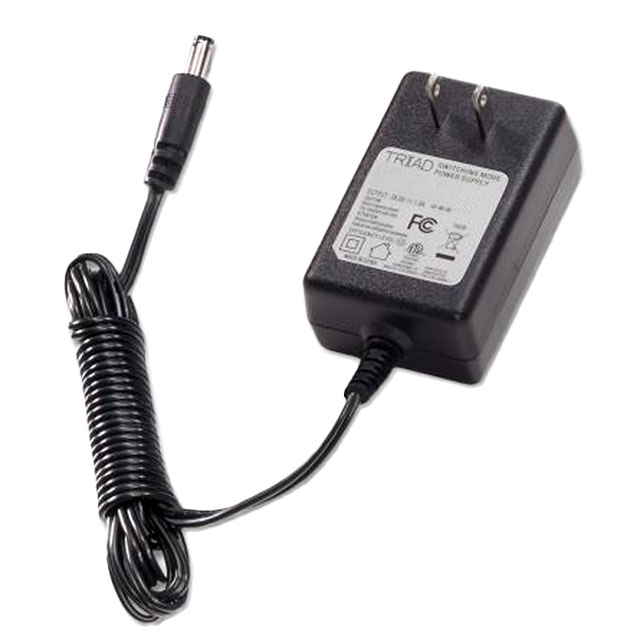

WSU060-4000 WSU060-4000

Triad Magnetics
Manufacturer : Triad Magnetics
Series : WSU
Part Status : Active
Region Utilized : North America
Form : Wall Mount
Input Type : Fixed Blade
Voltage - Input : 90 ~ 264 VAC
Voltage - Output : 5.9V
Current - Output (Max) : 4A
Power (Watts) : 24W
No Load Power Consumption : 100mW (Max)
Polarization : Positive Center
Applications : ITE (Commercial)
Efficiency : Level VI
Operating Temperature : 0°C ~ 40°C
Output Connector : Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm
Size / Dimension : 3.03" L x 1.89" W x 1.22" H (77.0mm x 48.0mm x 31.0mm)
Approvals : cETLus
0
169 in stock
