Triad Magnetics

- For over 70 years, consumer, commercial and industrial electronic devices have relied on innovative magnetics technology from Triad Magnetics. We offer solutions for power conversion, filtering, isolation and more. Our products include transformers for audio, gate drive, power, medical/dental, wall-mount and plug-in applications; as well as inductors for current sense, common mode, toroidal, filtering and power applications.

Today, you’ll find a wide range of Triad magnetic components in advanced computers, telecommunication systems, automation controls, audio devices and other equipment. Lewis W. Howard founded Triad during the 1940s in Venice, California. He was a UC Berkley graduate, a Wescon Trade Show cofounder and was recognized as an IEEE life member.

Part Number
Manufacturer
Description
Unit Price
In Stock

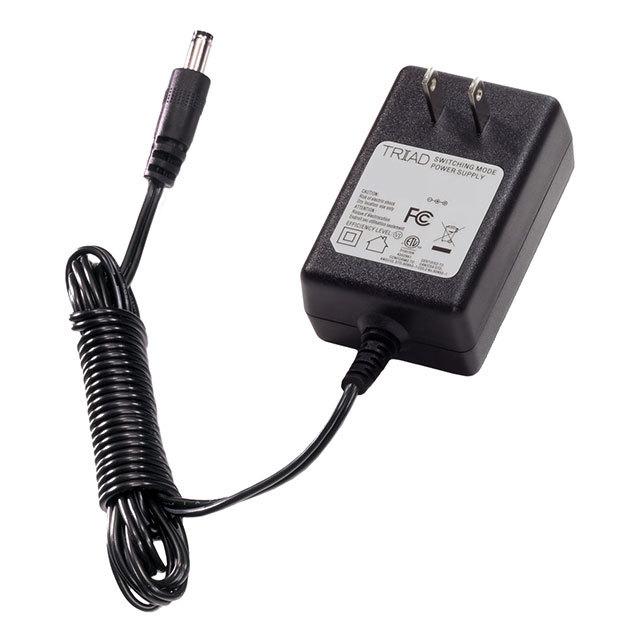

WSU060-4000-13 WSU060-4000-13

Triad Magnetics
Manufacturer : Triad Magnetics
Series : WSU
Part Status : Active
Region Utilized : North America
Form : Wall Mount
Input Type : Fixed Blade
Voltage - Input : 90 ~ 264 VAC
Voltage - Output : 5.9V
Current - Output (Max) : 4A
Power (Watts) : 24W
No Load Power Consumption : 100mW (Max)
Polarization : Positive Center
Applications : ITE (Commercial)
Efficiency : Level VI
Operating Temperature : 0°C ~ 40°C
Output Connector : Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 11.0mm
Size / Dimension : 3.03" L x 1.89" W x 1.22" H (77.0mm x 48.0mm x 31.0mm)
Approvals : cETLus
0
85 in stock

WSU060-4000-R WSU060-4000-R

Triad Magnetics
Manufacturer : Triad Magnetics
Series : WSU
Part Status : Active
Region Utilized : North America
Form : Wall Mount
Input Type : Fixed Blade
Voltage - Input : 90 ~ 264 VAC
Voltage - Output : 5.9V
Current - Output (Max) : 4A
Power (Watts) : 24W
No Load Power Consumption : 100mW (Max)
Polarization : Negative Center
Applications : ITE (Commercial)
Efficiency : Level VI
Operating Temperature : 0°C ~ 40°C
Output Connector : Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm
Size / Dimension : 3.03" L x 1.89" W x 1.22" H (77.0mm x 48.0mm x 31.0mm)
Approvals : cETLus
0
19 in stock

WSU060-4000-R13 WSU060-4000-R13

Triad Magnetics
Manufacturer : Triad Magnetics
Series : WSU
Part Status : Active
Region Utilized : North America
Form : Wall Mount
Input Type : Fixed Blade
Voltage - Input : 90 ~ 264 VAC
Voltage - Output : 5.9V
Current - Output (Max) : 4A
Power (Watts) : 24W
No Load Power Consumption : 100mW (Max)
Polarization : Negative Center
Applications : ITE (Commercial)
Efficiency : Level VI
Operating Temperature : 0°C ~ 40°C
Output Connector : Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 11.0mm
Size / Dimension : 3.03" L x 1.89" W x 1.22" H (77.0mm x 48.0mm x 31.0mm)
Approvals : cETLus
0
140 in stock

WSU075-1000 WSU075-1000

Triad Magnetics
Manufacturer : Triad Magnetics
Series : WSU
Part Status : Active
Region Utilized : North America
Form : Wall Mount
Input Type : Fixed Blade
Voltage - Input : 90 ~ 264 VAC
Voltage - Output : 7.5V
Current - Output (Max) : 1A
Power (Watts) : 7.5W
No Load Power Consumption : 100mW (Max)
Polarization : Positive Center
Applications : ITE (Commercial)
Efficiency : Level VI
Operating Temperature : 0°C ~ 40°C
Output Connector : Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm
Size / Dimension : 2.80" L x 1.69" W x 1.18" H (71.0mm x 43.0mm x 30.0mm)
Approvals : cETLus
0
301 in stock

WSU075-1000-13 WSU075-1000-13

Triad Magnetics
Manufacturer : Triad Magnetics
Series : WSU
Part Status : Active
Region Utilized : North America
Form : Wall Mount
Input Type : Fixed Blade
Voltage - Input : 90 ~ 264 VAC
Voltage - Output : 7.5V
Current - Output (Max) : 1A
Power (Watts) : 7.5W
No Load Power Consumption : 100mW (Max)
Polarization : Positive Center
Applications : ITE (Commercial)
Efficiency : Level VI
Operating Temperature : 0°C ~ 40°C
Output Connector : Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 11.0mm
Size / Dimension : 2.80" L x 1.69" W x 1.18" H (71.0mm x 43.0mm x 30.0mm)
Approvals : cETLus
0
172 in stock

WSU075-1000-R WSU075-1000-R

Triad Magnetics
Manufacturer : Triad Magnetics
Series : WSU
Part Status : Active
Region Utilized : North America
Form : Wall Mount
Input Type : Fixed Blade
Voltage - Input : 90 ~ 264 VAC
Voltage - Output : 7.5V
Current - Output (Max) : 1A
Power (Watts) : 7.5W
No Load Power Consumption : 100mW (Max)
Polarization : Negative Center
Applications : ITE (Commercial)
Efficiency : Level VI
Operating Temperature : 0°C ~ 40°C
Output Connector : Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm
Size / Dimension : 2.80" L x 1.69" W x 1.18" H (71.0mm x 43.0mm x 30.0mm)
Approvals : cETLus
0
314 in stock

WSU075-1000-R13 WSU075-1000-R13

Triad Magnetics
Manufacturer : Triad Magnetics
Series : WSU
Part Status : Active
Region Utilized : North America
Form : Wall Mount
Input Type : Fixed Blade
Voltage - Input : 90 ~ 264 VAC
Voltage - Output : 7.5V
Current - Output (Max) : 1A
Power (Watts) : 7.5W
No Load Power Consumption : 100mW (Max)
Polarization : Negative Center
Applications : ITE (Commercial)
Efficiency : Level VI
Operating Temperature : 0°C ~ 40°C
Output Connector : Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 11.0mm
Size / Dimension : 2.80" L x 1.69" W x 1.18" H (71.0mm x 43.0mm x 30.0mm)
Approvals : cETLus
0
84 in stock

WSU075-1500 WSU075-1500

Triad Magnetics
Manufacturer : Triad Magnetics
Series : WSU
Part Status : Active
Region Utilized : North America
Form : Wall Mount
Input Type : Fixed Blade
Voltage - Input : 90 ~ 264 VAC
Voltage - Output : 7.5V
Current - Output (Max) : 1.5A
Power (Watts) : 11W
No Load Power Consumption : 100mW (Max)
Polarization : Positive Center
Applications : ITE (Commercial)
Efficiency : Level VI
Operating Temperature : 0°C ~ 40°C
Output Connector : Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm
Size / Dimension : 2.80" L x 1.69" W x 1.18" H (71.0mm x 43.0mm x 30.0mm)
Approvals : cETLus
0
19 in stock

WSU075-1500-13 WSU075-1500-13

Triad Magnetics
Manufacturer : Triad Magnetics
Series : WSU
Part Status : Active
Region Utilized : North America
Form : Wall Mount
Input Type : Fixed Blade
Voltage - Input : 90 ~ 264 VAC
Voltage - Output : 7.5V
Current - Output (Max) : 1.5A
Power (Watts) : 11W
No Load Power Consumption : 100mW (Max)
Polarization : Positive Center
Applications : ITE (Commercial)
Efficiency : Level VI
Operating Temperature : 0°C ~ 40°C
Output Connector : Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 11.0mm
Size / Dimension : 2.80" L x 1.69" W x 1.18" H (71.0mm x 43.0mm x 30.0mm)
Approvals : cETLus
0
70 in stock

WSU075-1500-R WSU075-1500-R

Triad Magnetics
Manufacturer : Triad Magnetics
Series : WSU
Part Status : Active
Region Utilized : North America
Form : Wall Mount
Input Type : Fixed Blade
Voltage - Input : 90 ~ 264 VAC
Voltage - Output : 7.5V
Current - Output (Max) : 1.5A
Power (Watts) : 11W
No Load Power Consumption : 100mW (Max)
Polarization : Negative Center
Applications : ITE (Commercial)
Efficiency : Level VI
Operating Temperature : 0°C ~ 40°C
Output Connector : Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm
Size / Dimension : 2.80" L x 1.69" W x 1.18" H (71.0mm x 43.0mm x 30.0mm)
Approvals : cETLus
0
467 in stock

WSU075-1500-R13 WSU075-1500-R13

Triad Magnetics
Manufacturer : Triad Magnetics
Series : WSU
Part Status : Active
Region Utilized : North America
Form : Wall Mount
Input Type : Fixed Blade
Voltage - Input : 90 ~ 264 VAC
Voltage - Output : 7.5V
Current - Output (Max) : 1.5A
Power (Watts) : 11W
No Load Power Consumption : 100mW (Max)
Polarization : Negative Center
Applications : ITE (Commercial)
Efficiency : Level VI
Operating Temperature : 0°C ~ 40°C
Output Connector : Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 11.0mm
Size / Dimension : 2.80" L x 1.69" W x 1.18" H (71.0mm x 43.0mm x 30.0mm)
Approvals : cETLus
0
77 in stock

WSU075-2400 WSU075-2400

Triad Magnetics
Manufacturer : Triad Magnetics
Series : WSU
Part Status : Active
Region Utilized : North America
Form : Wall Mount
Input Type : Fixed Blade
Voltage - Input : 90 ~ 264 VAC
Voltage - Output : 7.5V
Current - Output (Max) : 2.4A
Power (Watts) : 18W
No Load Power Consumption : 100mW (Max)
Polarization : Positive Center
Applications : ITE (Commercial)
Efficiency : Level VI
Operating Temperature : 0°C ~ 40°C
Output Connector : Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm
Size / Dimension : 3.03" L x 1.89" W x 1.22" H (77.0mm x 48.0mm x 31.0mm)
Approvals : cETLus
0
655 in stock
