Part Number
Manufacturer
Description
Unit Price
In Stock
PTS120615V050
Bussmann (Eaton)
Manufacturer : Eaton
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PolyTron? PTS1206
Part Status : Active
Type : Polymeric
Voltage - Max : 15V
Current - Max : 100A
Current - Hold (Ih) (Max) : 500mA
Current - Trip (It) : 1A
Time to Trip : 100ms
Resistance - Initial (Ri) (Min) : 150 mOhms
Resistance - Post Trip (R1) (Max) : 700 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 1206 (3216 Metric), Concave
Size / Dimension : 0.128" L x 0.065" W (3.25mm x 1.65mm)
Height - Seated (Max) : -
Thickness (Max) : 0.042" (1.06mm)
Lead Spacing : -
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PolyTron? PTS1206
Part Status : Active
Type : Polymeric
Voltage - Max : 15V
Current - Max : 100A
Current - Hold (Ih) (Max) : 500mA
Current - Trip (It) : 1A
Time to Trip : 100ms
Resistance - Initial (Ri) (Min) : 150 mOhms
Resistance - Post Trip (R1) (Max) : 700 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 1206 (3216 Metric), Concave
Size / Dimension : 0.128" L x 0.065" W (3.25mm x 1.65mm)
Height - Seated (Max) : -
Thickness (Max) : 0.042" (1.06mm)
Lead Spacing : -
0
10602 in stock
PTS120616V025
Bussmann (Eaton)
Manufacturer : Eaton
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PolyTron? PTS1206
Part Status : Active
Type : Polymeric
Voltage - Max : 16V
Current - Max : 100A
Current - Hold (Ih) (Max) : 250mA
Current - Trip (It) : 500mA
Time to Trip : 80ms
Resistance - Initial (Ri) (Min) : 550 mOhms
Resistance - Post Trip (R1) (Max) : 2.3 Ohms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 1206 (3216 Metric), Concave
Size / Dimension : 0.128" L x 0.065" W (3.25mm x 1.65mm)
Height - Seated (Max) : -
Thickness (Max) : 0.027" (0.68mm)
Lead Spacing : -
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PolyTron? PTS1206
Part Status : Active
Type : Polymeric
Voltage - Max : 16V
Current - Max : 100A
Current - Hold (Ih) (Max) : 250mA
Current - Trip (It) : 500mA
Time to Trip : 80ms
Resistance - Initial (Ri) (Min) : 550 mOhms
Resistance - Post Trip (R1) (Max) : 2.3 Ohms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 1206 (3216 Metric), Concave
Size / Dimension : 0.128" L x 0.065" W (3.25mm x 1.65mm)
Height - Seated (Max) : -
Thickness (Max) : 0.027" (0.68mm)
Lead Spacing : -
0
16717 in stock
PTS120616V035
Bussmann (Eaton)
Manufacturer : Eaton
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PolyTron? PTS1206
Part Status : Active
Type : Polymeric
Voltage - Max : 16V
Current - Max : 100A
Current - Hold (Ih) (Max) : 350mA
Current - Trip (It) : 750mA
Time to Trip : 100ms
Resistance - Initial (Ri) (Min) : 300 mOhms
Resistance - Post Trip (R1) (Max) : 1.2 Ohms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 1206 (3216 Metric), Concave
Size / Dimension : 0.128" L x 0.065" W (3.25mm x 1.65mm)
Height - Seated (Max) : -
Thickness (Max) : 0.027" (0.68mm)
Lead Spacing : -
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PolyTron? PTS1206
Part Status : Active
Type : Polymeric
Voltage - Max : 16V
Current - Max : 100A
Current - Hold (Ih) (Max) : 350mA
Current - Trip (It) : 750mA
Time to Trip : 100ms
Resistance - Initial (Ri) (Min) : 300 mOhms
Resistance - Post Trip (R1) (Max) : 1.2 Ohms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 1206 (3216 Metric), Concave
Size / Dimension : 0.128" L x 0.065" W (3.25mm x 1.65mm)
Height - Seated (Max) : -
Thickness (Max) : 0.027" (0.68mm)
Lead Spacing : -
0
22869 in stock
PTS120624V020
Bussmann (Eaton)
Manufacturer : Eaton
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PolyTron? PTS1206
Part Status : Active
Type : Polymeric
Voltage - Max : 24V
Current - Max : 100A
Current - Hold (Ih) (Max) : 200mA
Current - Trip (It) : 420mA
Time to Trip : 100ms
Resistance - Initial (Ri) (Min) : 650 mOhms
Resistance - Post Trip (R1) (Max) : 2.6 Ohms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 1206 (3216 Metric), Concave
Size / Dimension : 0.128" L x 0.065" W (3.25mm x 1.65mm)
Height - Seated (Max) : -
Thickness (Max) : 0.027" (0.68mm)
Lead Spacing : -
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PolyTron? PTS1206
Part Status : Active
Type : Polymeric
Voltage - Max : 24V
Current - Max : 100A
Current - Hold (Ih) (Max) : 200mA
Current - Trip (It) : 420mA
Time to Trip : 100ms
Resistance - Initial (Ri) (Min) : 650 mOhms
Resistance - Post Trip (R1) (Max) : 2.6 Ohms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 1206 (3216 Metric), Concave
Size / Dimension : 0.128" L x 0.065" W (3.25mm x 1.65mm)
Height - Seated (Max) : -
Thickness (Max) : 0.027" (0.68mm)
Lead Spacing : -
0
38274 in stock
PTS120630V012
Bussmann (Eaton)
Manufacturer : Eaton
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PolyTron? PTS1206
Part Status : Active
Type : Polymeric
Voltage - Max : 30V
Current - Max : 100A
Current - Hold (Ih) (Max) : 120mA
Current - Trip (It) : 290mA
Time to Trip : 200ms
Resistance - Initial (Ri) (Min) : 1.4 Ohms
Resistance - Post Trip (R1) (Max) : 6 Ohms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 1206 (3216 Metric), Concave
Size / Dimension : 0.128" L x 0.065" W (3.25mm x 1.65mm)
Height - Seated (Max) : -
Thickness (Max) : 0.035" (0.90mm)
Lead Spacing : -
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PolyTron? PTS1206
Part Status : Active
Type : Polymeric
Voltage - Max : 30V
Current - Max : 100A
Current - Hold (Ih) (Max) : 120mA
Current - Trip (It) : 290mA
Time to Trip : 200ms
Resistance - Initial (Ri) (Min) : 1.4 Ohms
Resistance - Post Trip (R1) (Max) : 6 Ohms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 1206 (3216 Metric), Concave
Size / Dimension : 0.128" L x 0.065" W (3.25mm x 1.65mm)
Height - Seated (Max) : -
Thickness (Max) : 0.035" (0.90mm)
Lead Spacing : -
0
7716 in stock
PTS120630V016
Bussmann (Eaton)
Manufacturer : Eaton
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PolyTron? PTS1206
Part Status : Active
Type : Polymeric
Voltage - Max : 30V
Current - Max : 100A
Current - Hold (Ih) (Max) : 160mA
Current - Trip (It) : 370mA
Time to Trip : 300ms
Resistance - Initial (Ri) (Min) : 1.1 Ohms
Resistance - Post Trip (R1) (Max) : 4.5 Ohms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 1206 (3216 Metric), Concave
Size / Dimension : 0.128" L x 0.065" W (3.25mm x 1.65mm)
Height - Seated (Max) : -
Thickness (Max) : 0.027" (0.68mm)
Lead Spacing : -
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PolyTron? PTS1206
Part Status : Active
Type : Polymeric
Voltage - Max : 30V
Current - Max : 100A
Current - Hold (Ih) (Max) : 160mA
Current - Trip (It) : 370mA
Time to Trip : 300ms
Resistance - Initial (Ri) (Min) : 1.1 Ohms
Resistance - Post Trip (R1) (Max) : 4.5 Ohms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 1206 (3216 Metric), Concave
Size / Dimension : 0.128" L x 0.065" W (3.25mm x 1.65mm)
Height - Seated (Max) : -
Thickness (Max) : 0.027" (0.68mm)
Lead Spacing : -
0
11804 in stock
PTS120660V005
Bussmann (Eaton)
Manufacturer : Eaton
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PolyTron? PTS1206
Part Status : Active
Type : Polymeric
Voltage - Max : 60V
Current - Max : 100A
Current - Hold (Ih) (Max) : 50mA
Current - Trip (It) : 150mA
Time to Trip : 1.5s
Resistance - Initial (Ri) (Min) : 3.6 Ohms
Resistance - Post Trip (R1) (Max) : 50 Ohms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 1206 (3216 Metric), Concave
Size / Dimension : 0.128" L x 0.065" W (3.25mm x 1.65mm)
Height - Seated (Max) : -
Thickness (Max) : 0.035" (0.90mm)
Lead Spacing : -
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PolyTron? PTS1206
Part Status : Active
Type : Polymeric
Voltage - Max : 60V
Current - Max : 100A
Current - Hold (Ih) (Max) : 50mA
Current - Trip (It) : 150mA
Time to Trip : 1.5s
Resistance - Initial (Ri) (Min) : 3.6 Ohms
Resistance - Post Trip (R1) (Max) : 50 Ohms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 1206 (3216 Metric), Concave
Size / Dimension : 0.128" L x 0.065" W (3.25mm x 1.65mm)
Height - Seated (Max) : -
Thickness (Max) : 0.035" (0.90mm)
Lead Spacing : -
0
69568 in stock
PTS120660V010
Bussmann (Eaton)
Manufacturer : Eaton
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PolyTron? PTS1206
Part Status : Active
Type : Polymeric
Voltage - Max : 60V
Current - Max : 100A
Current - Hold (Ih) (Max) : 100mA
Current - Trip (It) : 250mA
Time to Trip : 1s
Resistance - Initial (Ri) (Min) : 1.6 Ohms
Resistance - Post Trip (R1) (Max) : 15 Ohms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 1206 (3216 Metric), Concave
Size / Dimension : 0.128" L x 0.065" W (3.25mm x 1.65mm)
Height - Seated (Max) : -
Thickness (Max) : 0.035" (0.90mm)
Lead Spacing : -
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PolyTron? PTS1206
Part Status : Active
Type : Polymeric
Voltage - Max : 60V
Current - Max : 100A
Current - Hold (Ih) (Max) : 100mA
Current - Trip (It) : 250mA
Time to Trip : 1s
Resistance - Initial (Ri) (Min) : 1.6 Ohms
Resistance - Post Trip (R1) (Max) : 15 Ohms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 1206 (3216 Metric), Concave
Size / Dimension : 0.128" L x 0.065" W (3.25mm x 1.65mm)
Height - Seated (Max) : -
Thickness (Max) : 0.035" (0.90mm)
Lead Spacing : -
0
43498 in stock
PTS12066V050
Bussmann (Eaton)
Manufacturer : Eaton
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PolyTron? PTS1206
Part Status : Active
Type : Polymeric
Voltage - Max : 6V
Current - Max : 100A
Current - Hold (Ih) (Max) : 500mA
Current - Trip (It) : 1A
Time to Trip : 100ms
Resistance - Initial (Ri) (Min) : 150 mOhms
Resistance - Post Trip (R1) (Max) : 700 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 1206 (3216 Metric), Concave
Size / Dimension : 0.128" L x 0.065" W (3.25mm x 1.65mm)
Height - Seated (Max) : -
Thickness (Max) : 0.027" (0.68mm)
Lead Spacing : -
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PolyTron? PTS1206
Part Status : Active
Type : Polymeric
Voltage - Max : 6V
Current - Max : 100A
Current - Hold (Ih) (Max) : 500mA
Current - Trip (It) : 1A
Time to Trip : 100ms
Resistance - Initial (Ri) (Min) : 150 mOhms
Resistance - Post Trip (R1) (Max) : 700 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 1206 (3216 Metric), Concave
Size / Dimension : 0.128" L x 0.065" W (3.25mm x 1.65mm)
Height - Seated (Max) : -
Thickness (Max) : 0.027" (0.68mm)
Lead Spacing : -
0
481 in stock

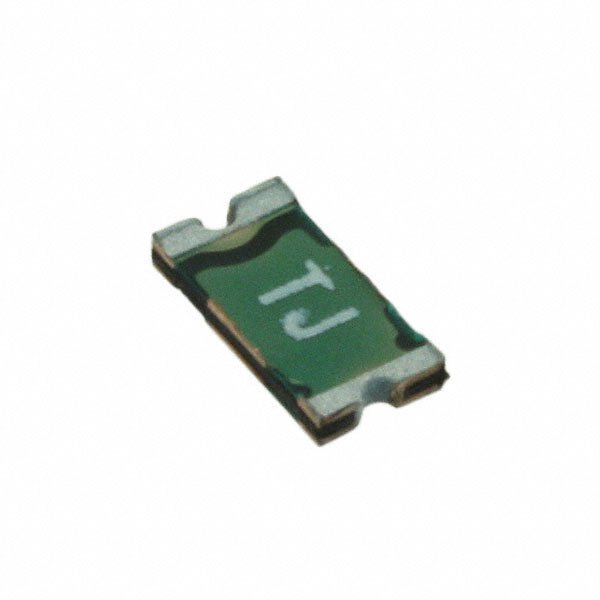

PTS12066V075
Bussmann (Eaton)
Manufacturer : Eaton
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PolyTron? PTS1206
Part Status : Active
Type : Polymeric
Voltage - Max : 6V
Current - Max : 100A
Current - Hold (Ih) (Max) : 750mA
Current - Trip (It) : 1.5A
Time to Trip : 200ms
Resistance - Initial (Ri) (Min) : 100 mOhms
Resistance - Post Trip (R1) (Max) : 290 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 1206 (3216 Metric), Concave
Size / Dimension : 0.128" L x 0.065" W (3.25mm x 1.65mm)
Height - Seated (Max) : -
Thickness (Max) : 0.033" (0.85mm)
Lead Spacing : -
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PolyTron? PTS1206
Part Status : Active
Type : Polymeric
Voltage - Max : 6V
Current - Max : 100A
Current - Hold (Ih) (Max) : 750mA
Current - Trip (It) : 1.5A
Time to Trip : 200ms
Resistance - Initial (Ri) (Min) : 100 mOhms
Resistance - Post Trip (R1) (Max) : 290 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 1206 (3216 Metric), Concave
Size / Dimension : 0.128" L x 0.065" W (3.25mm x 1.65mm)
Height - Seated (Max) : -
Thickness (Max) : 0.033" (0.85mm)
Lead Spacing : -
0
8936 in stock
PTS12066V100
Bussmann (Eaton)
Manufacturer : Eaton
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PolyTron? PTS1206
Part Status : Active
Type : Polymeric
Voltage - Max : 6V
Current - Max : 100A
Current - Hold (Ih) (Max) : 1A
Current - Trip (It) : 1.8A
Time to Trip : 300ms
Resistance - Initial (Ri) (Min) : 65 mOhms
Resistance - Post Trip (R1) (Max) : 210 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 1206 (3216 Metric), Concave
Size / Dimension : 0.128" L x 0.065" W (3.25mm x 1.65mm)
Height - Seated (Max) : -
Thickness (Max) : 0.035" (0.88mm)
Lead Spacing : -
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PolyTron? PTS1206
Part Status : Active
Type : Polymeric
Voltage - Max : 6V
Current - Max : 100A
Current - Hold (Ih) (Max) : 1A
Current - Trip (It) : 1.8A
Time to Trip : 300ms
Resistance - Initial (Ri) (Min) : 65 mOhms
Resistance - Post Trip (R1) (Max) : 210 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 1206 (3216 Metric), Concave
Size / Dimension : 0.128" L x 0.065" W (3.25mm x 1.65mm)
Height - Seated (Max) : -
Thickness (Max) : 0.035" (0.88mm)
Lead Spacing : -
0
1438 in stock
PTS12066V110
Bussmann (Eaton)
Manufacturer : Eaton
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PolyTron? PTS1206
Part Status : Active
Type : Polymeric
Voltage - Max : 6V
Current - Max : 100A
Current - Hold (Ih) (Max) : 1.1A
Current - Trip (It) : 2.2A
Time to Trip : 300ms
Resistance - Initial (Ri) (Min) : 70 mOhms
Resistance - Post Trip (R1) (Max) : 200 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 1206 (3216 Metric), Concave
Size / Dimension : 0.128" L x 0.065" W (3.25mm x 1.65mm)
Height - Seated (Max) : -
Thickness (Max) : 0.035" (0.88mm)
Lead Spacing : -
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PolyTron? PTS1206
Part Status : Active
Type : Polymeric
Voltage - Max : 6V
Current - Max : 100A
Current - Hold (Ih) (Max) : 1.1A
Current - Trip (It) : 2.2A
Time to Trip : 300ms
Resistance - Initial (Ri) (Min) : 70 mOhms
Resistance - Post Trip (R1) (Max) : 200 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 1206 (3216 Metric), Concave
Size / Dimension : 0.128" L x 0.065" W (3.25mm x 1.65mm)
Height - Seated (Max) : -
Thickness (Max) : 0.035" (0.88mm)
Lead Spacing : -
0
1920 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2025 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
