Part Number
Manufacturer
Description
Unit Price
In Stock

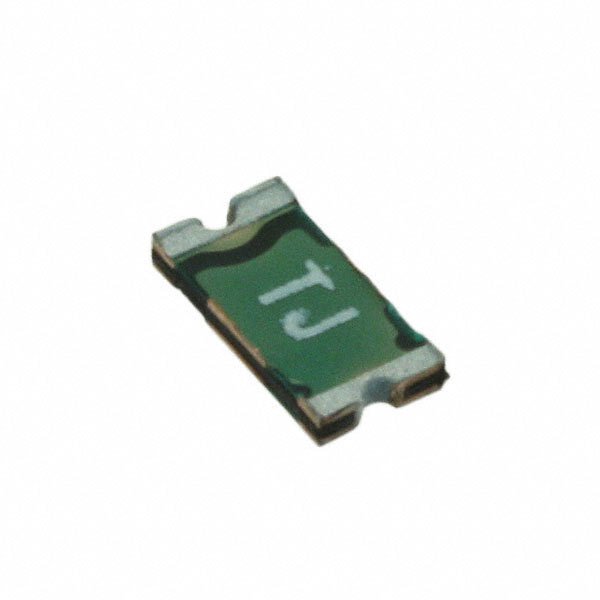

PTS12066V150
Bussmann (Eaton)
Manufacturer : Eaton
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PolyTron? PTS1206
Part Status : Active
Type : Polymeric
Voltage - Max : 6V
Current - Max : 100A
Current - Hold (Ih) (Max) : 1.5A
Current - Trip (It) : 3A
Time to Trip : 1s
Resistance - Initial (Ri) (Min) : 40 mOhms
Resistance - Post Trip (R1) (Max) : 120 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 1206 (3216 Metric), Concave
Size / Dimension : 0.128" L x 0.065" W (3.25mm x 1.65mm)
Height - Seated (Max) : -
Thickness (Max) : 0.045" (1.15mm)
Lead Spacing : -
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PolyTron? PTS1206
Part Status : Active
Type : Polymeric
Voltage - Max : 6V
Current - Max : 100A
Current - Hold (Ih) (Max) : 1.5A
Current - Trip (It) : 3A
Time to Trip : 1s
Resistance - Initial (Ri) (Min) : 40 mOhms
Resistance - Post Trip (R1) (Max) : 120 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 1206 (3216 Metric), Concave
Size / Dimension : 0.128" L x 0.065" W (3.25mm x 1.65mm)
Height - Seated (Max) : -
Thickness (Max) : 0.045" (1.15mm)
Lead Spacing : -
0
100 in stock
PTS12066V200
Bussmann (Eaton)
Manufacturer : Eaton
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PolyTron? PTS1206
Part Status : Active
Type : Polymeric
Voltage - Max : 6V
Current - Max : 100A
Current - Hold (Ih) (Max) : 2A
Current - Trip (It) : 3.5A
Time to Trip : 1.5s
Resistance - Initial (Ri) (Min) : 20 mOhms
Resistance - Post Trip (R1) (Max) : 80 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 1206 (3216 Metric), Concave
Size / Dimension : 0.128" L x 0.065" W (3.25mm x 1.65mm)
Height - Seated (Max) : -
Thickness (Max) : 0.045" (1.15mm)
Lead Spacing : -
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PolyTron? PTS1206
Part Status : Active
Type : Polymeric
Voltage - Max : 6V
Current - Max : 100A
Current - Hold (Ih) (Max) : 2A
Current - Trip (It) : 3.5A
Time to Trip : 1.5s
Resistance - Initial (Ri) (Min) : 20 mOhms
Resistance - Post Trip (R1) (Max) : 80 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 1206 (3216 Metric), Concave
Size / Dimension : 0.128" L x 0.065" W (3.25mm x 1.65mm)
Height - Seated (Max) : -
Thickness (Max) : 0.045" (1.15mm)
Lead Spacing : -
0
1640 in stock
PTS181212V150
Bussmann (Eaton)
Manufacturer : Eaton
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PolyTron? PTS1812
Part Status : Discontinued at
Type : Polymeric
Voltage - Max : 12V
Current - Max : 100A
Current - Hold (Ih) (Max) : 1.5A
Current - Trip (It) : 3A
Time to Trip : 500ms
Resistance - Initial (Ri) (Min) : 40 mOhms
Resistance - Post Trip (R1) (Max) : 110 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 1812 (4532 Metric), Concave
Size / Dimension : 0.179" L x 0.128" W (4.55mm x 3.24mm)
Height - Seated (Max) : -
Thickness (Max) : 0.039" (1.00mm)
Lead Spacing : -
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PolyTron? PTS1812
Part Status : Discontinued at
Type : Polymeric
Voltage - Max : 12V
Current - Max : 100A
Current - Hold (Ih) (Max) : 1.5A
Current - Trip (It) : 3A
Time to Trip : 500ms
Resistance - Initial (Ri) (Min) : 40 mOhms
Resistance - Post Trip (R1) (Max) : 110 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 1812 (4532 Metric), Concave
Size / Dimension : 0.179" L x 0.128" W (4.55mm x 3.24mm)
Height - Seated (Max) : -
Thickness (Max) : 0.039" (1.00mm)
Lead Spacing : -
0
561 in stock
PTS181213V075
Bussmann (Eaton)
Manufacturer : Eaton
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PolyTron? PTS1812
Part Status : Discontinued at
Type : Polymeric
Voltage - Max : 13.2V
Current - Max : 100A
Current - Hold (Ih) (Max) : 750mA
Current - Trip (It) : 1.5A
Time to Trip : 200ms
Resistance - Initial (Ri) (Min) : 110 mOhms
Resistance - Post Trip (R1) (Max) : 450 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 1812 (4532 Metric), Concave
Size / Dimension : 0.179" L x 0.128" W (4.55mm x 3.24mm)
Height - Seated (Max) : -
Thickness (Max) : 0.027" (0.68mm)
Lead Spacing : -
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PolyTron? PTS1812
Part Status : Discontinued at
Type : Polymeric
Voltage - Max : 13.2V
Current - Max : 100A
Current - Hold (Ih) (Max) : 750mA
Current - Trip (It) : 1.5A
Time to Trip : 200ms
Resistance - Initial (Ri) (Min) : 110 mOhms
Resistance - Post Trip (R1) (Max) : 450 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 1812 (4532 Metric), Concave
Size / Dimension : 0.179" L x 0.128" W (4.55mm x 3.24mm)
Height - Seated (Max) : -
Thickness (Max) : 0.027" (0.68mm)
Lead Spacing : -
0
100 in stock
PTS181216V035
Bussmann (Eaton)
Manufacturer : Eaton
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PolyTron? PTS1812
Part Status : Active
Type : Polymeric
Voltage - Max : 16V
Current - Max : 100A
Current - Hold (Ih) (Max) : 350mA
Current - Trip (It) : 700mA
Time to Trip : 100ms
Resistance - Initial (Ri) (Min) : 320 mOhms
Resistance - Post Trip (R1) (Max) : 1.5 Ohms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 1812 (4532 Metric), Concave
Size / Dimension : 0.179" L x 0.128" W (4.55mm x 3.24mm)
Height - Seated (Max) : -
Thickness (Max) : 0.027" (0.68mm)
Lead Spacing : -
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PolyTron? PTS1812
Part Status : Active
Type : Polymeric
Voltage - Max : 16V
Current - Max : 100A
Current - Hold (Ih) (Max) : 350mA
Current - Trip (It) : 700mA
Time to Trip : 100ms
Resistance - Initial (Ri) (Min) : 320 mOhms
Resistance - Post Trip (R1) (Max) : 1.5 Ohms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 1812 (4532 Metric), Concave
Size / Dimension : 0.179" L x 0.128" W (4.55mm x 3.24mm)
Height - Seated (Max) : -
Thickness (Max) : 0.027" (0.68mm)
Lead Spacing : -
0
10114 in stock

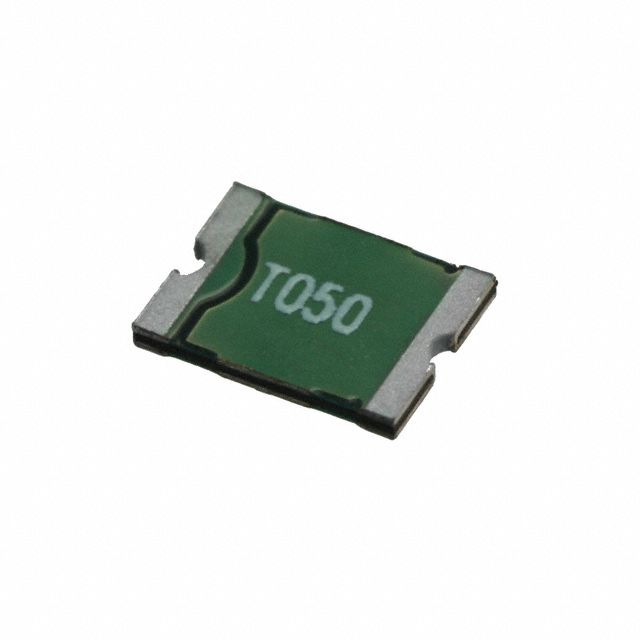

PTS181216V050
Bussmann (Eaton)
Manufacturer : Eaton
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PolyTron? PTS1812
Part Status : Active
Type : Polymeric
Voltage - Max : 16V
Current - Max : 100A
Current - Hold (Ih) (Max) : 500mA
Current - Trip (It) : 1A
Time to Trip : 150ms
Resistance - Initial (Ri) (Min) : 150 mOhms
Resistance - Post Trip (R1) (Max) : 1 Ohms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 1812 (4532 Metric), Concave
Size / Dimension : 0.179" L x 0.128" W (4.55mm x 3.24mm)
Height - Seated (Max) : -
Thickness (Max) : 0.027" (0.68mm)
Lead Spacing : -
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PolyTron? PTS1812
Part Status : Active
Type : Polymeric
Voltage - Max : 16V
Current - Max : 100A
Current - Hold (Ih) (Max) : 500mA
Current - Trip (It) : 1A
Time to Trip : 150ms
Resistance - Initial (Ri) (Min) : 150 mOhms
Resistance - Post Trip (R1) (Max) : 1 Ohms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 1812 (4532 Metric), Concave
Size / Dimension : 0.179" L x 0.128" W (4.55mm x 3.24mm)
Height - Seated (Max) : -
Thickness (Max) : 0.027" (0.68mm)
Lead Spacing : -
0
3565 in stock

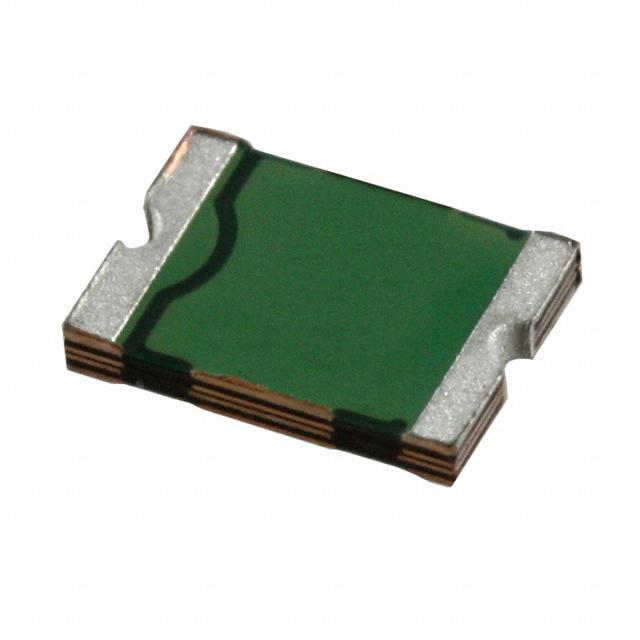

PTS181216V110
Bussmann (Eaton)
Manufacturer : Eaton
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PolyTron? PTS1812
Part Status : Active
Type : Polymeric
Voltage - Max : 16V
Current - Max : 100A
Current - Hold (Ih) (Max) : 1.1A
Current - Trip (It) : 2.2A
Time to Trip : 500ms
Resistance - Initial (Ri) (Min) : 100 mOhms
Resistance - Post Trip (R1) (Max) : 180 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 1812 (4532 Metric), Concave
Size / Dimension : 0.179" L x 0.128" W (4.55mm x 3.24mm)
Height - Seated (Max) : -
Thickness (Max) : 0.039" (1.00mm)
Lead Spacing : -
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PolyTron? PTS1812
Part Status : Active
Type : Polymeric
Voltage - Max : 16V
Current - Max : 100A
Current - Hold (Ih) (Max) : 1.1A
Current - Trip (It) : 2.2A
Time to Trip : 500ms
Resistance - Initial (Ri) (Min) : 100 mOhms
Resistance - Post Trip (R1) (Max) : 180 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 1812 (4532 Metric), Concave
Size / Dimension : 0.179" L x 0.128" W (4.55mm x 3.24mm)
Height - Seated (Max) : -
Thickness (Max) : 0.039" (1.00mm)
Lead Spacing : -
0
1263 in stock

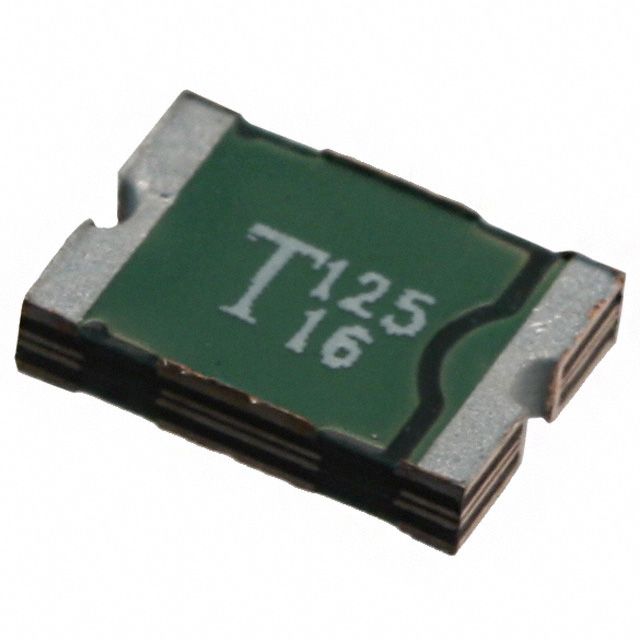

PTS181216V125
Bussmann (Eaton)
Manufacturer : Eaton
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PolyTron? PTS1812
Part Status : Active
Type : Polymeric
Voltage - Max : 16V
Current - Max : 100A
Current - Hold (Ih) (Max) : 1.25A
Current - Trip (It) : 2.5A
Time to Trip : 400ms
Resistance - Initial (Ri) (Min) : 50 mOhms
Resistance - Post Trip (R1) (Max) : 140 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 1812 (4532 Metric), Concave
Size / Dimension : 0.179" L x 0.128" W (4.55mm x 3.24mm)
Height - Seated (Max) : -
Thickness (Max) : 0.035" (0.90mm)
Lead Spacing : -
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PolyTron? PTS1812
Part Status : Active
Type : Polymeric
Voltage - Max : 16V
Current - Max : 100A
Current - Hold (Ih) (Max) : 1.25A
Current - Trip (It) : 2.5A
Time to Trip : 400ms
Resistance - Initial (Ri) (Min) : 50 mOhms
Resistance - Post Trip (R1) (Max) : 140 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 1812 (4532 Metric), Concave
Size / Dimension : 0.179" L x 0.128" W (4.55mm x 3.24mm)
Height - Seated (Max) : -
Thickness (Max) : 0.035" (0.90mm)
Lead Spacing : -
0
6461 in stock

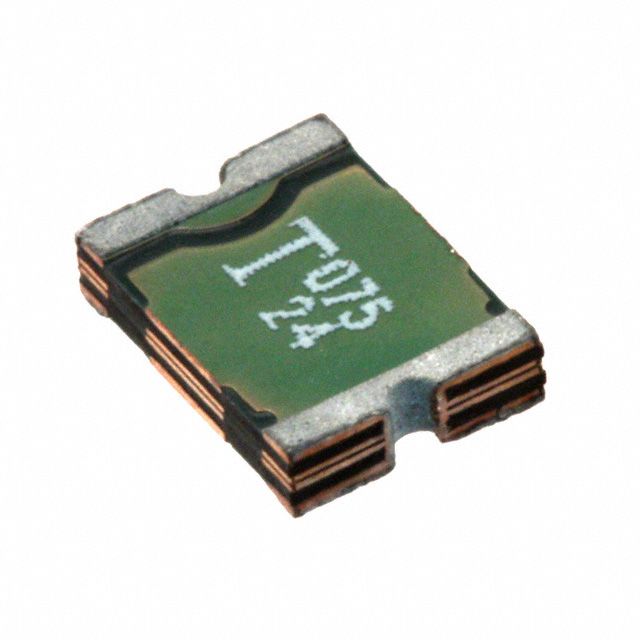

PTS181224V075
Bussmann (Eaton)
Manufacturer : Eaton
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PolyTron? PTS1812
Part Status : Active
Type : Polymeric
Voltage - Max : 24V
Current - Max : 100A
Current - Hold (Ih) (Max) : 750mA
Current - Trip (It) : 1.5A
Time to Trip : 200ms
Resistance - Initial (Ri) (Min) : 100 mOhms
Resistance - Post Trip (R1) (Max) : 400 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 1812 (4532 Metric), Concave
Size / Dimension : 0.179" L x 0.128" W (4.55mm x 3.24mm)
Height - Seated (Max) : -
Thickness (Max) : 0.047" (1.20mm)
Lead Spacing : -
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PolyTron? PTS1812
Part Status : Active
Type : Polymeric
Voltage - Max : 24V
Current - Max : 100A
Current - Hold (Ih) (Max) : 750mA
Current - Trip (It) : 1.5A
Time to Trip : 200ms
Resistance - Initial (Ri) (Min) : 100 mOhms
Resistance - Post Trip (R1) (Max) : 400 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 1812 (4532 Metric), Concave
Size / Dimension : 0.179" L x 0.128" W (4.55mm x 3.24mm)
Height - Seated (Max) : -
Thickness (Max) : 0.047" (1.20mm)
Lead Spacing : -
0
1635 in stock
PTS181224V110
Bussmann (Eaton)
Manufacturer : Eaton
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PolyTron? PTS1812
Part Status : Active
Type : Polymeric
Voltage - Max : 24V
Current - Max : 20A
Current - Hold (Ih) (Max) : 1.1A
Current - Trip (It) : 2.2A
Time to Trip : 500ms
Resistance - Initial (Ri) (Min) : 60 mOhms
Resistance - Post Trip (R1) (Max) : 200 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 1812 (4532 Metric), Concave
Size / Dimension : 0.179" L x 0.128" W (4.55mm x 3.24mm)
Height - Seated (Max) : -
Thickness (Max) : 0.039" (1.00mm)
Lead Spacing : -
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PolyTron? PTS1812
Part Status : Active
Type : Polymeric
Voltage - Max : 24V
Current - Max : 20A
Current - Hold (Ih) (Max) : 1.1A
Current - Trip (It) : 2.2A
Time to Trip : 500ms
Resistance - Initial (Ri) (Min) : 60 mOhms
Resistance - Post Trip (R1) (Max) : 200 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 1812 (4532 Metric), Concave
Size / Dimension : 0.179" L x 0.128" W (4.55mm x 3.24mm)
Height - Seated (Max) : -
Thickness (Max) : 0.039" (1.00mm)
Lead Spacing : -
0
1485 in stock
PTS181224V150
Bussmann (Eaton)
Manufacturer : Eaton
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PolyTron? PTS1812
Part Status : Active
Type : Polymeric
Voltage - Max : 24V
Current - Max : 20A
Current - Hold (Ih) (Max) : 1.5A
Current - Trip (It) : 3A
Time to Trip : 1.5s
Resistance - Initial (Ri) (Min) : 40 mOhms
Resistance - Post Trip (R1) (Max) : 120 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 1812 (4532 Metric), Concave
Size / Dimension : 0.179" L x 0.128" W (4.55mm x 3.24mm)
Height - Seated (Max) : -
Thickness (Max) : 0.059" (1.50mm)
Lead Spacing : -
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PolyTron? PTS1812
Part Status : Active
Type : Polymeric
Voltage - Max : 24V
Current - Max : 20A
Current - Hold (Ih) (Max) : 1.5A
Current - Trip (It) : 3A
Time to Trip : 1.5s
Resistance - Initial (Ri) (Min) : 40 mOhms
Resistance - Post Trip (R1) (Max) : 120 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 1812 (4532 Metric), Concave
Size / Dimension : 0.179" L x 0.128" W (4.55mm x 3.24mm)
Height - Seated (Max) : -
Thickness (Max) : 0.059" (1.50mm)
Lead Spacing : -
0
18250 in stock
PTS181230V010
Bussmann (Eaton)
Manufacturer : Eaton
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PolyTron? PTS1812
Part Status : Active
Type : Polymeric
Voltage - Max : 30V
Current - Max : 100A
Current - Hold (Ih) (Max) : 100mA
Current - Trip (It) : 300mA
Time to Trip : 1.5s
Resistance - Initial (Ri) (Min) : 1.6 Ohms
Resistance - Post Trip (R1) (Max) : 15 Ohms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 1812 (4532 Metric), Concave
Size / Dimension : 0.179" L x 0.128" W (4.55mm x 3.24mm)
Height - Seated (Max) : -
Thickness (Max) : 0.035" (0.90mm)
Lead Spacing : -
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PolyTron? PTS1812
Part Status : Active
Type : Polymeric
Voltage - Max : 30V
Current - Max : 100A
Current - Hold (Ih) (Max) : 100mA
Current - Trip (It) : 300mA
Time to Trip : 1.5s
Resistance - Initial (Ri) (Min) : 1.6 Ohms
Resistance - Post Trip (R1) (Max) : 15 Ohms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 1812 (4532 Metric), Concave
Size / Dimension : 0.179" L x 0.128" W (4.55mm x 3.24mm)
Height - Seated (Max) : -
Thickness (Max) : 0.035" (0.90mm)
Lead Spacing : -
0
1029 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2025 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
