Welcome to Weijie Semiconductor
- Circuit Protection
- PTC Resettable Fuses
Part Number
Manufacturer
Description
Unit Price
In Stock
MF-NSML450-2
Bourns, Inc.
Manufacturer : Bourns Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Multifuse®, MF-NSML
Part Status : Active
Type : Polymeric
Voltage - Max : 6V
Current - Max : 50A
Current - Hold (Ih) (Max) : 4.5A
Current - Trip (It) : 9A
Time to Trip : 2s
Resistance - Initial (Ri) (Min) : 1 mOhms
Resistance - Post Trip (R1) (Max) : 14 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 1206 (3216 Metric), Concave
Size / Dimension : 0.128" L x 0.063" W (3.25mm x 1.60mm)
Height - Seated (Max) : -
Thickness (Max) : 0.047" (1.20mm)
Lead Spacing : -
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Multifuse®, MF-NSML
Part Status : Active
Type : Polymeric
Voltage - Max : 6V
Current - Max : 50A
Current - Hold (Ih) (Max) : 4.5A
Current - Trip (It) : 9A
Time to Trip : 2s
Resistance - Initial (Ri) (Min) : 1 mOhms
Resistance - Post Trip (R1) (Max) : 14 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 1206 (3216 Metric), Concave
Size / Dimension : 0.128" L x 0.063" W (3.25mm x 1.60mm)
Height - Seated (Max) : -
Thickness (Max) : 0.047" (1.20mm)
Lead Spacing : -
0
3430 in stock

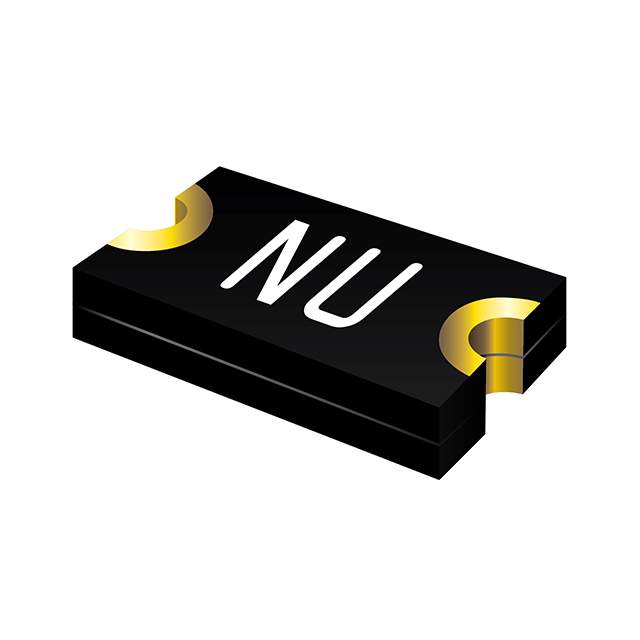

MF-NSML500-2
Bourns, Inc.
Manufacturer : Bourns Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Multifuse®, MF-NSML
Part Status : Active
Type : Polymeric
Voltage - Max : 6V
Current - Max : 50A
Current - Hold (Ih) (Max) : 5A
Current - Trip (It) : 10A
Time to Trip : 2s
Resistance - Initial (Ri) (Min) : 1 mOhms
Resistance - Post Trip (R1) (Max) : 12 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 1206 (3216 Metric), Concave
Size / Dimension : 0.128" L x 0.063" W (3.25mm x 1.60mm)
Height - Seated (Max) : -
Thickness (Max) : 0.047" (1.20mm)
Lead Spacing : -
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Multifuse®, MF-NSML
Part Status : Active
Type : Polymeric
Voltage - Max : 6V
Current - Max : 50A
Current - Hold (Ih) (Max) : 5A
Current - Trip (It) : 10A
Time to Trip : 2s
Resistance - Initial (Ri) (Min) : 1 mOhms
Resistance - Post Trip (R1) (Max) : 12 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 1206 (3216 Metric), Concave
Size / Dimension : 0.128" L x 0.063" W (3.25mm x 1.60mm)
Height - Seated (Max) : -
Thickness (Max) : 0.047" (1.20mm)
Lead Spacing : -
0
3297 in stock
MF-NSML550-2
Bourns, Inc.
Manufacturer : Bourns Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Multifuse®, MF-NSML
Part Status : Active
Type : Polymeric
Voltage - Max : 6V
Current - Max : 50A
Current - Hold (Ih) (Max) : 5.5A
Current - Trip (It) : 11A
Time to Trip : 2s
Resistance - Initial (Ri) (Min) : 1 mOhms
Resistance - Post Trip (R1) (Max) : 11 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 1206 (3216 Metric), Concave
Size / Dimension : 0.128" L x 0.063" W (3.25mm x 1.60mm)
Height - Seated (Max) : -
Thickness (Max) : 0.047" (1.20mm)
Lead Spacing : -
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Multifuse®, MF-NSML
Part Status : Active
Type : Polymeric
Voltage - Max : 6V
Current - Max : 50A
Current - Hold (Ih) (Max) : 5.5A
Current - Trip (It) : 11A
Time to Trip : 2s
Resistance - Initial (Ri) (Min) : 1 mOhms
Resistance - Post Trip (R1) (Max) : 11 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 1206 (3216 Metric), Concave
Size / Dimension : 0.128" L x 0.063" W (3.25mm x 1.60mm)
Height - Seated (Max) : -
Thickness (Max) : 0.047" (1.20mm)
Lead Spacing : -
0
5950 in stock
MF-NSML600-2
Bourns, Inc.
Manufacturer : Bourns Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Multifuse®, MF-NSML
Part Status : Active
Type : Polymeric
Voltage - Max : 6V
Current - Max : 50A
Current - Hold (Ih) (Max) : 6A
Current - Trip (It) : 12A
Time to Trip : 2s
Resistance - Initial (Ri) (Min) : 1 mOhms
Resistance - Post Trip (R1) (Max) : 10 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 1206 (3216 Metric), Concave
Size / Dimension : 0.128" L x 0.063" W (3.25mm x 1.60mm)
Height - Seated (Max) : -
Thickness (Max) : 0.047" (1.20mm)
Lead Spacing : -
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Multifuse®, MF-NSML
Part Status : Active
Type : Polymeric
Voltage - Max : 6V
Current - Max : 50A
Current - Hold (Ih) (Max) : 6A
Current - Trip (It) : 12A
Time to Trip : 2s
Resistance - Initial (Ri) (Min) : 1 mOhms
Resistance - Post Trip (R1) (Max) : 10 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 1206 (3216 Metric), Concave
Size / Dimension : 0.128" L x 0.063" W (3.25mm x 1.60mm)
Height - Seated (Max) : -
Thickness (Max) : 0.047" (1.20mm)
Lead Spacing : -
0
2572 in stock

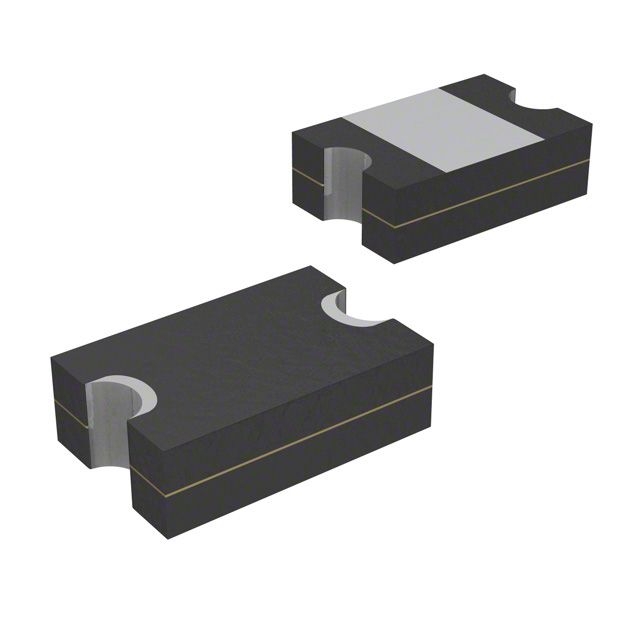

MF-PSHT010X-2
Bourns, Inc.
Manufacturer : Bourns Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Multifuse®, MF-PSHT
Part Status : Active
Type : Polymeric
Voltage - Max : 16V
Current - Max : 40A
Current - Hold (Ih) (Max) : 100mA
Current - Trip (It) : 600mA
Time to Trip : 1.5s
Resistance - Initial (Ri) (Min) : 1 Ohms
Resistance - Post Trip (R1) (Max) : 12 Ohms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 125°C
Ratings : AEC-Q200
Mounting Type : Surface Mount
Package / Case : 0805 (2012 Metric), Concave
Size / Dimension : 0.085" L x 0.053" W (2.15mm x 1.35mm)
Height - Seated (Max) : -
Thickness (Max) : 0.032" (0.80mm)
Lead Spacing : -
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Multifuse®, MF-PSHT
Part Status : Active
Type : Polymeric
Voltage - Max : 16V
Current - Max : 40A
Current - Hold (Ih) (Max) : 100mA
Current - Trip (It) : 600mA
Time to Trip : 1.5s
Resistance - Initial (Ri) (Min) : 1 Ohms
Resistance - Post Trip (R1) (Max) : 12 Ohms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 125°C
Ratings : AEC-Q200
Mounting Type : Surface Mount
Package / Case : 0805 (2012 Metric), Concave
Size / Dimension : 0.085" L x 0.053" W (2.15mm x 1.35mm)
Height - Seated (Max) : -
Thickness (Max) : 0.032" (0.80mm)
Lead Spacing : -
0
2387 in stock
MF-PSMF010X-2
Bourns, Inc.
Manufacturer : Bourns Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Multifuse®, MF-PSMF
Part Status : Active
Type : Polymeric
Voltage - Max : 15V
Current - Max : 40A
Current - Hold (Ih) (Max) : 100mA
Current - Trip (It) : 300mA
Time to Trip : 1.5s
Resistance - Initial (Ri) (Min) : 1 Ohms
Resistance - Post Trip (R1) (Max) : 7.5 Ohms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 0805 (2012 Metric), Concave
Size / Dimension : 0.085" L x 0.053" W (2.15mm x 1.35mm)
Height - Seated (Max) : -
Thickness (Max) : 0.033" (0.85mm)
Lead Spacing : -
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Multifuse®, MF-PSMF
Part Status : Active
Type : Polymeric
Voltage - Max : 15V
Current - Max : 40A
Current - Hold (Ih) (Max) : 100mA
Current - Trip (It) : 300mA
Time to Trip : 1.5s
Resistance - Initial (Ri) (Min) : 1 Ohms
Resistance - Post Trip (R1) (Max) : 7.5 Ohms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 0805 (2012 Metric), Concave
Size / Dimension : 0.085" L x 0.053" W (2.15mm x 1.35mm)
Height - Seated (Max) : -
Thickness (Max) : 0.033" (0.85mm)
Lead Spacing : -
0
53856 in stock
MF-PSMF020X-2
Bourns, Inc.
Manufacturer : Bourns Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Multifuse®, MF-PSMF
Part Status : Active
Type : Polymeric
Voltage - Max : 9V
Current - Max : 40A
Current - Hold (Ih) (Max) : 200mA
Current - Trip (It) : 500mA
Time to Trip : 20ms
Resistance - Initial (Ri) (Min) : 650 mOhms
Resistance - Post Trip (R1) (Max) : 3.5 Ohms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 0805 (2012 Metric), Concave
Size / Dimension : 0.085" L x 0.053" W (2.15mm x 1.35mm)
Height - Seated (Max) : -
Thickness (Max) : 0.033" (0.85mm)
Lead Spacing : -
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Multifuse®, MF-PSMF
Part Status : Active
Type : Polymeric
Voltage - Max : 9V
Current - Max : 40A
Current - Hold (Ih) (Max) : 200mA
Current - Trip (It) : 500mA
Time to Trip : 20ms
Resistance - Initial (Ri) (Min) : 650 mOhms
Resistance - Post Trip (R1) (Max) : 3.5 Ohms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 0805 (2012 Metric), Concave
Size / Dimension : 0.085" L x 0.053" W (2.15mm x 1.35mm)
Height - Seated (Max) : -
Thickness (Max) : 0.033" (0.85mm)
Lead Spacing : -
0
20347 in stock

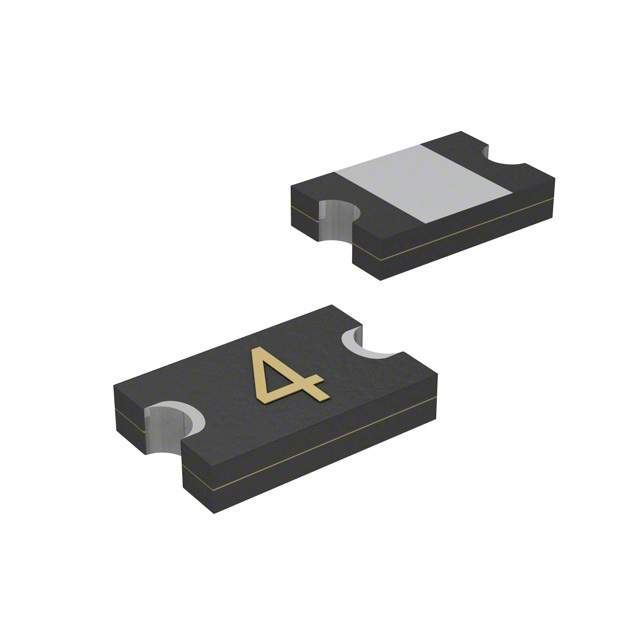

MF-PSMF035X-2
Bourns, Inc.
Manufacturer : Bourns Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Multifuse®, MF-PSMF
Part Status : Active
Type : Polymeric
Voltage - Max : 6V
Current - Max : 40A
Current - Hold (Ih) (Max) : 350mA
Current - Trip (It) : 750mA
Time to Trip : 100ms
Resistance - Initial (Ri) (Min) : 250 mOhms
Resistance - Post Trip (R1) (Max) : 1.2 Ohms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 0805 (2012 Metric), Concave
Size / Dimension : 0.085" L x 0.053" W (2.15mm x 1.35mm)
Height - Seated (Max) : -
Thickness (Max) : 0.033" (0.85mm)
Lead Spacing : -
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Multifuse®, MF-PSMF
Part Status : Active
Type : Polymeric
Voltage - Max : 6V
Current - Max : 40A
Current - Hold (Ih) (Max) : 350mA
Current - Trip (It) : 750mA
Time to Trip : 100ms
Resistance - Initial (Ri) (Min) : 250 mOhms
Resistance - Post Trip (R1) (Max) : 1.2 Ohms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 0805 (2012 Metric), Concave
Size / Dimension : 0.085" L x 0.053" W (2.15mm x 1.35mm)
Height - Seated (Max) : -
Thickness (Max) : 0.033" (0.85mm)
Lead Spacing : -
0
62887 in stock
MF-PSMF050X-2
Bourns, Inc.
Manufacturer : Bourns Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Multifuse®, MF-PSMF
Part Status : Active
Type : Polymeric
Voltage - Max : 6V
Current - Max : 40A
Current - Hold (Ih) (Max) : 500mA
Current - Trip (It) : 1A
Time to Trip : 100ms
Resistance - Initial (Ri) (Min) : 150 mOhms
Resistance - Post Trip (R1) (Max) : 900 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 0805 (2012 Metric), Concave
Size / Dimension : 0.085" L x 0.053" W (2.15mm x 1.35mm)
Height - Seated (Max) : -
Thickness (Max) : 0.033" (0.85mm)
Lead Spacing : -
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Multifuse®, MF-PSMF
Part Status : Active
Type : Polymeric
Voltage - Max : 6V
Current - Max : 40A
Current - Hold (Ih) (Max) : 500mA
Current - Trip (It) : 1A
Time to Trip : 100ms
Resistance - Initial (Ri) (Min) : 150 mOhms
Resistance - Post Trip (R1) (Max) : 900 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 0805 (2012 Metric), Concave
Size / Dimension : 0.085" L x 0.053" W (2.15mm x 1.35mm)
Height - Seated (Max) : -
Thickness (Max) : 0.033" (0.85mm)
Lead Spacing : -
0
29389 in stock
MF-PSMF075X-2
Bourns, Inc.
Manufacturer : Bourns Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Multifuse®, MF-PSMF
Part Status : Active
Type : Polymeric
Voltage - Max : 6V
Current - Max : 40A
Current - Hold (Ih) (Max) : 750mA
Current - Trip (It) : 1.5A
Time to Trip : 200ms
Resistance - Initial (Ri) (Min) : 90 mOhms
Resistance - Post Trip (R1) (Max) : 350 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 0805 (2012 Metric), Concave
Size / Dimension : 0.085" L x 0.053" W (2.15mm x 1.35mm)
Height - Seated (Max) : -
Thickness (Max) : 0.049" (1.25mm)
Lead Spacing : -
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Multifuse®, MF-PSMF
Part Status : Active
Type : Polymeric
Voltage - Max : 6V
Current - Max : 40A
Current - Hold (Ih) (Max) : 750mA
Current - Trip (It) : 1.5A
Time to Trip : 200ms
Resistance - Initial (Ri) (Min) : 90 mOhms
Resistance - Post Trip (R1) (Max) : 350 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 0805 (2012 Metric), Concave
Size / Dimension : 0.085" L x 0.053" W (2.15mm x 1.35mm)
Height - Seated (Max) : -
Thickness (Max) : 0.049" (1.25mm)
Lead Spacing : -
0
23740 in stock

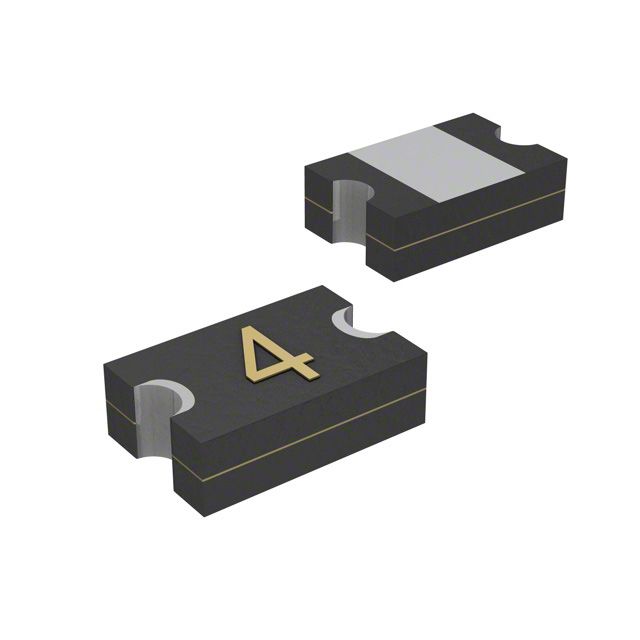

MF-PSMF110X-2
Bourns, Inc.
Manufacturer : Bourns Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Multifuse®, MF-PSMF
Part Status : Active
Type : Polymeric
Voltage - Max : 6V
Current - Max : 40A
Current - Hold (Ih) (Max) : 1.1A
Current - Trip (It) : 2.2A
Time to Trip : 300ms
Resistance - Initial (Ri) (Min) : 60 mOhms
Resistance - Post Trip (R1) (Max) : 210 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 0805 (2012 Metric), Concave
Size / Dimension : 0.085" L x 0.053" W (2.15mm x 1.35mm)
Height - Seated (Max) : -
Thickness (Max) : 0.049" (1.25mm)
Lead Spacing : -
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Multifuse®, MF-PSMF
Part Status : Active
Type : Polymeric
Voltage - Max : 6V
Current - Max : 40A
Current - Hold (Ih) (Max) : 1.1A
Current - Trip (It) : 2.2A
Time to Trip : 300ms
Resistance - Initial (Ri) (Min) : 60 mOhms
Resistance - Post Trip (R1) (Max) : 210 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 0805 (2012 Metric), Concave
Size / Dimension : 0.085" L x 0.053" W (2.15mm x 1.35mm)
Height - Seated (Max) : -
Thickness (Max) : 0.049" (1.25mm)
Lead Spacing : -
0
22973 in stock

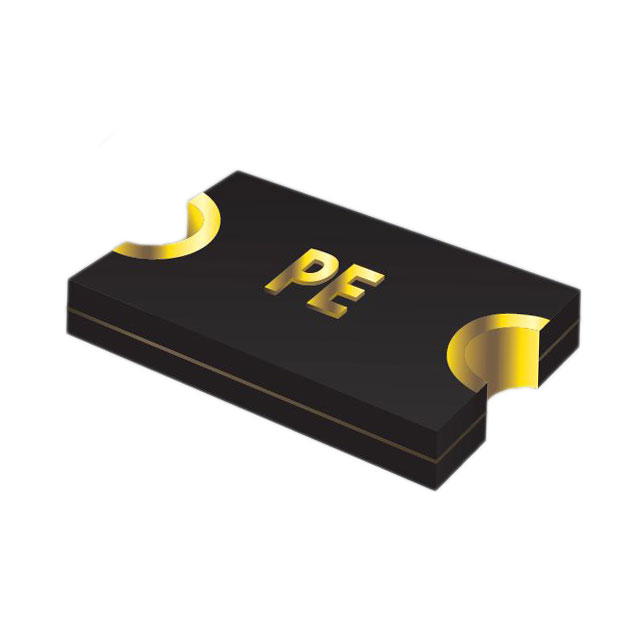

MF-PSML075-2
Bourns, Inc.
Manufacturer : Bourns Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Multifuse®, MF-PSML
Part Status : Active
Type : Polymeric
Voltage - Max : 6V
Current - Max : 50A
Current - Hold (Ih) (Max) : 750mA
Current - Trip (It) : 1.5A
Time to Trip : 300ms
Resistance - Initial (Ri) (Min) : 20 mOhms
Resistance - Post Trip (R1) (Max) : 300 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 0805 (2012 Metric), Concave
Size / Dimension : 0.085" L x 0.053" W (2.15mm x 1.35mm)
Height - Seated (Max) : -
Thickness (Max) : 0.024" (0.60mm)
Lead Spacing : -
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Multifuse®, MF-PSML
Part Status : Active
Type : Polymeric
Voltage - Max : 6V
Current - Max : 50A
Current - Hold (Ih) (Max) : 750mA
Current - Trip (It) : 1.5A
Time to Trip : 300ms
Resistance - Initial (Ri) (Min) : 20 mOhms
Resistance - Post Trip (R1) (Max) : 300 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 0805 (2012 Metric), Concave
Size / Dimension : 0.085" L x 0.053" W (2.15mm x 1.35mm)
Height - Seated (Max) : -
Thickness (Max) : 0.024" (0.60mm)
Lead Spacing : -
0
5783 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2026 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
