Welcome to Weijie Semiconductor
- Circuit Protection
- PTC Resettable Fuses
Part Number
Manufacturer
Description
Unit Price
In Stock
MF-PSML110-2
Bourns, Inc.
Manufacturer : Bourns Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Multifuse®, MF-PSML
Part Status : Active
Type : Polymeric
Voltage - Max : 6V
Current - Max : 50A
Current - Hold (Ih) (Max) : 1.1A
Current - Trip (It) : 1.8A
Time to Trip : 300ms
Resistance - Initial (Ri) (Min) : 17.5 mOhms
Resistance - Post Trip (R1) (Max) : 130 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 0805 (2012 Metric), Concave
Size / Dimension : 0.085" L x 0.053" W (2.15mm x 1.35mm)
Height - Seated (Max) : -
Thickness (Max) : 0.024" (0.60mm)
Lead Spacing : -
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Multifuse®, MF-PSML
Part Status : Active
Type : Polymeric
Voltage - Max : 6V
Current - Max : 50A
Current - Hold (Ih) (Max) : 1.1A
Current - Trip (It) : 1.8A
Time to Trip : 300ms
Resistance - Initial (Ri) (Min) : 17.5 mOhms
Resistance - Post Trip (R1) (Max) : 130 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 0805 (2012 Metric), Concave
Size / Dimension : 0.085" L x 0.053" W (2.15mm x 1.35mm)
Height - Seated (Max) : -
Thickness (Max) : 0.024" (0.60mm)
Lead Spacing : -
0
5929 in stock
MF-PSML150-2
Bourns, Inc.
Manufacturer : Bourns Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Multifuse®, MF-PSML
Part Status : Active
Type : Polymeric
Voltage - Max : 6V
Current - Max : 50A
Current - Hold (Ih) (Max) : 1.5A
Current - Trip (It) : 3A
Time to Trip : 500ms
Resistance - Initial (Ri) (Min) : 15 mOhms
Resistance - Post Trip (R1) (Max) : 65 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 0805 (2012 Metric), Concave
Size / Dimension : 0.085" L x 0.053" W (2.15mm x 1.35mm)
Height - Seated (Max) : -
Thickness (Max) : 0.024" (0.60mm)
Lead Spacing : -
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Multifuse®, MF-PSML
Part Status : Active
Type : Polymeric
Voltage - Max : 6V
Current - Max : 50A
Current - Hold (Ih) (Max) : 1.5A
Current - Trip (It) : 3A
Time to Trip : 500ms
Resistance - Initial (Ri) (Min) : 15 mOhms
Resistance - Post Trip (R1) (Max) : 65 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 0805 (2012 Metric), Concave
Size / Dimension : 0.085" L x 0.053" W (2.15mm x 1.35mm)
Height - Seated (Max) : -
Thickness (Max) : 0.024" (0.60mm)
Lead Spacing : -
0
5856 in stock
MF-PSML175-2
Bourns, Inc.
Manufacturer : Bourns Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Multifuse®, MF-PSML
Part Status : Active
Type : Polymeric
Voltage - Max : 6V
Current - Max : 50A
Current - Hold (Ih) (Max) : 1.75A
Current - Trip (It) : 3.5A
Time to Trip : 600ms
Resistance - Initial (Ri) (Min) : 5 mOhms
Resistance - Post Trip (R1) (Max) : 55 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 0805 (2012 Metric), Concave
Size / Dimension : 0.085" L x 0.053" W (2.15mm x 1.35mm)
Height - Seated (Max) : -
Thickness (Max) : 0.024" (0.60mm)
Lead Spacing : -
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Multifuse®, MF-PSML
Part Status : Active
Type : Polymeric
Voltage - Max : 6V
Current - Max : 50A
Current - Hold (Ih) (Max) : 1.75A
Current - Trip (It) : 3.5A
Time to Trip : 600ms
Resistance - Initial (Ri) (Min) : 5 mOhms
Resistance - Post Trip (R1) (Max) : 55 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 0805 (2012 Metric), Concave
Size / Dimension : 0.085" L x 0.053" W (2.15mm x 1.35mm)
Height - Seated (Max) : -
Thickness (Max) : 0.024" (0.60mm)
Lead Spacing : -
0
6475 in stock

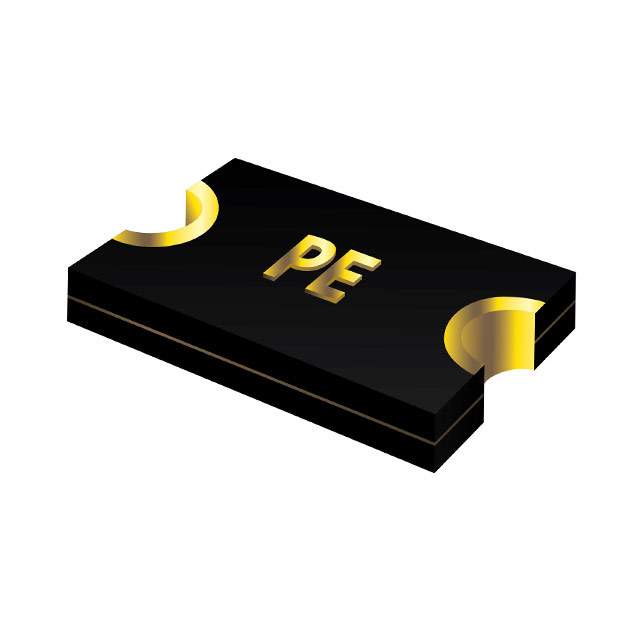

MF-PSML200-2
Bourns, Inc.
Manufacturer : Bourns Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Multifuse®, MF-PSML
Part Status : Active
Type : Polymeric
Voltage - Max : 6V
Current - Max : 50A
Current - Hold (Ih) (Max) : 2A
Current - Trip (It) : 4A
Time to Trip : 1s
Resistance - Initial (Ri) (Min) : 5 mOhms
Resistance - Post Trip (R1) (Max) : 45 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 0805 (2012 Metric), Concave
Size / Dimension : 0.085" L x 0.053" W (2.15mm x 1.35mm)
Height - Seated (Max) : -
Thickness (Max) : 0.024" (0.60mm)
Lead Spacing : -
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Multifuse®, MF-PSML
Part Status : Active
Type : Polymeric
Voltage - Max : 6V
Current - Max : 50A
Current - Hold (Ih) (Max) : 2A
Current - Trip (It) : 4A
Time to Trip : 1s
Resistance - Initial (Ri) (Min) : 5 mOhms
Resistance - Post Trip (R1) (Max) : 45 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 0805 (2012 Metric), Concave
Size / Dimension : 0.085" L x 0.053" W (2.15mm x 1.35mm)
Height - Seated (Max) : -
Thickness (Max) : 0.024" (0.60mm)
Lead Spacing : -
0
5630 in stock
MF-PSML260-2
Bourns, Inc.
Manufacturer : Bourns Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Multifuse®, MF-PSML
Part Status : Active
Type : Polymeric
Voltage - Max : 6V
Current - Max : 50A
Current - Hold (Ih) (Max) : 2.6A
Current - Trip (It) : 5A
Time to Trip : 4s
Resistance - Initial (Ri) (Min) : 3 mOhms
Resistance - Post Trip (R1) (Max) : 35 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 0805 (2012 Metric), Concave
Size / Dimension : 0.085" L x 0.053" W (2.15mm x 1.35mm)
Height - Seated (Max) : -
Thickness (Max) : 0.032" (0.80mm)
Lead Spacing : -
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Multifuse®, MF-PSML
Part Status : Active
Type : Polymeric
Voltage - Max : 6V
Current - Max : 50A
Current - Hold (Ih) (Max) : 2.6A
Current - Trip (It) : 5A
Time to Trip : 4s
Resistance - Initial (Ri) (Min) : 3 mOhms
Resistance - Post Trip (R1) (Max) : 35 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 0805 (2012 Metric), Concave
Size / Dimension : 0.085" L x 0.053" W (2.15mm x 1.35mm)
Height - Seated (Max) : -
Thickness (Max) : 0.032" (0.80mm)
Lead Spacing : -
0
8640 in stock
MF-PSML300-2
Bourns, Inc.
Manufacturer : Bourns Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Multifuse®, MF-PSML
Part Status : Active
Type : Polymeric
Voltage - Max : 6V
Current - Max : 50A
Current - Hold (Ih) (Max) : 3A
Current - Trip (It) : 6A
Time to Trip : 5s
Resistance - Initial (Ri) (Min) : 3 mOhms
Resistance - Post Trip (R1) (Max) : 30 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 0805 (2012 Metric), Concave
Size / Dimension : 0.085" L x 0.053" W (2.15mm x 1.35mm)
Height - Seated (Max) : -
Thickness (Max) : 0.032" (0.80mm)
Lead Spacing : -
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Multifuse®, MF-PSML
Part Status : Active
Type : Polymeric
Voltage - Max : 6V
Current - Max : 50A
Current - Hold (Ih) (Max) : 3A
Current - Trip (It) : 6A
Time to Trip : 5s
Resistance - Initial (Ri) (Min) : 3 mOhms
Resistance - Post Trip (R1) (Max) : 30 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 0805 (2012 Metric), Concave
Size / Dimension : 0.085" L x 0.053" W (2.15mm x 1.35mm)
Height - Seated (Max) : -
Thickness (Max) : 0.032" (0.80mm)
Lead Spacing : -
0
3672 in stock
MF-PSML350-2
Bourns, Inc.
Manufacturer : Bourns Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Multifuse®, MF-PSML
Part Status : Active
Type : Polymeric
Voltage - Max : 6V
Current - Max : 50A
Current - Hold (Ih) (Max) : 3.5A
Current - Trip (It) : 7A
Time to Trip : 5s
Resistance - Initial (Ri) (Min) : 3 mOhms
Resistance - Post Trip (R1) (Max) : 25 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 0805 (2012 Metric), Concave
Size / Dimension : 0.085" L x 0.053" W (2.15mm x 1.35mm)
Height - Seated (Max) : -
Thickness (Max) : 0.032" (0.80mm)
Lead Spacing : -
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Multifuse®, MF-PSML
Part Status : Active
Type : Polymeric
Voltage - Max : 6V
Current - Max : 50A
Current - Hold (Ih) (Max) : 3.5A
Current - Trip (It) : 7A
Time to Trip : 5s
Resistance - Initial (Ri) (Min) : 3 mOhms
Resistance - Post Trip (R1) (Max) : 25 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 0805 (2012 Metric), Concave
Size / Dimension : 0.085" L x 0.053" W (2.15mm x 1.35mm)
Height - Seated (Max) : -
Thickness (Max) : 0.032" (0.80mm)
Lead Spacing : -
0
4330 in stock

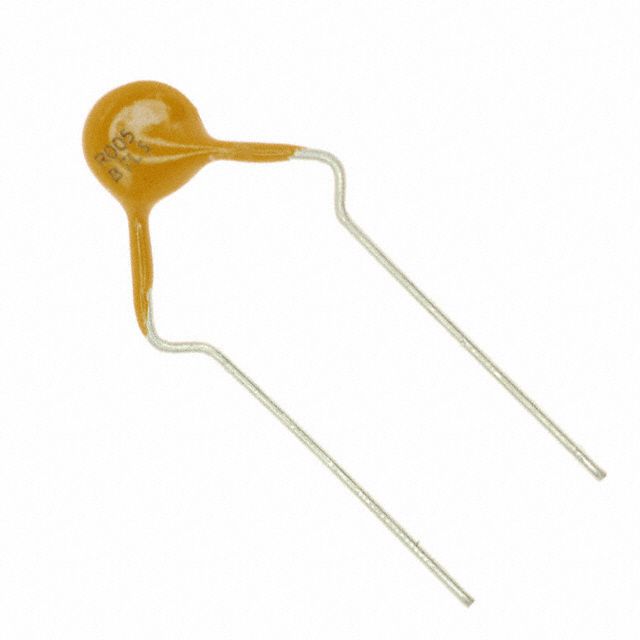

MF-R005-0
Bourns, Inc.
Manufacturer : Bourns Inc.
Packaging : Bulk
Alternate Packaging
Series : Multifuse®, MF-R
Part Status : Active
Type : Polymeric
Voltage - Max : 60V
Current - Max : 40A
Current - Hold (Ih) (Max) : 50mA
Current - Trip (It) : 100mA
Time to Trip : 5s
Resistance - Initial (Ri) (Min) : 7.3 Ohms
Resistance - Post Trip (R1) (Max) : 22 Ohms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.315" Dia x 0.122" T (8.00mm x 3.10mm)
Height - Seated (Max) : 0.327" (8.30mm)
Thickness (Max) : -
Lead Spacing : 0.201" (5.10mm)
Packaging : Bulk
Alternate Packaging
Series : Multifuse®, MF-R
Part Status : Active
Type : Polymeric
Voltage - Max : 60V
Current - Max : 40A
Current - Hold (Ih) (Max) : 50mA
Current - Trip (It) : 100mA
Time to Trip : 5s
Resistance - Initial (Ri) (Min) : 7.3 Ohms
Resistance - Post Trip (R1) (Max) : 22 Ohms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.315" Dia x 0.122" T (8.00mm x 3.10mm)
Height - Seated (Max) : 0.327" (8.30mm)
Thickness (Max) : -
Lead Spacing : 0.201" (5.10mm)
0
8754 in stock

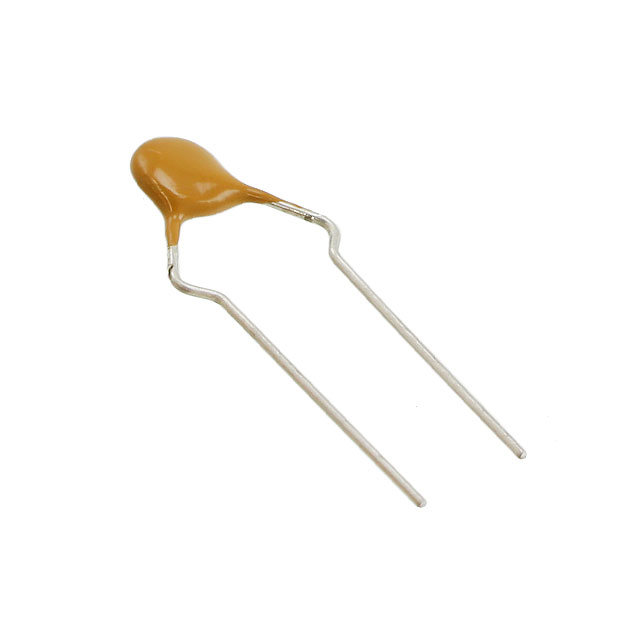

MF-R005-0-99
Bourns, Inc.
Manufacturer : Bourns Inc.
Packaging : Bulk
Alternate Packaging
Series : Multifuse®, MF-R
Part Status : Last Time Buy
Type : Polymeric
Voltage - Max : 60V
Current - Max : 40A
Current - Hold (Ih) (Max) : 50mA
Current - Trip (It) : 100mA
Time to Trip : 5s
Resistance - Initial (Ri) (Min) : 7.3 Ohms
Resistance - Post Trip (R1) (Max) : 22 Ohms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.315" Dia x 0.122" T (8.00mm x 3.10mm)
Height - Seated (Max) : 0.327" (8.30mm)
Thickness (Max) : -
Lead Spacing : 0.201" (5.10mm)
Packaging : Bulk
Alternate Packaging
Series : Multifuse®, MF-R
Part Status : Last Time Buy
Type : Polymeric
Voltage - Max : 60V
Current - Max : 40A
Current - Hold (Ih) (Max) : 50mA
Current - Trip (It) : 100mA
Time to Trip : 5s
Resistance - Initial (Ri) (Min) : 7.3 Ohms
Resistance - Post Trip (R1) (Max) : 22 Ohms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.315" Dia x 0.122" T (8.00mm x 3.10mm)
Height - Seated (Max) : 0.327" (8.30mm)
Thickness (Max) : -
Lead Spacing : 0.201" (5.10mm)
0
469 in stock

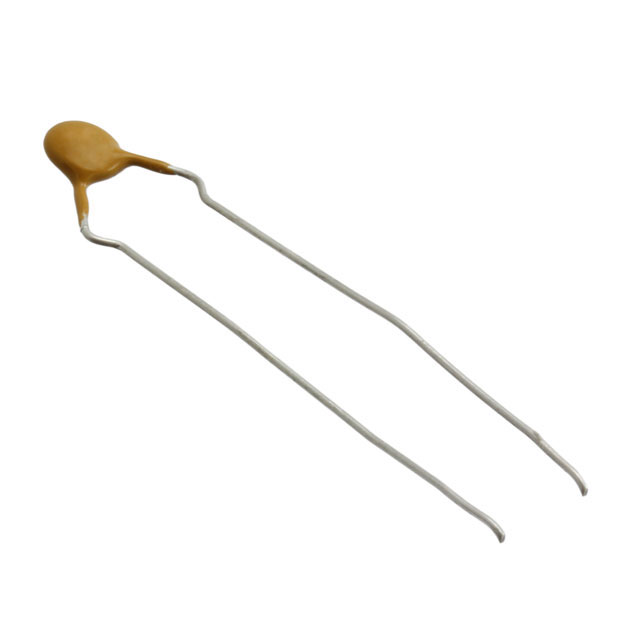

MF-R005-2
Bourns, Inc.
Manufacturer : Bourns Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Multifuse®, MF-R
Part Status : Active
Type : Polymeric
Voltage - Max : 60V
Current - Max : 40A
Current - Hold (Ih) (Max) : 50mA
Current - Trip (It) : 100mA
Time to Trip : 5s
Resistance - Initial (Ri) (Min) : 7.3 Ohms
Resistance - Post Trip (R1) (Max) : 22 Ohms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.315" Dia x 0.122" T (8.00mm x 3.10mm)
Height - Seated (Max) : 0.327" (8.30mm)
Thickness (Max) : -
Lead Spacing : 0.201" (5.10mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Multifuse®, MF-R
Part Status : Active
Type : Polymeric
Voltage - Max : 60V
Current - Max : 40A
Current - Hold (Ih) (Max) : 50mA
Current - Trip (It) : 100mA
Time to Trip : 5s
Resistance - Initial (Ri) (Min) : 7.3 Ohms
Resistance - Post Trip (R1) (Max) : 22 Ohms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.315" Dia x 0.122" T (8.00mm x 3.10mm)
Height - Seated (Max) : 0.327" (8.30mm)
Thickness (Max) : -
Lead Spacing : 0.201" (5.10mm)
0
6483 in stock
MF-R010
Bourns, Inc.
Manufacturer : Bourns Inc.
Packaging : Bulk
Alternate Packaging
Series : Multifuse®, MF-R
Part Status : Active
Type : Polymeric
Voltage - Max : 60V
Current - Max : 40A
Current - Hold (Ih) (Max) : 100mA
Current - Trip (It) : 200mA
Time to Trip : 4s
Resistance - Initial (Ri) (Min) : 2.5 Ohms
Resistance - Post Trip (R1) (Max) : 7.5 Ohms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.291" Dia x 0.122" T (7.40mm x 3.10mm)
Height - Seated (Max) : 0.500" (12.70mm)
Thickness (Max) : -
Lead Spacing : 0.201" (5.10mm)
Packaging : Bulk
Alternate Packaging
Series : Multifuse®, MF-R
Part Status : Active
Type : Polymeric
Voltage - Max : 60V
Current - Max : 40A
Current - Hold (Ih) (Max) : 100mA
Current - Trip (It) : 200mA
Time to Trip : 4s
Resistance - Initial (Ri) (Min) : 2.5 Ohms
Resistance - Post Trip (R1) (Max) : 7.5 Ohms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.291" Dia x 0.122" T (7.40mm x 3.10mm)
Height - Seated (Max) : 0.500" (12.70mm)
Thickness (Max) : -
Lead Spacing : 0.201" (5.10mm)
0
47324 in stock

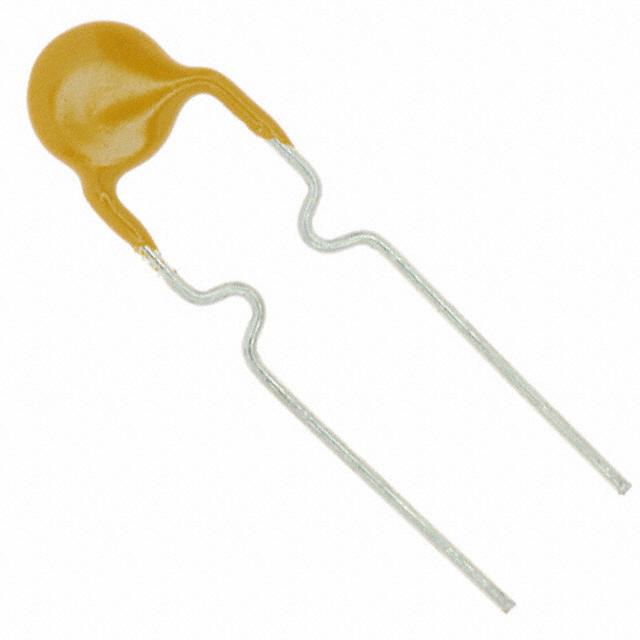

MF-R010-0-99
Bourns, Inc.
Manufacturer : Bourns Inc.
Packaging : Bulk
Alternate Packaging
Series : Multifuse®, MF-R
Part Status : Last Time Buy
Type : Polymeric
Voltage - Max : 60V
Current - Max : 40A
Current - Hold (Ih) (Max) : 100mA
Current - Trip (It) : 200mA
Time to Trip : 4s
Resistance - Initial (Ri) (Min) : 2.5 Ohms
Resistance - Post Trip (R1) (Max) : 7.5 Ohms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.291" Dia x 0.122" T (7.40mm x 3.10mm)
Height - Seated (Max) : 0.500" (12.70mm)
Thickness (Max) : -
Lead Spacing : 0.201" (5.10mm)
Packaging : Bulk
Alternate Packaging
Series : Multifuse®, MF-R
Part Status : Last Time Buy
Type : Polymeric
Voltage - Max : 60V
Current - Max : 40A
Current - Hold (Ih) (Max) : 100mA
Current - Trip (It) : 200mA
Time to Trip : 4s
Resistance - Initial (Ri) (Min) : 2.5 Ohms
Resistance - Post Trip (R1) (Max) : 7.5 Ohms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.291" Dia x 0.122" T (7.40mm x 3.10mm)
Height - Seated (Max) : 0.500" (12.70mm)
Thickness (Max) : -
Lead Spacing : 0.201" (5.10mm)
0
1 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2026 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
