Part Number
Manufacturer
Description
Unit Price
In Stock
MF-RG500-2
Bourns, Inc.
Manufacturer : Bourns Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Multifuse®, MF-RG
Part Status : Active
Type : Polymeric
Voltage - Max : 16V
Current - Max : 100A
Current - Hold (Ih) (Max) : 5A
Current - Trip (It) : 8.5A
Time to Trip : 2s
Resistance - Initial (Ri) (Min) : 15 mOhms
Resistance - Post Trip (R1) (Max) : 34 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.409" L x 0.118" W (10.40mm x 3.00mm)
Height - Seated (Max) : 0.563" (14.30mm)
Thickness (Max) : -
Lead Spacing : 0.114" (2.90mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Multifuse®, MF-RG
Part Status : Active
Type : Polymeric
Voltage - Max : 16V
Current - Max : 100A
Current - Hold (Ih) (Max) : 5A
Current - Trip (It) : 8.5A
Time to Trip : 2s
Resistance - Initial (Ri) (Min) : 15 mOhms
Resistance - Post Trip (R1) (Max) : 34 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.409" L x 0.118" W (10.40mm x 3.00mm)
Height - Seated (Max) : 0.563" (14.30mm)
Thickness (Max) : -
Lead Spacing : 0.114" (2.90mm)
0
5521 in stock
MF-RG600-2
Bourns, Inc.
Manufacturer : Bourns Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Multifuse®, MF-RG
Part Status : Active
Type : Polymeric
Voltage - Max : 16V
Current - Max : 100A
Current - Hold (Ih) (Max) : 6A
Current - Trip (It) : 10.2A
Time to Trip : 3.3s
Resistance - Initial (Ri) (Min) : 10 mOhms
Resistance - Post Trip (R1) (Max) : 28 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : AEC-Q200
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.421" L x 0.118" W (10.70mm x 3.00mm)
Height - Seated (Max) : 0.673" (17.10mm)
Thickness (Max) : -
Lead Spacing : 0.201" (5.10mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Multifuse®, MF-RG
Part Status : Active
Type : Polymeric
Voltage - Max : 16V
Current - Max : 100A
Current - Hold (Ih) (Max) : 6A
Current - Trip (It) : 10.2A
Time to Trip : 3.3s
Resistance - Initial (Ri) (Min) : 10 mOhms
Resistance - Post Trip (R1) (Max) : 28 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : AEC-Q200
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.421" L x 0.118" W (10.70mm x 3.00mm)
Height - Seated (Max) : 0.673" (17.10mm)
Thickness (Max) : -
Lead Spacing : 0.201" (5.10mm)
0
956 in stock
MF-RG650-2
Bourns, Inc.
Manufacturer : Bourns Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Multifuse®, MF-RG
Part Status : Active
Type : Polymeric
Voltage - Max : 16V
Current - Max : 100A
Current - Hold (Ih) (Max) : 6.5A
Current - Trip (It) : 11.1A
Time to Trip : 3.5s
Resistance - Initial (Ri) (Min) : 8.8 mOhms
Resistance - Post Trip (R1) (Max) : 24 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : AEC-Q200
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.441" L x 0.118" W (11.20mm x 3.00mm)
Height - Seated (Max) : 0.776" (19.70mm)
Thickness (Max) : -
Lead Spacing : 0.201" (5.10mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Multifuse®, MF-RG
Part Status : Active
Type : Polymeric
Voltage - Max : 16V
Current - Max : 100A
Current - Hold (Ih) (Max) : 6.5A
Current - Trip (It) : 11.1A
Time to Trip : 3.5s
Resistance - Initial (Ri) (Min) : 8.8 mOhms
Resistance - Post Trip (R1) (Max) : 24 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : AEC-Q200
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.441" L x 0.118" W (11.20mm x 3.00mm)
Height - Seated (Max) : 0.776" (19.70mm)
Thickness (Max) : -
Lead Spacing : 0.201" (5.10mm)
0
995 in stock
MF-RG700-2
Bourns, Inc.
Manufacturer : Bourns Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Multifuse®, MF-RG
Part Status : Active
Type : Polymeric
Voltage - Max : 16V
Current - Max : 100A
Current - Hold (Ih) (Max) : 7A
Current - Trip (It) : 11.9A
Time to Trip : 8s
Resistance - Initial (Ri) (Min) : 8 mOhms
Resistance - Post Trip (R1) (Max) : 21 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.441" Dia x 0.118" T (11.20mm x 3.00mm)
Height - Seated (Max) : 0.740" (18.80mm)
Thickness (Max) : -
Lead Spacing : 0.205" (5.20mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Multifuse®, MF-RG
Part Status : Active
Type : Polymeric
Voltage - Max : 16V
Current - Max : 100A
Current - Hold (Ih) (Max) : 7A
Current - Trip (It) : 11.9A
Time to Trip : 8s
Resistance - Initial (Ri) (Min) : 8 mOhms
Resistance - Post Trip (R1) (Max) : 21 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.441" Dia x 0.118" T (11.20mm x 3.00mm)
Height - Seated (Max) : 0.740" (18.80mm)
Thickness (Max) : -
Lead Spacing : 0.205" (5.20mm)
0
927 in stock
MF-RG800-0
Bourns, Inc.
Manufacturer : Bourns Inc.
Packaging : Bulk
Series : Multifuse®, MF-RG
Part Status : Active
Type : Polymeric
Voltage - Max : 16V
Current - Max : 100A
Current - Hold (Ih) (Max) : -
Current - Trip (It) : -
Time to Trip : -
Resistance - Initial (Ri) (Min) : -
Resistance - Post Trip (R1) (Max) : -
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.500" L x 0.118" W (12.70mm x 3.00mm)
Height - Seated (Max) : 0.823" (20.90mm)
Thickness (Max) : -
Lead Spacing : 0.201" (5.10mm)
Packaging : Bulk
Series : Multifuse®, MF-RG
Part Status : Active
Type : Polymeric
Voltage - Max : 16V
Current - Max : 100A
Current - Hold (Ih) (Max) : -
Current - Trip (It) : -
Time to Trip : -
Resistance - Initial (Ri) (Min) : -
Resistance - Post Trip (R1) (Max) : -
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.500" L x 0.118" W (12.70mm x 3.00mm)
Height - Seated (Max) : 0.823" (20.90mm)
Thickness (Max) : -
Lead Spacing : 0.201" (5.10mm)
0
1115 in stock

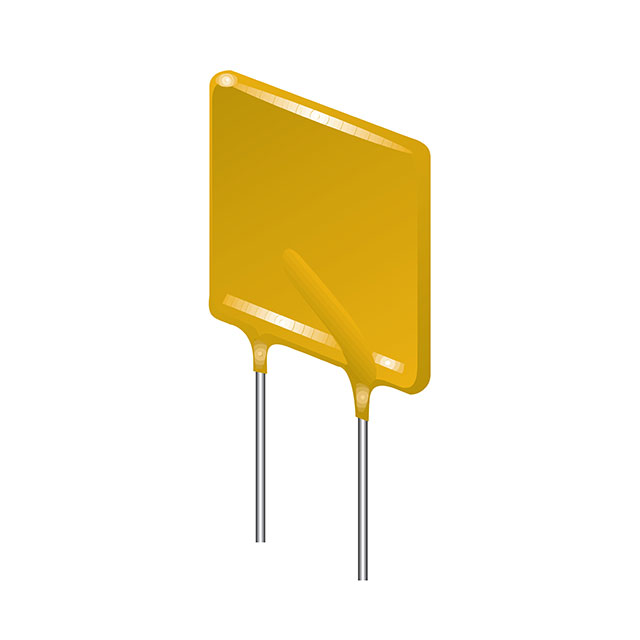

MF-RG800-2
Bourns, Inc.
Manufacturer : Bourns Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Multifuse®, MF-RG
Part Status : Active
Type : Polymeric
Voltage - Max : 16V
Current - Max : 100A
Current - Hold (Ih) (Max) : 8A
Current - Trip (It) : 13.6A
Time to Trip : 5s
Resistance - Initial (Ri) (Min) : 5.6 mOhms
Resistance - Post Trip (R1) (Max) : 17.5 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : AEC-Q200
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.500" L x 0.118" W (12.70mm x 3.00mm)
Height - Seated (Max) : 0.823" (20.90mm)
Thickness (Max) : -
Lead Spacing : 0.201" (5.10mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Multifuse®, MF-RG
Part Status : Active
Type : Polymeric
Voltage - Max : 16V
Current - Max : 100A
Current - Hold (Ih) (Max) : 8A
Current - Trip (It) : 13.6A
Time to Trip : 5s
Resistance - Initial (Ri) (Min) : 5.6 mOhms
Resistance - Post Trip (R1) (Max) : 17.5 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : AEC-Q200
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.500" L x 0.118" W (12.70mm x 3.00mm)
Height - Seated (Max) : 0.823" (20.90mm)
Thickness (Max) : -
Lead Spacing : 0.201" (5.10mm)
0
960 in stock
MF-RG900-2
Bourns, Inc.
Manufacturer : Bourns Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Multifuse®, MF-RG
Part Status : Active
Type : Polymeric
Voltage - Max : 16V
Current - Max : 100A
Current - Hold (Ih) (Max) : 9A
Current - Trip (It) : 15.3A
Time to Trip : 12s
Resistance - Initial (Ri) (Min) : 4 mOhms
Resistance - Post Trip (R1) (Max) : 15 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.551" L x 0.118" W (14.00mm x 3.00mm)
Height - Seated (Max) : 0.819" (20.80mm)
Thickness (Max) : -
Lead Spacing : 0.205" (5.20mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Multifuse®, MF-RG
Part Status : Active
Type : Polymeric
Voltage - Max : 16V
Current - Max : 100A
Current - Hold (Ih) (Max) : 9A
Current - Trip (It) : 15.3A
Time to Trip : 12s
Resistance - Initial (Ri) (Min) : 4 mOhms
Resistance - Post Trip (R1) (Max) : 15 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.551" L x 0.118" W (14.00mm x 3.00mm)
Height - Seated (Max) : 0.819" (20.80mm)
Thickness (Max) : -
Lead Spacing : 0.205" (5.20mm)
0
986 in stock

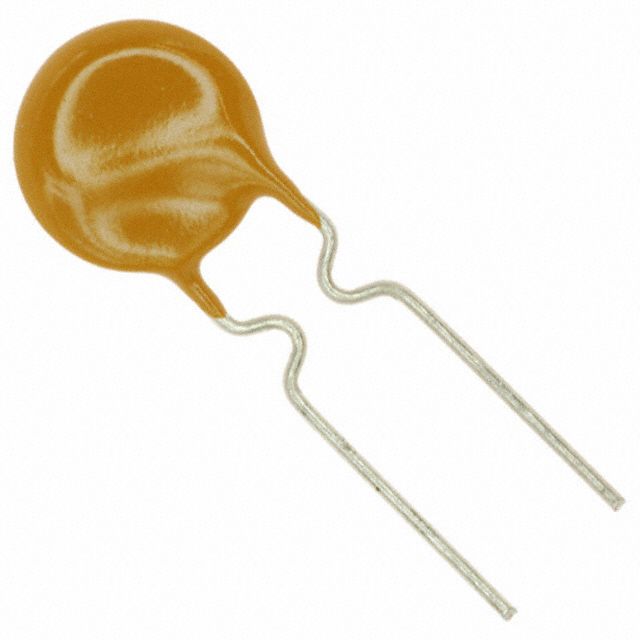

MF-RHT050-0
Bourns, Inc.
Manufacturer : Bourns Inc.
Packaging : Bulk
Alternate Packaging
Series : Multifuse®, MF-RHT
Part Status : Active
Type : Polymeric
Voltage - Max : 30V
Current - Max : 40A
Current - Hold (Ih) (Max) : 500mA
Current - Trip (It) : 920mA
Time to Trip : 2.5s
Resistance - Initial (Ri) (Min) : 480 mOhms
Resistance - Post Trip (R1) (Max) : 1.1 Ohms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 125°C
Ratings : AEC-Q200
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.291" Dia x 0.118" T (7.40mm x 3.00mm)
Height - Seated (Max) : 0.500" (12.70mm)
Thickness (Max) : -
Lead Spacing : 0.201" (5.10mm)
Packaging : Bulk
Alternate Packaging
Series : Multifuse®, MF-RHT
Part Status : Active
Type : Polymeric
Voltage - Max : 30V
Current - Max : 40A
Current - Hold (Ih) (Max) : 500mA
Current - Trip (It) : 920mA
Time to Trip : 2.5s
Resistance - Initial (Ri) (Min) : 480 mOhms
Resistance - Post Trip (R1) (Max) : 1.1 Ohms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 125°C
Ratings : AEC-Q200
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.291" Dia x 0.118" T (7.40mm x 3.00mm)
Height - Seated (Max) : 0.500" (12.70mm)
Thickness (Max) : -
Lead Spacing : 0.201" (5.10mm)
0
1798 in stock
MF-RHT050-2
Bourns, Inc.
Manufacturer : Bourns Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Multifuse®, MF-RHT
Part Status : Active
Type : Polymeric
Voltage - Max : 30V
Current - Max : 40A
Current - Hold (Ih) (Max) : 500mA
Current - Trip (It) : 920mA
Time to Trip : 2.5s
Resistance - Initial (Ri) (Min) : 480 mOhms
Resistance - Post Trip (R1) (Max) : 1.1 Ohms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 125°C
Ratings : AEC-Q200
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.291" Dia x 0.118" T (7.40mm x 3.00mm)
Height - Seated (Max) : 0.500" (12.70mm)
Thickness (Max) : -
Lead Spacing : 0.201" (5.10mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Multifuse®, MF-RHT
Part Status : Active
Type : Polymeric
Voltage - Max : 30V
Current - Max : 40A
Current - Hold (Ih) (Max) : 500mA
Current - Trip (It) : 920mA
Time to Trip : 2.5s
Resistance - Initial (Ri) (Min) : 480 mOhms
Resistance - Post Trip (R1) (Max) : 1.1 Ohms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 125°C
Ratings : AEC-Q200
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.291" Dia x 0.118" T (7.40mm x 3.00mm)
Height - Seated (Max) : 0.500" (12.70mm)
Thickness (Max) : -
Lead Spacing : 0.201" (5.10mm)
0
2990 in stock

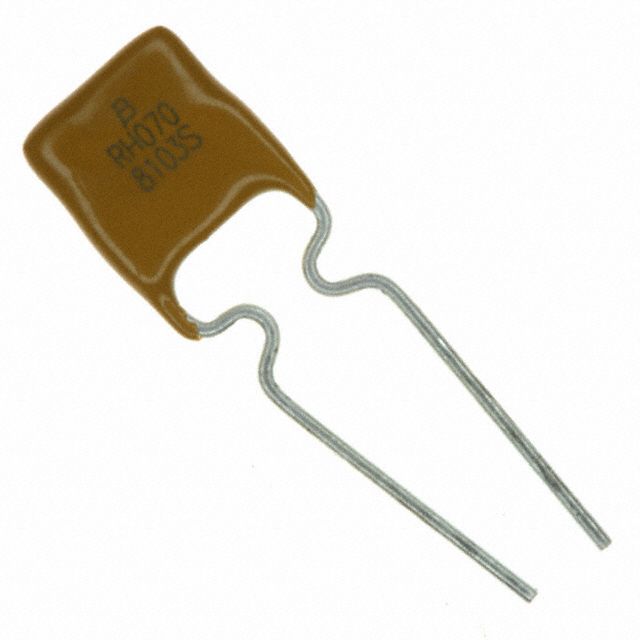

MF-RHT070-0
Bourns, Inc.
Manufacturer : Bourns Inc.
Packaging : Bulk
Alternate Packaging
Series : Multifuse®, MF-RHT
Part Status : Active
Type : Polymeric
Voltage - Max : 16V
Current - Max : 40A
Current - Hold (Ih) (Max) : 700mA
Current - Trip (It) : 1.4A
Time to Trip : 4s
Resistance - Initial (Ri) (Min) : 300 mOhms
Resistance - Post Trip (R1) (Max) : 800 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 125°C
Ratings : AEC-Q200
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.270" L x 0.118" W (6.86mm x 3.00mm)
Height - Seated (Max) : 0.425" (10.80mm)
Thickness (Max) : -
Lead Spacing : 0.114" (2.90mm)
Packaging : Bulk
Alternate Packaging
Series : Multifuse®, MF-RHT
Part Status : Active
Type : Polymeric
Voltage - Max : 16V
Current - Max : 40A
Current - Hold (Ih) (Max) : 700mA
Current - Trip (It) : 1.4A
Time to Trip : 4s
Resistance - Initial (Ri) (Min) : 300 mOhms
Resistance - Post Trip (R1) (Max) : 800 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 125°C
Ratings : AEC-Q200
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.270" L x 0.118" W (6.86mm x 3.00mm)
Height - Seated (Max) : 0.425" (10.80mm)
Thickness (Max) : -
Lead Spacing : 0.114" (2.90mm)
0
4046 in stock
MF-RHT070-2
Bourns, Inc.
Manufacturer : Bourns Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Multifuse®, MF-RHT
Part Status : Active
Type : Polymeric
Voltage - Max : 16V
Current - Max : 40A
Current - Hold (Ih) (Max) : 700mA
Current - Trip (It) : 1.4A
Time to Trip : 4s
Resistance - Initial (Ri) (Min) : 300 mOhms
Resistance - Post Trip (R1) (Max) : 800 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 125°C
Ratings : AEC-Q200
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.270" L x 0.118" W (6.86mm x 3.00mm)
Height - Seated (Max) : 0.425" (10.80mm)
Thickness (Max) : -
Lead Spacing : 0.114" (2.90mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Multifuse®, MF-RHT
Part Status : Active
Type : Polymeric
Voltage - Max : 16V
Current - Max : 40A
Current - Hold (Ih) (Max) : 700mA
Current - Trip (It) : 1.4A
Time to Trip : 4s
Resistance - Initial (Ri) (Min) : 300 mOhms
Resistance - Post Trip (R1) (Max) : 800 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 125°C
Ratings : AEC-Q200
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.270" L x 0.118" W (6.86mm x 3.00mm)
Height - Seated (Max) : 0.425" (10.80mm)
Thickness (Max) : -
Lead Spacing : 0.114" (2.90mm)
0
3000 in stock
MF-RHT1000-2
Bourns, Inc.
Manufacturer : Bourns Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Multifuse®, MF-RHT
Part Status : Active
Type : Polymeric
Voltage - Max : 16V
Current - Max : 100A
Current - Hold (Ih) (Max) : 10A
Current - Trip (It) : 18.5A
Time to Trip : 9s
Resistance - Initial (Ri) (Min) : 6.2 mOhms
Resistance - Post Trip (R1) (Max) : 15 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 125°C
Ratings : AEC-Q200
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : -
Height - Seated (Max) : -
Thickness (Max) : -
Lead Spacing : -
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Multifuse®, MF-RHT
Part Status : Active
Type : Polymeric
Voltage - Max : 16V
Current - Max : 100A
Current - Hold (Ih) (Max) : 10A
Current - Trip (It) : 18.5A
Time to Trip : 9s
Resistance - Initial (Ri) (Min) : 6.2 mOhms
Resistance - Post Trip (R1) (Max) : 15 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 125°C
Ratings : AEC-Q200
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : -
Height - Seated (Max) : -
Thickness (Max) : -
Lead Spacing : -
0
980 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2025 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
