PTC Resettable Fuses Products, Stocks, Distributors, Manufactor, Shopping, Company,Electronic Components Online store


Part Number

Manufacturer

Description

Unit Price

In Stock

MF-RHT100-2

Bourns, Inc.

Manufacturer : Bourns Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Multifuse®, MF-RHT
Part Status : Active
Type : Polymeric
Voltage - Max : 30V
Current - Max : 40A
Current - Hold (Ih) (Max) : 1A
Current - Trip (It) : 1.8A
Time to Trip : 5.2s
Resistance - Initial (Ri) (Min) : 180 mOhms
Resistance - Post Trip (R1) (Max) : 430 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 125°C
Ratings : AEC-Q200
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : -
Height - Seated (Max) : -
Thickness (Max) : -
Lead Spacing : -

2978 in stock

MF-RHT1100-2

Bourns, Inc.

Manufacturer : Bourns Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Multifuse®, MF-RHT
Part Status : Active
Type : Polymeric
Voltage - Max : 16V
Current - Max : 100A
Current - Hold (Ih) (Max) : 11A
Current - Trip (It) : 20A
Time to Trip : 11s
Resistance - Initial (Ri) (Min) : 5.5 mOhms
Resistance - Post Trip (R1) (Max) : 13 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 125°C
Ratings : AEC-Q200
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : -
Height - Seated (Max) : -
Thickness (Max) : -
Lead Spacing : -

1000 in stock

MF-RHT1300-0

Bourns, Inc.

Manufacturer : Bourns Inc.
Packaging : Bulk
Alternate Packaging
Series : Multifuse®, MF-RHT
Part Status : Active
Type : Polymeric
Voltage - Max : 16V
Current - Max : 100A
Current - Hold (Ih) (Max) : 13A
Current - Trip (It) : 24A
Time to Trip : 13s
Resistance - Initial (Ri) (Min) : 4.1 mOhms
Resistance - Post Trip (R1) (Max) : 10 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 125°C
Ratings : AEC-Q200
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.925" L x 0.142" W (23.50mm x 3.60mm)
Height - Seated (Max) : 1.130" (28.70mm)
Thickness (Max) : -
Lead Spacing : 0.215" (5.45mm)

6026 in stock

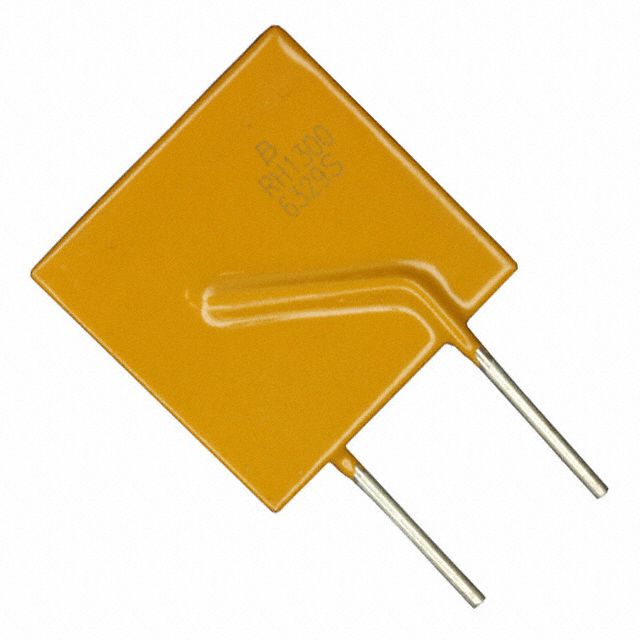

MF-RHT1300-2

Bourns, Inc.

Manufacturer : Bourns Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Multifuse®, MF-RHT
Part Status : Active
Type : Polymeric
Voltage - Max : 16V
Current - Max : 100A
Current - Hold (Ih) (Max) : 13A
Current - Trip (It) : 24A
Time to Trip : 13s
Resistance - Initial (Ri) (Min) : 4.1 mOhms
Resistance - Post Trip (R1) (Max) : 10 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 125°C
Ratings : AEC-Q200
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.925" L x 0.142" W (23.50mm x 3.60mm)
Height - Seated (Max) : 1.130" (28.70mm)
Thickness (Max) : -
Lead Spacing : 0.215" (5.45mm)

1000 in stock

MF-RHT200/32-2

Bourns, Inc.

Manufacturer : Bourns Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : *
Part Status : Active
Type : -
Voltage - Max : -
Current - Max : -
Current - Hold (Ih) (Max) : -
Current - Trip (It) : -
Time to Trip : -
Resistance - Initial (Ri) (Min) : -
Resistance - Post Trip (R1) (Max) : -
Resistance - 25°C (Typ) : -
Operating Temperature : -
Ratings : -
Mounting Type : -
Package / Case : -
Size / Dimension : -
Height - Seated (Max) : -
Thickness (Max) : -
Lead Spacing : -

2872 in stock

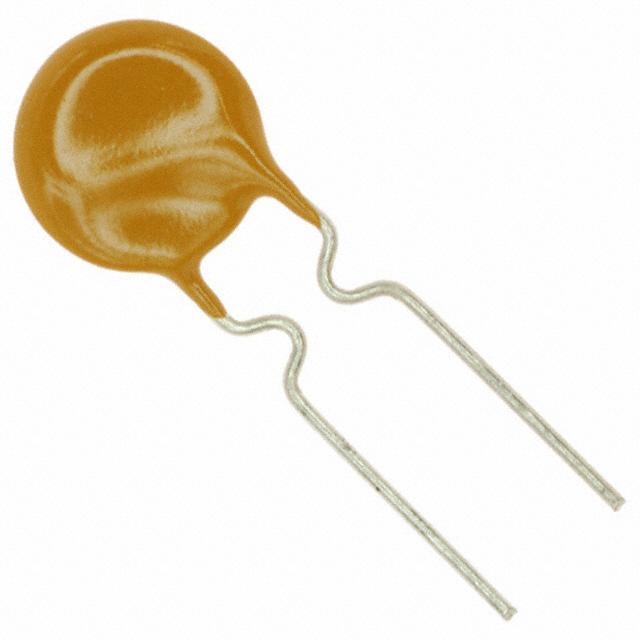

MF-RHT200-0

Bourns, Inc.

Manufacturer : Bourns Inc.
Packaging : Bulk
Alternate Packaging
Series : Multifuse®, MF-RHT
Part Status : Active
Type : Polymeric
Voltage - Max : 16V
Current - Max : 100A
Current - Hold (Ih) (Max) : 2A
Current - Trip (It) : 3.8A
Time to Trip : 3s
Resistance - Initial (Ri) (Min) : 45 mOhms
Resistance - Post Trip (R1) (Max) : 110 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 125°C
Ratings : AEC-Q200
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.370" Dia x 0.118" T (9.40mm x 3.00mm)
Height - Seated (Max) : 0.551" (14.00mm)
Thickness (Max) : -
Lead Spacing : 0.114" (2.90mm)

820 in stock

MF-RHT200-2

Bourns, Inc.

Manufacturer : Bourns Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Multifuse®, MF-RHT
Part Status : Active
Type : Polymeric
Voltage - Max : 16V
Current - Max : 100A
Current - Hold (Ih) (Max) : 2A
Current - Trip (It) : 3.8A
Time to Trip : 3s
Resistance - Initial (Ri) (Min) : 45 mOhms
Resistance - Post Trip (R1) (Max) : 110 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 125°C
Ratings : AEC-Q200
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.370" Dia x 0.118" T (9.40mm x 3.00mm)
Height - Seated (Max) : 0.551" (14.00mm)
Thickness (Max) : -
Lead Spacing : 0.114" (2.90mm)

5510 in stock

MF-RHT300-2

Bourns, Inc.

Manufacturer : Bourns Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Multifuse®, MF-RHT
Part Status : Active
Type : Polymeric
Voltage - Max : 16V
Current - Max : 100A
Current - Hold (Ih) (Max) : 3A
Current - Trip (It) : 6A
Time to Trip : 5s
Resistance - Initial (Ri) (Min) : 33 mOhms
Resistance - Post Trip (R1) (Max) : 79 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 125°C
Ratings : AEC-Q200
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.346" L x 0.118" W (8.80mm x 3.00mm)
Height - Seated (Max) : 0.543" (13.80mm)
Thickness (Max) : -
Lead Spacing : 0.201" (5.10mm)

2985 in stock

MF-RHT400-2

Bourns, Inc.

Manufacturer : Bourns Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Multifuse®, MF-RHT
Part Status : Active
Type : Polymeric
Voltage - Max : 16V
Current - Max : 100A
Current - Hold (Ih) (Max) : 4A
Current - Trip (It) : 7.5A
Time to Trip : 5s
Resistance - Initial (Ri) (Min) : 24 mOhms
Resistance - Post Trip (R1) (Max) : 60 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 125°C
Ratings : AEC-Q200
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.394" L x 0.118" W (10.00mm x 3.00mm)
Height - Seated (Max) : 0.591" (15.00mm)
Thickness (Max) : -
Lead Spacing : 0.201" (5.10mm)

2455 in stock

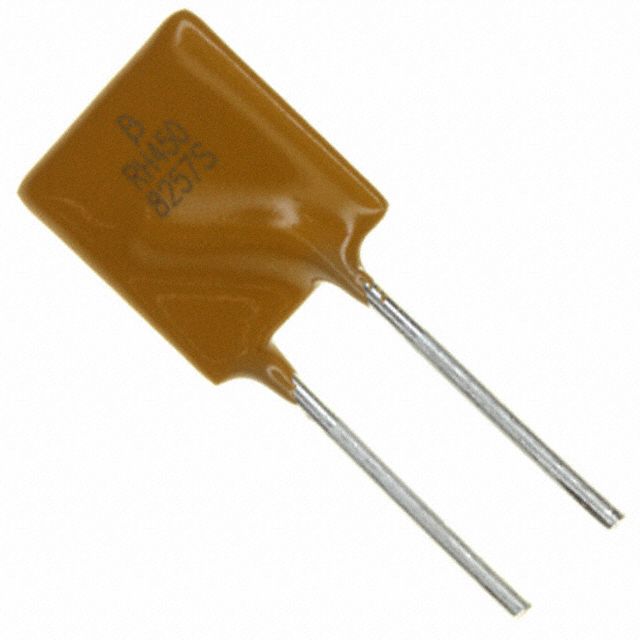

MF-RHT450-0

Bourns, Inc.

Manufacturer : Bourns Inc.
Packaging : Bulk
Alternate Packaging
Series : Multifuse®, MF-RHT
Part Status : Active
Type : Polymeric
Voltage - Max : 16V
Current - Max : 100A
Current - Hold (Ih) (Max) : 4.5A
Current - Trip (It) : 7.8A
Time to Trip : 3s
Resistance - Initial (Ri) (Min) : 22 mOhms
Resistance - Post Trip (R1) (Max) : 54 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 125°C
Ratings : AEC-Q200
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.409" L x 0.118" W (10.40mm x 3.00mm)
Height - Seated (Max) : 0.614" (15.60mm)
Thickness (Max) : -
Lead Spacing : 0.114" (2.90mm)

544 in stock

MF-RHT450-2

Bourns, Inc.

Manufacturer : Bourns Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Multifuse®, MF-RHT
Part Status : Active
Type : Polymeric
Voltage - Max : 16V
Current - Max : 100A
Current - Hold (Ih) (Max) : 4.5A
Current - Trip (It) : 7.8A
Time to Trip : 3s
Resistance - Initial (Ri) (Min) : 22 mOhms
Resistance - Post Trip (R1) (Max) : 54 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 125°C
Ratings : AEC-Q200
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.409" L x 0.118" W (10.40mm x 3.00mm)
Height - Seated (Max) : 0.614" (15.60mm)
Thickness (Max) : -
Lead Spacing : 0.114" (2.90mm)

1477 in stock

MF-RHT500-2

Bourns, Inc.

Manufacturer : Bourns Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Multifuse®, MF-RHT
Part Status : Active
Type : Polymeric
Voltage - Max : 16V
Current - Max : 100A
Current - Hold (Ih) (Max) : 5A
Current - Trip (It) : 9A
Time to Trip : 9s
Resistance - Initial (Ri) (Min) : 17.5 mOhms
Resistance - Post Trip (R1) (Max) : 45 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 125°C
Ratings : AEC-Q200
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.441" L x 0.118" W (11.20mm x 3.00mm)
Height - Seated (Max) : 0.744" (18.90mm)
Thickness (Max) : -
Lead Spacing : 0.201" (5.10mm)

1395 in stock
