Welcome to Weijie Semiconductor
- Circuit Protection
- PTC Resettable Fuses
Part Number
Manufacturer
Description
Unit Price
In Stock
MF-RX020/72-0
Bourns, Inc.
Manufacturer : Bourns Inc.
Packaging : Bulk
Series : Multifuse®, MF-RX/72
Part Status : Active
Type : Polymeric
Voltage - Max : 72V
Current - Max : 40A
Current - Hold (Ih) (Max) : 200mA
Current - Trip (It) : 400mA
Time to Trip : 2.2s
Resistance - Initial (Ri) (Min) : 1.5 Ohms
Resistance - Post Trip (R1) (Max) : 4.4 Ohms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.291" Dia x 0.122" T (7.40mm x 3.10mm)
Height - Seated (Max) : 0.500" (12.70mm)
Thickness (Max) : -
Lead Spacing : 0.201" (5.10mm)
Packaging : Bulk
Series : Multifuse®, MF-RX/72
Part Status : Active
Type : Polymeric
Voltage - Max : 72V
Current - Max : 40A
Current - Hold (Ih) (Max) : 200mA
Current - Trip (It) : 400mA
Time to Trip : 2.2s
Resistance - Initial (Ri) (Min) : 1.5 Ohms
Resistance - Post Trip (R1) (Max) : 4.4 Ohms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.291" Dia x 0.122" T (7.40mm x 3.10mm)
Height - Seated (Max) : 0.500" (12.70mm)
Thickness (Max) : -
Lead Spacing : 0.201" (5.10mm)
0
862 in stock
MF-RX030/72-0
Bourns, Inc.
Manufacturer : Bourns Inc.
Packaging : Bulk
Series : Multifuse®, MF-RX/72
Part Status : Active
Type : Polymeric
Voltage - Max : 72V
Current - Max : 40A
Current - Hold (Ih) (Max) : 300mA
Current - Trip (It) : 600mA
Time to Trip : 3s
Resistance - Initial (Ri) (Min) : 760 mOhms
Resistance - Post Trip (R1) (Max) : 2.1 Ohms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.291" Dia x 0.122" T (7.40mm x 3.10mm)
Height - Seated (Max) : 0.528" (13.40mm)
Thickness (Max) : -
Lead Spacing : 0.201" (5.10mm)
Packaging : Bulk
Series : Multifuse®, MF-RX/72
Part Status : Active
Type : Polymeric
Voltage - Max : 72V
Current - Max : 40A
Current - Hold (Ih) (Max) : 300mA
Current - Trip (It) : 600mA
Time to Trip : 3s
Resistance - Initial (Ri) (Min) : 760 mOhms
Resistance - Post Trip (R1) (Max) : 2.1 Ohms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.291" Dia x 0.122" T (7.40mm x 3.10mm)
Height - Seated (Max) : 0.528" (13.40mm)
Thickness (Max) : -
Lead Spacing : 0.201" (5.10mm)
0
351 in stock
MF-RX040/72-0
Bourns, Inc.
Manufacturer : Bourns Inc.
Packaging : Bulk
Series : Multifuse®, MF-RX/72
Part Status : Active
Type : Polymeric
Voltage - Max : 72V
Current - Max : 40A
Current - Hold (Ih) (Max) : 400mA
Current - Trip (It) : 800mA
Time to Trip : 3.9s
Resistance - Initial (Ri) (Min) : 520 mOhms
Resistance - Post Trip (R1) (Max) : 1.29 Ohms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.291" Dia x 0.122" T (7.40mm x 3.10mm)
Height - Seated (Max) : 0.539" (13.70mm)
Thickness (Max) : -
Lead Spacing : 0.201" (5.10mm)
Packaging : Bulk
Series : Multifuse®, MF-RX/72
Part Status : Active
Type : Polymeric
Voltage - Max : 72V
Current - Max : 40A
Current - Hold (Ih) (Max) : 400mA
Current - Trip (It) : 800mA
Time to Trip : 3.9s
Resistance - Initial (Ri) (Min) : 520 mOhms
Resistance - Post Trip (R1) (Max) : 1.29 Ohms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.291" Dia x 0.122" T (7.40mm x 3.10mm)
Height - Seated (Max) : 0.539" (13.70mm)
Thickness (Max) : -
Lead Spacing : 0.201" (5.10mm)
0
802 in stock
MF-RX050/72-0
Bourns, Inc.
Manufacturer : Bourns Inc.
Packaging : Bulk
Alternate Packaging
Series : Multifuse®, MF-RX/72
Part Status : Active
Type : Polymeric
Voltage - Max : 72V
Current - Max : 40A
Current - Hold (Ih) (Max) : 500mA
Current - Trip (It) : 1A
Time to Trip : 4s
Resistance - Initial (Ri) (Min) : 410 mOhms
Resistance - Post Trip (R1) (Max) : 1.17 Ohms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.311" Dia x 0.122" T (7.90mm x 3.10mm)
Height - Seated (Max) : 0.539" (13.70mm)
Thickness (Max) : -
Lead Spacing : 0.201" (5.10mm)
Packaging : Bulk
Alternate Packaging
Series : Multifuse®, MF-RX/72
Part Status : Active
Type : Polymeric
Voltage - Max : 72V
Current - Max : 40A
Current - Hold (Ih) (Max) : 500mA
Current - Trip (It) : 1A
Time to Trip : 4s
Resistance - Initial (Ri) (Min) : 410 mOhms
Resistance - Post Trip (R1) (Max) : 1.17 Ohms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.311" Dia x 0.122" T (7.90mm x 3.10mm)
Height - Seated (Max) : 0.539" (13.70mm)
Thickness (Max) : -
Lead Spacing : 0.201" (5.10mm)
0
2225 in stock
MF-RX050/72-AP
Bourns, Inc.
Manufacturer : Bourns Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Multifuse®, MF-RX/72
Part Status : Active
Type : Polymeric
Voltage - Max : 72V
Current - Max : 40A
Current - Hold (Ih) (Max) : 500mA
Current - Trip (It) : 1A
Time to Trip : 4s
Resistance - Initial (Ri) (Min) : 410 mOhms
Resistance - Post Trip (R1) (Max) : 1.17 Ohms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.311" Dia x 0.122" T (7.90mm x 3.10mm)
Height - Seated (Max) : 0.539" (13.70mm)
Thickness (Max) : -
Lead Spacing : 0.201" (5.10mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Multifuse®, MF-RX/72
Part Status : Active
Type : Polymeric
Voltage - Max : 72V
Current - Max : 40A
Current - Hold (Ih) (Max) : 500mA
Current - Trip (It) : 1A
Time to Trip : 4s
Resistance - Initial (Ri) (Min) : 410 mOhms
Resistance - Post Trip (R1) (Max) : 1.17 Ohms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.311" Dia x 0.122" T (7.90mm x 3.10mm)
Height - Seated (Max) : 0.539" (13.70mm)
Thickness (Max) : -
Lead Spacing : 0.201" (5.10mm)
0
3156 in stock
MF-RX065/72-0
Bourns, Inc.
Manufacturer : Bourns Inc.
Packaging : Bulk
Series : Multifuse®, MF-RX/72
Part Status : Active
Type : Polymeric
Voltage - Max : 72V
Current - Max : 40A
Current - Hold (Ih) (Max) : 650mA
Current - Trip (It) : 1.3A
Time to Trip : 5.3s
Resistance - Initial (Ri) (Min) : 270 mOhms
Resistance - Post Trip (R1) (Max) : 720 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.382" Dia x 0.122" T (9.70mm x 3.10mm)
Height - Seated (Max) : 0.598" (15.20mm)
Thickness (Max) : -
Lead Spacing : 0.201" (5.10mm)
Packaging : Bulk
Series : Multifuse®, MF-RX/72
Part Status : Active
Type : Polymeric
Voltage - Max : 72V
Current - Max : 40A
Current - Hold (Ih) (Max) : 650mA
Current - Trip (It) : 1.3A
Time to Trip : 5.3s
Resistance - Initial (Ri) (Min) : 270 mOhms
Resistance - Post Trip (R1) (Max) : 720 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.382" Dia x 0.122" T (9.70mm x 3.10mm)
Height - Seated (Max) : 0.598" (15.20mm)
Thickness (Max) : -
Lead Spacing : 0.201" (5.10mm)
0
20760 in stock
MF-RX075/72-0
Bourns, Inc.
Manufacturer : Bourns Inc.
Packaging : Bulk
Series : Multifuse®, MF-RX/72
Part Status : Active
Type : Polymeric
Voltage - Max : 72V
Current - Max : 40A
Current - Hold (Ih) (Max) : 750mA
Current - Trip (It) : 1.5A
Time to Trip : 6.3s
Resistance - Initial (Ri) (Min) : 180 mOhms
Resistance - Post Trip (R1) (Max) : 600 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.409" Dia x 0.122" T (10.40mm x 3.10mm)
Height - Seated (Max) : 0.630" (16.00mm)
Thickness (Max) : -
Lead Spacing : 0.201" (5.10mm)
Packaging : Bulk
Series : Multifuse®, MF-RX/72
Part Status : Active
Type : Polymeric
Voltage - Max : 72V
Current - Max : 40A
Current - Hold (Ih) (Max) : 750mA
Current - Trip (It) : 1.5A
Time to Trip : 6.3s
Resistance - Initial (Ri) (Min) : 180 mOhms
Resistance - Post Trip (R1) (Max) : 600 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.409" Dia x 0.122" T (10.40mm x 3.10mm)
Height - Seated (Max) : 0.630" (16.00mm)
Thickness (Max) : -
Lead Spacing : 0.201" (5.10mm)
0
4402 in stock

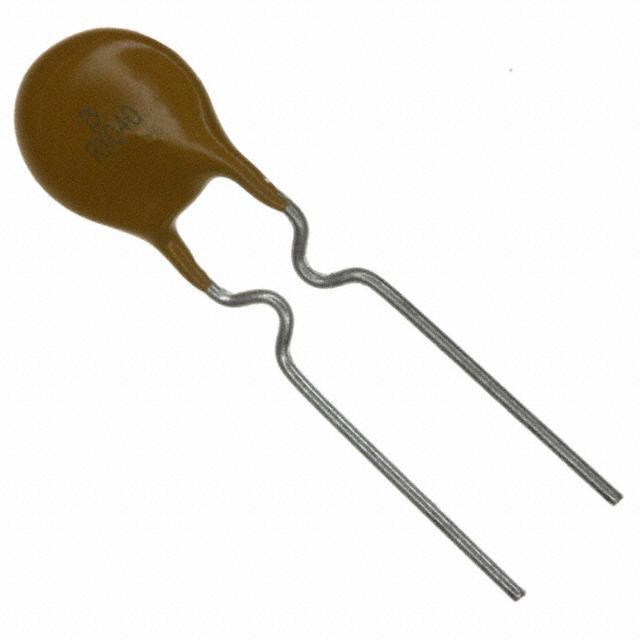

MF-RX090/72-0
Bourns, Inc.
Manufacturer : Bourns Inc.
Packaging : Bulk
Alternate Packaging
Series : Multifuse®, MF-RX/72
Part Status : Active
Type : Polymeric
Voltage - Max : 72V
Current - Max : 40A
Current - Hold (Ih) (Max) : 900mA
Current - Trip (It) : 1.8A
Time to Trip : 7.2s
Resistance - Initial (Ri) (Min) : 140 mOhms
Resistance - Post Trip (R1) (Max) : 470 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.461" Dia x 0.122" T (11.70mm x 3.10mm)
Height - Seated (Max) : 0.657" (16.70mm)
Thickness (Max) : -
Lead Spacing : 0.201" (5.10mm)
Packaging : Bulk
Alternate Packaging
Series : Multifuse®, MF-RX/72
Part Status : Active
Type : Polymeric
Voltage - Max : 72V
Current - Max : 40A
Current - Hold (Ih) (Max) : 900mA
Current - Trip (It) : 1.8A
Time to Trip : 7.2s
Resistance - Initial (Ri) (Min) : 140 mOhms
Resistance - Post Trip (R1) (Max) : 470 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.461" Dia x 0.122" T (11.70mm x 3.10mm)
Height - Seated (Max) : 0.657" (16.70mm)
Thickness (Max) : -
Lead Spacing : 0.201" (5.10mm)
0
1702 in stock
MF-RX090/72-2
Bourns, Inc.
Manufacturer : Bourns Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Multifuse®, MF-RX/72
Part Status : Discontinued at
Type : Polymeric
Voltage - Max : 72V
Current - Max : 40A
Current - Hold (Ih) (Max) : 200mA
Current - Trip (It) : 400mA
Time to Trip : 2.2s
Resistance - Initial (Ri) (Min) : 1.5 Ohms
Resistance - Post Trip (R1) (Max) : 4.4 Ohms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.461" Dia x 0.122" T (11.70mm x 3.10mm)
Height - Seated (Max) : 0.657" (16.70mm)
Thickness (Max) : -
Lead Spacing : 0.201" (5.10mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Multifuse®, MF-RX/72
Part Status : Discontinued at
Type : Polymeric
Voltage - Max : 72V
Current - Max : 40A
Current - Hold (Ih) (Max) : 200mA
Current - Trip (It) : 400mA
Time to Trip : 2.2s
Resistance - Initial (Ri) (Min) : 1.5 Ohms
Resistance - Post Trip (R1) (Max) : 4.4 Ohms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.461" Dia x 0.122" T (11.70mm x 3.10mm)
Height - Seated (Max) : 0.657" (16.70mm)
Thickness (Max) : -
Lead Spacing : 0.201" (5.10mm)
0
100 in stock

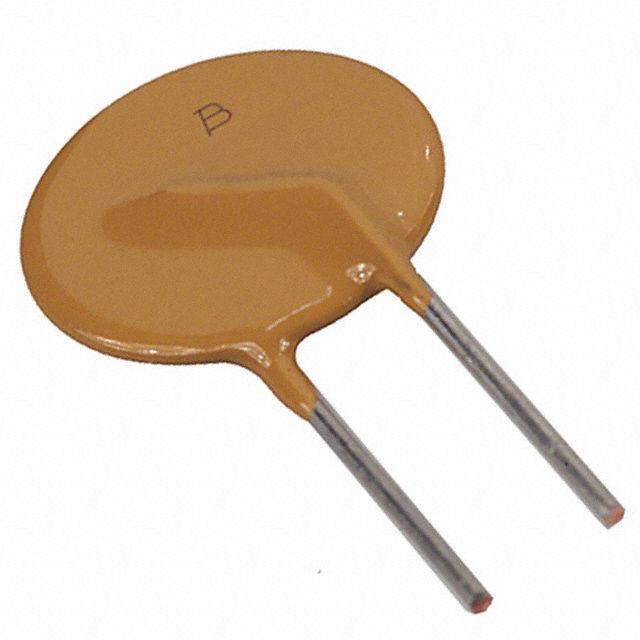

MF-RX110
Bourns, Inc.
Manufacturer : Bourns Inc.
Packaging : Bulk
Series : Multifuse®, MF-RX
Part Status : Active
Type : Polymeric
Voltage - Max : 60V
Current - Max : 40A
Current - Hold (Ih) (Max) : 1.1A
Current - Trip (It) : 2.2A
Time to Trip : 8.2s
Resistance - Initial (Ri) (Min) : 150 mOhms
Resistance - Post Trip (R1) (Max) : 380 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.427" L x 0.122" W (10.84mm x 3.10mm)
Height - Seated (Max) : 0.662" (16.84mm)
Thickness (Max) : -
Lead Spacing : 0.201" (5.10mm)
Packaging : Bulk
Series : Multifuse®, MF-RX
Part Status : Active
Type : Polymeric
Voltage - Max : 60V
Current - Max : 40A
Current - Hold (Ih) (Max) : 1.1A
Current - Trip (It) : 2.2A
Time to Trip : 8.2s
Resistance - Initial (Ri) (Min) : 150 mOhms
Resistance - Post Trip (R1) (Max) : 380 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.427" L x 0.122" W (10.84mm x 3.10mm)
Height - Seated (Max) : 0.662" (16.84mm)
Thickness (Max) : -
Lead Spacing : 0.201" (5.10mm)
0
4788 in stock
MF-RX110/72-0
Bourns, Inc.
Manufacturer : Bourns Inc.
Packaging : Bulk
Alternate Packaging
Series : Multifuse®, MF-RX/72
Part Status : Active
Type : Polymeric
Voltage - Max : 72V
Current - Max : 40A
Current - Hold (Ih) (Max) : 1.1A
Current - Trip (It) : 2.2A
Time to Trip : 8.2s
Resistance - Initial (Ri) (Min) : 150 mOhms
Resistance - Post Trip (R1) (Max) : 380 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.427" L x 0.122" W (10.84mm x 3.10mm)
Height - Seated (Max) : 0.662" (16.84mm)
Thickness (Max) : -
Lead Spacing : 0.201" (5.10mm)
Packaging : Bulk
Alternate Packaging
Series : Multifuse®, MF-RX/72
Part Status : Active
Type : Polymeric
Voltage - Max : 72V
Current - Max : 40A
Current - Hold (Ih) (Max) : 1.1A
Current - Trip (It) : 2.2A
Time to Trip : 8.2s
Resistance - Initial (Ri) (Min) : 150 mOhms
Resistance - Post Trip (R1) (Max) : 380 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.427" L x 0.122" W (10.84mm x 3.10mm)
Height - Seated (Max) : 0.662" (16.84mm)
Thickness (Max) : -
Lead Spacing : 0.201" (5.10mm)
0
14598 in stock

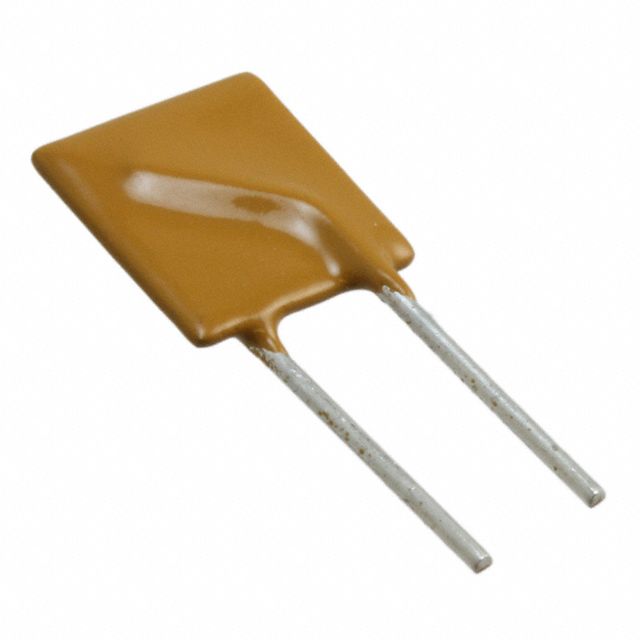

MF-RX110/72-2
Bourns, Inc.
Manufacturer : Bourns Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Multifuse®, MF-RX/72
Part Status : Active
Type : Polymeric
Voltage - Max : 72V
Current - Max : 40A
Current - Hold (Ih) (Max) : 1.1A
Current - Trip (It) : 2.2A
Time to Trip : 8.2s
Resistance - Initial (Ri) (Min) : 150 mOhms
Resistance - Post Trip (R1) (Max) : 380 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.427" L x 0.122" W (10.84mm x 3.10mm)
Height - Seated (Max) : 0.662" (16.84mm)
Thickness (Max) : -
Lead Spacing : 0.201" (5.10mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Multifuse®, MF-RX/72
Part Status : Active
Type : Polymeric
Voltage - Max : 72V
Current - Max : 40A
Current - Hold (Ih) (Max) : 1.1A
Current - Trip (It) : 2.2A
Time to Trip : 8.2s
Resistance - Initial (Ri) (Min) : 150 mOhms
Resistance - Post Trip (R1) (Max) : 380 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.427" L x 0.122" W (10.84mm x 3.10mm)
Height - Seated (Max) : 0.662" (16.84mm)
Thickness (Max) : -
Lead Spacing : 0.201" (5.10mm)
0
7918 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2025 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
