Part Number
Manufacturer
Description
Unit Price
In Stock

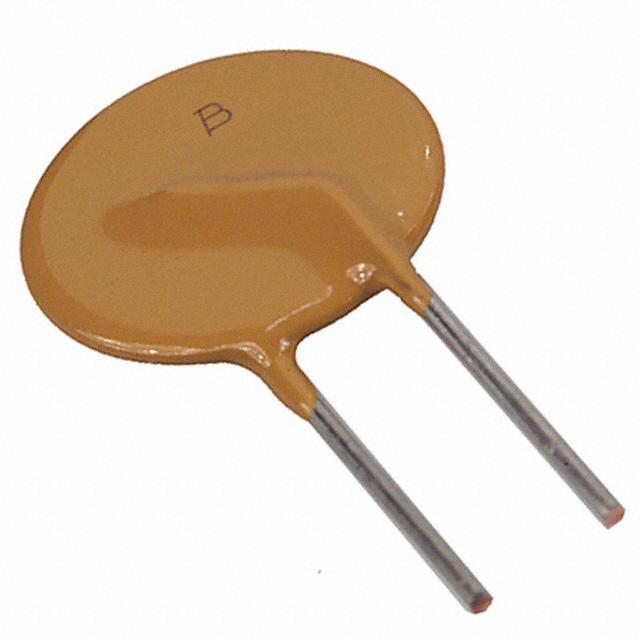

MF-RX110-2
Bourns, Inc.
Manufacturer : Bourns Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Multifuse®, MF-RX
Part Status : Discontinued at
Type : Polymeric
Voltage - Max : 60V
Current - Max : 40A
Current - Hold (Ih) (Max) : 1.1A
Current - Trip (It) : 2.2A
Time to Trip : 8.2s
Resistance - Initial (Ri) (Min) : 150 mOhms
Resistance - Post Trip (R1) (Max) : 380 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.512" L x 0.122" W (13.00mm x 3.10mm)
Height - Seated (Max) : 0.709" (18.00mm)
Thickness (Max) : -
Lead Spacing : 0.201" (5.10mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Multifuse®, MF-RX
Part Status : Discontinued at
Type : Polymeric
Voltage - Max : 60V
Current - Max : 40A
Current - Hold (Ih) (Max) : 1.1A
Current - Trip (It) : 2.2A
Time to Trip : 8.2s
Resistance - Initial (Ri) (Min) : 150 mOhms
Resistance - Post Trip (R1) (Max) : 380 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.512" L x 0.122" W (13.00mm x 3.10mm)
Height - Seated (Max) : 0.709" (18.00mm)
Thickness (Max) : -
Lead Spacing : 0.201" (5.10mm)
0
1055 in stock
MF-RX135
Bourns, Inc.
Manufacturer : Bourns Inc.
Packaging : Bulk
Alternate Packaging
Series : Multifuse®, MF-RX
Part Status : Active
Type : Polymeric
Voltage - Max : 60V
Current - Max : 40A
Current - Hold (Ih) (Max) : 1.35A
Current - Trip (It) : 2.7A
Time to Trip : 9.6s
Resistance - Initial (Ri) (Min) : 120 mOhms
Resistance - Post Trip (R1) (Max) : 300 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.483" L x 0.122" W (12.26mm x 3.10mm)
Height - Seated (Max) : 0.718" (18.26mm)
Thickness (Max) : -
Lead Spacing : 0.201" (5.10mm)
Packaging : Bulk
Alternate Packaging
Series : Multifuse®, MF-RX
Part Status : Active
Type : Polymeric
Voltage - Max : 60V
Current - Max : 40A
Current - Hold (Ih) (Max) : 1.35A
Current - Trip (It) : 2.7A
Time to Trip : 9.6s
Resistance - Initial (Ri) (Min) : 120 mOhms
Resistance - Post Trip (R1) (Max) : 300 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.483" L x 0.122" W (12.26mm x 3.10mm)
Height - Seated (Max) : 0.718" (18.26mm)
Thickness (Max) : -
Lead Spacing : 0.201" (5.10mm)
0
4186 in stock
MF-RX135/72-0
Bourns, Inc.
Manufacturer : Bourns Inc.
Packaging : Bulk
Alternate Packaging
Series : Multifuse®, MF-RX/72
Part Status : Active
Type : Polymeric
Voltage - Max : 72V
Current - Max : 40A
Current - Hold (Ih) (Max) : 1.35A
Current - Trip (It) : 2.7A
Time to Trip : 9.6s
Resistance - Initial (Ri) (Min) : 120 mOhms
Resistance - Post Trip (R1) (Max) : 300 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.483" L x 0.122" W (12.26mm x 3.10mm)
Height - Seated (Max) : 0.718" (18.26mm)
Thickness (Max) : -
Lead Spacing : 0.201" (5.10mm)
Packaging : Bulk
Alternate Packaging
Series : Multifuse®, MF-RX/72
Part Status : Active
Type : Polymeric
Voltage - Max : 72V
Current - Max : 40A
Current - Hold (Ih) (Max) : 1.35A
Current - Trip (It) : 2.7A
Time to Trip : 9.6s
Resistance - Initial (Ri) (Min) : 120 mOhms
Resistance - Post Trip (R1) (Max) : 300 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.483" L x 0.122" W (12.26mm x 3.10mm)
Height - Seated (Max) : 0.718" (18.26mm)
Thickness (Max) : -
Lead Spacing : 0.201" (5.10mm)
0
6616 in stock

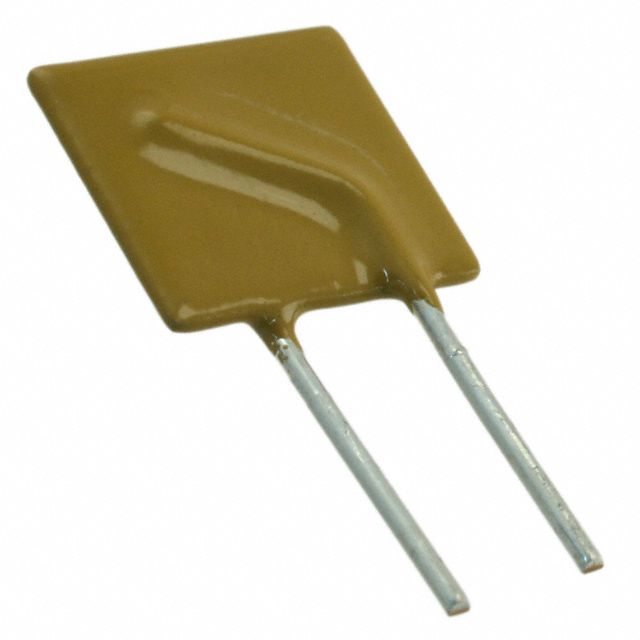

MF-RX135/72-2
Bourns, Inc.
Manufacturer : Bourns Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Multifuse®, MF-RX/72
Part Status : Active
Type : Polymeric
Voltage - Max : 72V
Current - Max : 40A
Current - Hold (Ih) (Max) : 1.35A
Current - Trip (It) : 2.7A
Time to Trip : 9.6s
Resistance - Initial (Ri) (Min) : 120 mOhms
Resistance - Post Trip (R1) (Max) : 300 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.483" L x 0.122" W (12.26mm x 3.10mm)
Height - Seated (Max) : 0.718" (18.26mm)
Thickness (Max) : -
Lead Spacing : 0.201" (5.10mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Multifuse®, MF-RX/72
Part Status : Active
Type : Polymeric
Voltage - Max : 72V
Current - Max : 40A
Current - Hold (Ih) (Max) : 1.35A
Current - Trip (It) : 2.7A
Time to Trip : 9.6s
Resistance - Initial (Ri) (Min) : 120 mOhms
Resistance - Post Trip (R1) (Max) : 300 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.483" L x 0.122" W (12.26mm x 3.10mm)
Height - Seated (Max) : 0.718" (18.26mm)
Thickness (Max) : -
Lead Spacing : 0.201" (5.10mm)
0
10142 in stock
MF-RX135-2
Bourns, Inc.
Manufacturer : Bourns Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Multifuse®, MF-RX
Part Status : Discontinued at
Type : Polymeric
Voltage - Max : 60V
Current - Max : 40A
Current - Hold (Ih) (Max) : 1.35A
Current - Trip (It) : 2.7A
Time to Trip : 9.6s
Resistance - Initial (Ri) (Min) : 120 mOhms
Resistance - Post Trip (R1) (Max) : 300 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.483" L x 0.122" W (12.26mm x 3.10mm)
Height - Seated (Max) : 0.718" (18.26mm)
Thickness (Max) : -
Lead Spacing : 0.201" (5.10mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Multifuse®, MF-RX
Part Status : Discontinued at
Type : Polymeric
Voltage - Max : 60V
Current - Max : 40A
Current - Hold (Ih) (Max) : 1.35A
Current - Trip (It) : 2.7A
Time to Trip : 9.6s
Resistance - Initial (Ri) (Min) : 120 mOhms
Resistance - Post Trip (R1) (Max) : 300 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.483" L x 0.122" W (12.26mm x 3.10mm)
Height - Seated (Max) : 0.718" (18.26mm)
Thickness (Max) : -
Lead Spacing : 0.201" (5.10mm)
0
100 in stock
MF-RX160
Bourns, Inc.
Manufacturer : Bourns Inc.
Packaging : Bulk
Alternate Packaging
Series : Multifuse®, MF-RX
Part Status : Active
Type : Polymeric
Voltage - Max : 60V
Current - Max : 40A
Current - Hold (Ih) (Max) : 1.6A
Current - Trip (It) : 3.2A
Time to Trip : 11.4s
Resistance - Initial (Ri) (Min) : 90 mOhms
Resistance - Post Trip (R1) (Max) : 220 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.642" L x 0.122" W (16.30mm x 3.10mm)
Height - Seated (Max) : 0.839" (21.30mm)
Thickness (Max) : -
Lead Spacing : 0.201" (5.10mm)
Packaging : Bulk
Alternate Packaging
Series : Multifuse®, MF-RX
Part Status : Active
Type : Polymeric
Voltage - Max : 60V
Current - Max : 40A
Current - Hold (Ih) (Max) : 1.6A
Current - Trip (It) : 3.2A
Time to Trip : 11.4s
Resistance - Initial (Ri) (Min) : 90 mOhms
Resistance - Post Trip (R1) (Max) : 220 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.642" L x 0.122" W (16.30mm x 3.10mm)
Height - Seated (Max) : 0.839" (21.30mm)
Thickness (Max) : -
Lead Spacing : 0.201" (5.10mm)
0
6908 in stock

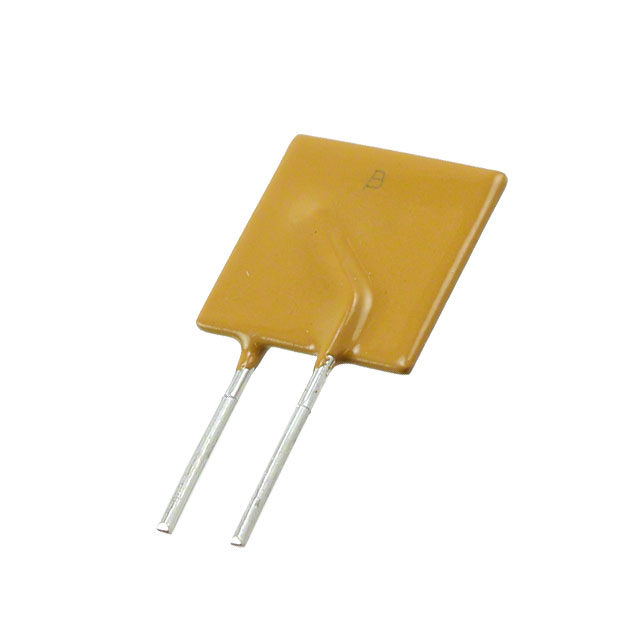

MF-RX160/72-0
Bourns, Inc.
Manufacturer : Bourns Inc.
Packaging : Bulk
Alternate Packaging
Series : Multifuse®, MF-RX/72
Part Status : Active
Type : Polymeric
Voltage - Max : 72V
Current - Max : 40A
Current - Hold (Ih) (Max) : 1.6A
Current - Trip (It) : 3.2A
Time to Trip : 11.4s
Resistance - Initial (Ri) (Min) : 90 mOhms
Resistance - Post Trip (R1) (Max) : 220 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.642" L x 0.122" W (16.30mm x 3.10mm)
Height - Seated (Max) : 0.839" (21.30mm)
Thickness (Max) : -
Lead Spacing : 0.201" (5.10mm)
Packaging : Bulk
Alternate Packaging
Series : Multifuse®, MF-RX/72
Part Status : Active
Type : Polymeric
Voltage - Max : 72V
Current - Max : 40A
Current - Hold (Ih) (Max) : 1.6A
Current - Trip (It) : 3.2A
Time to Trip : 11.4s
Resistance - Initial (Ri) (Min) : 90 mOhms
Resistance - Post Trip (R1) (Max) : 220 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.642" L x 0.122" W (16.30mm x 3.10mm)
Height - Seated (Max) : 0.839" (21.30mm)
Thickness (Max) : -
Lead Spacing : 0.201" (5.10mm)
0
7998 in stock
MF-RX160/72-2
Bourns, Inc.
Manufacturer : Bourns Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Multifuse®, MF-RX/72
Part Status : Active
Type : Polymeric
Voltage - Max : 72V
Current - Max : 40A
Current - Hold (Ih) (Max) : 1.6A
Current - Trip (It) : 3.2A
Time to Trip : 11.4s
Resistance - Initial (Ri) (Min) : 90 mOhms
Resistance - Post Trip (R1) (Max) : 220 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.642" L x 0.122" W (16.30mm x 3.10mm)
Height - Seated (Max) : 0.839" (21.30mm)
Thickness (Max) : -
Lead Spacing : 0.201" (5.10mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Multifuse®, MF-RX/72
Part Status : Active
Type : Polymeric
Voltage - Max : 72V
Current - Max : 40A
Current - Hold (Ih) (Max) : 1.6A
Current - Trip (It) : 3.2A
Time to Trip : 11.4s
Resistance - Initial (Ri) (Min) : 90 mOhms
Resistance - Post Trip (R1) (Max) : 220 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.642" L x 0.122" W (16.30mm x 3.10mm)
Height - Seated (Max) : 0.839" (21.30mm)
Thickness (Max) : -
Lead Spacing : 0.201" (5.10mm)
0
16825 in stock
MF-RX160-2
Bourns, Inc.
Manufacturer : Bourns Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Multifuse®, MF-RX
Part Status : Active
Type : Polymeric
Voltage - Max : 60V
Current - Max : 40A
Current - Hold (Ih) (Max) : 1.6A
Current - Trip (It) : 3.2A
Time to Trip : 11.4s
Resistance - Initial (Ri) (Min) : 90 mOhms
Resistance - Post Trip (R1) (Max) : 220 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.642" L x 0.122" W (16.30mm x 3.10mm)
Height - Seated (Max) : 0.839" (21.30mm)
Thickness (Max) : -
Lead Spacing : 0.201" (5.10mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Multifuse®, MF-RX
Part Status : Active
Type : Polymeric
Voltage - Max : 60V
Current - Max : 40A
Current - Hold (Ih) (Max) : 1.6A
Current - Trip (It) : 3.2A
Time to Trip : 11.4s
Resistance - Initial (Ri) (Min) : 90 mOhms
Resistance - Post Trip (R1) (Max) : 220 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.642" L x 0.122" W (16.30mm x 3.10mm)
Height - Seated (Max) : 0.839" (21.30mm)
Thickness (Max) : -
Lead Spacing : 0.201" (5.10mm)
0
4115 in stock
MF-RX185
Bourns, Inc.
Manufacturer : Bourns Inc.
Packaging : Bulk
Alternate Packaging
Series : Multifuse®, MF-RX
Part Status : Active
Type : Polymeric
Voltage - Max : 60V
Current - Max : 40A
Current - Hold (Ih) (Max) : 1.85A
Current - Trip (It) : 3.7A
Time to Trip : 12.6s
Resistance - Initial (Ri) (Min) : 80 mOhms
Resistance - Post Trip (R1) (Max) : 190 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.701" L x 0.122" W (17.80mm x 3.10mm)
Height - Seated (Max) : 0.902" (22.90mm)
Thickness (Max) : -
Lead Spacing : 0.201" (5.10mm)
Packaging : Bulk
Alternate Packaging
Series : Multifuse®, MF-RX
Part Status : Active
Type : Polymeric
Voltage - Max : 60V
Current - Max : 40A
Current - Hold (Ih) (Max) : 1.85A
Current - Trip (It) : 3.7A
Time to Trip : 12.6s
Resistance - Initial (Ri) (Min) : 80 mOhms
Resistance - Post Trip (R1) (Max) : 190 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.701" L x 0.122" W (17.80mm x 3.10mm)
Height - Seated (Max) : 0.902" (22.90mm)
Thickness (Max) : -
Lead Spacing : 0.201" (5.10mm)
0
1401 in stock

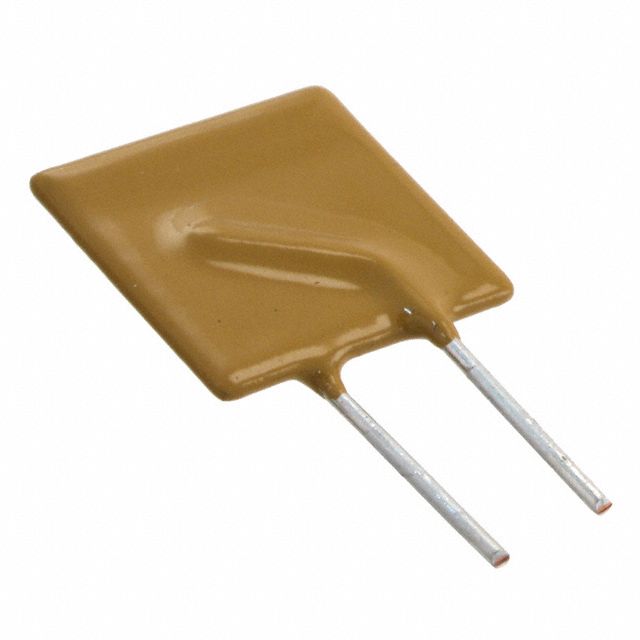

MF-RX185/72-0
Bourns, Inc.
Manufacturer : Bourns Inc.
Packaging : Bulk
Alternate Packaging
Series : Multifuse®, MF-RX/72
Part Status : Active
Type : Polymeric
Voltage - Max : 72V
Current - Max : 40A
Current - Hold (Ih) (Max) : 1.85A
Current - Trip (It) : 3.7A
Time to Trip : 12.6s
Resistance - Initial (Ri) (Min) : 80 mOhms
Resistance - Post Trip (R1) (Max) : 190 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.701" L x 0.122" W (17.80mm x 3.10mm)
Height - Seated (Max) : 0.902" (22.90mm)
Thickness (Max) : -
Lead Spacing : 0.201" (5.10mm)
Packaging : Bulk
Alternate Packaging
Series : Multifuse®, MF-RX/72
Part Status : Active
Type : Polymeric
Voltage - Max : 72V
Current - Max : 40A
Current - Hold (Ih) (Max) : 1.85A
Current - Trip (It) : 3.7A
Time to Trip : 12.6s
Resistance - Initial (Ri) (Min) : 80 mOhms
Resistance - Post Trip (R1) (Max) : 190 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.701" L x 0.122" W (17.80mm x 3.10mm)
Height - Seated (Max) : 0.902" (22.90mm)
Thickness (Max) : -
Lead Spacing : 0.201" (5.10mm)
0
7181 in stock
MF-RX185/72-2
Bourns, Inc.
Manufacturer : Bourns Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Multifuse®, MF-RX/72
Part Status : Active
Type : Polymeric
Voltage - Max : 72V
Current - Max : 40A
Current - Hold (Ih) (Max) : 1.85A
Current - Trip (It) : 3.7A
Time to Trip : 12.6s
Resistance - Initial (Ri) (Min) : 80 mOhms
Resistance - Post Trip (R1) (Max) : 190 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.701" L x 0.122" W (17.80mm x 3.10mm)
Height - Seated (Max) : 0.902" (22.90mm)
Thickness (Max) : -
Lead Spacing : 0.201" (5.10mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Multifuse®, MF-RX/72
Part Status : Active
Type : Polymeric
Voltage - Max : 72V
Current - Max : 40A
Current - Hold (Ih) (Max) : 1.85A
Current - Trip (It) : 3.7A
Time to Trip : 12.6s
Resistance - Initial (Ri) (Min) : 80 mOhms
Resistance - Post Trip (R1) (Max) : 190 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.701" L x 0.122" W (17.80mm x 3.10mm)
Height - Seated (Max) : 0.902" (22.90mm)
Thickness (Max) : -
Lead Spacing : 0.201" (5.10mm)
0
3858 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2025 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
