Welcome to Weijie Semiconductor
- Circuit Protection
- PTC Resettable Fuses
Part Number
Manufacturer
Description
Unit Price
In Stock

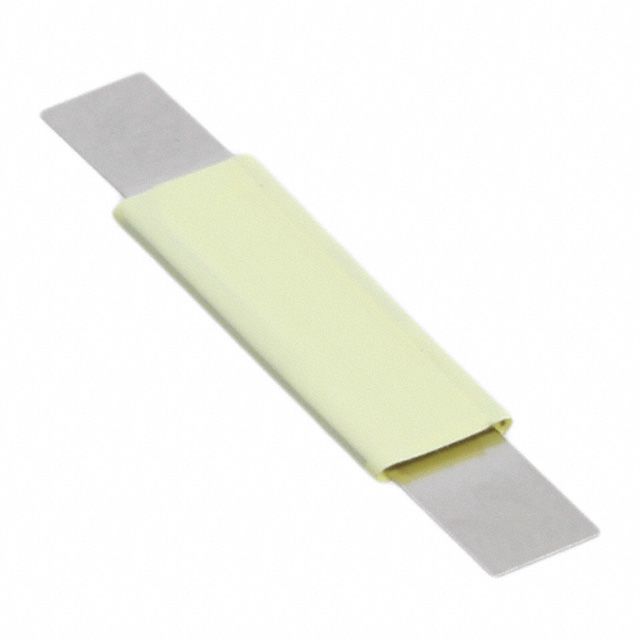

MF-S175
Bourns, Inc.
Manufacturer : Bourns Inc.
Packaging : Bulk
Series : Multifuse®, MF-S
Part Status : Active
Type : Polymeric
Voltage - Max : 15V
Current - Max : 100A
Current - Hold (Ih) (Max) : 1.75A
Current - Trip (It) : 3.8A
Time to Trip : 4s
Resistance - Initial (Ri) (Min) : 50 mOhms
Resistance - Post Trip (R1) (Max) : 120 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : User Defined
Package / Case : Strap
Size / Dimension : 0.827" L x 0.199" W (21.00mm x 5.05mm)
Height - Seated (Max) : -
Thickness (Max) : 0.039" (1.00mm)
Lead Spacing : -
Packaging : Bulk
Series : Multifuse®, MF-S
Part Status : Active
Type : Polymeric
Voltage - Max : 15V
Current - Max : 100A
Current - Hold (Ih) (Max) : 1.75A
Current - Trip (It) : 3.8A
Time to Trip : 4s
Resistance - Initial (Ri) (Min) : 50 mOhms
Resistance - Post Trip (R1) (Max) : 120 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : User Defined
Package / Case : Strap
Size / Dimension : 0.827" L x 0.199" W (21.00mm x 5.05mm)
Height - Seated (Max) : -
Thickness (Max) : 0.039" (1.00mm)
Lead Spacing : -
0
355 in stock

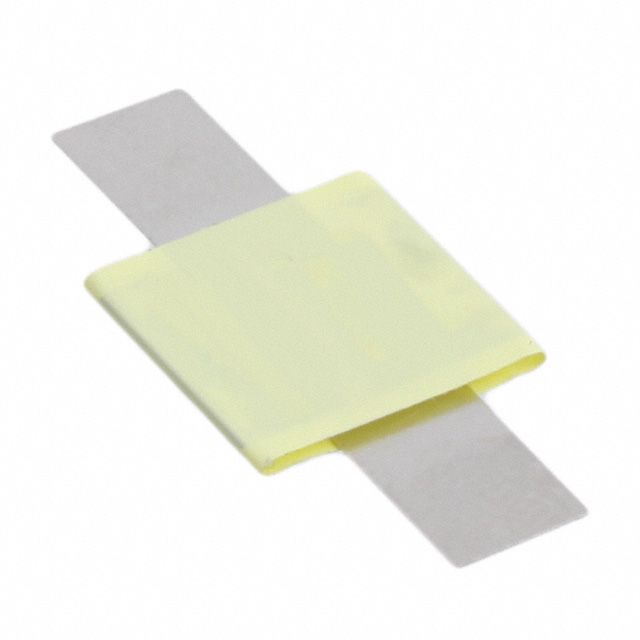

MF-S200
Bourns, Inc.
Manufacturer : Bourns Inc.
Packaging : Bulk
Series : Multifuse®, MF-S
Part Status : Active
Type : Polymeric
Voltage - Max : 30V
Current - Max : 100A
Current - Hold (Ih) (Max) : 2A
Current - Trip (It) : 4.4A
Time to Trip : 4s
Resistance - Initial (Ri) (Min) : 30 mOhms
Resistance - Post Trip (R1) (Max) : 80 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : User Defined
Package / Case : Strap
Size / Dimension : 0.880" L x 0.417" W (22.35mm x 10.60mm)
Height - Seated (Max) : -
Thickness (Max) : 0.043" (1.10mm)
Lead Spacing : -
Packaging : Bulk
Series : Multifuse®, MF-S
Part Status : Active
Type : Polymeric
Voltage - Max : 30V
Current - Max : 100A
Current - Hold (Ih) (Max) : 2A
Current - Trip (It) : 4.4A
Time to Trip : 4s
Resistance - Initial (Ri) (Min) : 30 mOhms
Resistance - Post Trip (R1) (Max) : 80 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : User Defined
Package / Case : Strap
Size / Dimension : 0.880" L x 0.417" W (22.35mm x 10.60mm)
Height - Seated (Max) : -
Thickness (Max) : 0.043" (1.10mm)
Lead Spacing : -
0
4795 in stock

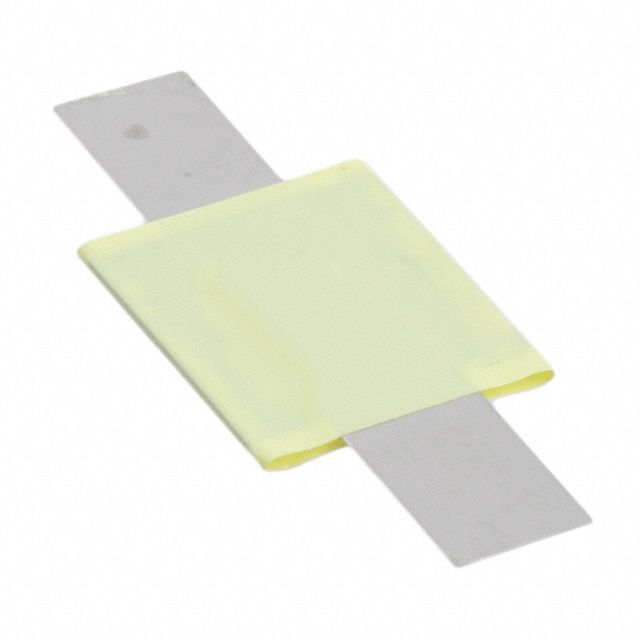

MF-S350
Bourns, Inc.
Manufacturer : Bourns Inc.
Packaging : Bulk
Series : Multifuse®, MF-S
Part Status : Active
Type : Polymeric
Voltage - Max : 30V
Current - Max : 100A
Current - Hold (Ih) (Max) : 3.5A
Current - Trip (It) : 6.3A
Time to Trip : 3s
Resistance - Initial (Ri) (Min) : 17 mOhms
Resistance - Post Trip (R1) (Max) : 40 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : User Defined
Package / Case : Strap
Size / Dimension : 1.185" L x 0.522" W (30.10mm x 13.25mm)
Height - Seated (Max) : -
Thickness (Max) : 0.043" (1.10mm)
Lead Spacing : -
Packaging : Bulk
Series : Multifuse®, MF-S
Part Status : Active
Type : Polymeric
Voltage - Max : 30V
Current - Max : 100A
Current - Hold (Ih) (Max) : 3.5A
Current - Trip (It) : 6.3A
Time to Trip : 3s
Resistance - Initial (Ri) (Min) : 17 mOhms
Resistance - Post Trip (R1) (Max) : 40 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : User Defined
Package / Case : Strap
Size / Dimension : 1.185" L x 0.522" W (30.10mm x 13.25mm)
Height - Seated (Max) : -
Thickness (Max) : 0.043" (1.10mm)
Lead Spacing : -
0
11270 in stock

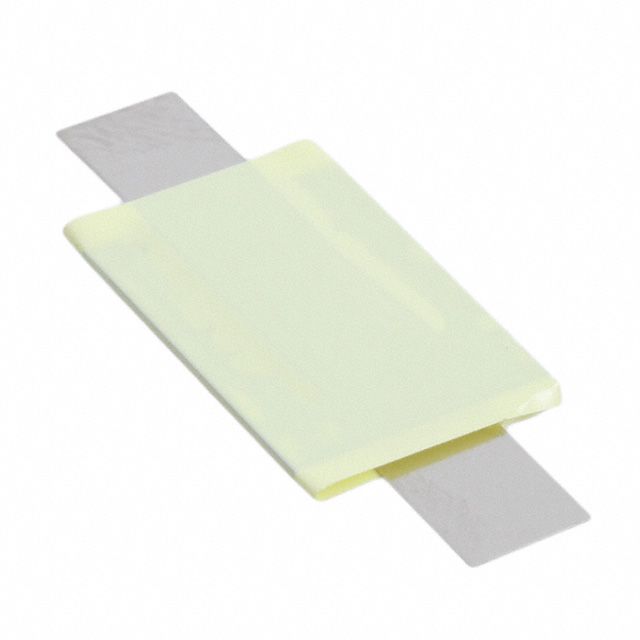

MF-S420
Bourns, Inc.
Manufacturer : Bourns Inc.
Packaging : Bulk
Series : Multifuse®, MF-S
Part Status : Active
Type : Polymeric
Voltage - Max : 30V
Current - Max : 100A
Current - Hold (Ih) (Max) : 4.2A
Current - Trip (It) : 7.6A
Time to Trip : 6s
Resistance - Initial (Ri) (Min) : 12 mOhms
Resistance - Post Trip (R1) (Max) : 40 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : User Defined
Package / Case : Strap
Size / Dimension : 1.240" L x 0.522" W (31.50mm x 13.25mm)
Height - Seated (Max) : -
Thickness (Max) : 0.043" (1.10mm)
Lead Spacing : -
Packaging : Bulk
Series : Multifuse®, MF-S
Part Status : Active
Type : Polymeric
Voltage - Max : 30V
Current - Max : 100A
Current - Hold (Ih) (Max) : 4.2A
Current - Trip (It) : 7.6A
Time to Trip : 6s
Resistance - Initial (Ri) (Min) : 12 mOhms
Resistance - Post Trip (R1) (Max) : 40 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : User Defined
Package / Case : Strap
Size / Dimension : 1.240" L x 0.522" W (31.50mm x 13.25mm)
Height - Seated (Max) : -
Thickness (Max) : 0.043" (1.10mm)
Lead Spacing : -
0
4812 in stock

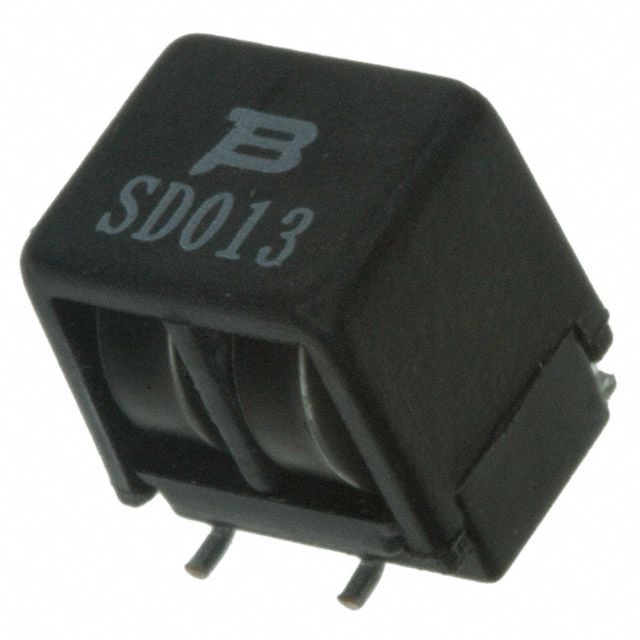

MF-SD013/250-2
Bourns, Inc.
Manufacturer : Bourns Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Multifuse®, MF-SD
Part Status : Active
Type : Polymeric
Voltage - Max : 60V (250V Int)
Current - Max : 3A
Current - Hold (Ih) (Max) : 130mA
Current - Trip (It) : 260mA
Time to Trip : 2.5s
Resistance - Initial (Ri) (Min) : 2 Ohms
Resistance - Post Trip (R1) (Max) : 10 Ohms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 4-SMD Cube
Size / Dimension : 0.350" L x 0.283" W (8.90mm x 7.20mm)
Height - Seated (Max) : -
Thickness (Max) : 0.402" (10.20mm)
Lead Spacing : -
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Multifuse®, MF-SD
Part Status : Active
Type : Polymeric
Voltage - Max : 60V (250V Int)
Current - Max : 3A
Current - Hold (Ih) (Max) : 130mA
Current - Trip (It) : 260mA
Time to Trip : 2.5s
Resistance - Initial (Ri) (Min) : 2 Ohms
Resistance - Post Trip (R1) (Max) : 10 Ohms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 4-SMD Cube
Size / Dimension : 0.350" L x 0.283" W (8.90mm x 7.20mm)
Height - Seated (Max) : -
Thickness (Max) : 0.402" (10.20mm)
Lead Spacing : -
0
4498 in stock

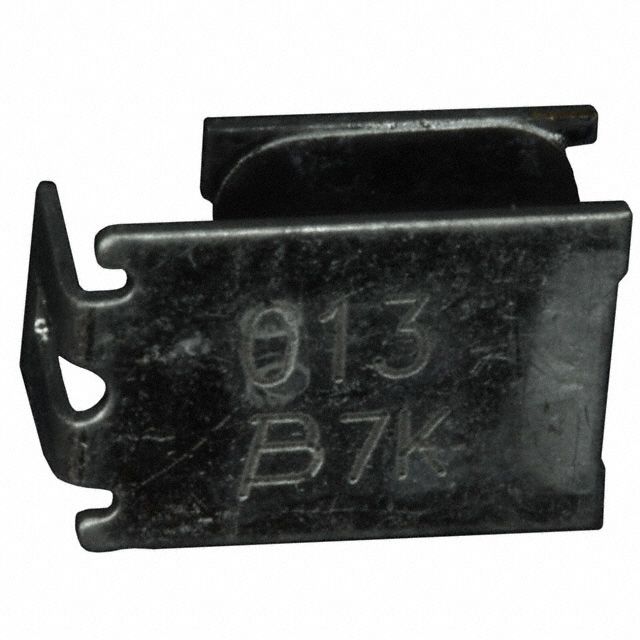

MF-SM013/250-2
Bourns, Inc.
Manufacturer : Bourns Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Multifuse®, MF-SM/250
Part Status : Active
Type : Polymeric
Voltage - Max : 60V (250V Int)
Current - Max : 3A
Current - Hold (Ih) (Max) : 130mA
Current - Trip (It) : -
Time to Trip : -
Resistance - Initial (Ri) (Min) : 6.5 Ohms
Resistance - Post Trip (R1) (Max) : 20 Ohms
Resistance - 25°C (Typ) : -
Operating Temperature : -45°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 2-SMD
Size / Dimension : 0.350" L x 0.283" W (8.90mm x 7.20mm)
Height - Seated (Max) : -
Thickness (Max) : 0.402" (10.20mm)
Lead Spacing : -
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Multifuse®, MF-SM/250
Part Status : Active
Type : Polymeric
Voltage - Max : 60V (250V Int)
Current - Max : 3A
Current - Hold (Ih) (Max) : 130mA
Current - Trip (It) : -
Time to Trip : -
Resistance - Initial (Ri) (Min) : 6.5 Ohms
Resistance - Post Trip (R1) (Max) : 20 Ohms
Resistance - 25°C (Typ) : -
Operating Temperature : -45°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 2-SMD
Size / Dimension : 0.350" L x 0.283" W (8.90mm x 7.20mm)
Height - Seated (Max) : -
Thickness (Max) : 0.402" (10.20mm)
Lead Spacing : -
0
4839 in stock

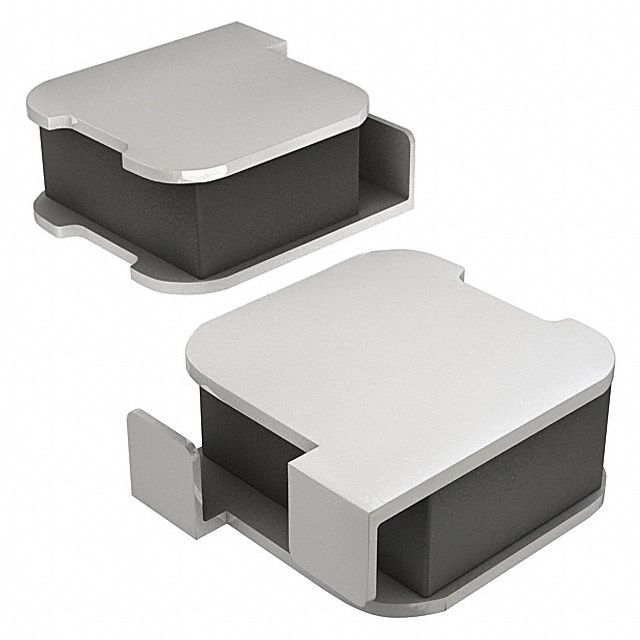

MF-SM013/250V-2
Bourns, Inc.
Manufacturer : Bourns Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Multifuse®, MF-SM/250V
Part Status : Active
Type : Polymeric
Voltage - Max : 60V (250V Int)
Current - Max : 3A
Current - Hold (Ih) (Max) : 130mA
Current - Trip (It) : -
Time to Trip : -
Resistance - Initial (Ri) (Min) : 4 Ohms
Resistance - Post Trip (R1) (Max) : 16 Ohms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 2-SMD
Size / Dimension : 0.350" L x 0.283" W (8.90mm x 7.20mm)
Height - Seated (Max) : -
Thickness (Max) : 0.402" (10.20mm)
Lead Spacing : -
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Multifuse®, MF-SM/250V
Part Status : Active
Type : Polymeric
Voltage - Max : 60V (250V Int)
Current - Max : 3A
Current - Hold (Ih) (Max) : 130mA
Current - Trip (It) : -
Time to Trip : -
Resistance - Initial (Ri) (Min) : 4 Ohms
Resistance - Post Trip (R1) (Max) : 16 Ohms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 2-SMD
Size / Dimension : 0.350" L x 0.283" W (8.90mm x 7.20mm)
Height - Seated (Max) : -
Thickness (Max) : 0.402" (10.20mm)
Lead Spacing : -
0
4822 in stock
MF-SM030-2
Bourns, Inc.
Manufacturer : Bourns Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Multifuse®, MF-SM
Part Status : Active
Type : Polymeric
Voltage - Max : 60V
Current - Max : 40A
Current - Hold (Ih) (Max) : 300mA
Current - Trip (It) : 600mA
Time to Trip : 3s
Resistance - Initial (Ri) (Min) : 900 mOhms
Resistance - Post Trip (R1) (Max) : 4.8 Ohms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : AEC-Q200
Mounting Type : Surface Mount
Package / Case : 2-SMD
Size / Dimension : 0.287" L x 0.214" W (7.31mm x 5.44mm)
Height - Seated (Max) : -
Thickness (Max) : 0.125" (3.18mm)
Lead Spacing : -
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Multifuse®, MF-SM
Part Status : Active
Type : Polymeric
Voltage - Max : 60V
Current - Max : 40A
Current - Hold (Ih) (Max) : 300mA
Current - Trip (It) : 600mA
Time to Trip : 3s
Resistance - Initial (Ri) (Min) : 900 mOhms
Resistance - Post Trip (R1) (Max) : 4.8 Ohms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : AEC-Q200
Mounting Type : Surface Mount
Package / Case : 2-SMD
Size / Dimension : 0.287" L x 0.214" W (7.31mm x 5.44mm)
Height - Seated (Max) : -
Thickness (Max) : 0.125" (3.18mm)
Lead Spacing : -
0
31396 in stock
MF-SM030-2-99
Bourns, Inc.
Manufacturer : Bourns Inc.
Packaging : Tape & Reel (TR)
Alternate Packaging
Series : Multifuse®, MF-SM
Part Status : Last Time Buy
Type : Polymeric
Voltage - Max : 60V
Current - Max : 40A
Current - Hold (Ih) (Max) : 300mA
Current - Trip (It) : 600mA
Time to Trip : 3s
Resistance - Initial (Ri) (Min) : 900 mOhms
Resistance - Post Trip (R1) (Max) : 4.8 Ohms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : AEC-Q200
Mounting Type : Surface Mount
Package / Case : 2-SMD
Size / Dimension : 0.289" L x 0.214" W (7.36mm x 5.44mm)
Height - Seated (Max) : -
Thickness (Max) : 0.125" (3.18mm)
Lead Spacing : -
Packaging : Tape & Reel (TR)
Alternate Packaging
Series : Multifuse®, MF-SM
Part Status : Last Time Buy
Type : Polymeric
Voltage - Max : 60V
Current - Max : 40A
Current - Hold (Ih) (Max) : 300mA
Current - Trip (It) : 600mA
Time to Trip : 3s
Resistance - Initial (Ri) (Min) : 900 mOhms
Resistance - Post Trip (R1) (Max) : 4.8 Ohms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : AEC-Q200
Mounting Type : Surface Mount
Package / Case : 2-SMD
Size / Dimension : 0.289" L x 0.214" W (7.36mm x 5.44mm)
Height - Seated (Max) : -
Thickness (Max) : 0.125" (3.18mm)
Lead Spacing : -
0
4000 in stock

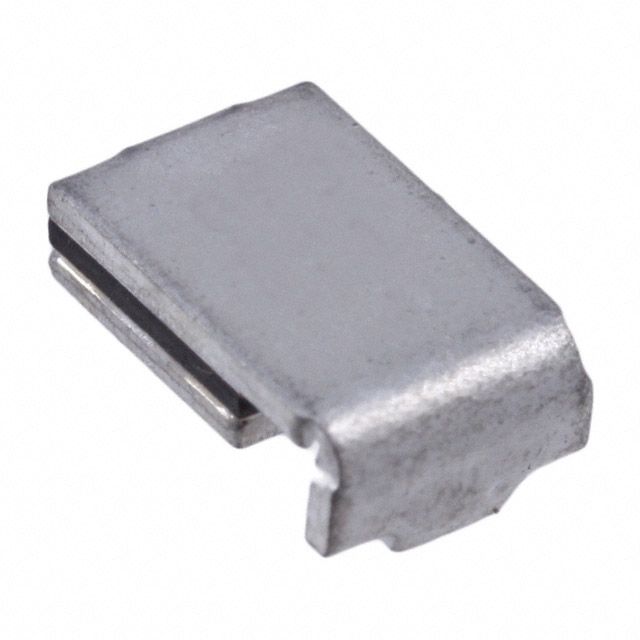

MF-SM050-2
Bourns, Inc.
Manufacturer : Bourns Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Multifuse®, MF-SM
Part Status : Active
Type : Polymeric
Voltage - Max : 60V
Current - Max : 40A
Current - Hold (Ih) (Max) : 500mA
Current - Trip (It) : 1A
Time to Trip : 4s
Resistance - Initial (Ri) (Min) : 350 mOhms
Resistance - Post Trip (R1) (Max) : 1.4 Ohms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : AEC-Q200
Mounting Type : Surface Mount
Package / Case : 2-SMD
Size / Dimension : 0.287" L x 0.214" W (7.31mm x 5.44mm)
Height - Seated (Max) : -
Thickness (Max) : 0.125" (3.18mm)
Lead Spacing : -
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Multifuse®, MF-SM
Part Status : Active
Type : Polymeric
Voltage - Max : 60V
Current - Max : 40A
Current - Hold (Ih) (Max) : 500mA
Current - Trip (It) : 1A
Time to Trip : 4s
Resistance - Initial (Ri) (Min) : 350 mOhms
Resistance - Post Trip (R1) (Max) : 1.4 Ohms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : AEC-Q200
Mounting Type : Surface Mount
Package / Case : 2-SMD
Size / Dimension : 0.287" L x 0.214" W (7.31mm x 5.44mm)
Height - Seated (Max) : -
Thickness (Max) : 0.125" (3.18mm)
Lead Spacing : -
0
121215 in stock

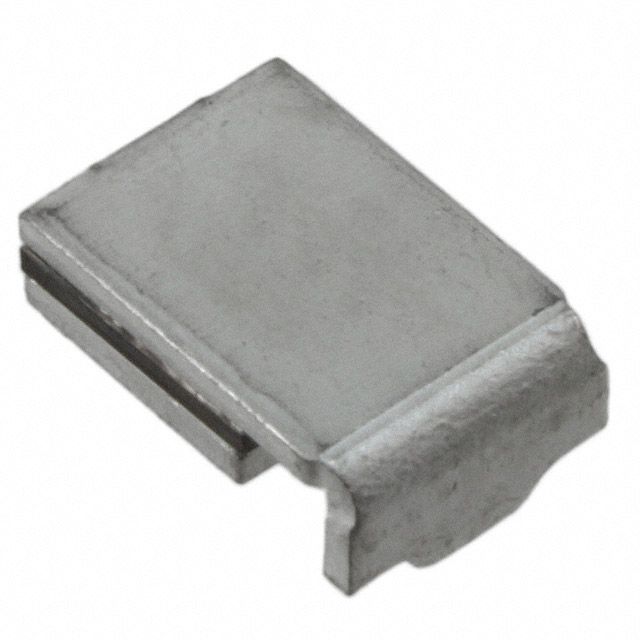

MF-SM050-2-99
Bourns, Inc.
Manufacturer : Bourns Inc.
Packaging : Tape & Reel (TR)
Alternate Packaging
Series : Multifuse®, MF-SM
Part Status : Last Time Buy
Type : Polymeric
Voltage - Max : 60V
Current - Max : 40A
Current - Hold (Ih) (Max) : 500mA
Current - Trip (It) : 1A
Time to Trip : 4s
Resistance - Initial (Ri) (Min) : 350 mOhms
Resistance - Post Trip (R1) (Max) : 1.4 Ohms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : AEC-Q200
Mounting Type : Surface Mount
Package / Case : 2-SMD
Size / Dimension : 0.287" L x 0.214" W (7.31mm x 5.44mm)
Height - Seated (Max) : -
Thickness (Max) : 0.125" (3.18mm)
Lead Spacing : -
Packaging : Tape & Reel (TR)
Alternate Packaging
Series : Multifuse®, MF-SM
Part Status : Last Time Buy
Type : Polymeric
Voltage - Max : 60V
Current - Max : 40A
Current - Hold (Ih) (Max) : 500mA
Current - Trip (It) : 1A
Time to Trip : 4s
Resistance - Initial (Ri) (Min) : 350 mOhms
Resistance - Post Trip (R1) (Max) : 1.4 Ohms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : AEC-Q200
Mounting Type : Surface Mount
Package / Case : 2-SMD
Size / Dimension : 0.287" L x 0.214" W (7.31mm x 5.44mm)
Height - Seated (Max) : -
Thickness (Max) : 0.125" (3.18mm)
Lead Spacing : -
0
100 in stock

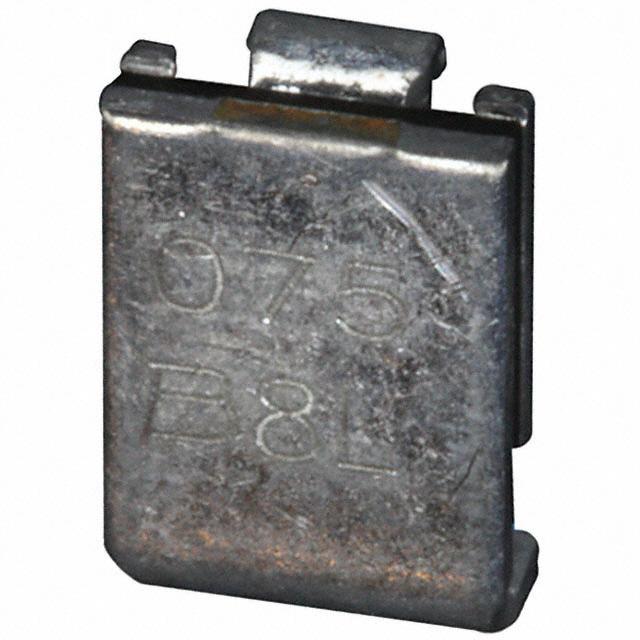

MF-SM075/60-2
Bourns, Inc.
Manufacturer : Bourns Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Multifuse®, MF-SM
Part Status : Active
Type : Polymeric
Voltage - Max : 60V
Current - Max : 10A
Current - Hold (Ih) (Max) : 750mA
Current - Trip (It) : 1.5A
Time to Trip : 300ms
Resistance - Initial (Ri) (Min) : 230 mOhms
Resistance - Post Trip (R1) (Max) : 1 Ohms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : AEC-Q200
Mounting Type : Surface Mount
Package / Case : 2-SMD
Size / Dimension : 0.287" L x 0.214" W (7.31mm x 5.44mm)
Height - Seated (Max) : -
Thickness (Max) : 0.125" (3.18mm)
Lead Spacing : -
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Multifuse®, MF-SM
Part Status : Active
Type : Polymeric
Voltage - Max : 60V
Current - Max : 10A
Current - Hold (Ih) (Max) : 750mA
Current - Trip (It) : 1.5A
Time to Trip : 300ms
Resistance - Initial (Ri) (Min) : 230 mOhms
Resistance - Post Trip (R1) (Max) : 1 Ohms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : AEC-Q200
Mounting Type : Surface Mount
Package / Case : 2-SMD
Size / Dimension : 0.287" L x 0.214" W (7.31mm x 5.44mm)
Height - Seated (Max) : -
Thickness (Max) : 0.125" (3.18mm)
Lead Spacing : -
0
19557 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2025 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
