Part Number
Manufacturer
Description
Unit Price
In Stock
MF-SM075-2
Bourns, Inc.
Manufacturer : Bourns Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Multifuse®, MF-SM
Part Status : Active
Type : Polymeric
Voltage - Max : 30V
Current - Max : 80A
Current - Hold (Ih) (Max) : 750mA
Current - Trip (It) : 1.5A
Time to Trip : 300ms
Resistance - Initial (Ri) (Min) : 230 mOhms
Resistance - Post Trip (R1) (Max) : 1 Ohms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : AEC-Q200
Mounting Type : Surface Mount
Package / Case : 2-SMD
Size / Dimension : 0.287" L x 0.214" W (7.31mm x 5.44mm)
Height - Seated (Max) : -
Thickness (Max) : 0.125" (3.18mm)
Lead Spacing : -
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Multifuse®, MF-SM
Part Status : Active
Type : Polymeric
Voltage - Max : 30V
Current - Max : 80A
Current - Hold (Ih) (Max) : 750mA
Current - Trip (It) : 1.5A
Time to Trip : 300ms
Resistance - Initial (Ri) (Min) : 230 mOhms
Resistance - Post Trip (R1) (Max) : 1 Ohms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : AEC-Q200
Mounting Type : Surface Mount
Package / Case : 2-SMD
Size / Dimension : 0.287" L x 0.214" W (7.31mm x 5.44mm)
Height - Seated (Max) : -
Thickness (Max) : 0.125" (3.18mm)
Lead Spacing : -
0
35919 in stock
MF-SM100/33-2
Bourns, Inc.
Manufacturer : Bourns Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Multifuse®, MF-SM
Part Status : Active
Type : Polymeric
Voltage - Max : 33V
Current - Max : 40A
Current - Hold (Ih) (Max) : 1.1A
Current - Trip (It) : 2.2A
Time to Trip : 500ms
Resistance - Initial (Ri) (Min) : 120 mOhms
Resistance - Post Trip (R1) (Max) : 410 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : AEC-Q200
Mounting Type : Surface Mount
Package / Case : 2-SMD
Size / Dimension : 0.287" L x 0.214" W (7.31mm x 5.44mm)
Height - Seated (Max) : -
Thickness (Max) : 0.118" (3.00mm)
Lead Spacing : -
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Multifuse®, MF-SM
Part Status : Active
Type : Polymeric
Voltage - Max : 33V
Current - Max : 40A
Current - Hold (Ih) (Max) : 1.1A
Current - Trip (It) : 2.2A
Time to Trip : 500ms
Resistance - Initial (Ri) (Min) : 120 mOhms
Resistance - Post Trip (R1) (Max) : 410 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : AEC-Q200
Mounting Type : Surface Mount
Package / Case : 2-SMD
Size / Dimension : 0.287" L x 0.214" W (7.31mm x 5.44mm)
Height - Seated (Max) : -
Thickness (Max) : 0.118" (3.00mm)
Lead Spacing : -
0
31670 in stock
MF-SM100/33-2-99
Bourns, Inc.
Manufacturer : Bourns Inc.
Packaging : Tape & Reel (TR)
Alternate Packaging
Series : Multifuse®, MF-SM
Part Status : Last Time Buy
Type : Polymeric
Voltage - Max : 33V
Current - Max : 40A
Current - Hold (Ih) (Max) : 1.1A
Current - Trip (It) : 2.2A
Time to Trip : 500ms
Resistance - Initial (Ri) (Min) : 120 mOhms
Resistance - Post Trip (R1) (Max) : 410 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : AEC-Q200
Mounting Type : Surface Mount
Package / Case : 2-SMD
Size / Dimension : 0.287" L x 0.214" W (7.31mm x 5.44mm)
Height - Seated (Max) : -
Thickness (Max) : 0.118" (3.00mm)
Lead Spacing : -
Packaging : Tape & Reel (TR)
Alternate Packaging
Series : Multifuse®, MF-SM
Part Status : Last Time Buy
Type : Polymeric
Voltage - Max : 33V
Current - Max : 40A
Current - Hold (Ih) (Max) : 1.1A
Current - Trip (It) : 2.2A
Time to Trip : 500ms
Resistance - Initial (Ri) (Min) : 120 mOhms
Resistance - Post Trip (R1) (Max) : 410 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : AEC-Q200
Mounting Type : Surface Mount
Package / Case : 2-SMD
Size / Dimension : 0.287" L x 0.214" W (7.31mm x 5.44mm)
Height - Seated (Max) : -
Thickness (Max) : 0.118" (3.00mm)
Lead Spacing : -
0
100 in stock
MF-SM100-2
Bourns, Inc.
Manufacturer : Bourns Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Multifuse®, MF-SM
Part Status : Active
Type : Polymeric
Voltage - Max : 30V
Current - Max : 80A
Current - Hold (Ih) (Max) : 1.1A
Current - Trip (It) : 2.2A
Time to Trip : 500ms
Resistance - Initial (Ri) (Min) : 120 mOhms
Resistance - Post Trip (R1) (Max) : 480 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : AEC-Q200
Mounting Type : Surface Mount
Package / Case : 2-SMD
Size / Dimension : 0.287" L x 0.214" W (7.31mm x 5.44mm)
Height - Seated (Max) : -
Thickness (Max) : 0.118" (3.00mm)
Lead Spacing : -
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Multifuse®, MF-SM
Part Status : Active
Type : Polymeric
Voltage - Max : 30V
Current - Max : 80A
Current - Hold (Ih) (Max) : 1.1A
Current - Trip (It) : 2.2A
Time to Trip : 500ms
Resistance - Initial (Ri) (Min) : 120 mOhms
Resistance - Post Trip (R1) (Max) : 480 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : AEC-Q200
Mounting Type : Surface Mount
Package / Case : 2-SMD
Size / Dimension : 0.287" L x 0.214" W (7.31mm x 5.44mm)
Height - Seated (Max) : -
Thickness (Max) : 0.118" (3.00mm)
Lead Spacing : -
0
57481 in stock
MF-SM100-2-99
Bourns, Inc.
Manufacturer : Bourns Inc.
Packaging : Tape & Reel (TR)
Alternate Packaging
Series : Multifuse®, MF-SM
Part Status : Last Time Buy
Type : Polymeric
Voltage - Max : 30V
Current - Max : 80A
Current - Hold (Ih) (Max) : 1.1A
Current - Trip (It) : 2.2A
Time to Trip : 500ms
Resistance - Initial (Ri) (Min) : 120 mOhms
Resistance - Post Trip (R1) (Max) : 480 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : AEC-Q200
Mounting Type : Surface Mount
Package / Case : 2-SMD
Size / Dimension : 0.287" L x 0.214" W (7.31mm x 5.44mm)
Height - Seated (Max) : -
Thickness (Max) : 0.118" (3.00mm)
Lead Spacing : -
Packaging : Tape & Reel (TR)
Alternate Packaging
Series : Multifuse®, MF-SM
Part Status : Last Time Buy
Type : Polymeric
Voltage - Max : 30V
Current - Max : 80A
Current - Hold (Ih) (Max) : 1.1A
Current - Trip (It) : 2.2A
Time to Trip : 500ms
Resistance - Initial (Ri) (Min) : 120 mOhms
Resistance - Post Trip (R1) (Max) : 480 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : AEC-Q200
Mounting Type : Surface Mount
Package / Case : 2-SMD
Size / Dimension : 0.287" L x 0.214" W (7.31mm x 5.44mm)
Height - Seated (Max) : -
Thickness (Max) : 0.118" (3.00mm)
Lead Spacing : -
0
2000 in stock
MF-SM125-2
Bourns, Inc.
Manufacturer : Bourns Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Multifuse®, MF-SM
Part Status : Active
Type : Polymeric
Voltage - Max : 15V
Current - Max : 100A
Current - Hold (Ih) (Max) : 1.25A
Current - Trip (It) : 2.5A
Time to Trip : 2s
Resistance - Initial (Ri) (Min) : 70 mOhms
Resistance - Post Trip (R1) (Max) : 250 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : AEC-Q200
Mounting Type : Surface Mount
Package / Case : 2-SMD
Size / Dimension : 0.287" L x 0.214" W (7.31mm x 5.44mm)
Height - Seated (Max) : -
Thickness (Max) : 0.118" (3.00mm)
Lead Spacing : -
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Multifuse®, MF-SM
Part Status : Active
Type : Polymeric
Voltage - Max : 15V
Current - Max : 100A
Current - Hold (Ih) (Max) : 1.25A
Current - Trip (It) : 2.5A
Time to Trip : 2s
Resistance - Initial (Ri) (Min) : 70 mOhms
Resistance - Post Trip (R1) (Max) : 250 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : AEC-Q200
Mounting Type : Surface Mount
Package / Case : 2-SMD
Size / Dimension : 0.287" L x 0.214" W (7.31mm x 5.44mm)
Height - Seated (Max) : -
Thickness (Max) : 0.118" (3.00mm)
Lead Spacing : -
0
11220 in stock
MF-SM125-2-99
Bourns, Inc.
Manufacturer : Bourns Inc.
Packaging : Tape & Reel (TR)
Alternate Packaging
Series : Multifuse®, MF-SM
Part Status : Last Time Buy
Type : Polymeric
Voltage - Max : 15V
Current - Max : 100A
Current - Hold (Ih) (Max) : 1.25A
Current - Trip (It) : 2.5A
Time to Trip : 2s
Resistance - Initial (Ri) (Min) : 70 mOhms
Resistance - Post Trip (R1) (Max) : 250 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : AEC-Q200
Mounting Type : Surface Mount
Package / Case : 2-SMD
Size / Dimension : 0.287" L x 0.214" W (7.31mm x 5.44mm)
Height - Seated (Max) : -
Thickness (Max) : 0.118" (3.00mm)
Lead Spacing : -
Packaging : Tape & Reel (TR)
Alternate Packaging
Series : Multifuse®, MF-SM
Part Status : Last Time Buy
Type : Polymeric
Voltage - Max : 15V
Current - Max : 100A
Current - Hold (Ih) (Max) : 1.25A
Current - Trip (It) : 2.5A
Time to Trip : 2s
Resistance - Initial (Ri) (Min) : 70 mOhms
Resistance - Post Trip (R1) (Max) : 250 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : AEC-Q200
Mounting Type : Surface Mount
Package / Case : 2-SMD
Size / Dimension : 0.287" L x 0.214" W (7.31mm x 5.44mm)
Height - Seated (Max) : -
Thickness (Max) : 0.118" (3.00mm)
Lead Spacing : -
0
100 in stock
MF-SM150/33-2
Bourns, Inc.
Manufacturer : Bourns Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Multifuse®, MF-SM
Part Status : Active
Type : Polymeric
Voltage - Max : 33V
Current - Max : 40A
Current - Hold (Ih) (Max) : 1.5A
Current - Trip (It) : 3A
Time to Trip : 5s
Resistance - Initial (Ri) (Min) : 60 mOhms
Resistance - Post Trip (R1) (Max) : 230 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : AEC-Q200
Mounting Type : Surface Mount
Package / Case : 2-SMD
Size / Dimension : 0.344" L x 0.264" W (8.75mm x 6.71mm)
Height - Seated (Max) : -
Thickness (Max) : 0.118" (3.00mm)
Lead Spacing : -
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Multifuse®, MF-SM
Part Status : Active
Type : Polymeric
Voltage - Max : 33V
Current - Max : 40A
Current - Hold (Ih) (Max) : 1.5A
Current - Trip (It) : 3A
Time to Trip : 5s
Resistance - Initial (Ri) (Min) : 60 mOhms
Resistance - Post Trip (R1) (Max) : 230 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : AEC-Q200
Mounting Type : Surface Mount
Package / Case : 2-SMD
Size / Dimension : 0.344" L x 0.264" W (8.75mm x 6.71mm)
Height - Seated (Max) : -
Thickness (Max) : 0.118" (3.00mm)
Lead Spacing : -
0
18626 in stock
MF-SM150/33-2-99
Bourns, Inc.
Manufacturer : Bourns Inc.
Packaging : Tape & Reel (TR)
Alternate Packaging
Series : Multifuse®, MF-SM
Part Status : Last Time Buy
Type : Polymeric
Voltage - Max : 33V
Current - Max : 40A
Current - Hold (Ih) (Max) : 1.5A
Current - Trip (It) : 3A
Time to Trip : 5s
Resistance - Initial (Ri) (Min) : 60 mOhms
Resistance - Post Trip (R1) (Max) : 230 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : AEC-Q200
Mounting Type : Surface Mount
Package / Case : 2-SMD
Size / Dimension : 0.344" L x 0.264" W (8.75mm x 6.71mm)
Height - Seated (Max) : -
Thickness (Max) : 0.118" (3.00mm)
Lead Spacing : -
Packaging : Tape & Reel (TR)
Alternate Packaging
Series : Multifuse®, MF-SM
Part Status : Last Time Buy
Type : Polymeric
Voltage - Max : 33V
Current - Max : 40A
Current - Hold (Ih) (Max) : 1.5A
Current - Trip (It) : 3A
Time to Trip : 5s
Resistance - Initial (Ri) (Min) : 60 mOhms
Resistance - Post Trip (R1) (Max) : 230 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : AEC-Q200
Mounting Type : Surface Mount
Package / Case : 2-SMD
Size / Dimension : 0.344" L x 0.264" W (8.75mm x 6.71mm)
Height - Seated (Max) : -
Thickness (Max) : 0.118" (3.00mm)
Lead Spacing : -
0
1500 in stock
MF-SM150-2
Bourns, Inc.
Manufacturer : Bourns Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Multifuse®, MF-SM
Part Status : Active
Type : Polymeric
Voltage - Max : 15V
Current - Max : 100A
Current - Hold (Ih) (Max) : 1.5A
Current - Trip (It) : 3A
Time to Trip : 5s
Resistance - Initial (Ri) (Min) : 60 mOhms
Resistance - Post Trip (R1) (Max) : 250 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : AEC-Q200
Mounting Type : Surface Mount
Package / Case : 2-SMD
Size / Dimension : 0.344" L x 0.264" W (8.75mm x 6.71mm)
Height - Seated (Max) : -
Thickness (Max) : 0.118" (3.00mm)
Lead Spacing : -
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Multifuse®, MF-SM
Part Status : Active
Type : Polymeric
Voltage - Max : 15V
Current - Max : 100A
Current - Hold (Ih) (Max) : 1.5A
Current - Trip (It) : 3A
Time to Trip : 5s
Resistance - Initial (Ri) (Min) : 60 mOhms
Resistance - Post Trip (R1) (Max) : 250 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : AEC-Q200
Mounting Type : Surface Mount
Package / Case : 2-SMD
Size / Dimension : 0.344" L x 0.264" W (8.75mm x 6.71mm)
Height - Seated (Max) : -
Thickness (Max) : 0.118" (3.00mm)
Lead Spacing : -
0
4111 in stock

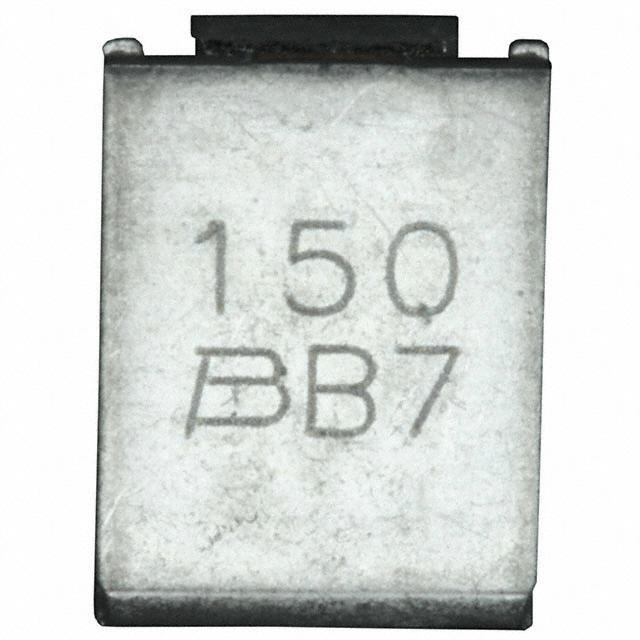

MF-SM150-2-99
Bourns, Inc.
Manufacturer : Bourns Inc.
Packaging : Tape & Reel (TR)
Alternate Packaging
Series : Multifuse®, MF-SM
Part Status : Last Time Buy
Type : Polymeric
Voltage - Max : 15V
Current - Max : 100A
Current - Hold (Ih) (Max) : 1.5A
Current - Trip (It) : 3A
Time to Trip : 5s
Resistance - Initial (Ri) (Min) : 60 mOhms
Resistance - Post Trip (R1) (Max) : 250 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : AEC-Q200
Mounting Type : Surface Mount
Package / Case : 2-SMD
Size / Dimension : 0.344" L x 0.264" W (8.75mm x 6.71mm)
Height - Seated (Max) : -
Thickness (Max) : 0.118" (3.00mm)
Lead Spacing : -
Packaging : Tape & Reel (TR)
Alternate Packaging
Series : Multifuse®, MF-SM
Part Status : Last Time Buy
Type : Polymeric
Voltage - Max : 15V
Current - Max : 100A
Current - Hold (Ih) (Max) : 1.5A
Current - Trip (It) : 3A
Time to Trip : 5s
Resistance - Initial (Ri) (Min) : 60 mOhms
Resistance - Post Trip (R1) (Max) : 250 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : AEC-Q200
Mounting Type : Surface Mount
Package / Case : 2-SMD
Size / Dimension : 0.344" L x 0.264" W (8.75mm x 6.71mm)
Height - Seated (Max) : -
Thickness (Max) : 0.118" (3.00mm)
Lead Spacing : -
0
1500 in stock

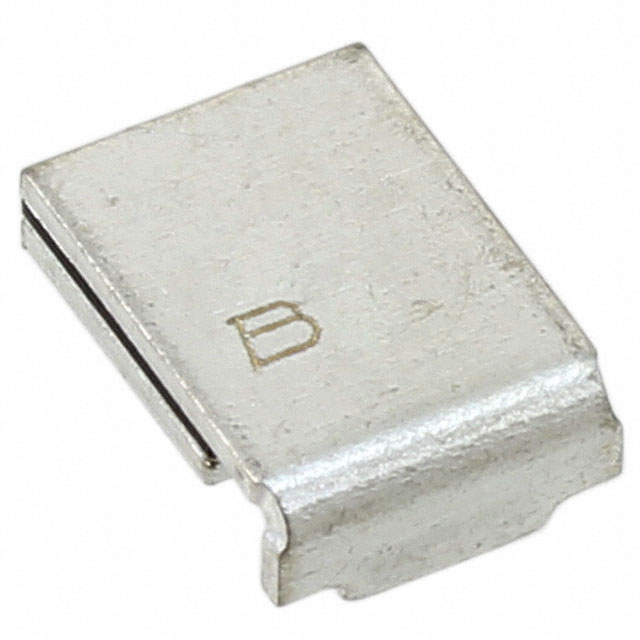

MF-SM185/33-2
Bourns, Inc.
Manufacturer : Bourns Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Multifuse®, MF-SM
Part Status : Active
Type : Polymeric
Voltage - Max : 33V
Current - Max : 40A
Current - Hold (Ih) (Max) : 1.8A
Current - Trip (It) : 3.6A
Time to Trip : 5s
Resistance - Initial (Ri) (Min) : 40 mOhms
Resistance - Post Trip (R1) (Max) : 150 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : AEC-Q200
Mounting Type : Surface Mount
Package / Case : 2-SMD
Size / Dimension : 0.344" L x 0.264" W (8.75mm x 6.71mm)
Height - Seated (Max) : -
Thickness (Max) : 0.118" (3.00mm)
Lead Spacing : -
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Multifuse®, MF-SM
Part Status : Active
Type : Polymeric
Voltage - Max : 33V
Current - Max : 40A
Current - Hold (Ih) (Max) : 1.8A
Current - Trip (It) : 3.6A
Time to Trip : 5s
Resistance - Initial (Ri) (Min) : 40 mOhms
Resistance - Post Trip (R1) (Max) : 150 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : AEC-Q200
Mounting Type : Surface Mount
Package / Case : 2-SMD
Size / Dimension : 0.344" L x 0.264" W (8.75mm x 6.71mm)
Height - Seated (Max) : -
Thickness (Max) : 0.118" (3.00mm)
Lead Spacing : -
0
15967 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2025 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
