Part Number
Manufacturer
Description
Unit Price
In Stock
MF-SM200-2
Bourns, Inc.
Manufacturer : Bourns Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Multifuse®, MF-SM
Part Status : Active
Type : Polymeric
Voltage - Max : 15V
Current - Max : 100A
Current - Hold (Ih) (Max) : 2A
Current - Trip (It) : 4A
Time to Trip : 12s
Resistance - Initial (Ri) (Min) : 45 mOhms
Resistance - Post Trip (R1) (Max) : 125 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : AEC-Q200
Mounting Type : Surface Mount
Package / Case : 2-SMD
Size / Dimension : 0.344" L x 0.264" W (8.75mm x 6.71mm)
Height - Seated (Max) : -
Thickness (Max) : 0.118" (3.00mm)
Lead Spacing : -
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Multifuse®, MF-SM
Part Status : Active
Type : Polymeric
Voltage - Max : 15V
Current - Max : 100A
Current - Hold (Ih) (Max) : 2A
Current - Trip (It) : 4A
Time to Trip : 12s
Resistance - Initial (Ri) (Min) : 45 mOhms
Resistance - Post Trip (R1) (Max) : 125 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : AEC-Q200
Mounting Type : Surface Mount
Package / Case : 2-SMD
Size / Dimension : 0.344" L x 0.264" W (8.75mm x 6.71mm)
Height - Seated (Max) : -
Thickness (Max) : 0.118" (3.00mm)
Lead Spacing : -
0
3847 in stock

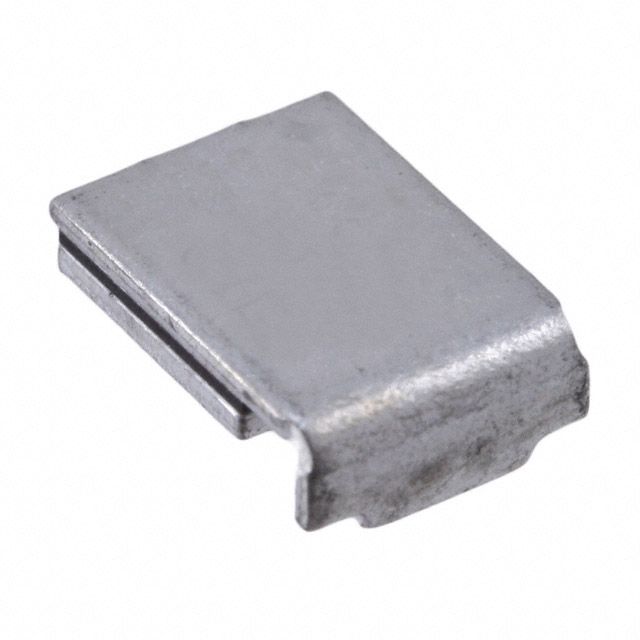

MF-SM200-2-99
Bourns, Inc.
Manufacturer : Bourns Inc.
Packaging : Tape & Reel (TR)
Alternate Packaging
Series : Multifuse®, MF-SM
Part Status : Last Time Buy
Type : Polymeric
Voltage - Max : 15V
Current - Max : 100A
Current - Hold (Ih) (Max) : 2A
Current - Trip (It) : 4A
Time to Trip : 12s
Resistance - Initial (Ri) (Min) : 45 mOhms
Resistance - Post Trip (R1) (Max) : 125 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : AEC-Q200
Mounting Type : Surface Mount
Package / Case : 2-SMD
Size / Dimension : 0.344" L x 0.264" W (8.75mm x 6.71mm)
Height - Seated (Max) : -
Thickness (Max) : 0.118" (3.00mm)
Lead Spacing : -
Packaging : Tape & Reel (TR)
Alternate Packaging
Series : Multifuse®, MF-SM
Part Status : Last Time Buy
Type : Polymeric
Voltage - Max : 15V
Current - Max : 100A
Current - Hold (Ih) (Max) : 2A
Current - Trip (It) : 4A
Time to Trip : 12s
Resistance - Initial (Ri) (Min) : 45 mOhms
Resistance - Post Trip (R1) (Max) : 125 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : AEC-Q200
Mounting Type : Surface Mount
Package / Case : 2-SMD
Size / Dimension : 0.344" L x 0.264" W (8.75mm x 6.71mm)
Height - Seated (Max) : -
Thickness (Max) : 0.118" (3.00mm)
Lead Spacing : -
0
1500 in stock

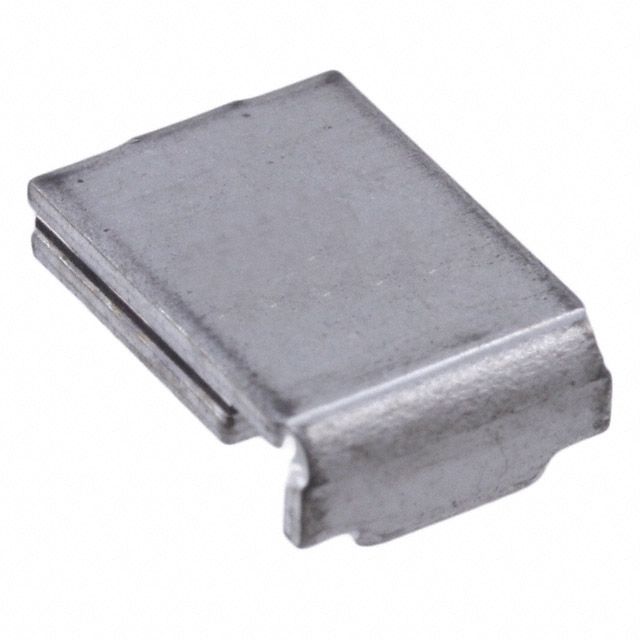

MF-SM250-2
Bourns, Inc.
Manufacturer : Bourns Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Multifuse®, MF-SM
Part Status : Active
Type : Polymeric
Voltage - Max : 15V
Current - Max : 100A
Current - Hold (Ih) (Max) : 2.5A
Current - Trip (It) : 5A
Time to Trip : 25s
Resistance - Initial (Ri) (Min) : 24 mOhms
Resistance - Post Trip (R1) (Max) : 85 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : AEC-Q200
Mounting Type : Surface Mount
Package / Case : 2-SMD
Size / Dimension : 0.344" L x 0.264" W (8.75mm x 6.71mm)
Height - Seated (Max) : -
Thickness (Max) : 0.118" (3.00mm)
Lead Spacing : -
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Multifuse®, MF-SM
Part Status : Active
Type : Polymeric
Voltage - Max : 15V
Current - Max : 100A
Current - Hold (Ih) (Max) : 2.5A
Current - Trip (It) : 5A
Time to Trip : 25s
Resistance - Initial (Ri) (Min) : 24 mOhms
Resistance - Post Trip (R1) (Max) : 85 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : AEC-Q200
Mounting Type : Surface Mount
Package / Case : 2-SMD
Size / Dimension : 0.344" L x 0.264" W (8.75mm x 6.71mm)
Height - Seated (Max) : -
Thickness (Max) : 0.118" (3.00mm)
Lead Spacing : -
0
11802 in stock
MF-SM250-2-99
Bourns, Inc.
Manufacturer : Bourns Inc.
Packaging : Tape & Reel (TR)
Alternate Packaging
Series : Multifuse®, MF-SM
Part Status : Last Time Buy
Type : Polymeric
Voltage - Max : 15V
Current - Max : 100A
Current - Hold (Ih) (Max) : 2.5A
Current - Trip (It) : 5A
Time to Trip : 25s
Resistance - Initial (Ri) (Min) : 24 mOhms
Resistance - Post Trip (R1) (Max) : 85 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : AEC-Q200
Mounting Type : Surface Mount
Package / Case : 2-SMD
Size / Dimension : 0.344" L x 0.264" W (8.75mm x 6.71mm)
Height - Seated (Max) : -
Thickness (Max) : 0.118" (3.00mm)
Lead Spacing : -
Packaging : Tape & Reel (TR)
Alternate Packaging
Series : Multifuse®, MF-SM
Part Status : Last Time Buy
Type : Polymeric
Voltage - Max : 15V
Current - Max : 100A
Current - Hold (Ih) (Max) : 2.5A
Current - Trip (It) : 5A
Time to Trip : 25s
Resistance - Initial (Ri) (Min) : 24 mOhms
Resistance - Post Trip (R1) (Max) : 85 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : AEC-Q200
Mounting Type : Surface Mount
Package / Case : 2-SMD
Size / Dimension : 0.344" L x 0.264" W (8.75mm x 6.71mm)
Height - Seated (Max) : -
Thickness (Max) : 0.118" (3.00mm)
Lead Spacing : -
0
100 in stock

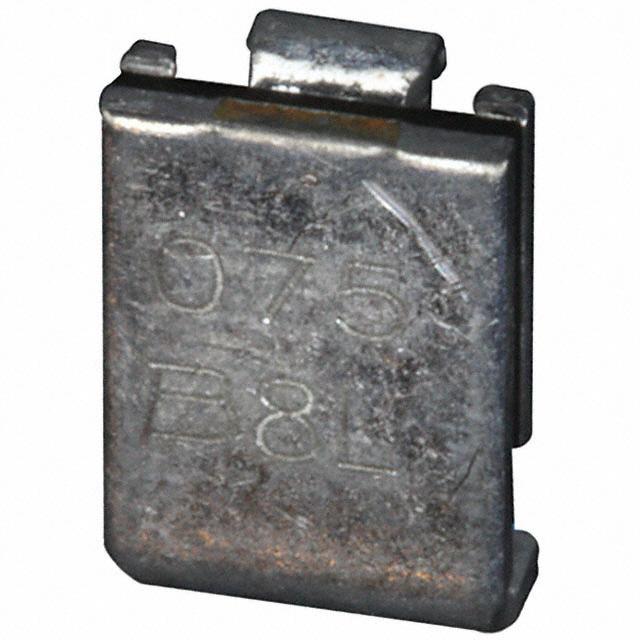

MF-SM260-2
Bourns, Inc.
Manufacturer : Bourns Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Multifuse®, MF-SM
Part Status : Active
Type : Polymeric
Voltage - Max : 6V
Current - Max : 100A
Current - Hold (Ih) (Max) : 2.6A
Current - Trip (It) : 5.2A
Time to Trip : 20s
Resistance - Initial (Ri) (Min) : 25 mOhms
Resistance - Post Trip (R1) (Max) : 75 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : AEC-Q200
Mounting Type : Surface Mount
Package / Case : 2-SMD
Size / Dimension : 0.287" L x 0.214" W (7.31mm x 5.44mm)
Height - Seated (Max) : -
Thickness (Max) : 0.118" (3.00mm)
Lead Spacing : -
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Multifuse®, MF-SM
Part Status : Active
Type : Polymeric
Voltage - Max : 6V
Current - Max : 100A
Current - Hold (Ih) (Max) : 2.6A
Current - Trip (It) : 5.2A
Time to Trip : 20s
Resistance - Initial (Ri) (Min) : 25 mOhms
Resistance - Post Trip (R1) (Max) : 75 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : AEC-Q200
Mounting Type : Surface Mount
Package / Case : 2-SMD
Size / Dimension : 0.287" L x 0.214" W (7.31mm x 5.44mm)
Height - Seated (Max) : -
Thickness (Max) : 0.118" (3.00mm)
Lead Spacing : -
0
5018 in stock
MF-SM300-2
Bourns, Inc.
Manufacturer : Bourns Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Multifuse®, MF-SM
Part Status : Active
Type : Polymeric
Voltage - Max : 6V
Current - Max : 100A
Current - Hold (Ih) (Max) : 3A
Current - Trip (It) : 6A
Time to Trip : 35s
Resistance - Initial (Ri) (Min) : 15 mOhms
Resistance - Post Trip (R1) (Max) : 48 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : AEC-Q200
Mounting Type : Surface Mount
Package / Case : 2-SMD
Size / Dimension : 0.287" L x 0.214" W (7.31mm x 5.44mm)
Height - Seated (Max) : -
Thickness (Max) : 0.118" (3.00mm)
Lead Spacing : -
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Multifuse®, MF-SM
Part Status : Active
Type : Polymeric
Voltage - Max : 6V
Current - Max : 100A
Current - Hold (Ih) (Max) : 3A
Current - Trip (It) : 6A
Time to Trip : 35s
Resistance - Initial (Ri) (Min) : 15 mOhms
Resistance - Post Trip (R1) (Max) : 48 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : AEC-Q200
Mounting Type : Surface Mount
Package / Case : 2-SMD
Size / Dimension : 0.287" L x 0.214" W (7.31mm x 5.44mm)
Height - Seated (Max) : -
Thickness (Max) : 0.118" (3.00mm)
Lead Spacing : -
0
1774 in stock
MF-SMDF050-2
Bourns, Inc.
Manufacturer : Bourns Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Multifuse®, MF-SMDF
Part Status : Active
Type : Polymeric
Voltage - Max : 60V
Current - Max : 10A
Current - Hold (Ih) (Max) : 550mA
Current - Trip (It) : 1.2A
Time to Trip : 3s
Resistance - Initial (Ri) (Min) : 200 mOhms
Resistance - Post Trip (R1) (Max) : 1 Ohms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 2018 (5045 Metric), Concave
Size / Dimension : 0.200" L x 0.180" W (5.08mm x 4.58mm)
Height - Seated (Max) : -
Thickness (Max) : 0.043" (1.09mm)
Lead Spacing : -
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Multifuse®, MF-SMDF
Part Status : Active
Type : Polymeric
Voltage - Max : 60V
Current - Max : 10A
Current - Hold (Ih) (Max) : 550mA
Current - Trip (It) : 1.2A
Time to Trip : 3s
Resistance - Initial (Ri) (Min) : 200 mOhms
Resistance - Post Trip (R1) (Max) : 1 Ohms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 2018 (5045 Metric), Concave
Size / Dimension : 0.200" L x 0.180" W (5.08mm x 4.58mm)
Height - Seated (Max) : -
Thickness (Max) : 0.043" (1.09mm)
Lead Spacing : -
0
228224 in stock
MF-SMDF150-2
Bourns, Inc.
Manufacturer : Bourns Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Multifuse®, MF-SMDF
Part Status : Active
Type : Polymeric
Voltage - Max : 15V
Current - Max : 40A
Current - Hold (Ih) (Max) : 1.5A
Current - Trip (It) : 3A
Time to Trip : 800ms
Resistance - Initial (Ri) (Min) : 50 mOhms
Resistance - Post Trip (R1) (Max) : 170 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 2018 (5045 Metric), Concave
Size / Dimension : 0.200" L x 0.180" W (5.08mm x 4.58mm)
Height - Seated (Max) : -
Thickness (Max) : 0.033" (0.85mm)
Lead Spacing : -
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Multifuse®, MF-SMDF
Part Status : Active
Type : Polymeric
Voltage - Max : 15V
Current - Max : 40A
Current - Hold (Ih) (Max) : 1.5A
Current - Trip (It) : 3A
Time to Trip : 800ms
Resistance - Initial (Ri) (Min) : 50 mOhms
Resistance - Post Trip (R1) (Max) : 170 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 2018 (5045 Metric), Concave
Size / Dimension : 0.200" L x 0.180" W (5.08mm x 4.58mm)
Height - Seated (Max) : -
Thickness (Max) : 0.033" (0.85mm)
Lead Spacing : -
0
6975 in stock

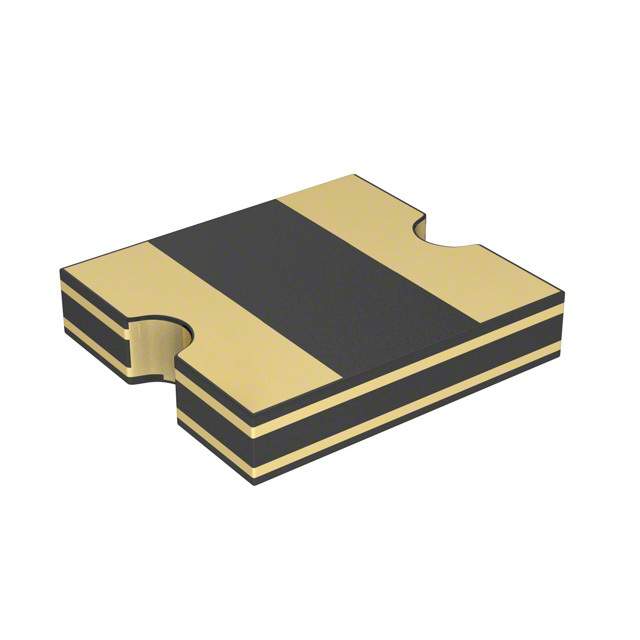

MF-SMDF200-2
Bourns, Inc.
Manufacturer : Bourns Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Multifuse®, MF-SMDF
Part Status : Active
Type : Polymeric
Voltage - Max : 10V
Current - Max : 40A
Current - Hold (Ih) (Max) : 2A
Current - Trip (It) : 4A
Time to Trip : 2.4s
Resistance - Initial (Ri) (Min) : 30 mOhms
Resistance - Post Trip (R1) (Max) : 100 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 2018 (5045 Metric), Concave
Size / Dimension : 0.200" L x 0.180" W (5.08mm x 4.58mm)
Height - Seated (Max) : -
Thickness (Max) : 0.033" (0.85mm)
Lead Spacing : -
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Multifuse®, MF-SMDF
Part Status : Active
Type : Polymeric
Voltage - Max : 10V
Current - Max : 40A
Current - Hold (Ih) (Max) : 2A
Current - Trip (It) : 4A
Time to Trip : 2.4s
Resistance - Initial (Ri) (Min) : 30 mOhms
Resistance - Post Trip (R1) (Max) : 100 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 2018 (5045 Metric), Concave
Size / Dimension : 0.200" L x 0.180" W (5.08mm x 4.58mm)
Height - Seated (Max) : -
Thickness (Max) : 0.033" (0.85mm)
Lead Spacing : -
0
1461 in stock
MF-SMHT136-2
Bourns, Inc.
Manufacturer : Bourns Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Multifuse®, MF-SMHT
Part Status : Active
Type : Polymeric
Voltage - Max : 16V
Current - Max : 100A
Current - Hold (Ih) (Max) : 1.36A
Current - Trip (It) : 2.72A
Time to Trip : 10s
Resistance - Initial (Ri) (Min) : 85 mOhms
Resistance - Post Trip (R1) (Max) : 330 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 125°C
Ratings : AEC-Q200
Mounting Type : Surface Mount
Package / Case : 2-SMD
Size / Dimension : 0.314" L x 0.264" W (7.98mm x 6.71mm)
Height - Seated (Max) : -
Thickness (Max) : 0.118" (3.00mm)
Lead Spacing : -
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Multifuse®, MF-SMHT
Part Status : Active
Type : Polymeric
Voltage - Max : 16V
Current - Max : 100A
Current - Hold (Ih) (Max) : 1.36A
Current - Trip (It) : 2.72A
Time to Trip : 10s
Resistance - Initial (Ri) (Min) : 85 mOhms
Resistance - Post Trip (R1) (Max) : 330 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 125°C
Ratings : AEC-Q200
Mounting Type : Surface Mount
Package / Case : 2-SMD
Size / Dimension : 0.314" L x 0.264" W (7.98mm x 6.71mm)
Height - Seated (Max) : -
Thickness (Max) : 0.118" (3.00mm)
Lead Spacing : -
0
3783 in stock
MF-SMHT160-2
Bourns, Inc.
Manufacturer : Bourns Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Multifuse®, MF-SMHT
Part Status : Active
Type : Polymeric
Voltage - Max : 16V
Current - Max : 100A
Current - Hold (Ih) (Max) : 1.6A
Current - Trip (It) : 3.2A
Time to Trip : 10s
Resistance - Initial (Ri) (Min) : 50 mOhms
Resistance - Post Trip (R1) (Max) : 150 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 125°C
Ratings : AEC-Q200
Mounting Type : Surface Mount
Package / Case : 2-SMD
Size / Dimension : 0.374" L x 0.234" W (9.50mm x 5.94mm)
Height - Seated (Max) : -
Thickness (Max) : 0.118" (3.00mm)
Lead Spacing : -
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Multifuse®, MF-SMHT
Part Status : Active
Type : Polymeric
Voltage - Max : 16V
Current - Max : 100A
Current - Hold (Ih) (Max) : 1.6A
Current - Trip (It) : 3.2A
Time to Trip : 10s
Resistance - Initial (Ri) (Min) : 50 mOhms
Resistance - Post Trip (R1) (Max) : 150 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 125°C
Ratings : AEC-Q200
Mounting Type : Surface Mount
Package / Case : 2-SMD
Size / Dimension : 0.374" L x 0.234" W (9.50mm x 5.94mm)
Height - Seated (Max) : -
Thickness (Max) : 0.118" (3.00mm)
Lead Spacing : -
0
3900 in stock
MF-USHT035KX-2
Bourns, Inc.
Manufacturer : Bourns Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Multifuse®, MF-USHT
Part Status : Active
Type : Polymeric
Voltage - Max : 30V
Current - Max : 20A
Current - Hold (Ih) (Max) : 350mA
Current - Trip (It) : 1.75A
Time to Trip : 100ms
Resistance - Initial (Ri) (Min) : 400 mOhms
Resistance - Post Trip (R1) (Max) : 2.2 Ohms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 125°C
Ratings : AEC-Q200
Mounting Type : Surface Mount
Package / Case : 1210 (3225 Metric), Concave
Size / Dimension : 0.126" L x 0.100" W (3.20mm x 2.55mm)
Height - Seated (Max) : -
Thickness (Max) : 0.033" (0.85mm)
Lead Spacing : -
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Multifuse®, MF-USHT
Part Status : Active
Type : Polymeric
Voltage - Max : 30V
Current - Max : 20A
Current - Hold (Ih) (Max) : 350mA
Current - Trip (It) : 1.75A
Time to Trip : 100ms
Resistance - Initial (Ri) (Min) : 400 mOhms
Resistance - Post Trip (R1) (Max) : 2.2 Ohms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 125°C
Ratings : AEC-Q200
Mounting Type : Surface Mount
Package / Case : 1210 (3225 Metric), Concave
Size / Dimension : 0.126" L x 0.100" W (3.20mm x 2.55mm)
Height - Seated (Max) : -
Thickness (Max) : 0.033" (0.85mm)
Lead Spacing : -
0
2048 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2025 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
