Welcome to Weijie Semiconductor
- Circuit Protection
- PTC Resettable Fuses
Part Number
Manufacturer
Description
Unit Price
In Stock

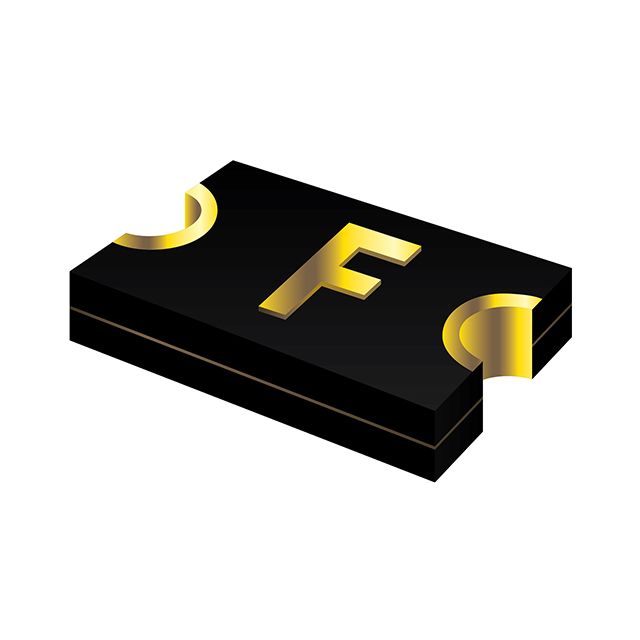

MF-USHT050KX-2
Bourns, Inc.
Manufacturer : Bourns Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Multifuse®, MF-USHT
Part Status : Active
Type : Polymeric
Voltage - Max : 30V
Current - Max : 20A
Current - Hold (Ih) (Max) : 500mA
Current - Trip (It) : 2.5A
Time to Trip : 100ms
Resistance - Initial (Ri) (Min) : 300 mOhms
Resistance - Post Trip (R1) (Max) : 1.6 Ohms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 125°C
Ratings : AEC-Q200
Mounting Type : Surface Mount
Package / Case : 1210 (3225 Metric), Concave
Size / Dimension : 0.126" L x 0.100" W (3.20mm x 2.55mm)
Height - Seated (Max) : -
Thickness (Max) : 0.033" (0.85mm)
Lead Spacing : -
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Multifuse®, MF-USHT
Part Status : Active
Type : Polymeric
Voltage - Max : 30V
Current - Max : 20A
Current - Hold (Ih) (Max) : 500mA
Current - Trip (It) : 2.5A
Time to Trip : 100ms
Resistance - Initial (Ri) (Min) : 300 mOhms
Resistance - Post Trip (R1) (Max) : 1.6 Ohms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 125°C
Ratings : AEC-Q200
Mounting Type : Surface Mount
Package / Case : 1210 (3225 Metric), Concave
Size / Dimension : 0.126" L x 0.100" W (3.20mm x 2.55mm)
Height - Seated (Max) : -
Thickness (Max) : 0.033" (0.85mm)
Lead Spacing : -
0
7068 in stock
MF-USMF005-2
Bourns, Inc.
Manufacturer : Bourns Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Multifuse®, MF-USMF
Part Status : Active
Type : Polymeric
Voltage - Max : 30V
Current - Max : 10A
Current - Hold (Ih) (Max) : 50mA
Current - Trip (It) : 150mA
Time to Trip : 1.5s
Resistance - Initial (Ri) (Min) : 2.8 Ohms
Resistance - Post Trip (R1) (Max) : 50 Ohms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : AEC-Q200
Mounting Type : Surface Mount
Package / Case : 1210 (3225 Metric), Concave
Size / Dimension : 0.127" L x 0.102" W (3.22mm x 2.58mm)
Height - Seated (Max) : -
Thickness (Max) : 0.033" (0.85mm)
Lead Spacing : -
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Multifuse®, MF-USMF
Part Status : Active
Type : Polymeric
Voltage - Max : 30V
Current - Max : 10A
Current - Hold (Ih) (Max) : 50mA
Current - Trip (It) : 150mA
Time to Trip : 1.5s
Resistance - Initial (Ri) (Min) : 2.8 Ohms
Resistance - Post Trip (R1) (Max) : 50 Ohms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : AEC-Q200
Mounting Type : Surface Mount
Package / Case : 1210 (3225 Metric), Concave
Size / Dimension : 0.127" L x 0.102" W (3.22mm x 2.58mm)
Height - Seated (Max) : -
Thickness (Max) : 0.033" (0.85mm)
Lead Spacing : -
0
161768 in stock
MF-USMF010-2
Bourns, Inc.
Manufacturer : Bourns Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Multifuse®, MF-USMF
Part Status : Active
Type : Polymeric
Voltage - Max : 30V
Current - Max : 10A
Current - Hold (Ih) (Max) : 100mA
Current - Trip (It) : 300mA
Time to Trip : 600ms
Resistance - Initial (Ri) (Min) : 800 mOhms
Resistance - Post Trip (R1) (Max) : 15 Ohms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : AEC-Q200
Mounting Type : Surface Mount
Package / Case : 1210 (3225 Metric), Concave
Size / Dimension : 0.127" L x 0.102" W (3.22mm x 2.58mm)
Height - Seated (Max) : -
Thickness (Max) : 0.033" (0.85mm)
Lead Spacing : -
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Multifuse®, MF-USMF
Part Status : Active
Type : Polymeric
Voltage - Max : 30V
Current - Max : 10A
Current - Hold (Ih) (Max) : 100mA
Current - Trip (It) : 300mA
Time to Trip : 600ms
Resistance - Initial (Ri) (Min) : 800 mOhms
Resistance - Post Trip (R1) (Max) : 15 Ohms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : AEC-Q200
Mounting Type : Surface Mount
Package / Case : 1210 (3225 Metric), Concave
Size / Dimension : 0.127" L x 0.102" W (3.22mm x 2.58mm)
Height - Seated (Max) : -
Thickness (Max) : 0.033" (0.85mm)
Lead Spacing : -
0
119720 in stock
MF-USMF020-2
Bourns, Inc.
Manufacturer : Bourns Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Multifuse®, MF-USMF
Part Status : Active
Type : Polymeric
Voltage - Max : 30V
Current - Max : 10A
Current - Hold (Ih) (Max) : 200mA
Current - Trip (It) : 400mA
Time to Trip : 20ms
Resistance - Initial (Ri) (Min) : 400 mOhms
Resistance - Post Trip (R1) (Max) : 5 Ohms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : AEC-Q200
Mounting Type : Surface Mount
Package / Case : 1210 (3225 Metric), Concave
Size / Dimension : 0.127" L x 0.102" W (3.22mm x 2.58mm)
Height - Seated (Max) : -
Thickness (Max) : 0.033" (0.85mm)
Lead Spacing : -
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Multifuse®, MF-USMF
Part Status : Active
Type : Polymeric
Voltage - Max : 30V
Current - Max : 10A
Current - Hold (Ih) (Max) : 200mA
Current - Trip (It) : 400mA
Time to Trip : 20ms
Resistance - Initial (Ri) (Min) : 400 mOhms
Resistance - Post Trip (R1) (Max) : 5 Ohms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : AEC-Q200
Mounting Type : Surface Mount
Package / Case : 1210 (3225 Metric), Concave
Size / Dimension : 0.127" L x 0.102" W (3.22mm x 2.58mm)
Height - Seated (Max) : -
Thickness (Max) : 0.033" (0.85mm)
Lead Spacing : -
0
67400 in stock
MF-USMF035-2
Bourns, Inc.
Manufacturer : Bourns Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Multifuse®, MF-USMF
Part Status : Active
Type : Polymeric
Voltage - Max : 6V
Current - Max : 40A
Current - Hold (Ih) (Max) : 350mA
Current - Trip (It) : 750mA
Time to Trip : 200ms
Resistance - Initial (Ri) (Min) : 200 mOhms
Resistance - Post Trip (R1) (Max) : 1.3 Ohms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : AEC-Q200
Mounting Type : Surface Mount
Package / Case : 1210 (3225 Metric), Concave
Size / Dimension : 0.127" L x 0.102" W (3.22mm x 2.58mm)
Height - Seated (Max) : -
Thickness (Max) : 0.033" (0.85mm)
Lead Spacing : -
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Multifuse®, MF-USMF
Part Status : Active
Type : Polymeric
Voltage - Max : 6V
Current - Max : 40A
Current - Hold (Ih) (Max) : 350mA
Current - Trip (It) : 750mA
Time to Trip : 200ms
Resistance - Initial (Ri) (Min) : 200 mOhms
Resistance - Post Trip (R1) (Max) : 1.3 Ohms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : AEC-Q200
Mounting Type : Surface Mount
Package / Case : 1210 (3225 Metric), Concave
Size / Dimension : 0.127" L x 0.102" W (3.22mm x 2.58mm)
Height - Seated (Max) : -
Thickness (Max) : 0.033" (0.85mm)
Lead Spacing : -
0
14668 in stock
MF-USMF050-2
Bourns, Inc.
Manufacturer : Bourns Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Multifuse®, MF-USMF
Part Status : Active
Type : Polymeric
Voltage - Max : 13.2V
Current - Max : 40A
Current - Hold (Ih) (Max) : 500mA
Current - Trip (It) : 1A
Time to Trip : 100ms
Resistance - Initial (Ri) (Min) : 180 mOhms
Resistance - Post Trip (R1) (Max) : 900 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : AEC-Q200
Mounting Type : Surface Mount
Package / Case : 1210 (3225 Metric), Concave
Size / Dimension : 0.127" L x 0.102" W (3.22mm x 2.58mm)
Height - Seated (Max) : -
Thickness (Max) : 0.033" (0.85mm)
Lead Spacing : -
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Multifuse®, MF-USMF
Part Status : Active
Type : Polymeric
Voltage - Max : 13.2V
Current - Max : 40A
Current - Hold (Ih) (Max) : 500mA
Current - Trip (It) : 1A
Time to Trip : 100ms
Resistance - Initial (Ri) (Min) : 180 mOhms
Resistance - Post Trip (R1) (Max) : 900 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : AEC-Q200
Mounting Type : Surface Mount
Package / Case : 1210 (3225 Metric), Concave
Size / Dimension : 0.127" L x 0.102" W (3.22mm x 2.58mm)
Height - Seated (Max) : -
Thickness (Max) : 0.033" (0.85mm)
Lead Spacing : -
0
29858 in stock
MF-USMF075-2
Bourns, Inc.
Manufacturer : Bourns Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Multifuse®, MF-USMF
Part Status : Active
Type : Polymeric
Voltage - Max : 6V
Current - Max : 40A
Current - Hold (Ih) (Max) : 750mA
Current - Trip (It) : 1.5A
Time to Trip : 100ms
Resistance - Initial (Ri) (Min) : 70 mOhms
Resistance - Post Trip (R1) (Max) : 450 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : AEC-Q200
Mounting Type : Surface Mount
Package / Case : 1210 (3225 Metric), Concave
Size / Dimension : 0.127" L x 0.102" W (3.22mm x 2.58mm)
Height - Seated (Max) : -
Thickness (Max) : 0.033" (0.85mm)
Lead Spacing : -
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Multifuse®, MF-USMF
Part Status : Active
Type : Polymeric
Voltage - Max : 6V
Current - Max : 40A
Current - Hold (Ih) (Max) : 750mA
Current - Trip (It) : 1.5A
Time to Trip : 100ms
Resistance - Initial (Ri) (Min) : 70 mOhms
Resistance - Post Trip (R1) (Max) : 450 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : AEC-Q200
Mounting Type : Surface Mount
Package / Case : 1210 (3225 Metric), Concave
Size / Dimension : 0.127" L x 0.102" W (3.22mm x 2.58mm)
Height - Seated (Max) : -
Thickness (Max) : 0.033" (0.85mm)
Lead Spacing : -
0
34016 in stock
MF-USMF110-2
Bourns, Inc.
Manufacturer : Bourns Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Multifuse®, MF-USMF
Part Status : Active
Type : Polymeric
Voltage - Max : 6V
Current - Max : 40A
Current - Hold (Ih) (Max) : 1.1A
Current - Trip (It) : 2.2A
Time to Trip : 1s
Resistance - Initial (Ri) (Min) : 50 mOhms
Resistance - Post Trip (R1) (Max) : 210 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : AEC-Q200
Mounting Type : Surface Mount
Package / Case : 1210 (3225 Metric), Concave
Size / Dimension : 0.127" L x 0.102" W (3.22mm x 2.58mm)
Height - Seated (Max) : -
Thickness (Max) : 0.033" (0.85mm)
Lead Spacing : -
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Multifuse®, MF-USMF
Part Status : Active
Type : Polymeric
Voltage - Max : 6V
Current - Max : 40A
Current - Hold (Ih) (Max) : 1.1A
Current - Trip (It) : 2.2A
Time to Trip : 1s
Resistance - Initial (Ri) (Min) : 50 mOhms
Resistance - Post Trip (R1) (Max) : 210 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : AEC-Q200
Mounting Type : Surface Mount
Package / Case : 1210 (3225 Metric), Concave
Size / Dimension : 0.127" L x 0.102" W (3.22mm x 2.58mm)
Height - Seated (Max) : -
Thickness (Max) : 0.033" (0.85mm)
Lead Spacing : -
0
14383 in stock
MF-USMF150-2
Bourns, Inc.
Manufacturer : Bourns Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Multifuse®, MF-USMF
Part Status : Active
Type : Polymeric
Voltage - Max : 6V
Current - Max : 40A
Current - Hold (Ih) (Max) : 1.5A
Current - Trip (It) : 3A
Time to Trip : 5s
Resistance - Initial (Ri) (Min) : 30 mOhms
Resistance - Post Trip (R1) (Max) : 110 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : AEC-Q200
Mounting Type : Surface Mount
Package / Case : 1210 (3225 Metric), Concave
Size / Dimension : 0.127" L x 0.102" W (3.22mm x 2.58mm)
Height - Seated (Max) : -
Thickness (Max) : 0.033" (0.85mm)
Lead Spacing : -
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Multifuse®, MF-USMF
Part Status : Active
Type : Polymeric
Voltage - Max : 6V
Current - Max : 40A
Current - Hold (Ih) (Max) : 1.5A
Current - Trip (It) : 3A
Time to Trip : 5s
Resistance - Initial (Ri) (Min) : 30 mOhms
Resistance - Post Trip (R1) (Max) : 110 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : AEC-Q200
Mounting Type : Surface Mount
Package / Case : 1210 (3225 Metric), Concave
Size / Dimension : 0.127" L x 0.102" W (3.22mm x 2.58mm)
Height - Seated (Max) : -
Thickness (Max) : 0.033" (0.85mm)
Lead Spacing : -
0
1567 in stock
MF-USMF175X-2
Bourns, Inc.
Manufacturer : Bourns Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Multifuse®, MF-USMF
Part Status : Active
Type : Polymeric
Voltage - Max : 6V
Current - Max : 40A
Current - Hold (Ih) (Max) : 1.75A
Current - Trip (It) : 3.5A
Time to Trip : 1s
Resistance - Initial (Ri) (Min) : 20 mOhms
Resistance - Post Trip (R1) (Max) : 90 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : AEC-Q200
Mounting Type : Surface Mount
Package / Case : 1210 (3225 Metric), Concave
Size / Dimension : 0.127" L x 0.102" W (3.22mm x 2.58mm)
Height - Seated (Max) : -
Thickness (Max) : 0.033" (0.85mm)
Lead Spacing : -
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Multifuse®, MF-USMF
Part Status : Active
Type : Polymeric
Voltage - Max : 6V
Current - Max : 40A
Current - Hold (Ih) (Max) : 1.75A
Current - Trip (It) : 3.5A
Time to Trip : 1s
Resistance - Initial (Ri) (Min) : 20 mOhms
Resistance - Post Trip (R1) (Max) : 90 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : AEC-Q200
Mounting Type : Surface Mount
Package / Case : 1210 (3225 Metric), Concave
Size / Dimension : 0.127" L x 0.102" W (3.22mm x 2.58mm)
Height - Seated (Max) : -
Thickness (Max) : 0.033" (0.85mm)
Lead Spacing : -
0
13900 in stock
MF-USML175-2
Bourns, Inc.
Manufacturer : Bourns Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Multifuse®, MF-USML
Part Status : Active
Type : Polymeric
Voltage - Max : 6V
Current - Max : 50A
Current - Hold (Ih) (Max) : 1.75A
Current - Trip (It) : 3.5A
Time to Trip : 2.5s
Resistance - Initial (Ri) (Min) : 6 mOhms
Resistance - Post Trip (R1) (Max) : 40 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 1210 (3225 Metric), Concave
Size / Dimension : 0.127" L x 0.102" W (3.22mm x 2.58mm)
Height - Seated (Max) : -
Thickness (Max) : 0.024" (0.60mm)
Lead Spacing : -
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Multifuse®, MF-USML
Part Status : Active
Type : Polymeric
Voltage - Max : 6V
Current - Max : 50A
Current - Hold (Ih) (Max) : 1.75A
Current - Trip (It) : 3.5A
Time to Trip : 2.5s
Resistance - Initial (Ri) (Min) : 6 mOhms
Resistance - Post Trip (R1) (Max) : 40 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 1210 (3225 Metric), Concave
Size / Dimension : 0.127" L x 0.102" W (3.22mm x 2.58mm)
Height - Seated (Max) : -
Thickness (Max) : 0.024" (0.60mm)
Lead Spacing : -
0
4949 in stock
MF-USML190-2
Bourns, Inc.
Manufacturer : Bourns Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Multifuse®, MF-USML
Part Status : Active
Type : Polymeric
Voltage - Max : 6V
Current - Max : 50A
Current - Hold (Ih) (Max) : 1.9A
Current - Trip (It) : 4.9A
Time to Trip : 3s
Resistance - Initial (Ri) (Min) : 6 mOhms
Resistance - Post Trip (R1) (Max) : 30 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 1210 (3225 Metric), Concave
Size / Dimension : 0.127" L x 0.102" W (3.22mm x 2.58mm)
Height - Seated (Max) : -
Thickness (Max) : 0.024" (0.60mm)
Lead Spacing : -
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Multifuse®, MF-USML
Part Status : Active
Type : Polymeric
Voltage - Max : 6V
Current - Max : 50A
Current - Hold (Ih) (Max) : 1.9A
Current - Trip (It) : 4.9A
Time to Trip : 3s
Resistance - Initial (Ri) (Min) : 6 mOhms
Resistance - Post Trip (R1) (Max) : 30 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 1210 (3225 Metric), Concave
Size / Dimension : 0.127" L x 0.102" W (3.22mm x 2.58mm)
Height - Seated (Max) : -
Thickness (Max) : 0.024" (0.60mm)
Lead Spacing : -
0
5000 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2025 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
