Part Number
Manufacturer
Description
Unit Price
In Stock
NANOSMD400LR-2
Littelfuse/Hamlin
Manufacturer : Littelfuse Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PolySwitch®, microSMD
Part Status : Active
Type : Polymeric
Voltage - Max : 6V
Current - Max : 50A
Current - Hold (Ih) (Max) : 4A
Current - Trip (It) : 8A
Time to Trip : 2s
Resistance - Initial (Ri) (Min) : 4 mOhms
Resistance - Post Trip (R1) (Max) : 10 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 80°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 1206 (3216 Metric)
Size / Dimension : 0.127" L x 0.063" W (3.22mm x 1.61mm)
Height - Seated (Max) : -
Thickness (Max) : 0.039" (1.00mm)
Lead Spacing : -
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PolySwitch®, microSMD
Part Status : Active
Type : Polymeric
Voltage - Max : 6V
Current - Max : 50A
Current - Hold (Ih) (Max) : 4A
Current - Trip (It) : 8A
Time to Trip : 2s
Resistance - Initial (Ri) (Min) : 4 mOhms
Resistance - Post Trip (R1) (Max) : 10 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 80°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 1206 (3216 Metric)
Size / Dimension : 0.127" L x 0.063" W (3.22mm x 1.61mm)
Height - Seated (Max) : -
Thickness (Max) : 0.039" (1.00mm)
Lead Spacing : -
0
14012 in stock

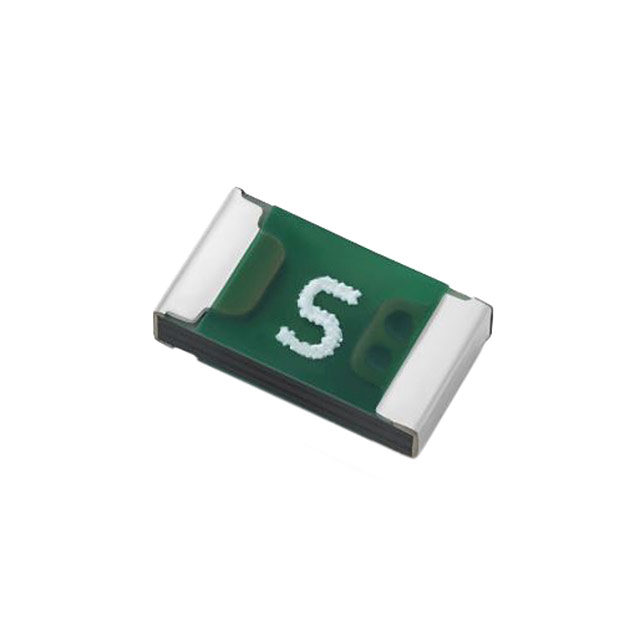

NANOSMD400LR-C-2
Littelfuse/Hamlin
Manufacturer : Littelfuse Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Polyswitch®, LoRho
Part Status : Active
Type : Polymeric
Voltage - Max : 12V
Current - Max : 9A
Current - Hold (Ih) (Max) : 4A
Current - Trip (It) : 8A
Time to Trip : 2s
Resistance - Initial (Ri) (Min) : 4 mOhms
Resistance - Post Trip (R1) (Max) : 10 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -20°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 1206 (3216 Metric)
Size / Dimension : 0.127" L x 0.063" W (3.22mm x 1.60mm)
Height - Seated (Max) : -
Thickness (Max) : 0.032" (0.80mm)
Lead Spacing : -
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Polyswitch®, LoRho
Part Status : Active
Type : Polymeric
Voltage - Max : 12V
Current - Max : 9A
Current - Hold (Ih) (Max) : 4A
Current - Trip (It) : 8A
Time to Trip : 2s
Resistance - Initial (Ri) (Min) : 4 mOhms
Resistance - Post Trip (R1) (Max) : 10 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -20°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 1206 (3216 Metric)
Size / Dimension : 0.127" L x 0.063" W (3.22mm x 1.60mm)
Height - Seated (Max) : -
Thickness (Max) : 0.032" (0.80mm)
Lead Spacing : -
0
14409 in stock

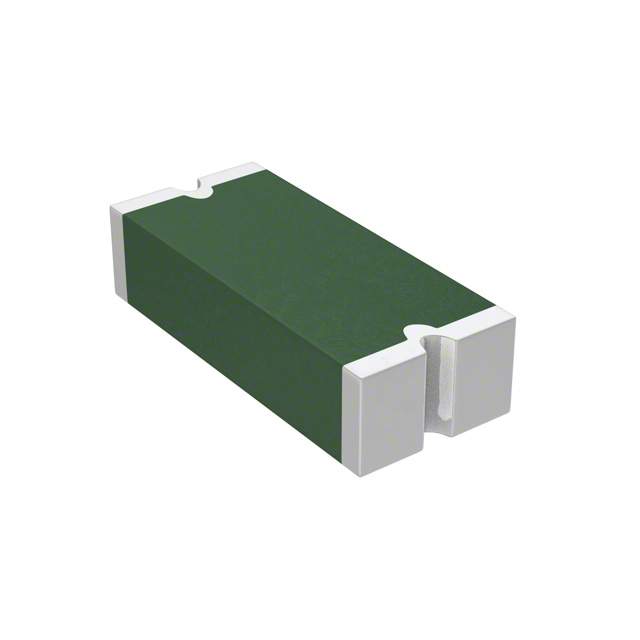

NANOSMD450LR-2
Littelfuse/Hamlin
Manufacturer : Littelfuse Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PolySwitch®, microSMD
Part Status : Active
Type : Polymeric
Voltage - Max : 6V
Current - Max : 50A
Current - Hold (Ih) (Max) : 4.5A
Current - Trip (It) : 9A
Time to Trip : 2s
Resistance - Initial (Ri) (Min) : 2 mOhms
Resistance - Post Trip (R1) (Max) : 8 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 80°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 1206 (3216 Metric)
Size / Dimension : 0.127" L x 0.063" W (3.22mm x 1.61mm)
Height - Seated (Max) : -
Thickness (Max) : 0.032" (0.80mm)
Lead Spacing : -
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PolySwitch®, microSMD
Part Status : Active
Type : Polymeric
Voltage - Max : 6V
Current - Max : 50A
Current - Hold (Ih) (Max) : 4.5A
Current - Trip (It) : 9A
Time to Trip : 2s
Resistance - Initial (Ri) (Min) : 2 mOhms
Resistance - Post Trip (R1) (Max) : 8 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 80°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 1206 (3216 Metric)
Size / Dimension : 0.127" L x 0.063" W (3.22mm x 1.61mm)
Height - Seated (Max) : -
Thickness (Max) : 0.032" (0.80mm)
Lead Spacing : -
0
14964 in stock
NANOSMD500LR-2
Littelfuse/Hamlin
Manufacturer : Littelfuse Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PolySwitch®, microSMD
Part Status : Active
Type : Polymeric
Voltage - Max : 6V
Current - Max : 50A
Current - Hold (Ih) (Max) : 5A
Current - Trip (It) : 10A
Time to Trip : 2s
Resistance - Initial (Ri) (Min) : 2 mOhms
Resistance - Post Trip (R1) (Max) : 8 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 80°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 1206 (3216 Metric)
Size / Dimension : 0.127" L x 0.063" W (3.22mm x 1.61mm)
Height - Seated (Max) : -
Thickness (Max) : 0.032" (0.80mm)
Lead Spacing : -
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PolySwitch®, microSMD
Part Status : Active
Type : Polymeric
Voltage - Max : 6V
Current - Max : 50A
Current - Hold (Ih) (Max) : 5A
Current - Trip (It) : 10A
Time to Trip : 2s
Resistance - Initial (Ri) (Min) : 2 mOhms
Resistance - Post Trip (R1) (Max) : 8 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 80°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 1206 (3216 Metric)
Size / Dimension : 0.127" L x 0.063" W (3.22mm x 1.61mm)
Height - Seated (Max) : -
Thickness (Max) : 0.032" (0.80mm)
Lead Spacing : -
0
14378 in stock
NANOSMD600LR-2
Littelfuse/Hamlin
Manufacturer : Littelfuse Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PolySwitch®, microSMD
Part Status : Active
Type : Polymeric
Voltage - Max : 6V
Current - Max : 50A
Current - Hold (Ih) (Max) : 6A
Current - Trip (It) : 12A
Time to Trip : 2s
Resistance - Initial (Ri) (Min) : 2 mOhms
Resistance - Post Trip (R1) (Max) : 7 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 80°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 1206 (3216 Metric)
Size / Dimension : 0.127" L x 0.063" W (3.22mm x 1.61mm)
Height - Seated (Max) : -
Thickness (Max) : 0.039" (1.00mm)
Lead Spacing : -
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PolySwitch®, microSMD
Part Status : Active
Type : Polymeric
Voltage - Max : 6V
Current - Max : 50A
Current - Hold (Ih) (Max) : 6A
Current - Trip (It) : 12A
Time to Trip : 2s
Resistance - Initial (Ri) (Min) : 2 mOhms
Resistance - Post Trip (R1) (Max) : 7 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 80°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 1206 (3216 Metric)
Size / Dimension : 0.127" L x 0.063" W (3.22mm x 1.61mm)
Height - Seated (Max) : -
Thickness (Max) : 0.039" (1.00mm)
Lead Spacing : -
0
12776 in stock

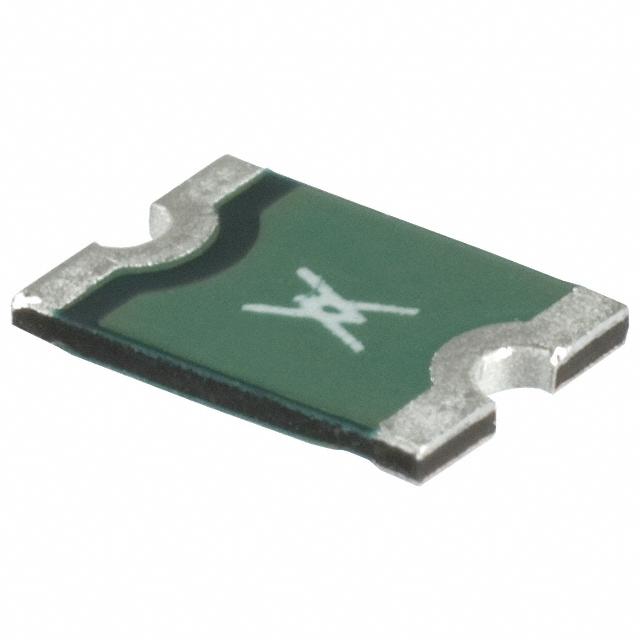

NANOSMDC010F-2
Littelfuse/Hamlin
Manufacturer : Littelfuse Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : nanoSMD
Part Status : Active
Type : Polymeric
Voltage - Max : 60V
Current - Max : 10A
Current - Hold (Ih) (Max) : 100mA
Current - Trip (It) : 250mA
Time to Trip : 1s
Resistance - Initial (Ri) (Min) : -
Resistance - Post Trip (R1) (Max) : -
Resistance - 25°C (Typ) : -
Operating Temperature : -
Ratings : -
Mounting Type : Surface Mount
Package / Case : 1206 (3216 Metric), Concave
Size / Dimension : 0.126" L x 0.063" W (3.20mm x 1.59mm)
Height - Seated (Max) : -
Thickness (Max) : 0.039" (1.00mm)
Lead Spacing : -
Packaging : Cut Tape (CT)
Alternate Packaging
Series : nanoSMD
Part Status : Active
Type : Polymeric
Voltage - Max : 60V
Current - Max : 10A
Current - Hold (Ih) (Max) : 100mA
Current - Trip (It) : 250mA
Time to Trip : 1s
Resistance - Initial (Ri) (Min) : -
Resistance - Post Trip (R1) (Max) : -
Resistance - 25°C (Typ) : -
Operating Temperature : -
Ratings : -
Mounting Type : Surface Mount
Package / Case : 1206 (3216 Metric), Concave
Size / Dimension : 0.126" L x 0.063" W (3.20mm x 1.59mm)
Height - Seated (Max) : -
Thickness (Max) : 0.039" (1.00mm)
Lead Spacing : -
0
40615 in stock

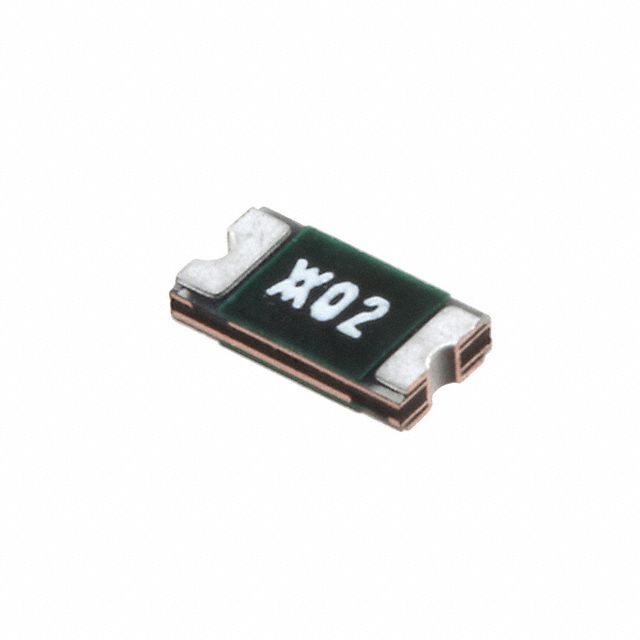

NANOSMDC012F-2
Littelfuse/Hamlin
Manufacturer : Littelfuse Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PolySwitch®, nanoSMD
Part Status : Active
Type : Polymeric
Voltage - Max : 48V
Current - Max : 10A
Current - Hold (Ih) (Max) : 120mA
Current - Trip (It) : 390mA
Time to Trip : 200ms
Resistance - Initial (Ri) (Min) : 1.4 Ohms
Resistance - Post Trip (R1) (Max) : 6.5 Ohms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 1206 (3216 Metric), Concave
Size / Dimension : 0.126" L x 0.063" W (3.20mm x 1.59mm)
Height - Seated (Max) : -
Thickness (Max) : 0.039" (1.00mm)
Lead Spacing : -
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PolySwitch®, nanoSMD
Part Status : Active
Type : Polymeric
Voltage - Max : 48V
Current - Max : 10A
Current - Hold (Ih) (Max) : 120mA
Current - Trip (It) : 390mA
Time to Trip : 200ms
Resistance - Initial (Ri) (Min) : 1.4 Ohms
Resistance - Post Trip (R1) (Max) : 6.5 Ohms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 1206 (3216 Metric), Concave
Size / Dimension : 0.126" L x 0.063" W (3.20mm x 1.59mm)
Height - Seated (Max) : -
Thickness (Max) : 0.039" (1.00mm)
Lead Spacing : -
0
23902 in stock
NANOSMDC016F-2
Littelfuse/Hamlin
Manufacturer : Littelfuse Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PolySwitch®, nanoSMD
Part Status : Active
Type : Polymeric
Voltage - Max : 48V
Current - Max : 10A
Current - Hold (Ih) (Max) : 160mA
Current - Trip (It) : 450mA
Time to Trip : 300ms
Resistance - Initial (Ri) (Min) : 1.1 Ohms
Resistance - Post Trip (R1) (Max) : -
Resistance - 25°C (Typ) : -
Operating Temperature : -
Ratings : -
Mounting Type : Surface Mount
Package / Case : 1206 (3216 Metric), Concave
Size / Dimension : 0.127" L x 0.063" W (3.22mm x 1.60mm)
Height - Seated (Max) : -
Thickness (Max) : 0.039" (1.00mm)
Lead Spacing : -
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PolySwitch®, nanoSMD
Part Status : Active
Type : Polymeric
Voltage - Max : 48V
Current - Max : 10A
Current - Hold (Ih) (Max) : 160mA
Current - Trip (It) : 450mA
Time to Trip : 300ms
Resistance - Initial (Ri) (Min) : 1.1 Ohms
Resistance - Post Trip (R1) (Max) : -
Resistance - 25°C (Typ) : -
Operating Temperature : -
Ratings : -
Mounting Type : Surface Mount
Package / Case : 1206 (3216 Metric), Concave
Size / Dimension : 0.127" L x 0.063" W (3.22mm x 1.60mm)
Height - Seated (Max) : -
Thickness (Max) : 0.039" (1.00mm)
Lead Spacing : -
0
80100 in stock
NANOSMDC020F-2
Littelfuse/Hamlin
Manufacturer : Littelfuse Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PolySwitch®, nanoSMDC020F
Part Status : Active
Type : -
Voltage - Max : 24V
Current - Max : 100A
Current - Hold (Ih) (Max) : 200mA
Current - Trip (It) : 420mA
Time to Trip : 0.1s
Resistance - Initial (Ri) (Min) : -
Resistance - Post Trip (R1) (Max) : -
Resistance - 25°C (Typ) : -
Operating Temperature : -
Ratings : -
Mounting Type : Surface Mount
Package / Case : 1206 (3216 Metric), Concave
Size / Dimension : 0.126" L x 0.063" W (3.20mm x 1.59mm)
Height - Seated (Max) : -
Thickness (Max) : 0.028" (0.70mm)
Lead Spacing : -
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PolySwitch®, nanoSMDC020F
Part Status : Active
Type : -
Voltage - Max : 24V
Current - Max : 100A
Current - Hold (Ih) (Max) : 200mA
Current - Trip (It) : 420mA
Time to Trip : 0.1s
Resistance - Initial (Ri) (Min) : -
Resistance - Post Trip (R1) (Max) : -
Resistance - 25°C (Typ) : -
Operating Temperature : -
Ratings : -
Mounting Type : Surface Mount
Package / Case : 1206 (3216 Metric), Concave
Size / Dimension : 0.126" L x 0.063" W (3.20mm x 1.59mm)
Height - Seated (Max) : -
Thickness (Max) : 0.028" (0.70mm)
Lead Spacing : -
0
32460 in stock
NANOSMDC025F-2
Littelfuse/Hamlin
Manufacturer : Littelfuse Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : *
Part Status : Active
Type : -
Voltage - Max : -
Current - Max : -
Current - Hold (Ih) (Max) : -
Current - Trip (It) : -
Time to Trip : -
Resistance - Initial (Ri) (Min) : -
Resistance - Post Trip (R1) (Max) : -
Resistance - 25°C (Typ) : -
Operating Temperature : -
Ratings : -
Mounting Type : -
Package / Case : -
Size / Dimension : -
Height - Seated (Max) : -
Thickness (Max) : -
Lead Spacing : -
Packaging : Cut Tape (CT)
Alternate Packaging
Series : *
Part Status : Active
Type : -
Voltage - Max : -
Current - Max : -
Current - Hold (Ih) (Max) : -
Current - Trip (It) : -
Time to Trip : -
Resistance - Initial (Ri) (Min) : -
Resistance - Post Trip (R1) (Max) : -
Resistance - 25°C (Typ) : -
Operating Temperature : -
Ratings : -
Mounting Type : -
Package / Case : -
Size / Dimension : -
Height - Seated (Max) : -
Thickness (Max) : -
Lead Spacing : -
0
14750 in stock
NANOSMDC035F-2
Littelfuse/Hamlin
Manufacturer : Littelfuse Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PolySwitch®, nanoSMD
Part Status : Active
Type : Polymeric
Voltage - Max : 16V
Current - Max : 20A
Current - Hold (Ih) (Max) : 350mA
Current - Trip (It) : 750mA
Time to Trip : 100ms
Resistance - Initial (Ri) (Min) : 450 mOhms
Resistance - Post Trip (R1) (Max) : 1.35 Ohms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 1206 (3216 Metric), Concave
Size / Dimension : 0.126" L x 0.063" W (3.20mm x 1.59mm)
Height - Seated (Max) : -
Thickness (Max) : 0.032" (0.82mm)
Lead Spacing : -
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PolySwitch®, nanoSMD
Part Status : Active
Type : Polymeric
Voltage - Max : 16V
Current - Max : 20A
Current - Hold (Ih) (Max) : 350mA
Current - Trip (It) : 750mA
Time to Trip : 100ms
Resistance - Initial (Ri) (Min) : 450 mOhms
Resistance - Post Trip (R1) (Max) : 1.35 Ohms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 1206 (3216 Metric), Concave
Size / Dimension : 0.126" L x 0.063" W (3.20mm x 1.59mm)
Height - Seated (Max) : -
Thickness (Max) : 0.032" (0.82mm)
Lead Spacing : -
0
62950 in stock
NANOSMDC050F/13.2-2
Littelfuse/Hamlin
Manufacturer : Littelfuse Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PolySwitch®, nanoSMD
Part Status : Active
Type : Polymeric
Voltage - Max : 13.2V
Current - Max : 100A
Current - Hold (Ih) (Max) : 500mA
Current - Trip (It) : 1.1A
Time to Trip : 100ms
Resistance - Initial (Ri) (Min) : 200 mOhms
Resistance - Post Trip (R1) (Max) : -
Resistance - 25°C (Typ) : -
Operating Temperature : -
Ratings : -
Mounting Type : Surface Mount
Package / Case : 1206 (3216 Metric), Concave
Size / Dimension : 0.126" L x 0.063" W (3.20mm x 1.60mm)
Height - Seated (Max) : -
Thickness (Max) : 0.029" (0.74mm)
Lead Spacing : -
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PolySwitch®, nanoSMD
Part Status : Active
Type : Polymeric
Voltage - Max : 13.2V
Current - Max : 100A
Current - Hold (Ih) (Max) : 500mA
Current - Trip (It) : 1.1A
Time to Trip : 100ms
Resistance - Initial (Ri) (Min) : 200 mOhms
Resistance - Post Trip (R1) (Max) : -
Resistance - 25°C (Typ) : -
Operating Temperature : -
Ratings : -
Mounting Type : Surface Mount
Package / Case : 1206 (3216 Metric), Concave
Size / Dimension : 0.126" L x 0.063" W (3.20mm x 1.60mm)
Height - Seated (Max) : -
Thickness (Max) : 0.029" (0.74mm)
Lead Spacing : -
0
38378 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2025 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
