Part Number
Manufacturer
Description
Unit Price
In Stock
PFMF.050.2
Schurter
Manufacturer : Schurter Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PFMF
Part Status : Active
Type : Polymeric
Voltage - Max : 15V
Current - Max : 100A
Current - Hold (Ih) (Max) : 500mA
Current - Trip (It) : 1A
Time to Trip : 150ms
Resistance - Initial (Ri) (Min) : 150 mOhms
Resistance - Post Trip (R1) (Max) : 1 Ohms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 1812 (4532 Metric), Concave
Size / Dimension : 0.179" L x 0.128" W (4.55mm x 3.24mm)
Height - Seated (Max) : -
Thickness (Max) : 0.033" (0.85mm)
Lead Spacing : -
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PFMF
Part Status : Active
Type : Polymeric
Voltage - Max : 15V
Current - Max : 100A
Current - Hold (Ih) (Max) : 500mA
Current - Trip (It) : 1A
Time to Trip : 150ms
Resistance - Initial (Ri) (Min) : 150 mOhms
Resistance - Post Trip (R1) (Max) : 1 Ohms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 1812 (4532 Metric), Concave
Size / Dimension : 0.179" L x 0.128" W (4.55mm x 3.24mm)
Height - Seated (Max) : -
Thickness (Max) : 0.033" (0.85mm)
Lead Spacing : -
0
1476 in stock
PFMF.075.2
Schurter
Manufacturer : Schurter Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PFMF
Part Status : Active
Type : Polymeric
Voltage - Max : 13.2V
Current - Max : 100A
Current - Hold (Ih) (Max) : 750mA
Current - Trip (It) : 1.5A
Time to Trip : 200ms
Resistance - Initial (Ri) (Min) : 110 mOhms
Resistance - Post Trip (R1) (Max) : 450 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 1812 (4532 Metric), Concave
Size / Dimension : 0.179" L x 0.128" W (4.55mm x 3.24mm)
Height - Seated (Max) : -
Thickness (Max) : 0.033" (0.85mm)
Lead Spacing : -
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PFMF
Part Status : Active
Type : Polymeric
Voltage - Max : 13.2V
Current - Max : 100A
Current - Hold (Ih) (Max) : 750mA
Current - Trip (It) : 1.5A
Time to Trip : 200ms
Resistance - Initial (Ri) (Min) : 110 mOhms
Resistance - Post Trip (R1) (Max) : 450 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 1812 (4532 Metric), Concave
Size / Dimension : 0.179" L x 0.128" W (4.55mm x 3.24mm)
Height - Seated (Max) : -
Thickness (Max) : 0.033" (0.85mm)
Lead Spacing : -
0
3935 in stock
PFMF.075.24.2
Schurter
Manufacturer : Schurter Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PFMF
Part Status : Active
Type : Polymeric
Voltage - Max : 24V
Current - Max : 40A
Current - Hold (Ih) (Max) : 750mA
Current - Trip (It) : 1.5A
Time to Trip : 200ms
Resistance - Initial (Ri) (Min) : 110 mOhms
Resistance - Post Trip (R1) (Max) : 450 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 1812 (4532 Metric), Concave
Size / Dimension : 0.179" L x 0.128" W (4.55mm x 3.24mm)
Height - Seated (Max) : -
Thickness (Max) : 0.033" (0.85mm)
Lead Spacing : -
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PFMF
Part Status : Active
Type : Polymeric
Voltage - Max : 24V
Current - Max : 40A
Current - Hold (Ih) (Max) : 750mA
Current - Trip (It) : 1.5A
Time to Trip : 200ms
Resistance - Initial (Ri) (Min) : 110 mOhms
Resistance - Post Trip (R1) (Max) : 450 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 1812 (4532 Metric), Concave
Size / Dimension : 0.179" L x 0.128" W (4.55mm x 3.24mm)
Height - Seated (Max) : -
Thickness (Max) : 0.033" (0.85mm)
Lead Spacing : -
0
1375 in stock

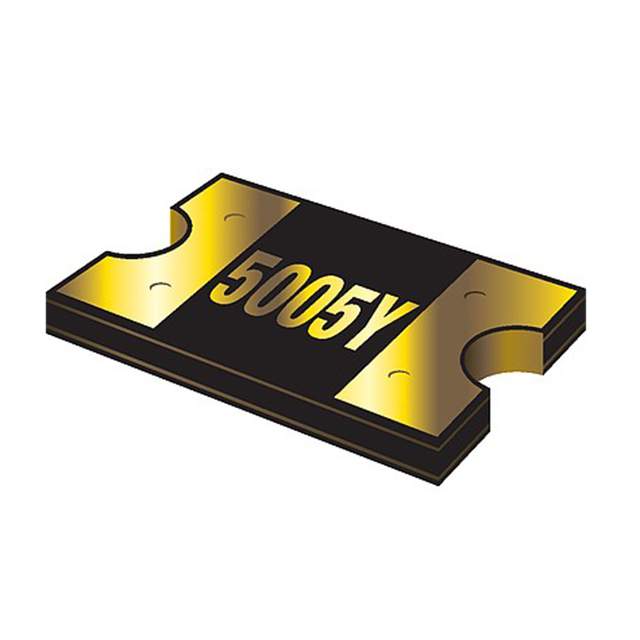

PFMF.110.16.2
Schurter
Manufacturer : Schurter Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PFMF
Part Status : Active
Type : Polymeric
Voltage - Max : 16V
Current - Max : 100A
Current - Hold (Ih) (Max) : 1.1A
Current - Trip (It) : 2.2A
Time to Trip : 300ms
Resistance - Initial (Ri) (Min) : 40 mOhms
Resistance - Post Trip (R1) (Max) : 210 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 1812 (4532 Metric), Concave
Size / Dimension : 0.179" L x 0.128" W (4.55mm x 3.24mm)
Height - Seated (Max) : -
Thickness (Max) : 0.033" (0.85mm)
Lead Spacing : -
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PFMF
Part Status : Active
Type : Polymeric
Voltage - Max : 16V
Current - Max : 100A
Current - Hold (Ih) (Max) : 1.1A
Current - Trip (It) : 2.2A
Time to Trip : 300ms
Resistance - Initial (Ri) (Min) : 40 mOhms
Resistance - Post Trip (R1) (Max) : 210 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 1812 (4532 Metric), Concave
Size / Dimension : 0.179" L x 0.128" W (4.55mm x 3.24mm)
Height - Seated (Max) : -
Thickness (Max) : 0.033" (0.85mm)
Lead Spacing : -
0
1955 in stock
PFMF.110.2
Schurter
Manufacturer : Schurter Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PFMF
Part Status : Active
Type : Polymeric
Voltage - Max : 6V
Current - Max : 100A
Current - Hold (Ih) (Max) : 1.1A
Current - Trip (It) : 2.2A
Time to Trip : 300ms
Resistance - Initial (Ri) (Min) : 40 mOhms
Resistance - Post Trip (R1) (Max) : 210 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 1812 (4532 Metric), Concave
Size / Dimension : 0.179" L x 0.128" W (4.55mm x 3.24mm)
Height - Seated (Max) : -
Thickness (Max) : 0.033" (0.85mm)
Lead Spacing : -
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PFMF
Part Status : Active
Type : Polymeric
Voltage - Max : 6V
Current - Max : 100A
Current - Hold (Ih) (Max) : 1.1A
Current - Trip (It) : 2.2A
Time to Trip : 300ms
Resistance - Initial (Ri) (Min) : 40 mOhms
Resistance - Post Trip (R1) (Max) : 210 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 1812 (4532 Metric), Concave
Size / Dimension : 0.179" L x 0.128" W (4.55mm x 3.24mm)
Height - Seated (Max) : -
Thickness (Max) : 0.033" (0.85mm)
Lead Spacing : -
0
1775 in stock
PFMF.125.2
Schurter
Manufacturer : Schurter Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PFMF
Part Status : Active
Type : Polymeric
Voltage - Max : 6V
Current - Max : 100A
Current - Hold (Ih) (Max) : 1.25A
Current - Trip (It) : 2.5A
Time to Trip : 400ms
Resistance - Initial (Ri) (Min) : 35 mOhms
Resistance - Post Trip (R1) (Max) : 140 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 1812 (4532 Metric), Concave
Size / Dimension : 0.179" L x 0.128" W (4.55mm x 3.24mm)
Height - Seated (Max) : -
Thickness (Max) : 0.033" (0.85mm)
Lead Spacing : -
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PFMF
Part Status : Active
Type : Polymeric
Voltage - Max : 6V
Current - Max : 100A
Current - Hold (Ih) (Max) : 1.25A
Current - Trip (It) : 2.5A
Time to Trip : 400ms
Resistance - Initial (Ri) (Min) : 35 mOhms
Resistance - Post Trip (R1) (Max) : 140 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 1812 (4532 Metric), Concave
Size / Dimension : 0.179" L x 0.128" W (4.55mm x 3.24mm)
Height - Seated (Max) : -
Thickness (Max) : 0.033" (0.85mm)
Lead Spacing : -
0
1995 in stock
PFMF.150.2
Schurter
Manufacturer : Schurter Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PFMF
Part Status : Active
Type : Polymeric
Voltage - Max : 6V
Current - Max : 100A
Current - Hold (Ih) (Max) : 1.5A
Current - Trip (It) : 3A
Time to Trip : 500ms
Resistance - Initial (Ri) (Min) : 30 mOhms
Resistance - Post Trip (R1) (Max) : 120 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 1812 (4532 Metric), Concave
Size / Dimension : 0.179" L x 0.128" W (4.55mm x 3.24mm)
Height - Seated (Max) : -
Thickness (Max) : 0.033" (0.85mm)
Lead Spacing : -
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PFMF
Part Status : Active
Type : Polymeric
Voltage - Max : 6V
Current - Max : 100A
Current - Hold (Ih) (Max) : 1.5A
Current - Trip (It) : 3A
Time to Trip : 500ms
Resistance - Initial (Ri) (Min) : 30 mOhms
Resistance - Post Trip (R1) (Max) : 120 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 1812 (4532 Metric), Concave
Size / Dimension : 0.179" L x 0.128" W (4.55mm x 3.24mm)
Height - Seated (Max) : -
Thickness (Max) : 0.033" (0.85mm)
Lead Spacing : -
0
1860 in stock
PFMF.160.2
Schurter
Manufacturer : Schurter Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PFMF
Part Status : Active
Type : Polymeric
Voltage - Max : 8V
Current - Max : 100A
Current - Hold (Ih) (Max) : 1.6A
Current - Trip (It) : 2.8A
Time to Trip : 2s
Resistance - Initial (Ri) (Min) : 35 mOhms
Resistance - Post Trip (R1) (Max) : 99 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 1812 (4532 Metric), Concave
Size / Dimension : 0.179" L x 0.128" W (4.55mm x 3.24mm)
Height - Seated (Max) : -
Thickness (Max) : 0.033" (0.85mm)
Lead Spacing : -
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PFMF
Part Status : Active
Type : Polymeric
Voltage - Max : 8V
Current - Max : 100A
Current - Hold (Ih) (Max) : 1.6A
Current - Trip (It) : 2.8A
Time to Trip : 2s
Resistance - Initial (Ri) (Min) : 35 mOhms
Resistance - Post Trip (R1) (Max) : 99 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 1812 (4532 Metric), Concave
Size / Dimension : 0.179" L x 0.128" W (4.55mm x 3.24mm)
Height - Seated (Max) : -
Thickness (Max) : 0.033" (0.85mm)
Lead Spacing : -
0
3900 in stock
PFMF.200.2
Schurter
Manufacturer : Schurter Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PFMF
Part Status : Active
Type : Polymeric
Voltage - Max : 8V
Current - Max : 40A
Current - Hold (Ih) (Max) : 2A
Current - Trip (It) : 4A
Time to Trip : 3s
Resistance - Initial (Ri) (Min) : 20 mOhms
Resistance - Post Trip (R1) (Max) : 80 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 1812 (4532 Metric), Concave
Size / Dimension : 0.179" L x 0.128" W (4.55mm x 3.24mm)
Height - Seated (Max) : -
Thickness (Max) : 0.033" (0.85mm)
Lead Spacing : -
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PFMF
Part Status : Active
Type : Polymeric
Voltage - Max : 8V
Current - Max : 40A
Current - Hold (Ih) (Max) : 2A
Current - Trip (It) : 4A
Time to Trip : 3s
Resistance - Initial (Ri) (Min) : 20 mOhms
Resistance - Post Trip (R1) (Max) : 80 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 1812 (4532 Metric), Concave
Size / Dimension : 0.179" L x 0.128" W (4.55mm x 3.24mm)
Height - Seated (Max) : -
Thickness (Max) : 0.033" (0.85mm)
Lead Spacing : -
0
1771 in stock
PFMF.260.2
Schurter
Manufacturer : Schurter Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PFMF
Part Status : Active
Type : Polymeric
Voltage - Max : 6V
Current - Max : 100A
Current - Hold (Ih) (Max) : 2.6A
Current - Trip (It) : 5.2A
Time to Trip : 5s
Resistance - Initial (Ri) (Min) : 15 mOhms
Resistance - Post Trip (R1) (Max) : 80 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 1812 (4532 Metric), Concave
Size / Dimension : 0.179" L x 0.128" W (4.55mm x 3.24mm)
Height - Seated (Max) : -
Thickness (Max) : 0.033" (0.85mm)
Lead Spacing : -
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PFMF
Part Status : Active
Type : Polymeric
Voltage - Max : 6V
Current - Max : 100A
Current - Hold (Ih) (Max) : 2.6A
Current - Trip (It) : 5.2A
Time to Trip : 5s
Resistance - Initial (Ri) (Min) : 15 mOhms
Resistance - Post Trip (R1) (Max) : 80 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 1812 (4532 Metric), Concave
Size / Dimension : 0.179" L x 0.128" W (4.55mm x 3.24mm)
Height - Seated (Max) : -
Thickness (Max) : 0.033" (0.85mm)
Lead Spacing : -
0
1800 in stock

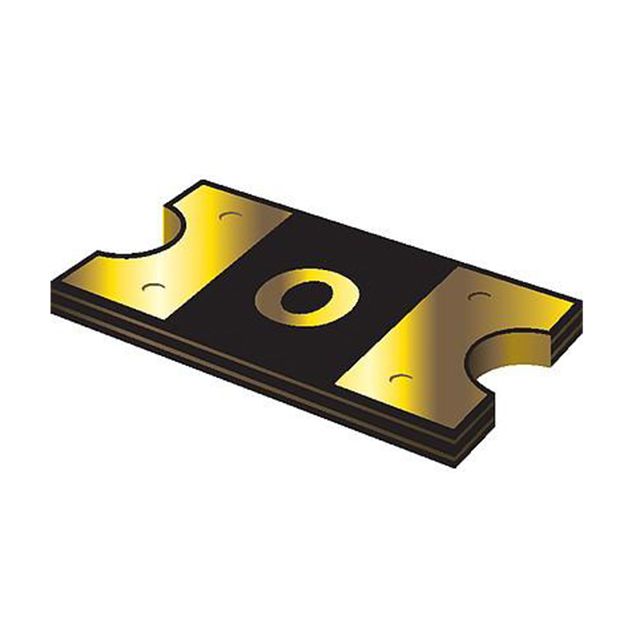

PFNF.012.2
Schurter
Manufacturer : Schurter Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PFNF
Part Status : Active
Type : Polymeric
Voltage - Max : 30V
Current - Max : 10A
Current - Hold (Ih) (Max) : 120mA
Current - Trip (It) : 290mA
Time to Trip : 200ms
Resistance - Initial (Ri) (Min) : 1.35 Ohms
Resistance - Post Trip (R1) (Max) : 8.5 Ohms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 1206 (3216 Metric), Concave
Size / Dimension : 0.126" L x 0.063" W (3.20mm x 1.60mm)
Height - Seated (Max) : -
Thickness (Max) : 0.043" (1.10mm)
Lead Spacing : -
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PFNF
Part Status : Active
Type : Polymeric
Voltage - Max : 30V
Current - Max : 10A
Current - Hold (Ih) (Max) : 120mA
Current - Trip (It) : 290mA
Time to Trip : 200ms
Resistance - Initial (Ri) (Min) : 1.35 Ohms
Resistance - Post Trip (R1) (Max) : 8.5 Ohms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 1206 (3216 Metric), Concave
Size / Dimension : 0.126" L x 0.063" W (3.20mm x 1.60mm)
Height - Seated (Max) : -
Thickness (Max) : 0.043" (1.10mm)
Lead Spacing : -
0
2423 in stock
PFNF.020.2
Schurter
Manufacturer : Schurter Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PFNF
Part Status : Active
Type : Polymeric
Voltage - Max : 24V
Current - Max : 10A
Current - Hold (Ih) (Max) : 200mA
Current - Trip (It) : 460mA
Time to Trip : 600ms
Resistance - Initial (Ri) (Min) : 600 mOhms
Resistance - Post Trip (R1) (Max) : 2.6 Ohms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 1206 (3216 Metric), Concave
Size / Dimension : 0.126" L x 0.063" W (3.20mm x 1.60mm)
Height - Seated (Max) : -
Thickness (Max) : 0.033" (0.85mm)
Lead Spacing : -
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PFNF
Part Status : Active
Type : Polymeric
Voltage - Max : 24V
Current - Max : 10A
Current - Hold (Ih) (Max) : 200mA
Current - Trip (It) : 460mA
Time to Trip : 600ms
Resistance - Initial (Ri) (Min) : 600 mOhms
Resistance - Post Trip (R1) (Max) : 2.6 Ohms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 1206 (3216 Metric), Concave
Size / Dimension : 0.126" L x 0.063" W (3.20mm x 1.60mm)
Height - Seated (Max) : -
Thickness (Max) : 0.033" (0.85mm)
Lead Spacing : -
0
2880 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2025 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
